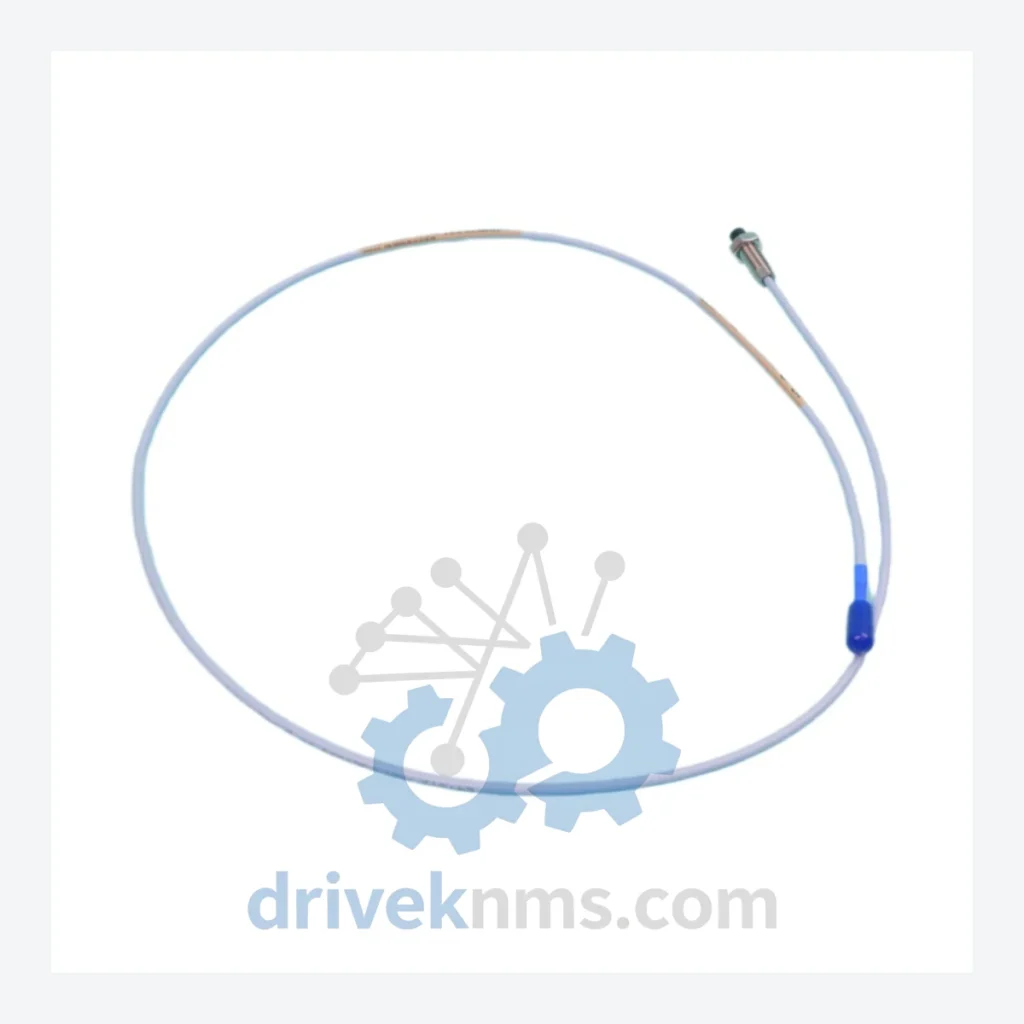

Bently Nevada 330101-00-11-10-11-00 Proximity Probe – Obsolete 3300 Series Spare Part

Technical Dossier

Product Details And Specifications

Bently Nevada 330101-00-11-10-11-00 Proximity Probe – Obsolete 3300 Series Spare Part

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

DriveKNMS reviews sourcing status and documentation for this model during RFQ handling before quotation.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Solving the Discontinued Hardware Crisis

The Bently Nevada 3300 XL proximity transducer system was the industry standard for machinery protection monitoring for over two decades. Thousands of installations remain in active service at facilities that have no near-term budget or operational window for a full platform migration. The 330101-00-11-10-11-00 probe is the field-replaceable element in these loops. When it fails, the monitor, the extension cable, and the interconnecting wiring remain functional — only the probe itself requires replacement.

The discontinuation of the 330101 family creates a specific operational risk: facilities that do not maintain a strategic spare inventory are one probe failure away from a forced choice between an unplanned extended outage and an emergency system upgrade. Neither outcome is acceptable in a continuous-process environment. The cost of a single unplanned turbine outage at a refinery or power plant typically dwarfs the cost of maintaining a multi-year spare parts buffer by a factor of ten or more.

Sourcing a genuine 330101-00-11-10-11-00 from a verified secondary-market supplier eliminates that forced choice. The probe installs into the existing mounting boss, connects to the existing extension cable, and restores the monitoring loop without any modification to the monitor configuration, alarm setpoints, or machinery protection logic. No engineering change order. No revalidation of the protection system. No retraining of operations staff.

For plant reliability engineers and maintenance managers operating aging rotating machinery assets, the calculus is straightforward: the cost of a verified spare probe is a rounding error against the cost of the alternative. The strategic question is not whether to source the part — it is whether to source it before the failure or after it.

Extending Automation Asset Life by 5–10 Years: A Practical Framework

Facilities managing legacy Bently Nevada 3300 Series installations face a common pressure: corporate asset management cycles push for platform standardization, while operational reality demands that critical machinery protection systems remain functional and validated. The following framework has been applied successfully at facilities that have extended 3300 Series service life by five to ten years without compromising protection integrity.

1. Probe and transducer inventory audit. Catalog every 330101-series probe in service by location, installation date, and last calibration date. Probes in high-temperature or high-vibration environments degrade faster. Identify the highest-risk installations and prioritize spare coverage for those positions first.

3. Conditioner module verification. The 3300 XL proximitor/conditioner modules are themselves subject to component aging. Verify output voltage at the monitor input terminals against the probe gap calibration curve. Drift outside the specified linear range indicates conditioner degradation, not probe failure.

5. Documentation and change control. Maintain a spare parts register that tracks serial numbers, storage conditions, and shelf life. Eddy-current probes stored in controlled environments retain calibration characteristics for extended periods, but documentation of storage history is required for regulatory compliance at many facilities.

This framework does not require capital expenditure on new monitoring hardware. It requires disciplined inventory management and a reliable source for discontinued components. The total cost of implementing this framework across a mid-sized rotating machinery fleet is typically recovered within the first avoided unplanned outage.

Condition & Reliability Assurance

Every 330101-00-11-10-11-00 unit shipped by DriveKNMS passes a structured five-step inspection protocol before release. This protocol is designed specifically for discontinued electromechanical components where OEM quality assurance is no longer available.

Step 2 – Connector and pin inspection. The integral cable connector is inspected under magnification for pin corrosion, bent contacts, and seal integrity. Corrosion at the connector interface is the most common failure mode for stored proximity probes and is a disqualifying condition.

Step 3 – Electrolytic capacitor assessment. Where applicable to associated conditioning electronics, capacitor aging is assessed. For the probe itself, coil resistance and insulation resistance are measured and compared against documented 3300 XL system specifications.

Step 4 – Functional verification. Each probe is tested in a calibrated eddy-current test fixture to verify output sensitivity (mV/mil or mV/mm) against the Bently Nevada 3300 XL specification. Units that do not meet the specified sensitivity within tolerance are not shipped.

Step 5 – Firmware and labeling verification. Part number markings, date codes, and any revision indicators are verified against known-good reference units. Counterfeit or remarked parts are a documented risk in the obsolete parts market. DriveKNMS does not ship units with inconsistent or suspect markings.

Key Features for System Maintenance

The 330101-00-11-10-11-00 is a direct drop-in replacement for any failed probe in a 3300 XL 8mm transducer system. No modifications to the existing installation are required beyond the physical probe replacement and gap setting verification.

There is no firmware to update, no configuration file to transfer, and no monitor parameter to adjust. The 3300 Series monitor reads the probe output as a DC voltage proportional to gap distance. Once the replacement probe is installed and the gap is set to the specified voltage per the original calibration sheet, the monitoring loop is restored to its original functional state.

This characteristic — the absence of any software dependency in the replacement process — is one of the reasons the 3300 XL system remains in service at facilities that have otherwise modernized their control infrastructure. The replacement procedure can be executed by a qualified instrumentation technician without involvement from a controls engineer or OEM service representative. That independence from OEM support is operationally significant for facilities managing discontinued platforms.

Avoiding a system upgrade also avoids the associated engineering costs: new monitor procurement, panel modification, cable rerouting, I/O mapping changes in the safety or control system, functional safety revalidation, and operator retraining. For a single probe position, those costs are disproportionate. For a facility with dozens of probe positions, they are prohibitive without a dedicated capital project.

Q: How is condition confirmed before quotation?
A: Available condition, photos, test records and documentation are checked according to the requested model and sourcing channel before a formal RFQ response.

How do I know the unit is genuine and not a counterfeit or remarked part?
Every unit is inspected against known-good reference markings and tested functionally in a calibrated fixture. We do not source from unverified brokers. If you require documentation of the inspection process for a specific unit, contact us before purchase.

Can I use this probe with a Bently Nevada 3500 Series monitor?
The 3300 XL and 3500 Series use the same eddy-current transducer technology and are generally compatible, but the gap voltage calibration and sensitivity must be verified against the 3500 monitor's input specifications. We recommend confirming compatibility with your instrumentation team before installation.

Q: Can you support multi-unit or repeat RFQ requests?
A: Yes. Send the model list, target quantity and destination so DRIVEKNMS can review sourcing options and quote the requirement as a project RFQ.
