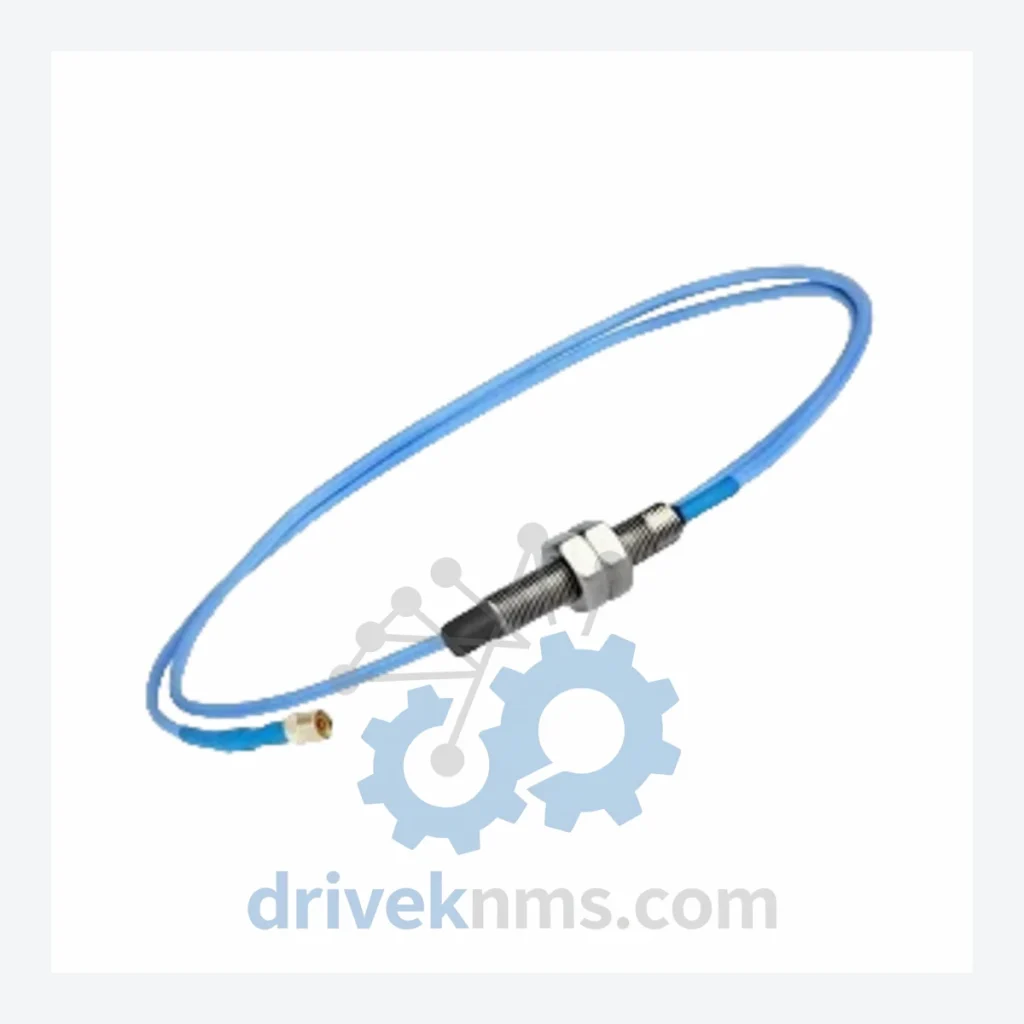

Bently Nevada 330101-00-20-10-12-05 Proximity Probe – Obsolete 3300 Series Spare Part

The Bently Nevada 330101-00-20-10-12-05 is an eddy-current proximity probe belonging to the 3300 Series, one of the most widely deployed non-contact vibration measurement systems in heavy industrial turbomachinery. This probe is a direct component of shaft vibration, axial position, and differential expansion monitoring loops found in steam turbines, gas compressors, centrifugal pumps, and large rotating equipment across petrochemical plants, power generation facilities, and LNG terminals worldwide.

DriveKNMS maintains sourced inventory of the 330101-00-20-10-12-05 specifically to serve facilities that cannot justify a full system migration and require a verified drop-in replacement to sustain operations.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Solving the Discontinued Hardware Crisis

The Bently Nevada 3300 Series proximity transducer system was the industry standard for turbomachinery protection from the 1980s through the early 2000s. Thousands of installations across refineries, power plants, and offshore platforms were built around this platform. Baker Hughes officially transitioned its primary product line to the 3500 Series and subsequently the System 1 / Orbit 60 platform, leaving 3300 Series components in a sustained end-of-life status.

The 330101-00-20-10-12-05 probe is a field-replaceable unit in these legacy installations. Its physical and electrical characteristics — 8mm tip diameter, 2-meter integral cable, specific sensitivity curve — are matched to the 330180 Proximitor and the signal conditioning cards installed in 3300 monitoring racks. Substituting a probe from a different series or a different cable length without recalibrating the entire measurement loop introduces systematic measurement error. In API 670-governed machinery protection applications, this is not an acceptable risk.

Commonly paired legacy systems:

• Bently Nevada 3300 Series monitoring racks (3300/16, 3300/20, 3300/25)
• Bently Nevada 3500 Series (with 3300 XL compatibility modules)
• Honeywell TDC 3000 integrated machinery monitoring configurations
• ABB MasterPiece 200/1 with third-party vibration I/O cards
• ADRE 408 DSPi portable data acquisition systems

Condition & Reliability Assurance

• Step 1 – Visual & Mechanical Inspection: Probe tip, body, and integral cable are inspected for physical damage, connector corrosion, and jacket integrity. Any unit with cracked cable jacket or corroded SMA/BNC connector is rejected.
• Step 2 – Electrolytic Capacitor Assessment: Internal coupling components are evaluated for signs of electrolyte migration or capacitance drift, which directly affects the probe's gap voltage linearity.
• Step 3 – Sensitivity Curve Verification: Each probe is bench-tested against a calibrated steel target to verify the output voltage-vs-gap curve conforms to the 3300 XL specification (nominally –200 mV/mil or –7.87 V/mm).
• Step 4 – Firmware / Label Traceability Check: Part number label, date code, and any revision markings are cross-referenced against Bently Nevada's published part number matrix to confirm the unit is the correct variant for the application.
• Step 5 – Connector Pin Inspection: Coaxial connector center pin and outer shield are inspected for oxidation, deformation, and contact resistance. Units failing contact resistance thresholds are rejected.

Key Features for System Maintenance

Q: Can the 330101-00-20-10-12-05 be used with 3500 Series racks?
A: The 3300 XL probe system is electrically compatible with 3500 Series Proximitor modules in most configurations, but this must be verified against the specific 3500 rack card and Proximitor part number in use. DriveKNMS can assist with compatibility verification prior to shipment.
