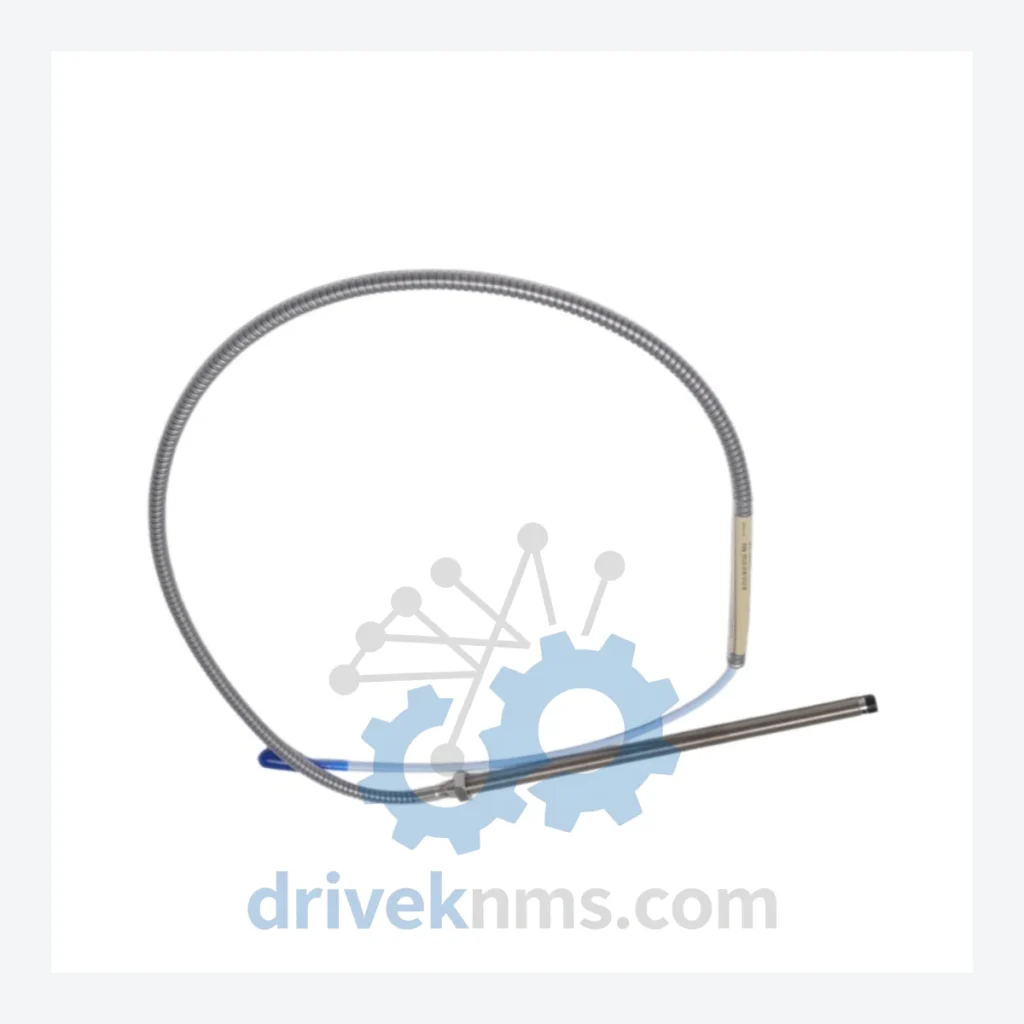

Bently Nevada 330102-00-80-10-11-05 Proximity Probe – Obsolete 3300 Series Spare Part

Technical Dossier

Product Details And Specifications

Bently Nevada 330102-00-80-10-11-05 Proximity Probe – Obsolete 3300 Series Spare Part

When a Bently Nevada 3300 Series proximity probe fails in a turbomachinery protection system, the consequences are not limited to a single sensor replacement. The 3300 Series architecture — built around matched probe, extension cable, and proximitor — operates as an interdependent measurement chain. Sourcing a non-original or incompatible replacement risks signal calibration errors, false trip events, and, in worst cases, undetected shaft displacement that leads to catastrophic bearing failure. A single unplanned turbine or compressor overhaul routinely costs USD 2–5 million in parts, labor, and lost production. Against that exposure, securing a verified original-specification 330102-00-80-10-11-05 from DriveKNMS's limited inventory is not a procurement decision — it is an asset protection decision.

The 330102-00-80-10-11-05 has been discontinued by Bently Nevada (a Baker Hughes company). New manufacture is no longer available through authorized distribution channels. DriveKNMS maintains a carefully managed stock of this probe for facilities that operate legacy rotating machinery protection systems and cannot justify a full platform migration.

Technical Specifications

Note: Electrical parameters such as sensitivity (mV/mil), gap voltage range, and frequency response are defined by the 3300 Series system specification. DriveKNMS does not publish unverified parameters. Please contact us with your system configuration for compatibility confirmation.

Solving the Discontinued Hardware Crisis

The Bently Nevada 3300 Series was the industry standard for turbomachinery vibration and position monitoring across petrochemical, power generation, and oil & gas facilities for decades. Many of these installations remain in active service — not because operators are unaware of newer platforms, but because the cost and risk of migrating a certified safety-instrumented system (SIS) or machinery protection system (MPS) to a new architecture is prohibitive.

A full platform migration from a 3300 Series installation to a current Bently Nevada System 1 or 3500 Series architecture involves recertification of all measurement loops, potential requalification under API 670 or IEC 61511, new cable infrastructure, updated DCS integration, and extended commissioning downtime. For a mid-size refinery or power plant, this project scope typically runs USD 500,000 to over USD 2 million, excluding production loss during the transition window.

The 330102-00-80-10-11-05 proximity probe is the field-facing element of this measurement chain. It is the component most exposed to process environment — heat, vibration, chemical exposure — and therefore the most likely to require periodic replacement. When this probe is no longer available through standard channels, facilities face a forced-choice scenario: accept unmonitored operation (a safety and compliance violation), install an incompatible substitute (a calibration and liability risk), or execute an unplanned platform migration under time pressure.

DriveKNMS exists to eliminate that forced choice. By maintaining verified inventory of discontinued Bently Nevada components, we allow plant engineering teams to execute planned, budgeted maintenance on their own schedule — not on the schedule imposed by parts scarcity.

How to extend your 3300 Series installation life by 5–10 years:

• Establish a minimum spare holding policy. For each active 3300 Series probe installation, maintain a minimum of two spare probes per measurement plane. Given the discontinuation status of the 330102-00-80-10-11-05, replenishment from the open market will become progressively more difficult and expensive. Procurement now, at known cost, is materially cheaper than emergency sourcing in 18 months.
• Audit your extension cable and proximitor inventory simultaneously. The 3300 Series measurement chain fails as a system. A probe in stock provides no protection if the matched extension cable or proximitor is unavailable. Conduct a full BOM audit of your 3300 Series spares holdings against installed base.
• Implement condition-based probe replacement intervals. Rather than run-to-failure, establish a scheduled replacement interval based on process environment severity. In high-temperature or chemically aggressive environments, proactive replacement every 3–5 years prevents the unplanned failure scenario entirely.
• Document installed firmware and proximitor calibration data. Before any probe replacement, record the existing gap voltage and proximitor output at the known shaft position. This baseline allows rapid recommissioning after replacement without requiring a full vibration specialist mobilization.
• Engage a qualified spare parts supplier before the need is urgent. Emergency sourcing of discontinued components carries a significant price premium and lead time risk. Establishing a supply relationship with DriveKNMS now allows pre-negotiated pricing and priority allocation from available stock.

Condition & Reliability Assurance

Discontinued components sourced from the secondary market carry inherent risk if not properly evaluated. DriveKNMS applies a 5-step qualification process to all 330102-00-80-10-11-05 units before dispatch:

1. Visual and mechanical inspection. Full external examination for probe tip damage, connector pin corrosion, cable jacket integrity, and thread condition on the probe body. Any unit with physical compromise is rejected at this stage.
2. Electrolytic capacitor assessment. Internal passive components, including electrolytic capacitors where accessible, are evaluated for signs of aging, leakage, or ESR degradation. Units exhibiting capacitor deterioration are not offered as serviceable spares.
3. Firmware and configuration verification. Where applicable, proximitor and associated electronics are checked against known firmware versions to confirm compatibility with 3300 Series system configurations.
4. Pin and connector corrosion inspection. All electrical connection points are inspected under magnification for oxidation, pitting, or contamination. Affected connectors are cleaned to specification or the unit is downgraded.
5. Functional output verification. Where test equipment permits, probe sensitivity and output linearity are verified against 3300 Series specification ranges before the unit is classified as serviceable.

Units that pass all five stages are classified as Certified Serviceable. Units that pass visual and mechanical inspection but cannot be fully functionally tested are offered as New Old Stock (NOS) with full disclosure of test status. No unit is represented beyond its verified condition.

Key Features for System Maintenance

• Drop-in replacement compatibility. The 330102-00-80-10-11-05 is a direct physical and electrical replacement for the same part number in any 3300 Series installation. No mechanical modification, no rewiring, no reconfiguration of the proximitor or monitoring rack is required.
• No reprogramming required. Unlike platform migration scenarios, replacing a like-for-like probe requires only gap setting verification — a procedure that takes minutes, not days. Engineering labor cost is minimal.
• Avoids engineering requalification costs. Substituting an original-specification component maintains the existing system certification baseline. Introducing a non-original substitute may trigger a management of change (MOC) process, requiring engineering review, documentation, and potentially regulatory notification. A verified original part eliminates this administrative burden entirely.
• Preserves existing DCS and historian integration. The measurement chain output characteristics remain unchanged, meaning no recalibration of alarm setpoints, no historian tag remapping, and no operator retraining.

FAQ

What warranty applies to discontinued parts?
DriveKNMS provides a 90-day warranty on all Certified Serviceable units covering functional performance. New Old Stock units are offered with a 30-day inspection warranty. Warranty terms are confirmed in writing at the time of order.

How do I confirm the unit is genuine and not counterfeit?
All units sourced by DriveKNMS are traceable to known supply chain origins. We provide documentation of unit provenance where available. Physical authenticity markers — including Bently Nevada part markings, date codes, and connector specifications — are verified during our qualification process. We do not source from unverified brokers.

Should I purchase multiple units as long-term spares?
For any facility with more than two 3300 Series probe installations, purchasing a minimum of four to six units as long-term spares is a defensible asset protection strategy. The 330102-00-80-10-11-05 will not return to production. Available inventory in the secondary market will decrease over time as other facilities consume existing stock. The cost of holding spare probes is a fraction of the cost of a single unplanned outage.

What is the lead time?
In-stock units ship within 3–5 business days after order confirmation and payment. Contact us to confirm current stock availability before placing an order.

Can DriveKNMS source other Bently Nevada 3300 Series components?
Yes. DriveKNMS specializes in legacy Bently Nevada inventory including proximitors, extension cables, monitors, and rack components across the 3300 and 3500 Series. Contact us with your full BOM for a consolidated sourcing assessment.
