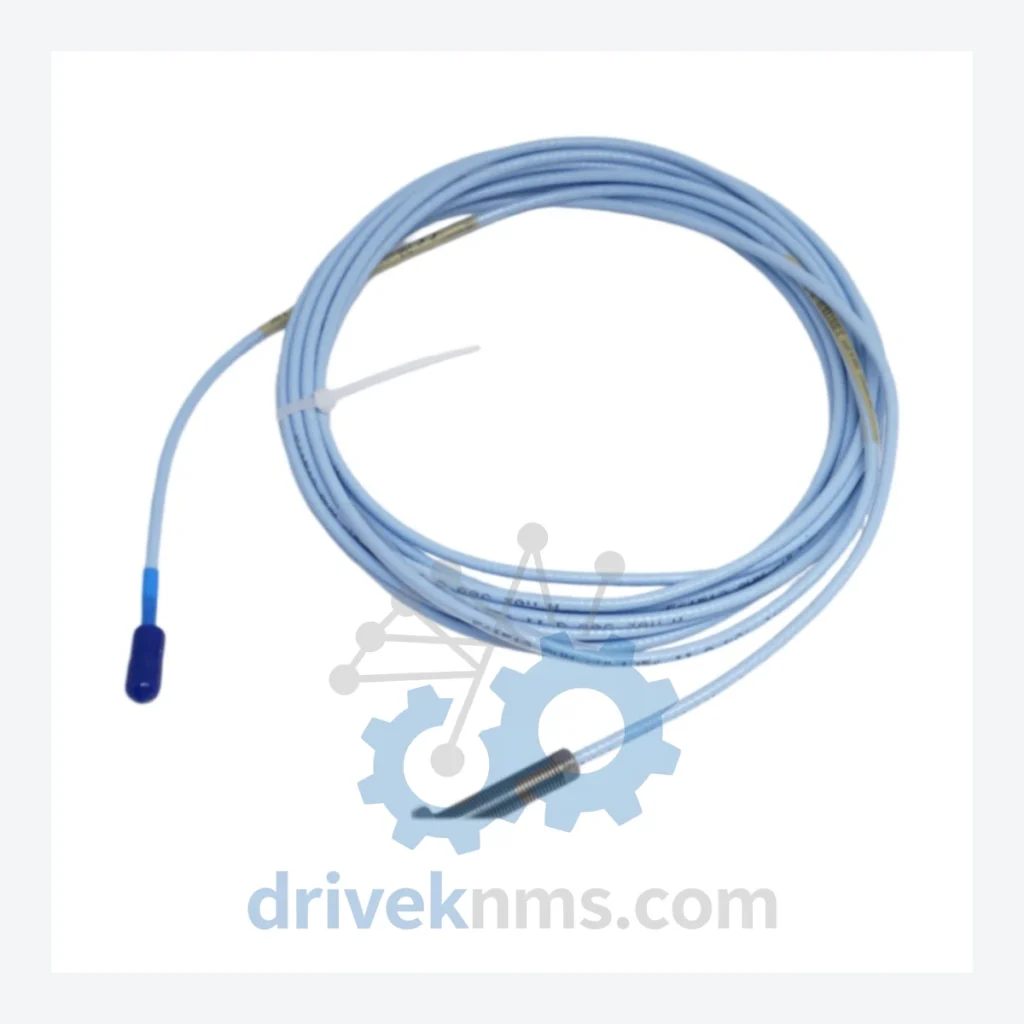

Bently Nevada 330103-00-06-50-02-RU Proximity Probe – Obsolete 3300 Series Spare Part

Technical Dossier

Product Details And Specifications

Bently Nevada 330103-00-06-50-02-RU Proximity Probe – Obsolete 3300 Series Spare Part

When a proximity probe fails in a Bently Nevada 3300 Series vibration monitoring system, the consequences extend far beyond a single sensor replacement. These systems are the backbone of turbomachinery protection in refineries, power generation plants, and petrochemical facilities worldwide. A single unplanned shutdown caused by an unresolved probe failure can cost a facility USD $500,000 to several million dollars per day in lost production. Forced migration to a modern monitoring platform — rewiring, reconfiguration, revalidation, and retraining — routinely exceeds USD $2–5 million per machine train.

The 330103-00-06-50-02-RU is a discontinued component. Bently Nevada no longer manufactures or supports this part number. DriveKNMS maintains verified physical stock sourced through controlled industrial channels. For facilities operating legacy 3300 Series systems, this is not a commodity purchase — it is an asset protection decision.

Technical Specifications

Note: Only confirmed specifications derived from the part number structure are listed above. No electrical parameters have been assumed. Consult your system documentation or contact DriveKNMS for full datasheet support.

Solving the Discontinued Hardware Crisis

The Bently Nevada 3300 XL proximity transducer system was the industry standard for shaft vibration and position measurement across gas turbines, steam turbines, compressors, and pumps for decades. Thousands of these systems remain in active service globally — not because operators are unaware of newer alternatives, but because the cost and risk of replacing a validated, certified protection system mid-asset-lifecycle is prohibitive.

The 330103-00-06-50-02-RU probe is a direct field component in these systems. It operates as part of a three-component transducer system: probe, extension cable, and proximitor/driver. The probe itself is the primary wear item — exposed to heat, vibration, and process fluids. When it degrades or fails, the entire channel goes offline. In a 3300 Series rack, a failed channel can trigger a machine trip or, worse, leave a critical machine running unprotected.

Sourcing a direct replacement without system modification is the only path that avoids engineering change orders, re-certification, and production downtime. That is precisely what the 330103-00-06-50-02-RU provides: a verified drop-in replacement for an existing validated installation.

How to extend your automation asset life by 5–10 years through strategic spare parts management:

• Conduct a criticality audit. Identify every probe channel on your 3300 Series racks. Map which machines are single-string (no redundancy) and which channels have no installed spare. These are your highest-risk exposure points.
• Establish a minimum stock level. For each unique probe part number in your facility, maintain a minimum of two units on-site. For critical single-string machines, three units is the defensible standard.
• Source before failure, not after. Obsolete parts become exponentially harder to source once a failure event creates urgency. Procurement under pressure leads to counterfeit risk and inflated pricing. Planned procurement from verified suppliers like DriveKNMS eliminates both risks.
• Document your installed base. Maintain a living register of all probe part numbers, installation dates, and last calibration records. This register becomes the foundation of a cost-justified life extension program that can be presented to plant management and insurers.
• Negotiate long-term supply agreements. For facilities with 20+ probe channels on legacy systems, a forward-purchase agreement with a specialist supplier locks in pricing and guarantees availability for a defined period — typically 3–5 years.

Facilities that execute this strategy consistently report deferring system replacement by 7–10 years beyond the OEM end-of-life date, at a fraction of the capital cost of a full platform migration.

Condition & Reliability Assurance

Every 330103-00-06-50-02-RU unit processed by DriveKNMS passes a structured 5-step inspection protocol before it is offered for sale. For discontinued components, the inspection standard is more stringent than for current-production parts, because there is no OEM warranty backstop.

1. Visual and mechanical inspection. Full external examination of the probe tip, body, and connector. Any unit with physical damage, corrosion pitting, or deformed threads is rejected at this stage.
2. Pin and connector integrity check. Connector pins are inspected under magnification for oxidation, bending, and contact surface degradation. Corroded pins are a primary failure mode in stored legacy probes and are a disqualifying defect.
3. Cable continuity and insulation resistance test. The integral cable is tested for continuity and insulation breakdown. Cracked or hardened cable jackets — a common age-related failure in stored probes — are flagged and the unit is rejected.
4. Coil impedance verification. The probe coil is measured to confirm it falls within the specification range for the 3300 XL system. Coil drift indicates internal damage and renders the probe non-functional in the target system.
5. Functional system test (where test equipment is available). Units are bench-tested against a compatible proximitor to confirm the full transducer chain produces a valid output signal within the expected gap voltage range.

Units that pass all five stages are classified as Verified Serviceable. Units that pass stages 1–4 but cannot be bench-tested due to equipment constraints are classified as Inspected – Untested and are disclosed as such. DriveKNMS does not sell units that fail any inspection stage.

Key Features for System Maintenance

• Drop-in replacement. The 330103-00-06-50-02-RU installs directly into any existing 3300 XL probe mount that accepts an 8mm probe with the corresponding thread specification. No mechanical modification required.
• No reprogramming required. The 3300 Series monitor does not require reconfiguration when a probe is replaced with an identical part number. Gap voltage is set mechanically during installation per the standard commissioning procedure.
• No engineering change order. Because the replacement is part-number identical, it does not trigger a management of change (MOC) process in most facility safety management systems. This eliminates weeks of administrative delay.
• Preserves existing certification. Facilities operating under functional safety standards (IEC 61511, SIL-rated systems) can replace a probe with an identical part number without triggering a full safety lifecycle review, provided the replacement is documented correctly.
• Avoids platform migration costs. The alternative to sourcing this probe is migrating to a current-generation monitoring system. That process involves new monitors, new cabling, new software configuration, new operator training, and a full validation campaign. The cost differential between sourcing a spare probe and executing a platform migration is measured in orders of magnitude.

FAQ

Q: What warranty applies to a discontinued part?
A: DriveKNMS provides a 90-day warranty on all verified serviceable units covering functional failure under normal operating conditions. This warranty does not cover damage resulting from incorrect installation or operation outside the design envelope of the 3300 XL system.

Q: How do I confirm the unit is genuine and not counterfeit?
A: All units sourced by DriveKNMS are traceable to documented industrial supply channels. We do not source from anonymous brokers or unverified secondary markets. Upon request, we can provide sourcing documentation for the specific unit. Physical authenticity markers — including OEM labeling, part number engraving, and connector type — are verified during inspection.

Q: Should I buy one unit or establish a stock position?
A: For any facility with more than one 3300 Series machine, a stock position of two to three units per unique probe part number is the operationally sound approach. The cost of holding two spare probes is negligible compared to the cost of a single unplanned shutdown while waiting for sourcing. As this part number becomes increasingly scarce, the window for planned procurement is narrowing.

Q: Can this probe be used with the Bently Nevada 3500 Series?
A: The 3300 XL and 3500 Series use compatible transducer technology, but connector and mounting configurations may differ. Consult your 3500 Series monitor documentation and contact DriveKNMS before ordering if your target system is a 3500 Series rack.
