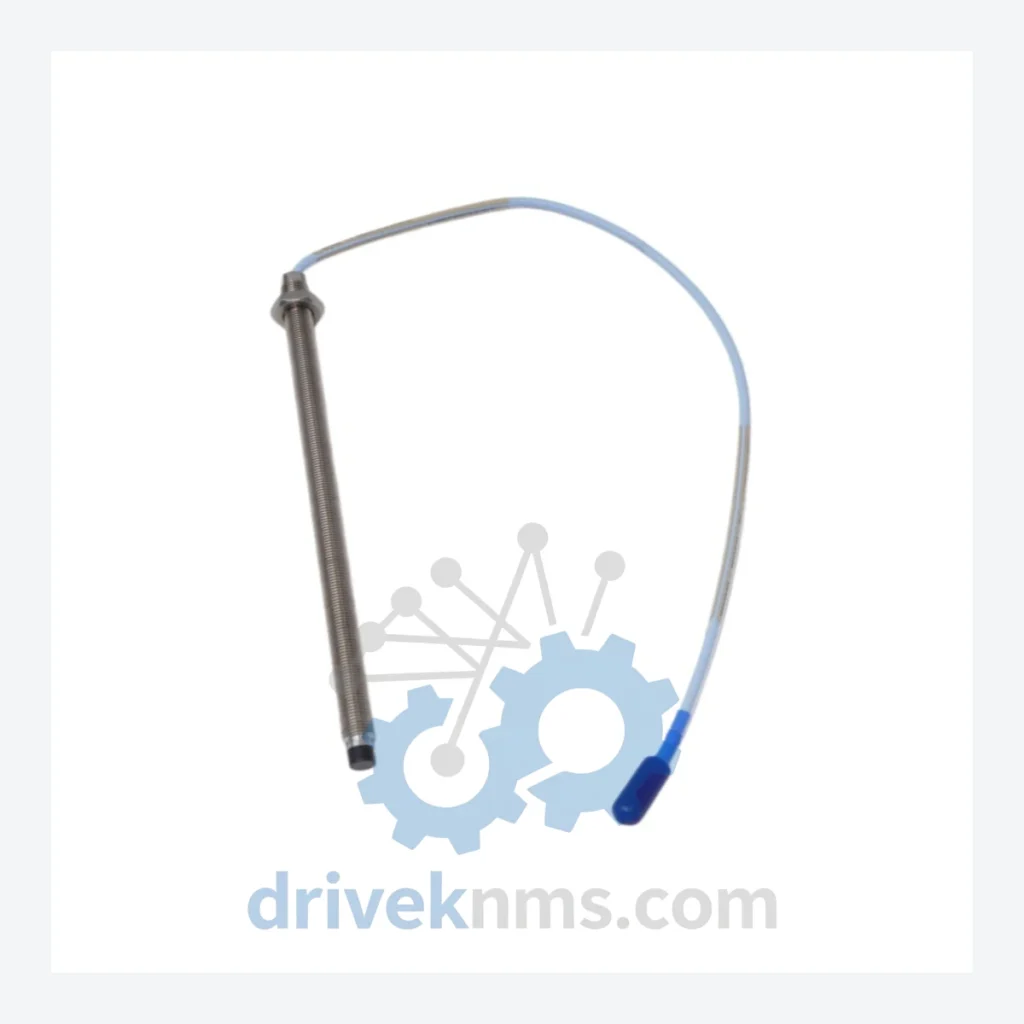

Bently Nevada 330103-00-18-10-02-00 Proximity Probe – 3300 Series Eddy Current Vibration Monitoring Platform

The Bently Nevada 330103-00-18-10-02-00 is a high-precision eddy current (non-contact) proximity probe engineered for continuous shaft vibration, position, and eccentricity measurement within the Bently Nevada 3300 Series machinery protection system. Operating on the principle of electromagnetic induction, this probe generates a high-frequency oscillating magnetic field that interacts with the conductive target surface, converting gap displacement into a calibrated voltage signal. In the context of a Safety Instrumented System (SIS) or machinery protection architecture, the probe serves as the primary sensing element in the measurement chain — feeding real-time radial vibration data to the signal conditioning module and ultimately to the voting logic layer of the protection system.

Within the IEC 61511 / IEC 61508 functional safety framework, the 330103-00-18-10-02-00 probe is a critical field device whose diagnostic coverage (DC) and mean time between failures (MTBF) directly influence the Probability of Failure on Demand (PFD) calculation for the overall Safety Instrumented Function (SIF). It is designed to interface seamlessly with the 3300 XL 8mm extension cable and 3300 Series proximitor/oscillator-demodulator, forming a complete measurement loop that complies with API 670 machinery protection standards — the de facto specification for turbomachinery monitoring in oil & gas, power generation, and petrochemical facilities.

Technical Specifications

Specifications are for reference only, subject to official datasheet. Please verify parameters against your system documentation before installation.

Technical Architecture & Design Principles

The 330103-00-18-10-02-00 operates on the eddy current induction principle: a high-frequency (typically 1.0 MHz) oscillating current drives the probe tip coil, generating an alternating magnetic field. When a conductive target (shaft) enters the field, eddy currents are induced on the target surface, loading the oscillator circuit and producing a proportional change in output voltage. This non-contact measurement eliminates mechanical wear and enables continuous, real-time shaft displacement monitoring without process interruption.

In redundant or 2oo3 (Two-out-of-Three) voting architectures — common in turbomachinery protection systems — three independent probe channels monitor the same shaft plane. The voting logic in the protection module compares all three signals; a trip command is issued only when at least two of three channels exceed the alarm threshold. This architecture prevents spurious trips from a single faulty probe while maintaining the required Probability of Failure on Demand (PFD) for SIL 2 or SIL 3 Safety Instrumented Functions (SIF).

Fault Detection & Isolation (FDI): The 3300 Series proximitor continuously monitors the probe gap voltage. An out-of-range gap (probe too close or too far from target) triggers a Not OK (NOK) status signal, alerting the control system to a measurement chain fault without requiring a process shutdown. This self-diagnostic capability contributes directly to the diagnostic coverage (DC) metric required under IEC 61508 hardware fault tolerance calculations.

Online Diagnostics: The measurement loop — probe, extension cable, and proximitor — functions as an integrated diagnostic system. Cable continuity, probe tip condition, and oscillator frequency drift are all reflected in the gap voltage output, enabling predictive maintenance decisions without physical inspection. Integration with the System 1 condition monitoring software platform allows trend analysis, alarm management, and historical data archiving for reliability-centered maintenance (RCM) programs.

In the context of IEC 61511 SIL 2/3 compliance, the probe's contribution to the overall Safety Instrumented Function (SIF) is evaluated through its MTBF, diagnostic coverage, and common-cause failure (CCF) beta factor. Proper installation per API 670 — including correct gap setting (typically 50 mil / 1.27 mm at mid-range), cable routing, and grounding — is essential to achieving the validated PFD figures cited in the system's Safety Requirements Specification (SRS).

Industrial Applications & System Context

The Bently Nevada 330103-00-18-10-02-00 proximity probe is deployed across the most demanding rotating machinery protection applications in global process industries:

DCS Architecture Integration: In a Distributed Control System (DCS) environment, the probe feeds analog vibration signals to the proximitor, which outputs a DC voltage to the machinery protection rack. The rack's I/O module converts this to a digital value transmitted via Modbus TCP or OPC-UA to the DCS historian and operator workstation, enabling real-time vibration trending alongside process variables.

ESD / F&G System Role: In Emergency Shutdown (ESD) and Fire & Gas (F&G) systems, the probe's NOK relay output and vibration trip relay are hardwired to the Safety PLC (e.g., Triconex, Hima, or Pilz) as discrete inputs. The SIS logic solver evaluates these inputs against the Safety Requirements Specification (SRS) and initiates the defined safe state upon confirmed high-vibration condition.

SCADA Communication: Vibration data from the 3300 Series rack is accessible via Modbus RTU/TCP or OPC-DA/UA interfaces, enabling integration with SCADA platforms (Wonderware, iFIX, Ignition) for remote monitoring, alarm annunciation, and compliance reporting under process safety management (PSM) regulations.

Turbomachinery Control: For steam turbines, gas turbines, centrifugal compressors, and large pumps, real-time radial vibration monitoring via proximity probes is mandated by API 670. The 330103-00-18-10-02-00 provides the sub-millisecond response time required to detect shaft instability events (oil whirl, oil whip, rub) before catastrophic bearing failure occurs.

Typical Project Environments:

• Petroleum refinery — crude distillation unit (CDU) compressor trains
• LNG liquefaction plant — main refrigerant compressor (MRC) protection
• Nuclear power station — reactor coolant pump (RCP) monitoring
• Offshore production platform — gas injection compressor protection
• Petrochemical complex — ethylene cracker turbine-compressor trains
• Power generation — steam turbine-generator shaft monitoring

All applications comply with IEC 61511 (Functional Safety – Safety Instrumented Systems for the Process Industry Sector) and IEC 61508 (Functional Safety of E/E/PE Safety-Related Systems).

System Integration & Compatible Parts

The 330103-00-18-10-02-00 probe is designed for use within the complete Bently Nevada 3300 Series measurement loop. Interface compatibility must be verified against your system revision and firmware version before installation.

• Extension Cable: Bently Nevada 330130-045-00-CN (3300 XL 8mm) — cable length directly affects scale factor calibration
• Proximitor / Oscillator-Demodulator: Bently Nevada 330180-X1-05 (3300 XL 8mm Proximitor) — must match probe series for correct scale factor (200 mV/mil)
• Rack / Chassis: Bently Nevada 3300/16 or 3500/42M machinery protection rack — verify I/O slot compatibility
• Power Supply Module: Bently Nevada 3300/15 or 3500/15 power supply — confirm voltage rail compatibility (–24 VDC nominal)
• Communication Module: Bently Nevada 3500/92 Modbus TCP/IP communication gateway
• Firmware Compatibility: Verify 3300/3500 rack firmware revision against Bently Nevada compatibility matrix — ref. system documentation

We recommend submitting your complete system Bill of Materials (BOM) and rack configuration to our engineering team for compatibility verification before ordering. [Browse All Bently Nevada Products]

Every 330103-00-18-10-02-00 unit processed by DriveKNMS undergoes a rigorous 5-step quality assurance protocol before dispatch:

1. Visual & Physical Inspection: Probe tip, cable jacket, connector pins, and body are inspected for mechanical damage, corrosion, and deformation. Authenticity markings and OEM labels are verified against known-good references.
2. Powered Functional Test: The probe is connected to a calibrated proximitor and gap simulator. Output voltage linearity, scale factor accuracy (200 mV/mil ±1%), and NOK threshold behavior are verified across the full measurement range.
3. Part Number & Revision Verification: The exact part number suffix (330103-00-18-10-02-00), cable length code, and connector type are confirmed against the physical unit and documentation.
4. ESD-Safe Packaging: Units are packaged in anti-static bags, placed in foam-lined protective cases, and sealed with tamper-evident labels. Shock-absorbing outer packaging is used for international freight.
5. 12-Month Functional Warranty: DriveKNMS provides a 12-month warranty covering functional defects under normal operating conditions.

Global Logistics: We ship worldwide via FedEx International Priority, DHL Express, and UPS Worldwide. Real-time tracking numbers are provided upon dispatch. Export documentation (commercial invoice, packing list, COO) is prepared for customs clearance.

Technical Support from DriveKNMS

• Selection & Compatibility Verification: Confirm the correct probe for your rack, extension cable, and proximitor combination
• Cross-Reference Service: Identify equivalent or replacement probes across Bently Nevada 3300/3500 series and third-party alternatives
• Firmware & Revision Confirmation: Verify hardware revision compatibility with your existing system configuration
• Test Reports & Inspection Certificates: Available upon request for critical applications
• Obsolescence & EOL Solutions: Technical evaluation and recommendation of approved replacement options for discontinued Bently Nevada components
• 24/7 WhatsApp Technical Support: Real-time engineering consultation via WhatsApp for urgent field requirements

Frequently Asked Questions

Q1: What communication protocols does the 330103-00-18-10-02-00 support?
The probe itself outputs an analog DC voltage signal via the paired proximitor/oscillator-demodulator. Digital communication (Modbus RTU/TCP, OPC-UA) is handled at the rack level by the 3300/3500 Series communication gateway module. The probe has no direct digital protocol interface.

Q2: How do I confirm compatibility with my existing system revision?
Please provide your rack model (e.g., 3300/16 or 3500/42M), extension cable part number, and proximitor model. Our engineering team will verify the complete measurement loop compatibility before you place an order.

Q3: Has the unit undergone SIL-related functional testing?
All units undergo powered functional testing verifying output linearity, scale factor accuracy, and NOK threshold behavior. For SIL-loop validation, we can provide test records and support your site acceptance test (SAT) documentation. Full SIL loop validation per IEC 61511 must be performed at the system level by the end user's functional safety engineer.
