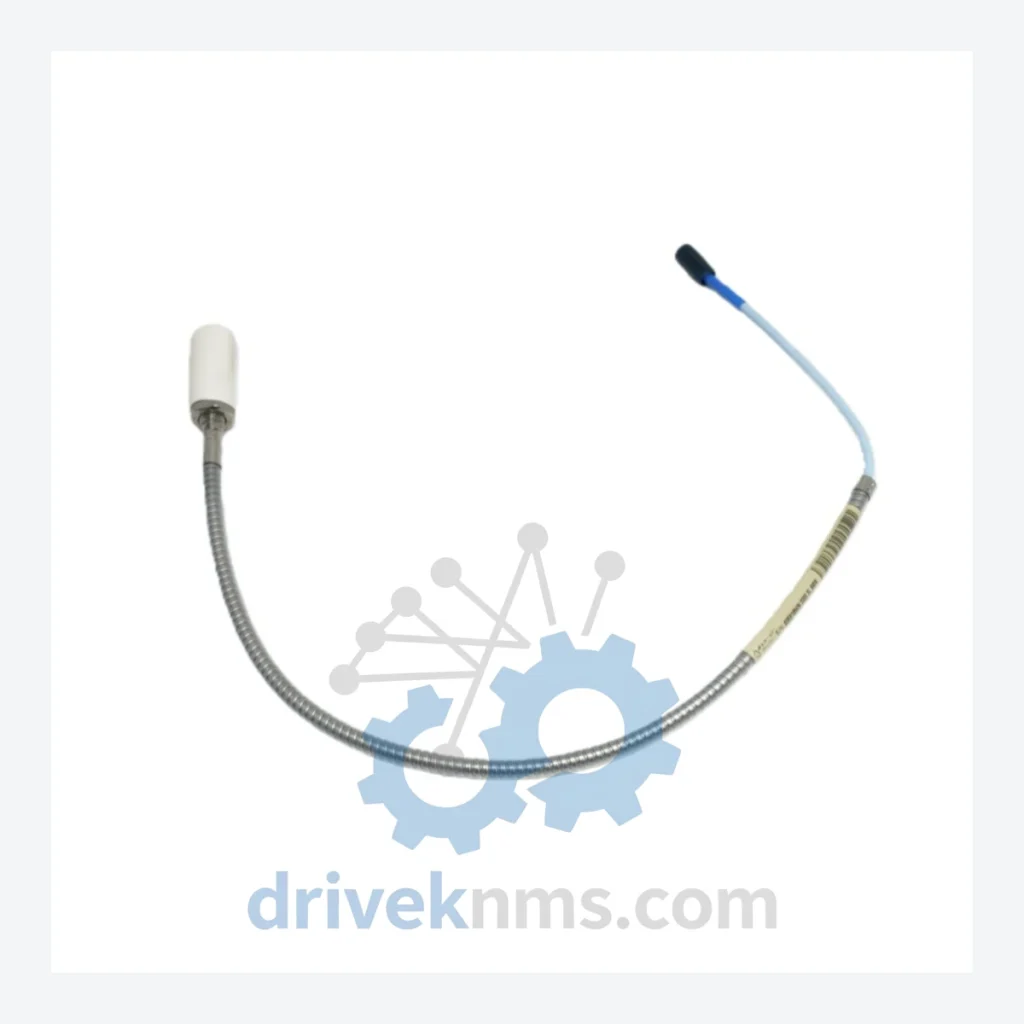

Bently Nevada 330104-00-03-90-11-00 Proximity Probe – Obsolete 3300 Series Spare Part

Technical Dossier

Product Details And Specifications

Bently Nevada 330104-00-03-90-11-00 Proximity Probe – Obsolete 3300 Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters listed above are based on published 3300 XL system documentation. DriveKNMS does not fabricate specifications. Parameters not confirmed by documentation are intentionally omitted.

How to Extend Your Automation Asset Life by 5–10 Years: A Maintenance Strategy for Plant Management

For plant managers and reliability engineers operating legacy Bently Nevada 3300 XL systems, the decision framework is straightforward: the system is paid for, certified, and understood by your maintenance team. The capital case for replacement does not close until the system fails catastrophically or spare parts become completely unavailable. The practical strategy to defer that inflection point by 5–10 years rests on three pillars.

3. Maintain Proximitor calibration records. The 3300 XL Proximitor is a matched system component. If a probe is replaced, the Proximitor gap voltage must be re-verified at the new probe's installed gap. Skipping this step introduces measurement error that accumulates silently until a protection event occurs. Keep calibration records tied to each machine train, not just the instrument tag.

Facilities that execute these three practices consistently report 7–12 year extensions of 3300 XL system service life without loss of protection integrity. The investment is in process discipline and spare parts availability — not capital expenditure.

Condition & Reliability Assurance

Sourcing a discontinued probe from the secondary market carries legitimate risk. DriveKNMS applies a five-step quality process to every 330104-00-03-90-11-00 unit before it leaves our facility.

Step 1 – Visual and mechanical inspection. Probe tip, cable jacket, and connector body are examined for physical damage, corrosion, and thread integrity. Units with tip damage or jacket cracking are rejected.

Step 2 – Connector and pin inspection. All connector pins are inspected under magnification for oxidation, bending, and contamination. Corroded pins are a primary failure mode in stored probes and are grounds for rejection.

Step 3 – Electrical continuity and insulation resistance test. Cable continuity and shield integrity are verified. Insulation resistance is measured to confirm cable dielectric integrity has not degraded during storage.

Step 4 – Gap voltage linearity verification. Where test equipment permits, probe output voltage is measured across the specified gap range against the 7.87 V/mm scale factor to confirm the sensing element is within specification.

Step 5 – Firmware and label verification. Part number markings, date codes, and any revision labels are cross-referenced against known authentic configurations to confirm the unit matches the ordered part number.

Units that pass all five steps are packaged in anti-static, moisture-barrier packaging and shipped with a condition report.

Key Features for System Maintenance

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

How do I confirm the unit is genuine and not a counterfeit?
Every unit sold by DriveKNMS is inspected against known authentic part markings and configurations as part of our five-step QA process. We provide a condition report with each shipment. If you require additional traceability documentation, contact us before purchase to discuss available options.

Q: Can you support multi-unit or repeat RFQ requests?
A: Yes. Send the model list, target quantity and destination so DRIVEKNMS can review sourcing options and quote the requirement as a project RFQ.

Can this probe be used with a different Proximitor model?
The 330104-00-03-90-11-00 is designed for use with the Bently Nevada 3300 XL 8mm Proximitor Sensor family. Use with non-matched Proximitor models is not supported and may produce measurement errors. Consult your system documentation before substituting any component in a protection loop.
