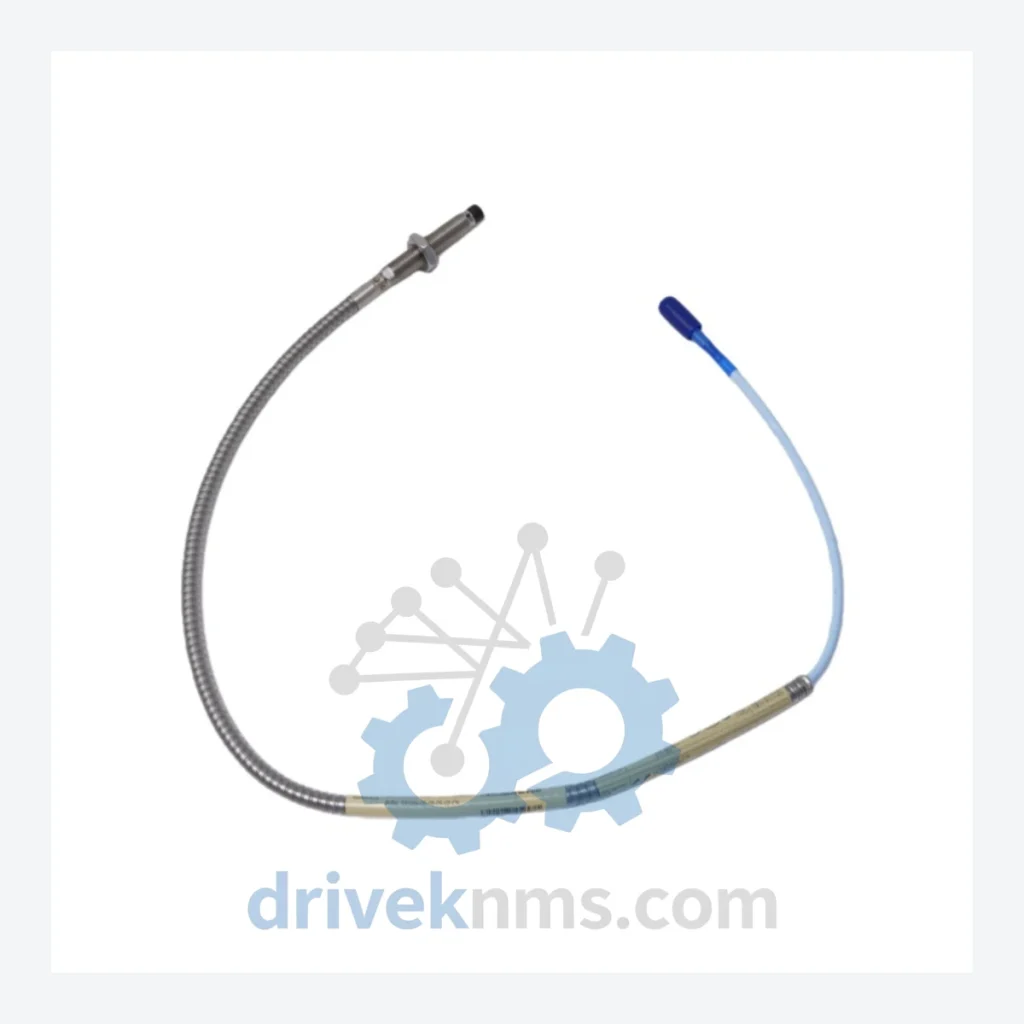

Bently Nevada 330104-00-05-05-01-05 Proximity Probe – Obsolete 3300 Series Spare Part

Technical Dossier

Product Details And Specifications

Bently Nevada 330104-00-05-05-01-05 Proximity Probe – Obsolete 3300 Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters such as scale factor, gap voltage range, and sensitivity are system-dependent and must be verified against the specific Proximitor® driver in your installation. DriveKNMS does not publish unverified specifications.

Solving the Discontinued Hardware Crisis

The Bently Nevada 3300 Series was the industry standard for non-contact vibration and position measurement for decades. Its eddy-current sensing principle, combined with the 3300 XL Proximitor® driver architecture, delivered the measurement accuracy and reliability that API 670 machinery protection standards demand. Baker Hughes (which acquired Bently Nevada) has progressively discontinued the 3300 Series in favour of the 3500 platform. The result is a growing population of installed 3300 systems with no direct factory supply chain for replacement probes.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

Condition & Reliability Assurance

Obsolete parts sourced from the secondary market carry inherent risk. DriveKNMS applies a five-step qualification process to every 330104-00-05-05-01-05 unit before it is offered for sale.

Step 1 – Physical Inspection: Probe tip, cable jacket, and connector body are examined for mechanical damage, corrosion, and pin integrity. Units with compromised connectors are rejected at intake.

Step 2 – Electrolytic Capacitor Assessment: Where applicable to associated driver electronics, capacitor condition is evaluated. Aged electrolytic capacitors are a primary failure mode in legacy instrumentation and are replaced where degradation is detected.

Step 3 – Coil Resistance and Inductance Verification: The probe sensing coil is measured against published Bently Nevada reference values. Deviation outside tolerance results in rejection.

Step 4 – Cable Continuity and Insulation Resistance: Full cable length is tested for continuity and insulation integrity. Partial cable failures — a common age-related defect — are identified and the unit is either repaired to specification or rejected.

Step 5 – Firmware and Label Verification: Part number markings are cross-referenced against Bently Nevada documentation to confirm authenticity and correct metric configuration. Counterfeit or mismarked units are quarantined.

Key Features for System Maintenance

The 330104-00-05-05-01-05 is a direct, drop-in replacement for the same part number in any 3300 Series installation. No reprogramming of the Proximitor® driver is required. No recalibration of the measurement loop is required beyond the standard gap-setting procedure that applies to any probe replacement. The engineering cost of installation is limited to the time of a qualified instrumentation technician performing a standard probe swap — typically two to four hours per measurement point, including gap verification and loop check.

This stands in direct contrast to a platform migration, which requires loop-by-loop engineering review, new cable runs in many installations, driver replacement, system configuration, and a full functional test against API 670 acceptance criteria. The drop-in nature of this replacement is not a convenience — it is a cost-control mechanism that preserves the capital already invested in the existing installation.

Plants that maintain a documented spare parts inventory for their 3300 Series systems also retain the option to negotiate from a position of strength when evaluating migration timelines. A system that can be kept in certified operation is a system whose replacement can be scheduled on the plant's terms, not forced by a parts shortage.

Q: How is condition confirmed before quotation?
A: Available condition, photos, test records and documentation are checked according to the requested model and sourcing channel before a formal RFQ response.

How do I confirm the unit is genuine and correctly specified?
Each unit shipped by DriveKNMS is accompanied by an inspection record that documents the qualification steps completed, the part number verification result, and the condition classification (NOS or refurbished). Customers may request photographic documentation of the specific unit prior to shipment.

Q: Can you support multi-unit or repeat RFQ requests?
A: Yes. Send the model list, target quantity and destination so DRIVEKNMS can review sourcing options and quote the requirement as a project RFQ.

Can this probe be used with the Bently Nevada 3500 Series?
No. The 3300 and 3500 Series use different Proximitor® driver architectures with different scale factors and gap voltage ranges. Cross-platform use without full recalibration and engineering review is not supported and would compromise API 670 compliance.
