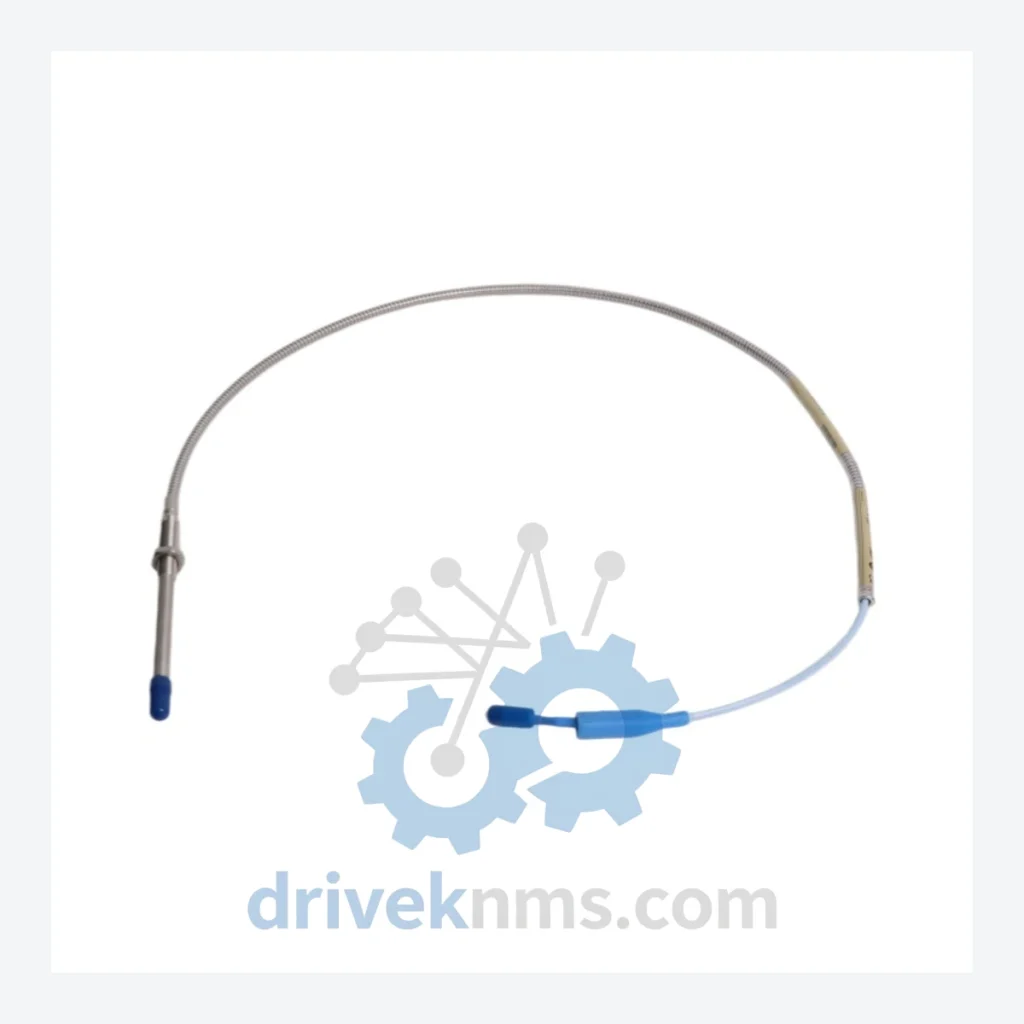

Bently Nevada 330104-07-14-05-01-05 Proximity Probe – Obsolete 3300 Series Spare Part

Technical Dossier

Product Details And Specifications

Bently Nevada 330104-07-14-05-01-05 Proximity Probe – Obsolete 3300 Series Spare Part

When a proximity probe fails in a turbomachinery protection system, the clock starts immediately. Without a functioning eddy-current probe, your vibration monitoring loop goes blind — and a blind protection system on a gas compressor, steam turbine, or centrifugal pump is not a maintenance problem. It is a production liability. The cost of sourcing a replacement through OEM channels for a discontinued 3300 Series component can stretch into weeks of lead time, if the part is available at all. Meanwhile, the alternative — a full system migration to a current-generation Bently Nevada 3500 Series platform — carries engineering, commissioning, and downtime costs that routinely exceed USD $500,000 per train.

DriveKNMS holds verified physical stock of the Bently Nevada 330104-07-14-05-01-05. This is not a catalog listing. Inventory is finite and allocated on a first-confirmed basis.

Technical Specifications

Solving the Discontinued Hardware Crisis

The Bently Nevada 3300 Series was the industry standard for turbomachinery condition monitoring across refineries, LNG terminals, power generation facilities, and petrochemical plants for over two decades. Thousands of these systems remain in active service globally — not because plant managers are unaware of the discontinuation, but because the economics of full platform replacement are prohibitive.

A single 3300 Series rack may monitor four to eight rotating machines. Replacing the entire monitoring infrastructure for one production unit — probes, extension cables, drivers, monitors, I/O modules, and the associated DCS integration — is a capital project, not a maintenance task. It requires engineering studies, FAT/SAT testing, and a planned shutdown window. For facilities operating on thin turnaround margins, that project gets deferred year after year.

The practical strategy adopted by asset integrity teams at major operators is straightforward: maintain a strategic spare inventory of critical 3300 Series components — probes, drivers, and monitors — sufficient to sustain operations through the remaining planned life of the asset. A gas turbine with 12 years of remaining service life does not need a new monitoring platform. It needs a reliable source of replacement probes.

The 330104-07-14-05-01-05 is among the most frequently requested 3300 Series probe configurations because the 8mm tip diameter and armored cable construction made it the default specification for high-temperature, high-vibration installations. When this probe fails, there is no cross-compatible substitute within the 3300 ecosystem that does not require recalibration of the entire transducer system. The replacement must be the correct part number.

DriveKNMS specializes in sourcing and supplying exactly these components — parts that OEMs have discontinued but that operating facilities cannot yet afford to engineer around.

Condition & Reliability Assurance

Obsolete parts sourced from secondary markets carry real risk. A probe with degraded cable insulation, corroded connector pins, or a cracked tip housing will fail in service — potentially at the worst possible moment. Our QA process for the 330104-07-14-05-01-05 addresses the failure modes specific to long-stored eddy-current probes:

Step 1 – Physical Inspection: Full visual examination of probe tip, integral cable jacket, armor braid, and connector body. Any unit showing mechanical damage, jacket cracking, or connector corrosion is rejected.

Step 2 – Connector Pin Inspection: Pin-by-pin inspection under magnification for oxidation, bending, and contact surface integrity. Corroded pins are a primary cause of intermittent signal faults in stored probes.

Step 3 – Cable Continuity and Insulation Resistance Test: Electrical continuity verified across the full cable length. Insulation resistance tested to confirm cable jacket integrity has not degraded during storage.

Step 4 – Sensitivity Verification: Where test equipment permits, probe sensitivity (mV/mil or V/mm) is verified against the 3300 XL system specification. Units outside tolerance are quarantined.

Step 5 – Packaging and Documentation: Passed units are individually packaged in anti-static, moisture-barrier packaging with inspection records. Lot traceability is maintained.

Units are supplied as New Old Stock (NOS) or Professionally Refurbished, clearly identified on the shipping documentation. We do not mix condition grades within a single order without explicit customer agreement.

Key Features for System Maintenance

The 330104-07-14-05-01-05 is a direct drop-in replacement for any installation currently using this part number. No reconfiguration of the 3300 Series monitor is required. No firmware changes. No recalibration of the driver module — provided the replacement probe is the identical part number with the same sensitivity specification.

This matters operationally. A maintenance team replacing a failed probe during an unplanned outage does not have time for a recalibration procedure. The ability to swap the probe, restore the monitoring loop, and return the machine to service within a single shift is the difference between a four-hour outage and a two-day event.

Facilities that have migrated portions of their fleet to the Bently Nevada 3500 Series should note that 3300 and 3500 Series probes are not interchangeable. Machines still running 3300 Series monitors require 3300 Series probes. Confirm your monitor series before ordering.

For plant engineers managing a mixed fleet, we recommend establishing a minimum spare holding of two probes per monitored machine position for any asset with more than five years of remaining planned service life. The carrying cost of two spare probes is negligible against the cost of an unplanned outage caused by probe failure with no replacement on hand.

FAQ

What warranty applies to an obsolete part?
We provide a 90-day warranty against defects in the supplied unit under normal operating conditions. Given the discontinued status of this component, we recommend incoming inspection at your facility prior to installation. Warranty claims require return of the defective unit for inspection.

How do I confirm the unit is new or properly refurbished — not a counterfeit?
All units supplied by DriveKNMS are sourced from documented channels. New Old Stock units retain original OEM packaging where available. Refurbished units are supplied with our own inspection documentation. We do not source from unverified brokers. If your procurement policy requires additional traceability documentation, contact us before ordering.

Can I order multiple units for long-term sparing?
Yes, and we recommend it. For facilities with multiple machines on 3300 Series monitoring, consolidating a multi-unit spare order now — while stock is available — is the lowest-cost insurance against future unplanned downtime. Contact us to discuss volume availability and pricing.

What if my exact configuration differs slightly (different cable length or connector)?
The 330104 part number family covers multiple cable length and connector configurations. If your installed probe has a different suffix combination, contact us with your full part number. We maintain inventory across multiple 330104 variants and can advise on availability.

How should spare probes be stored?
Store in original or equivalent anti-static, moisture-barrier packaging in a climate-controlled environment. Avoid storage near strong magnetic fields. Inspect connector pins annually if stored for extended periods.
