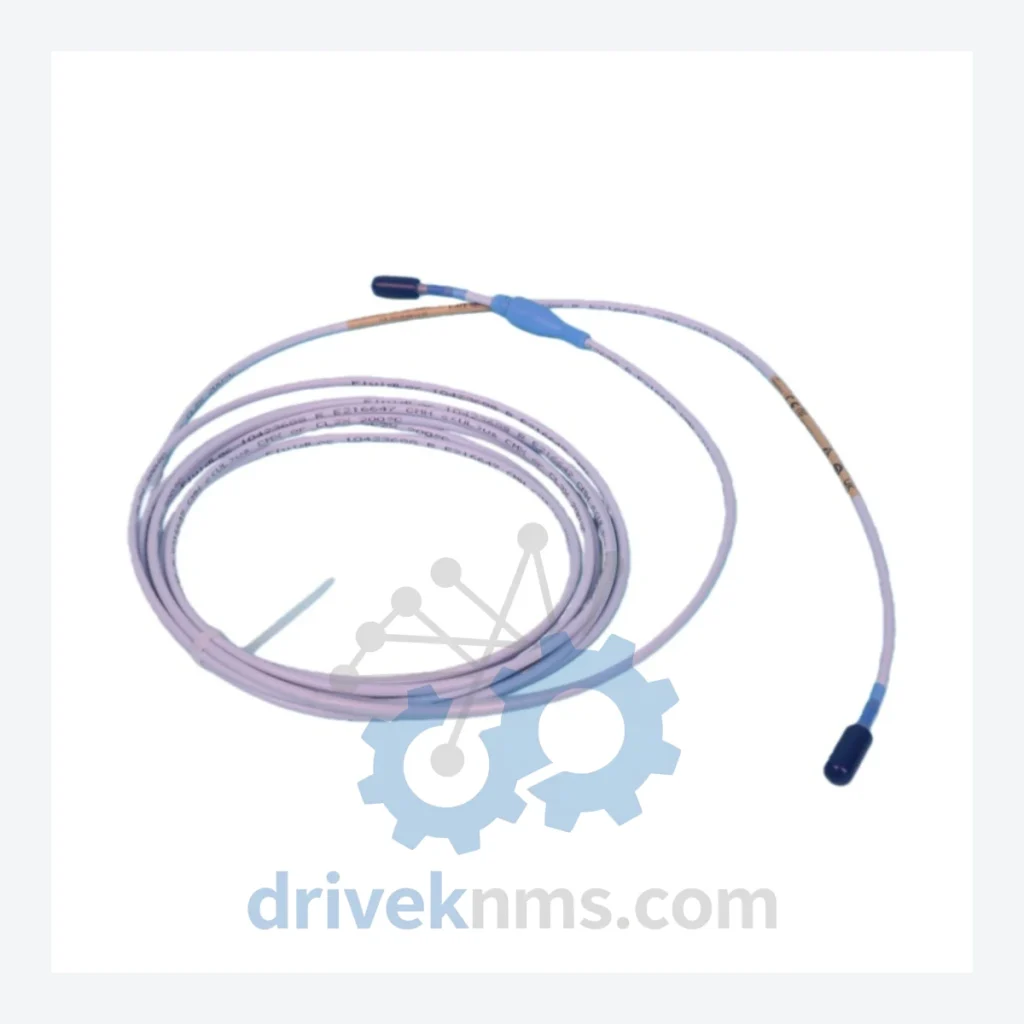

Bently Nevada 330130-040-12-CN Standard Extension Cable – Obsolete 3300 Series Spare Part

Technical Dossier

Product Details And Specifications

Bently Nevada 330130-040-12-CN Standard Extension Cable – Obsolete 3300 Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Solving the Discontinued Hardware Crisis

The Bently Nevada 3300 Series was the industry standard for non-contacting shaft vibration measurement for decades. Installed bases remain active across gas turbines, steam turbines, centrifugal compressors, and large rotating machinery in sectors where continuous operation is not optional. Baker Hughes has progressively migrated its product line toward the 3500 Series. The 3300 Series extension cables, including the 330130-040-12-CN, are no longer manufactured.

The extension cable is the most mechanically stressed element in the proximity measurement chain. It runs through conduit, across hot surfaces, and through vibrating structures. Cable jacket degradation, connector oxidation, and impedance drift are the primary failure modes in aging installations. When this cable fails, the entire measurement channel goes offline — meaning either running blind or shutting down the asset.

Extending Automation Asset Life by 5–10 Years with Critical Spare Parts

The 3300 Series proximity system has no inherent end-of-life from a functional standpoint. What creates forced retirement is parts unavailability. A structured approach to legacy system life extension focuses on three areas:

2. Establish a calibration and inspection cycle. Extension cables should be inspected for jacket integrity and connector condition during every planned outage. Impedance verification against the original system calibration record confirms the measurement chain remains within specification.

3. Document the installed configuration. Maintain records of probe gap settings, proximitor serial numbers, and cable routing for each measurement point. When a replacement is required, this documentation allows a technician to restore the system to its calibrated state without engineering involvement — reducing mean time to repair and eliminating misconfiguration risk.

Facilities applying this approach to their 3300 Series installations report continued reliable operation well beyond the point at which corporate asset teams had scheduled system retirement. The investment in spare parts and documentation is measured in thousands of dollars. The deferred upgrade cost is measured in millions.

Condition & Reliability Assurance

DriveKNMS applies a five-step quality process to every 330130-040-12-CN unit before dispatch:

Step 1 – Physical Inspection: Cable jacket examined for cracking, abrasion, and heat damage along the full length. Connector bodies inspected for mechanical damage and corrosion.

Step 2 – Connector Pin and Socket Assessment: Center conductor and outer shield contacts checked for oxidation, pitting, and dimensional compliance. Corroded contacts are disqualified — no cosmetic remediation is applied to safety-critical connection points.

Step 3 – Impedance and Continuity Verification: Electrical continuity confirmed end-to-end. Characteristic impedance measured and compared against Bently Nevada specification for the 3300 Series measurement chain.

Step 4 – Capacitance Check: Cable capacitance verified within the tolerance band required for correct proximitor operation. Out-of-tolerance units are rejected regardless of visual condition.

Key Features for System Maintenance

The alternative — adapting a non-standard cable or interfacing with a different measurement system — requires engineering validation, recalibration, and in most jurisdictions, documentation review under machinery protection standards such as API 670. The cost of that engineering work alone typically exceeds the cost of maintaining a proper spare parts inventory for the life of the installation.

Can this cable be used with the Bently Nevada 3500 Series?
The 3300 and 3500 Series use different connector standards and measurement chain specifications. The 330130-040-12-CN is not a direct replacement for 3500 Series extension cables. Do not substitute without engineering verification.
