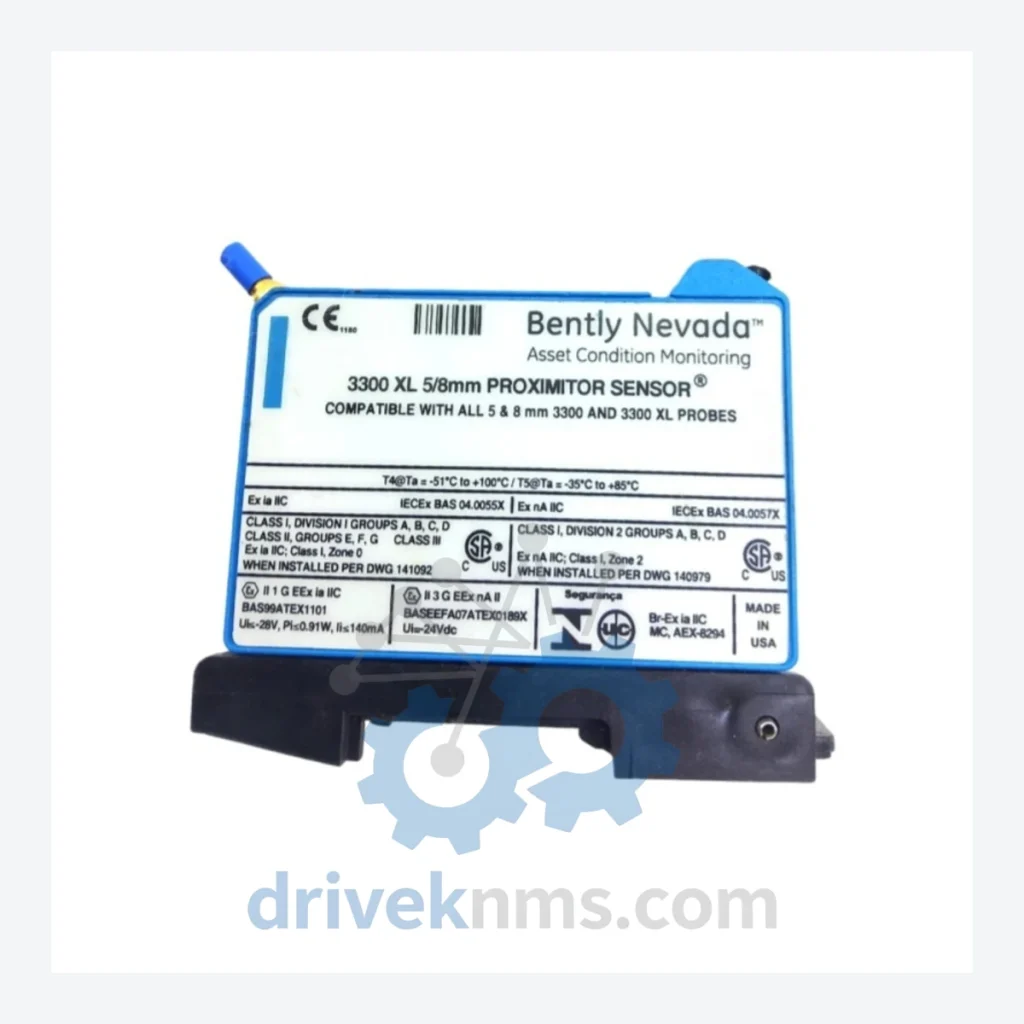

Model: 330180-X1-05 MOD:145347-05
Product Overview
Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.
Datasheet Preview
Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.
Commercial Path
Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.
Technical Dossier
The Bently Nevada 330180 Series Proximitor Sensors represent one of the most widely deployed eddy-current proximity transducer system components in global heavy industry. Installed across petrochemical refineries, nuclear power stations, offshore platforms, LNG terminals, and rotating machinery monitoring systems, the 330180 Series serves as the signal conditioning interface between proximity probes and the 3300 Series monitoring system. Its role is critical: converting raw eddy-current probe signals into standardized DC voltage outputs that feed vibration, position, and speed data to plant DCS and safety instrumented systems (SIS). The series is fully compatible with API 670 machinery protection standards and remains the reference standard for turbine, compressor, and pump shaft monitoring in continuous-process industries.
The 330180 Proximitor was introduced as part of Bently Nevada's 3300 Series platform, designed to replace earlier 7200 Series and 3000 Series signal conditioners. The core architecture uses a Proximitor oscillator-demodulator circuit tuned to operate with 3300 XL 8mm, 11mm, and 14mm probe systems at a nominal gap voltage of -10.0 VDC. Early revisions (MOD:00 through MOD:50) established the baseline cable length and sensitivity specifications. Subsequent MOD revisions introduced improved EMI shielding, extended temperature range ratings (−40°C to +85°C), and enhanced compatibility with the System 1 condition monitoring software platform. The 330180-X1-05 (MOD:145347-05) represents a mature revision with full CE marking and FM/CSA hazardous area approvals. As the 3300 Series transitions toward the System 1 Evolution platform, the 330180 remains in active production but is increasingly supported in a lifecycle-extension capacity for installed base maintenance. Replacement migration paths include the 330180-91-05 (2m cable) and integration with the 3701/40 and 3701/44 rack-based monitoring modules.
The following SKUs represent the verified 330180 Series product range, classified by cable length, connector type, and approval variant:
330180-X1-05 MOD:145347-05: Standard Proximitor, 5m integral cable, general-purpose, -10V output
330180-91-05: Proximitor Sensor, 5m cable, 3/4-inch conduit entry, standard sensitivity
330180-91-08: Proximitor Sensor, 8m integral cable, extended reach installations
330180-91-00: Proximitor Sensor, no integral cable, field-wiring terminal version
330180-X0-05: Proximitor, 5m cable, non-CE variant for non-EU installations
330180-X0-08: Proximitor, 8m cable, non-CE, extended cable configuration
330180-X1-00: CE-marked Proximitor, no cable, terminal block output
330180-X1-08: CE-marked Proximitor, 8m integral cable, standard sensitivity
330180-X2-05: Proximitor, 5m cable, dual-output configuration for redundant monitoring
330180-X2-08: Proximitor, 8m cable, dual-output, redundant channel applications
330180-51-05: Proximitor Sensor, 5m cable, ATEX Zone 1 hazardous area approval
330180-51-08: Proximitor Sensor, 8m cable, ATEX Zone 1 certified
330180-52-05: Proximitor, 5m cable, FM Class I Div 1 North American hazardous area
330180-52-08: Proximitor, 8m cable, FM Class I Div 1, extended cable
330180-53-05: Proximitor, 5m cable, CSA-certified, Canadian hazardous location approval
330180-53-08: Proximitor, 8m cable, CSA-certified, extended installation reach
330180-90-05: Proximitor, 5m cable, legacy revision, compatible with 3300 NSv probes
