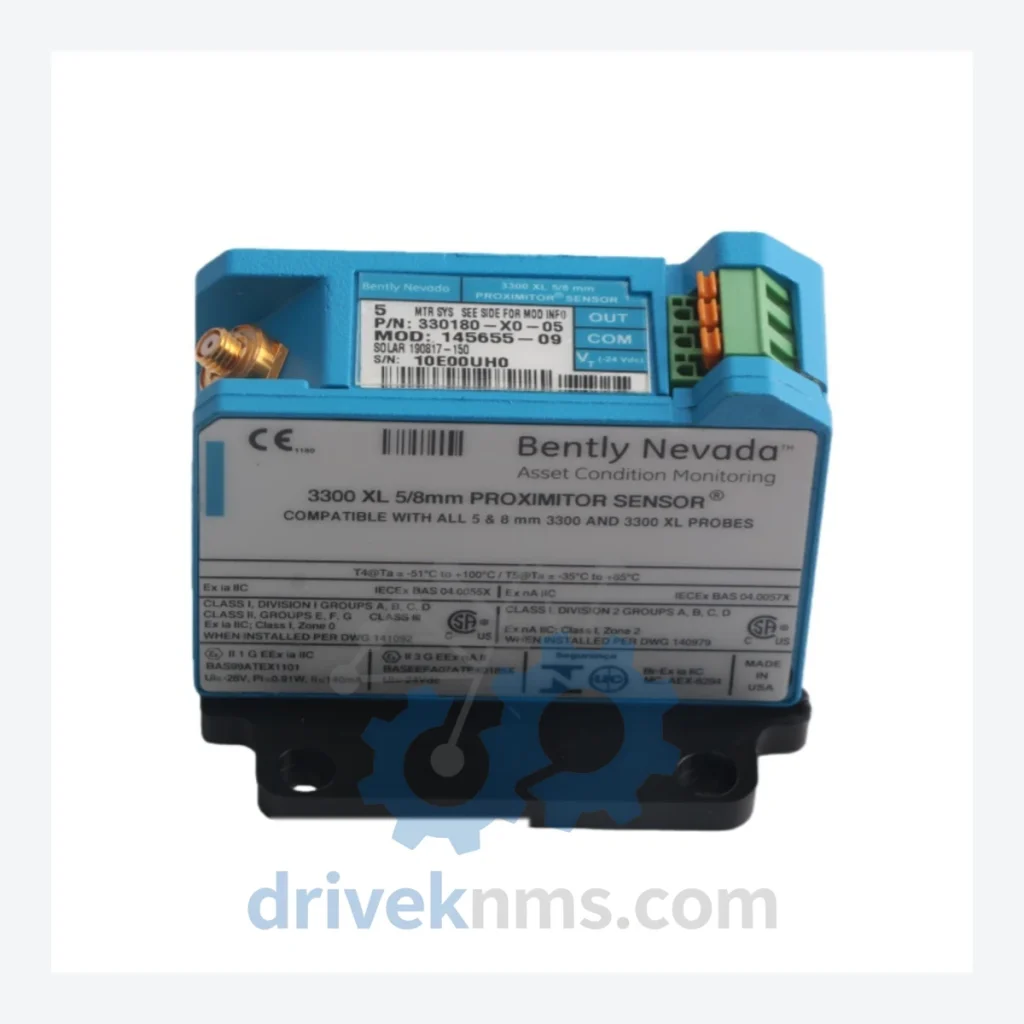

Bently Nevada 330180-X0-CN Proximitor Sensor – Obsolete 3300 Series Spare Part

Technical Dossier

Product Details And Specifications

Bently Nevada 330180-X0-CN Proximitor Sensor – Obsolete 3300 Series Spare Part

DriveKNMS holds RFQ-reviewed sourcing status of the 330180-X0-CN. For plant managers and reliability engineers who have exhausted OEM channels, this is not a convenience — it is an operational lifeline.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters such as supply voltage, output range, and gap voltage are system-dependent and vary by loop configuration. DriveKNMS does not publish unverified specifications. Contact our technical team for loop-specific data sheets.

Solving the Discontinued Hardware Crisis

The Bently Nevada 3300 Series was the industry standard for turbomachinery shaft monitoring across refineries, power generation facilities, and petrochemical plants for decades. The 330180 Proximitor module sits at the core of this architecture — it conditions the raw eddy-current signal from the proximity probe and delivers a calibrated DC voltage output to the monitoring rack. Without a functioning Proximitor, the entire vibration and position monitoring loop is blind.

Baker Hughes officially discontinued the 3300 Series platform. Replacement with a 3500 Series system requires not only new hardware but full loop re-engineering, probe replacement, rack reconfiguration, and in many jurisdictions, re-certification of the machinery protection system under API 670 or equivalent standards. For a single compressor train, this process takes months and costs that are rarely justified when the underlying rotating equipment has years of remaining service life.

The rational alternative is targeted component-level maintenance. A verified replacement 330180-X0-CN restores full monitoring capability with zero changes to the existing rack, cabling, or probe installation. The system continues operating within its original validated configuration. No re-engineering. No re-certification. No production gap.

Extending Asset Life by 5–10 Years: A Practical Framework for Plant Management

The decision to retire a turbomachinery protection system is rarely driven by the condition of the rotating equipment itself. It is almost always driven by the inability to source replacement instrumentation. This is a procurement problem, not an engineering problem — and it has a procurement solution.

A structured spare parts strategy for legacy Bently Nevada 3300 installations should address three categories: consumable loop components (probes, extension cables, connectors), signal conditioning modules (Proximitors such as the 330180 series), and rack-level I/O and power supply cards. Maintaining a minimum buffer of two to three Proximitor units per critical machine train eliminates the single point of failure that forces premature system retirement.

Condition & Reliability Assurance

Obsolete parts sourced from secondary markets carry inherent risk. DriveKNMS applies a structured 5-step qualification process to every 330180-X0-CN unit before it leaves our facility:

Step 1 – Visual and Physical Inspection: Full external examination for housing cracks, connector pin damage, corrosion, and label integrity. Units with evidence of field abuse or improper storage are rejected at intake.

Step 2 – Electrolytic Capacitor Assessment: Internal capacitors are among the first components to degrade in aged electronics. We assess for capacitor bulge, leakage, and ESR deviation. Units with suspect capacitors are either reconditioned by qualified technicians or removed from inventory.

Step 3 – Firmware and Modification Code Verification: The MOD:145004-83 designation indicates a specific factory modification level. We verify that the modification code on each unit matches the labeled specification and cross-reference against known revision histories where documentation is available.

Step 4 – Pin and Connector Integrity Check: Connector pins are inspected for oxidation, bending, and contact resistance. Corroded contacts are a leading cause of intermittent signal faults in legacy Proximitor installations.

Key Features for System Maintenance

The 330180-X0-CN is a direct drop-in replacement for existing 3300 Series installations. No rack modifications, no probe replacement, no software changes, and no recalibration of the monitoring system are required beyond standard loop verification after module swap. This is the defining advantage of component-level maintenance over platform migration.

Engineering teams do not need to be mobilized. Outage windows are measured in hours, not weeks. The existing API 670 validation of the protection system remains intact. Capital expenditure is avoided entirely. For a plant operating under margin pressure, these are not minor conveniences — they are the difference between a scheduled maintenance event and a capital project.

Q: How is condition confirmed before quotation?
A: Available condition, photos, test records and documentation are checked according to the requested model and sourcing channel before a formal RFQ response.

Q: Can you support multi-unit or repeat RFQ requests?
A: Yes. Send the model list, target quantity and destination so DRIVEKNMS can review sourcing options and quote the requirement as a project RFQ.

Can this unit be used in a 3500 Series rack?
The 3300 and 3500 Series use different rack architectures. Direct installation into a 3500 rack is not supported without verified adapter hardware and loop re-engineering. Consult your system documentation and contact DriveKNMS technical support before attempting cross-series installation.
