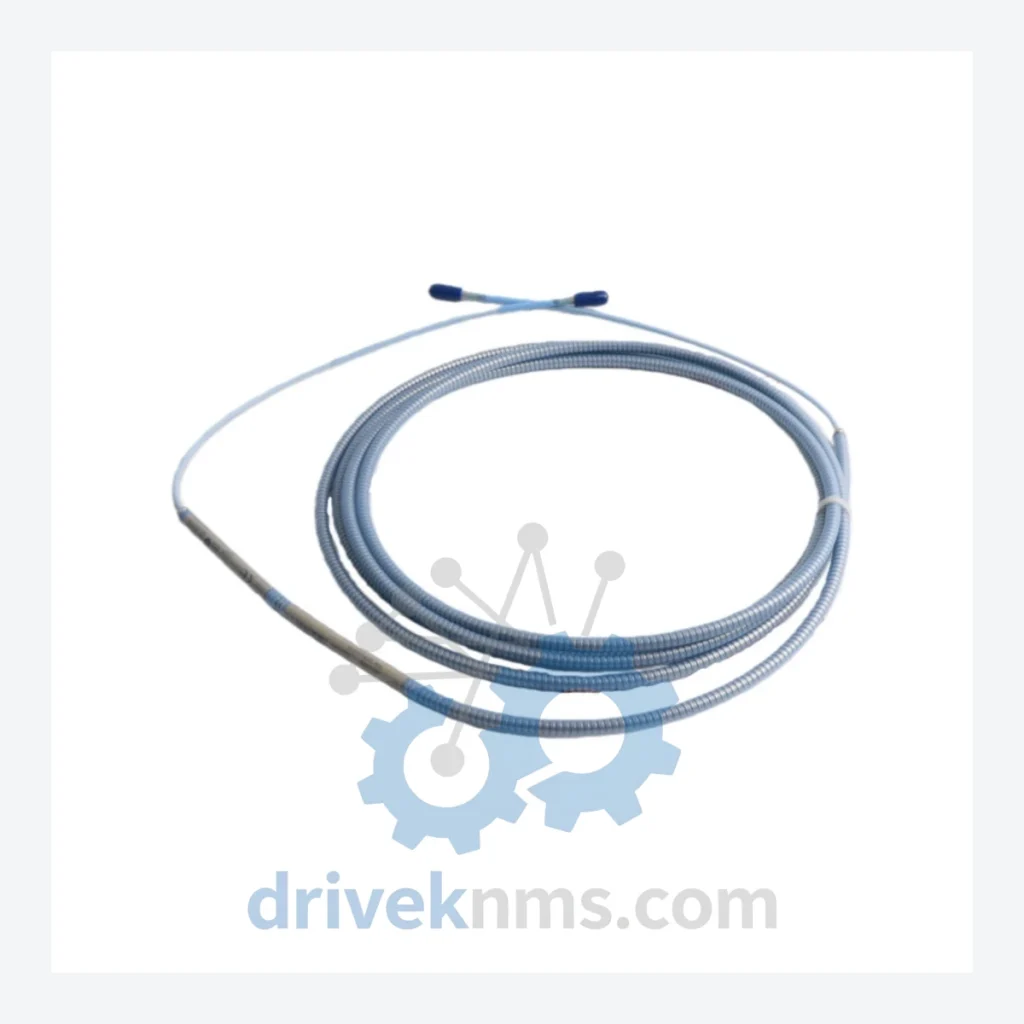

Bently Nevada 330190-040-01-05 Extension Cable – Obsolete 3300 Series Spare Part

Technical Dossier

Product Details And Specifications

Bently Nevada 330190-040-01-05 Extension Cable – Obsolete 3300 Series Spare Part

The 330190-040-01-05 extension cable is a direct, field-proven component within that system. DriveKNMS holds RFQ-reviewed sourcing status of this part. For plant engineers and asset managers operating legacy machinery protection infrastructure, this listing represents a concrete alternative to a forced system upgrade.

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters not confirmed from official datasheet for this specific suffix. Do not substitute based on assumed specifications. Verify compatibility with your probe and driver model before installation.

Solving the Discontinued Hardware Crisis

The Bently Nevada 3300 Series has been in service since the 1980s and remains installed across thousands of industrial sites globally. Baker Hughes has progressively transitioned its product line toward the 3500 Series and newer platforms, leaving 3300 Series users in a difficult position: the installed base is enormous, but the supply chain for original replacement parts has contracted sharply.

Plants running GE Frame turbines, Solar Turbines Centaur or Mars series, or legacy Dresser-Rand compressors with original Bently Nevada instrumentation will recognize this part number immediately. It is not interchangeable with generic coaxial cable. The impedance matching, connector geometry, and cable characteristics are specific to the Bently Nevada transducer chain.

Condition & Reliability Assurance

DriveKNMS applies a structured five-step quality process to all legacy and hard-to-find components before dispatch:

• Visual and mechanical inspection: Connector pins, cable jacket, and strain relief points are examined for corrosion, cracking, or deformation. Parts showing physical compromise are rejected.
• Connector integrity verification: Pin contact resistance and connector seating are checked to confirm signal path continuity consistent with Bently Nevada system requirements.
• Cable continuity and insulation check: End-to-end continuity is verified. Insulation resistance is tested to identify any jacket breakdown that could introduce noise into the proximity signal chain.
• Firmware and labeling verification (where applicable): Part number markings are cross-referenced against known Bently Nevada labeling conventions to confirm authenticity and correct suffix identification.
• Packaging and storage review: Parts are stored in controlled conditions and packaged to prevent connector damage and electrostatic discharge during transit.

Key Features for System Maintenance

• Drop-in replacement: The 330190-040-01-05 installs directly into existing 3300 Series probe and driver configurations without modification to the transducer chain or monitor rack.
• No reprogramming required: Replacing the extension cable does not affect monitor configuration, gap voltage settings, or alarm setpoints. Commissioning time is limited to physical installation and signal verification.
• Avoids engineering rework: Unlike a system migration, a cable replacement does not trigger instrument loop revalidation, P&ID revision, or safety function requalification under most plant management of change procedures.
• Preserves existing calibration baseline: The 3300 Series transducer chain — probe, extension cable, and driver — is calibrated as a matched set. Replacing only the failed cable with an identical part number maintains the calibration relationship established during original commissioning.
• Cost-effective asset protection: At a fraction of the cost of system replacement, maintaining cable spares is a defensible maintenance strategy for any rotating equipment program operating on a constrained capital budget.

Can this cable be used with 3500 Series monitors?
No. The 3300 Series and 3500 Series use different transducer chain architectures. The 330190-040-01-05 is specific to 3300 Series proximity systems and is not compatible with 3500 Series monitors without additional interface hardware.
