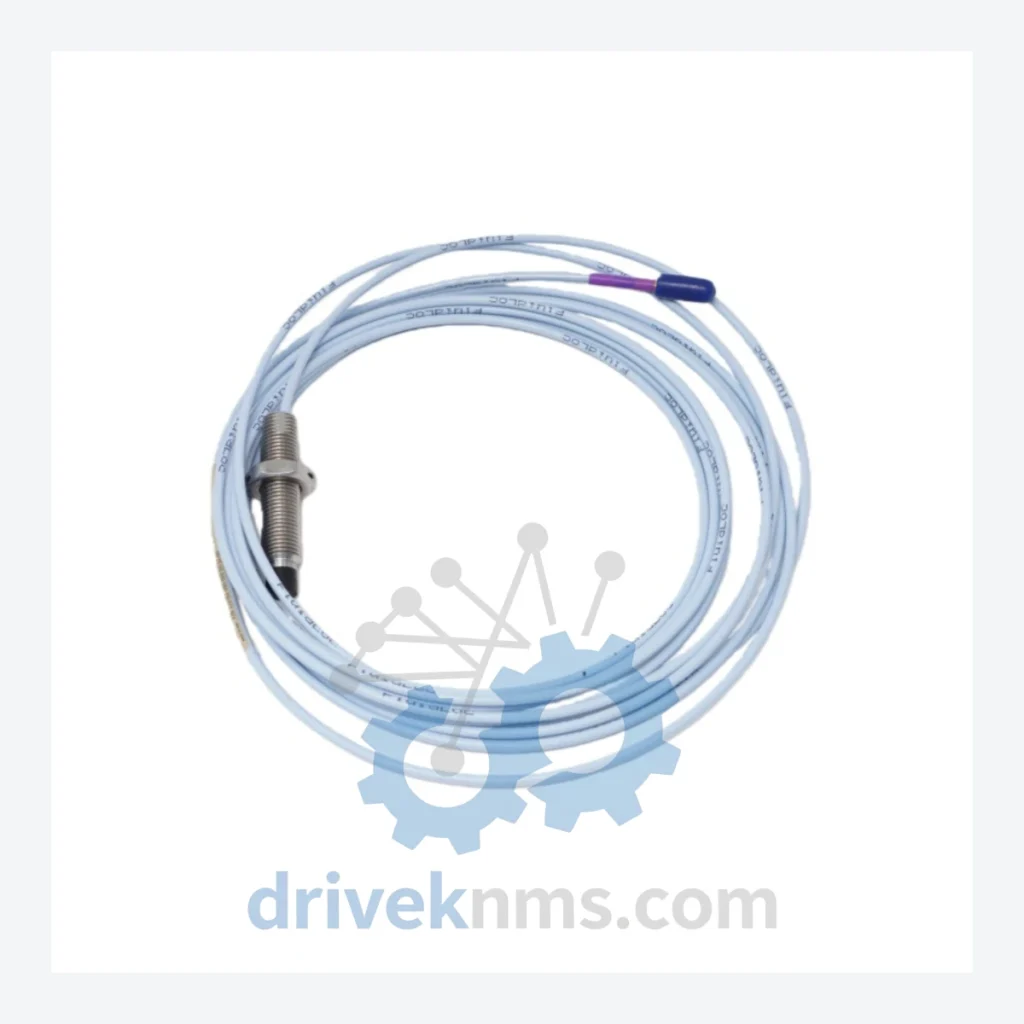

Bently Nevada 330703-000-090-10-02-CN Proximity Probe – Obsolete 3300 Series Spare Part

Technical Dossier

Product Details And Specifications

Bently Nevada 330703-000-090-10-02-CN Proximity Probe – Obsolete 3300 Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Solving the Discontinued Hardware Crisis

The Bently Nevada 3300 XL proximity transducer system was the industry standard for non-contact vibration and position measurement on turbines, compressors, pumps, and motors for decades. Thousands of facilities worldwide built their machinery protection architecture around this platform. Baker Hughes (which acquired Bently Nevada) has progressively discontinued the 3300 XL component line in favor of newer architectures, leaving operators of legacy installations in a difficult position.

The 330703-000-090-10-02-CN probe is a matched component within a three-part transducer system — probe, extension cable, and Proximitor sensor. Substituting a non-matched or incompatible probe introduces calibration errors that can cause false trips or, more dangerously, missed fault detection on critical rotating assets. There is no generic replacement. The only operationally safe path is a like-for-like spare or a full system swap.

Condition & Reliability Assurance

• Step 1 – Visual and Mechanical Inspection: Thread condition, tip face integrity, and cable jacket assessed for physical damage or corrosion. Any unit with pin corrosion or connector oxidation is rejected at this stage.
• Step 2 – Coil Resistance Verification: Probe coil resistance measured and compared against Bently Nevada published nominal values. Out-of-tolerance units are quarantined.
• Step 3 – Cable Continuity and Insulation Test: Full cable continuity check and insulation resistance test to confirm signal path integrity.
• Step 4 – Firmware / Label Version Check: Part number label, revision code, and date code verified against procurement documentation to confirm authenticity and revision compatibility.
• Step 5 – Functional Bench Test (where applicable): Units tested against a reference Proximitor to confirm output gap voltage response within specification.

Key Features for System Maintenance

• Drop-in replacement: Identical thread, cable length, and connector specification to the original factory part. No mechanical modification required.
• No re-programming required: The 3300 XL system recognizes matched probes by physical calibration, not firmware pairing. Replacement does not require re-commissioning the monitoring rack.
• Avoids engineering re-work costs: A direct spare eliminates the need for loop re-calibration, new cable routing, or rack reconfiguration — costs that accumulate rapidly on a live production asset.
• Maintains existing safety certification baseline: Replacing a like-for-like component preserves the existing machinery protection system's functional safety status, avoiding re-validation obligations that a system upgrade would trigger.

Extending Automation Asset Life by 5–10 Years: A Practical Strategy for Plant Management

The pressure to retire legacy monitoring systems is real, but the timeline is rarely driven by technical necessity — it is driven by spare parts availability. A Bently Nevada 3300 XL installation that is mechanically sound and correctly calibrated provides the same machinery protection function as a modern replacement system. The engineering case for early retirement is weak when the existing system is performing within specification.

The practical strategy for extending asset life without compromising reliability involves three disciplines:

Facilities that execute this strategy consistently report 5 to 10 additional years of reliable service from legacy Bently Nevada installations — with total maintenance cost well below the capital expenditure of a system migration.

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

Q: How do I confirm the unit is genuine and not a counterfeit?
A: All units are supplied with procurement traceability documentation. Part number labels, date codes, and revision markings are verified during our QA process. We do not source from unverified secondary markets.

Q: Can you support multi-unit or repeat RFQ requests?
A: Yes. Send the model list, target quantity and destination so DRIVEKNMS can review sourcing options and quote the requirement as a project RFQ.

Q: Is this probe compatible with the Bently Nevada 3500 Series rack?
A: The 330703-000-090-10-02-CN is designed for the 3300 XL transducer system. Compatibility with 3500 Series monitors depends on the specific I/O module configuration. Confirm your rack module part number before ordering.

Q: What if I need a matched extension cable or Proximitor as well?
A: DriveKNMS stocks matched 3300 XL transducer system components including extension cables and Proximitor sensors. Contact us with your full system configuration for a complete spare set quotation.
