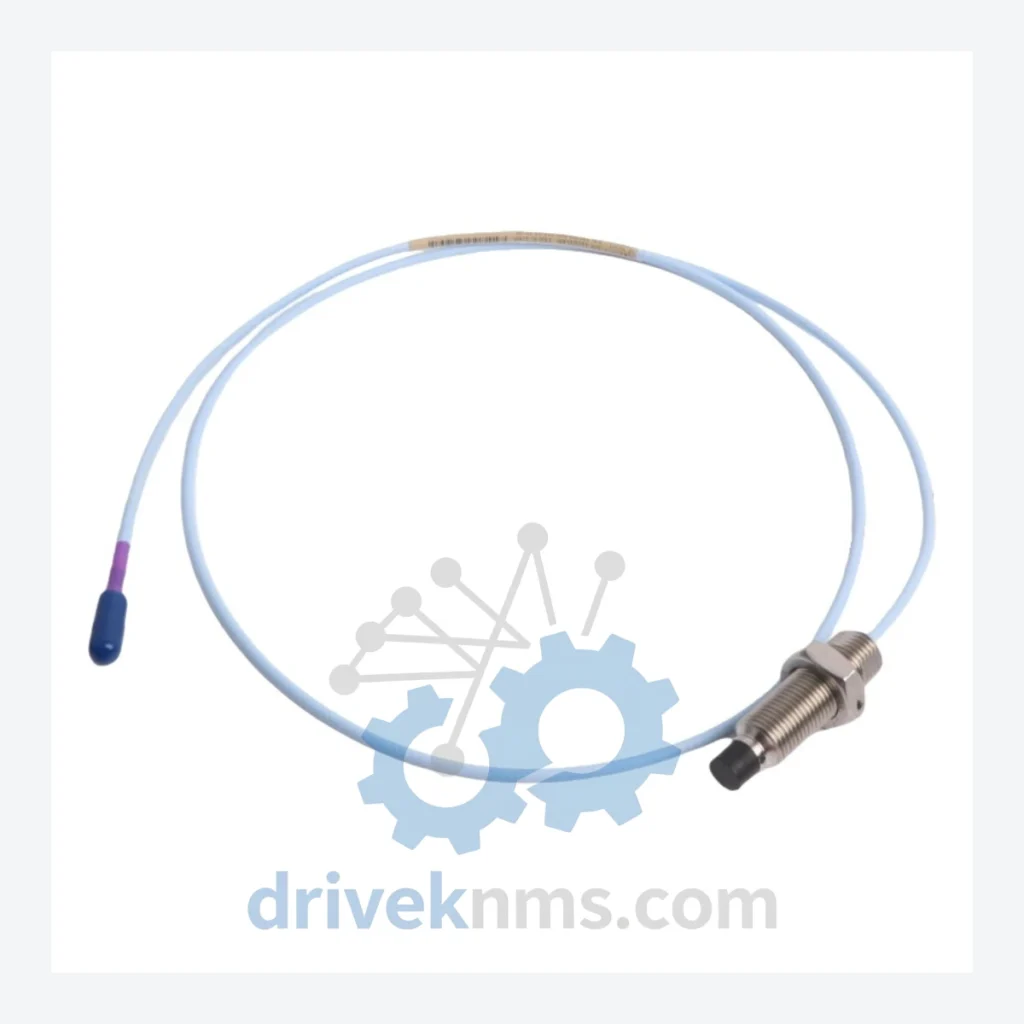

Bently Nevada 330709-000-060-50-02-00 Proximity Probe – Obsolete 3300 Series Spare Part

Technical Dossier

Product Details And Specifications

Bently Nevada 330709-000-060-50-02-00 Proximity Probe – Obsolete 3300 Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Solving the Discontinued Hardware Crisis

The Bently Nevada 3300 Series was the industry standard for turbomachinery condition monitoring across petrochemical, power generation, and heavy industrial sectors for decades. Thousands of facilities worldwide built their rotating equipment protection architecture around this platform. The 330709-000-060-50-02-00 proximity probe is a field-replaceable sensing element at the front end of that architecture — it is the component that physically measures shaft displacement and feeds that signal to the Proximitor and downstream monitor rack.

For plant managers facing this situation, the calculus is straightforward: a verified 330709-000-060-50-02-00 replacement probe, installed by a qualified technician, restores the protection loop with zero system-level changes. The asset continues operating. The capital budget remains intact. The migration to a modern platform can be planned on the facility's own schedule, not forced by an emergency.

Extending the operational life of a 3300 Series installation by 5 to 10 years through targeted spare parts management is a documented strategy in rotating equipment maintenance. The key components to hold in reserve are the proximity probes themselves (highest field failure rate due to cable fatigue and connector corrosion), the Proximitor sensors (330180 series), and the monitor cards. A facility that maintains a two-unit buffer of each critical sensing element can absorb failures without production impact and defer a multi-million dollar system upgrade until it aligns with a planned turnaround.

Condition & Reliability Assurance

Discontinued parts sourced outside the OEM channel carry inherent risk. DriveKNMS applies a structured 5-step inspection protocol to every 330709-000-060-50-02-00 unit before it is offered for sale:

1. Visual and Mechanical Inspection: Probe tip, cable jacket, and connector body are examined for physical damage, kinking, and corrosion. Units with compromised cable integrity are rejected.

2. Connector Pin Inspection: The MIL-style connector pins are checked for oxidation, bending, and contact resistance. Pin corrosion is a primary failure mode in stored proximity probes and is not acceptable in any unit we ship.

3. Coil Resistance Verification: The probe coil resistance is measured and compared against the published Bently Nevada specification range. Out-of-tolerance units are quarantined.

4. Cable Continuity and Insulation Test: Full cable continuity is verified from probe tip to connector. Insulation resistance is tested to confirm cable jacket integrity has not degraded during storage.

5. Functional Gap Voltage Test: Where test equipment permits, the probe is energized with a compatible Proximitor and the output voltage is verified against the standard 200 mV/mil (7.87 V/mm) sensitivity specification to confirm the sensing element is performing within calibration.

Units that pass all five stages are packaged in anti-static, moisture-controlled packaging and shipped with a condition report.

Key Features for System Maintenance

Avoiding a forced system upgrade by maintaining probe availability eliminates the need for new engineering drawings, updated safety instrumented system documentation, and the associated management of change process. For facilities operating under IEC 61511 or API 670 frameworks, maintaining like-for-like replacement parts is the lowest-risk maintenance strategy available.

Can this probe be used with the 3500 Series system?
No. The 3300 Series 8mm probe system is not directly compatible with the 3500 Series Proximitor without additional interface components and recalibration. This part is intended for existing 3300 XL installations only.
