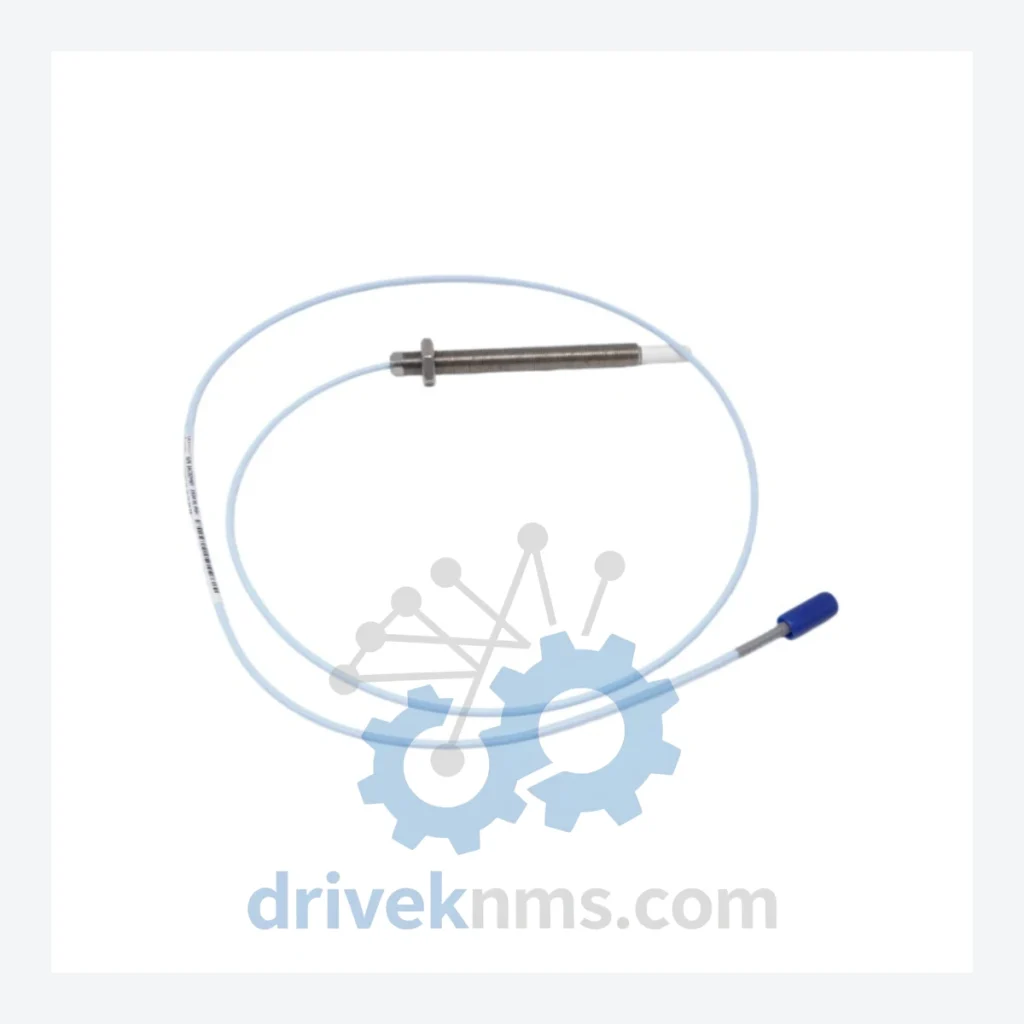

Bently Nevada 330905-00-10-05-02-CN Proximity Probe – Obsolete 3300 Series Spare Part

When a proximity probe fails on a turbomachinery protection system, the clock starts immediately. A single unplanned shutdown on a gas compressor train or steam turbine can cost an operating facility anywhere from $50,000 to several million dollars per day in lost production. For plants still running Bently Nevada 3300 Series monitoring infrastructure — a platform that has been the backbone of rotating equipment protection for decades — the discontinuation of original hardware creates a procurement crisis that no amount of engineering workarounds can fully resolve.

The 330905-00-10-05-02-CN is a metric NSv (Non-contact, Seismic velocity) proximity probe, purpose-built for the 3300 XL and legacy 3300 Series monitoring systems. DriveKNMS maintains verified stock of this part. This is not a substitute or cross-reference — it is the original Bently Nevada part number, sourced through established industrial channels.

📩 Obsolete Part – Limited Inventory. Secure your spare now:
Email: sale@driveknms.com | WhatsApp: +86 18359293191

Technical Specifications

Solving the Discontinued Hardware Crisis

The Bently Nevada 3300 Series was the industry standard for turbomachinery shaft vibration and position monitoring across refineries, LNG terminals, power generation facilities, and petrochemical plants for over two decades. Thousands of these systems remain in active service globally — not because operators are unaware of newer alternatives, but because the cost and risk of a full system migration is prohibitive.

Replacing a 3300 Series monitoring rack with a current-generation System 1 or 3500 Series platform requires new transducer cabling, re-engineering of I/O terminations, reconfiguration of DCS integration points, and — critically — a full re-validation of the protection logic. In a regulated environment, that process can take 12 to 24 months and cost upward of $500,000 per machine train. For a facility with 8 to 12 monitored machines, the capital exposure is substantial.

The 330905-00-10-05-02-CN proximity probe is a field-replaceable component. When one fails, replacing it with an identical original part restores full system function without touching the monitor, the cabling infrastructure, or the protection setpoints. That is the operational reality that makes sourcing this part — even at a premium — a straightforward financial decision for any maintenance engineer who has run the numbers.

How to Extend Automation Asset Life by 5–10 Years Through Strategic Spare Parts Management

For plant management facing pressure to retire aging monitoring infrastructure, the following approach has been validated across multiple industrial sites:

1. Conduct a criticality-weighted spare parts audit. Identify every field-replaceable component in your 3300 Series installation — probes, extension cables, drivers, and monitor cards. Assign a criticality rating based on machine importance and lead time risk. The 330905 probe series consistently ranks as Tier 1 due to its direct role in trip logic.

2. Establish a minimum buffer stock policy. For Tier 1 obsolete components, a minimum of two units per monitored machine is a defensible standard. The carrying cost of two proximity probes is negligible against the cost of a single unplanned outage.

3. Source from verified channels before market depletion. As OEM stock is exhausted, secondary market availability becomes increasingly constrained and price-volatile. Procurement decisions made today, while verified stock exists, carry significantly lower risk than emergency sourcing during an active shutdown.

4. Document firmware and hardware revision levels. For 3300 Series monitors, hardware revision compatibility with specific probe configurations is a known variable. Maintaining records of installed revision levels prevents compatibility errors during replacement.

5. Negotiate long-term supply agreements where possible. For facilities with multiple machines on the same probe configuration, a forward purchase agreement with a verified supplier locks in availability and price stability for a defined period.

This approach consistently delivers 5 to 10 additional years of reliable service from existing monitoring infrastructure, deferring capital expenditure until a planned, budgeted migration window.

Condition & Reliability Assurance

Every 330905-00-10-05-02-CN unit shipped by DriveKNMS passes a structured 5-step quality verification process before dispatch:

Step 1 – Electrolytic Capacitor Inspection: Age-related capacitor degradation is the primary failure mode in stored electronic assemblies. Each unit undergoes ESR (Equivalent Series Resistance) testing to confirm capacitor health within specification.

Step 2 – Firmware Version Verification: Where applicable, firmware revision is confirmed and documented against known compatibility matrices for the 3300 Series monitor platform.

Step 3 – Pin and Connector Corrosion Inspection: All connector pins are inspected under magnification for oxidation, pitting, or mechanical deformation. Affected contacts are treated or the unit is rejected.

Step 4 – Functional Output Test: The probe is bench-tested against a calibrated target to verify output voltage linearity and sensitivity within the Bently Nevada specification range.

Step 5 – Packaging and ESD Protection: Units are packaged in anti-static materials with desiccant, suitable for long-term storage if the part is being held as a strategic spare.

Key Features for System Maintenance

The 330905-00-10-05-02-CN is a direct, drop-in replacement for any failed unit of the same part number within a 3300 Series installation. No recalibration of the monitor is required. No changes to gap voltage setpoints are necessary, provided the replacement probe is installed to the same gap specification as the original. No DCS configuration changes are triggered. The engineering cost of the replacement is limited to the time required for physical installation and a gap voltage verification check — typically less than two hours for a qualified instrument technician.

This stands in direct contrast to the alternative: a forced migration to a current-generation monitoring platform, which carries engineering, procurement, installation, and validation costs that are orders of magnitude higher. For any facility where the monitoring system is not scheduled for replacement within the current capital plan, maintaining a stock of original replacement probes is the lowest-cost, lowest-risk maintenance strategy available.

FAQ

Q: What warranty applies to obsolete parts?
A: DriveKNMS provides a 12-month warranty against defects in materials and workmanship on all verified units. Warranty claims are handled directly — no OEM involvement is required or expected for discontinued parts.

Q: How do I confirm the unit is genuine and not a counterfeit?
A: All units are sourced through documented industrial channels. Upon request, we provide sourcing documentation and, where available, original OEM packaging. Our QA process includes physical marking verification against known Bently Nevada part number formats.

Q: Can I purchase multiple units for long-term strategic stock?
A: Yes. For facilities managing multiple machines on 3300 Series infrastructure, we recommend discussing a forward purchase arrangement. Contact us directly to discuss quantity availability and pricing for bulk or scheduled delivery.

Q: Is this part compatible with the 3300 XL monitor?
A: The 330905 probe series is designed for use within the Bently Nevada 3300 NSv system, which includes both the standard 3300 and 3300 XL monitor variants. Confirm your specific monitor revision and gap requirements with your instrument engineer before installation.

Q: What if I need a different cable length or thread configuration?
A: The 330905 part number family covers multiple cable length and thread configurations. Contact us with your full part number requirement and we will advise on current stock availability across the range.
