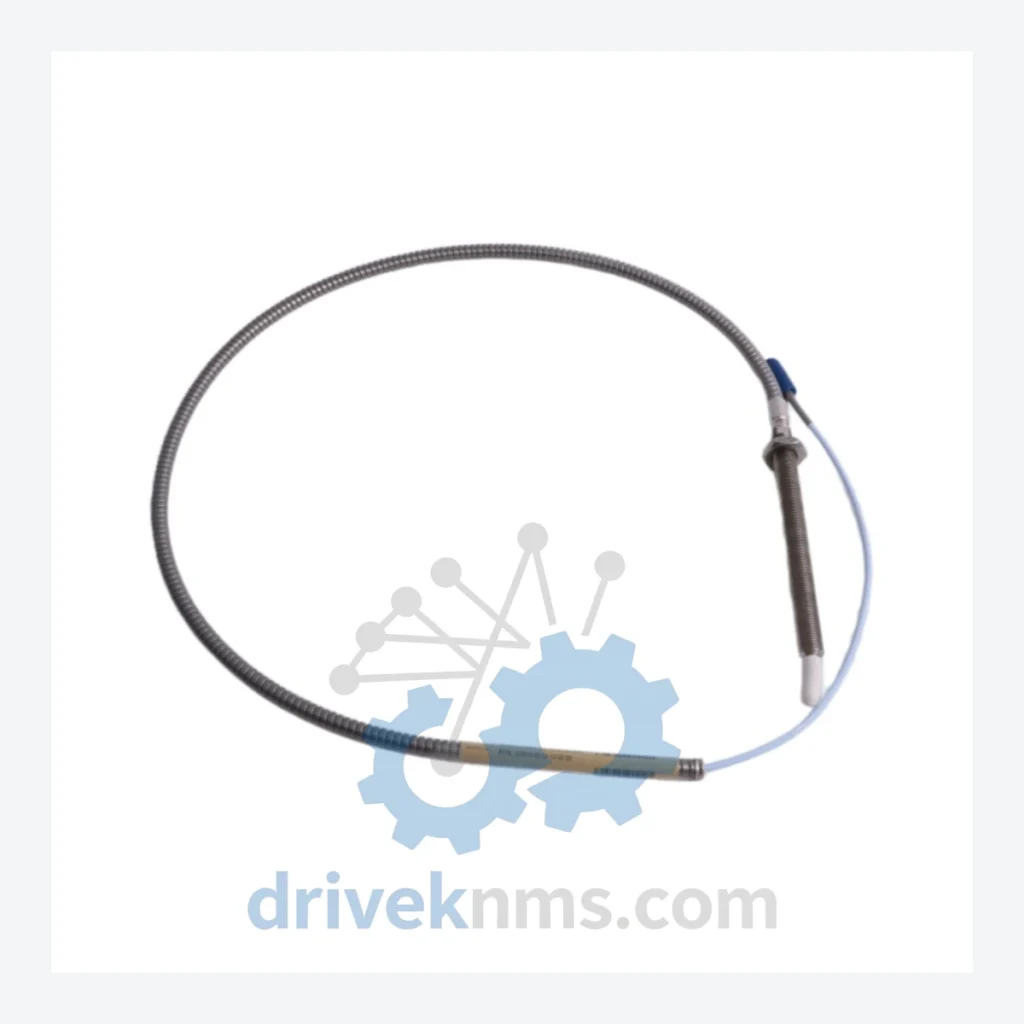

Bently Nevada 330910-00-12-10-02-05 Proximity Probe – Obsolete 3300 Series Spare Part

Technical Dossier

Product Details And Specifications

Bently Nevada 330910-00-12-10-02-05 Proximity Probe – Obsolete 3300 Series Spare Part

When a proximity probe fails on a critical rotating machinery protection system, the clock starts immediately. A single unplanned shutdown on a large compressor train or steam turbine can cost a facility anywhere from $50,000 to several million dollars per day in lost production. For plants still operating on Bently Nevada's 3300 Series vibration monitoring infrastructure, the harder question is not the cost of downtime — it is whether a replacement probe can even be sourced before operations management mandates a full system upgrade.

The Bently Nevada 330910-00-12-10-02-05 is a 3300 NSv (Non-Standard Voltage) proximity probe that has reached end-of-life status within Bently Nevada's current product catalog. Facilities that built their machinery protection architecture around the 3300 XL and 3300 NSv ecosystem face a stark reality: the cost of migrating to a current-generation system — including new monitors, re-cabling, re-commissioning, and engineering hours — routinely exceeds $300,000 per machine train. Against that figure, securing a verified spare probe represents a fraction of the investment while preserving years of additional operational life from proven, stable infrastructure.

DriveKNMS maintains physical inventory of this probe for facilities that cannot afford to wait on spot-market searches or unverified brokers.

Technical Specifications

Solving the Discontinued Hardware Crisis

The Bently Nevada 3300 Series was the industry standard for machinery protection on rotating equipment — turbines, compressors, pumps, and fans — across petrochemical, power generation, and heavy industrial facilities for decades. The 3300 NSv sub-family was deployed specifically in applications requiring non-standard voltage output configurations, making it incompatible with standard 3300 XL replacement probes without recalibration of the entire monitoring channel.

This incompatibility is the core of the problem. A facility cannot simply substitute a current-generation 330730 or 330780 probe into a 3300 NSv monitor channel without triggering alarm threshold errors and potentially invalidating the machinery protection function entirely. The monitor, the extension cable, and the probe must remain matched within the NSv system architecture.

For plant engineers and reliability managers, this creates a binary choice: source the exact obsolete part, or commit to a full system replacement. The 330910-00-12-10-02-05 probe is the component most exposed to physical wear — tip damage from proximity to rotating shafts, cable fatigue at the connector junction, and housing corrosion in wet or chemically aggressive environments. Maintaining a verified spare on the shelf is not a luxury; it is the minimum risk mitigation posture for any facility running this hardware on a critical machine.

How to extend your 3300 NSv system life by 5 to 10 years without a full upgrade:

• Spare probe inventory: Hold a minimum of one verified spare per monitored machine train. The probe is the highest-failure-rate field component in the eddy-current measurement chain.
• Extension cable inspection schedule: Implement annual inspection of the coaxial extension cable for jacket cracking and connector pin corrosion. Cable degradation is the second most common cause of measurement drift in aging 3300 NSv installations.
• Monitor card condition audit: Commission a bench-level functional test of 3300 Series monitor cards every three to five years. Capacitor aging in the signal conditioning circuitry causes slow drift in gap voltage output that can mask real shaft vibration changes.
• Documentation preservation: Retain original calibration records and system configuration documentation. In the event of a probe replacement, having the original calibration data allows technicians to verify the replacement is performing within the original acceptance band without full recommissioning.
• Vendor qualification: Source replacement probes only from suppliers who can provide functional test data. An untested probe installed on a critical machine is a liability, not a solution.

Condition & Reliability Assurance

DriveKNMS applies a structured 5-step quality process to all obsolete and legacy spare parts before shipment.

1. Visual and mechanical inspection: Probe tip, housing, cable jacket, and connector examined for physical damage, corrosion, and deformation. Parts with tip damage or connector pin deformation are rejected at this stage.
2. Electrolytic capacitor assessment: Where applicable in associated electronics, capacitor aging is evaluated. For probe units, the coaxial cable dielectric integrity is verified.
3. Connector and pin corrosion check: All connector interfaces are inspected under magnification. Oxidized or corroded pins are documented; affected units are either remediated to specification or removed from serviceable inventory.
4. Firmware and configuration verification: For units with embedded configuration, version and configuration are documented against known Bently Nevada release records.
5. Functional output verification: Where test equipment permits, probe sensitivity and gap voltage output are verified against Bently Nevada published specifications for the NSv product family.

Units that do not pass all applicable steps are not offered for sale as serviceable spares. Condition grade is disclosed at the time of quotation.

Key Features for System Maintenance

• Drop-in replacement: The 330910-00-12-10-02-05 is a direct physical and electrical replacement for the same part number within the 3300 NSv monitor channel. No reconfiguration of the monitor card is required when replacing like-for-like.
• No reprogramming required: Unlike migrating to a new-generation monitoring platform, replacing this probe within the existing 3300 NSv system requires only standard recommissioning — gap setting verification and alarm threshold confirmation. No software reconfiguration, no PLC logic changes, no DCS integration work.
• Avoids engineering reconstruction costs: A full system migration on a single machine train typically requires mechanical re-cabling, monitor rack replacement, I/O mapping changes in the control system, and a formal recommissioning and functional safety test. Sourcing this spare part eliminates that entire cost vector for the current maintenance cycle.
• Preserves existing safety certification basis: Facilities operating under functional safety standards (IEC 61511 / SIL-rated loops) face additional validation burden when changing system architecture. A like-for-like probe replacement does not trigger re-validation of the safety instrumented function.

FAQ

What warranty applies to this obsolete part?
DriveKNMS provides a 90-day warranty against defects in the supplied condition grade. Warranty terms are confirmed in writing at the time of order.

How do I confirm the part is genuine and not a counterfeit?
All units sourced by DriveKNMS are inspected for manufacturer markings, date codes, and physical construction consistent with authentic Bently Nevada production. Customers may request inspection photographs and available traceability documentation prior to purchase.

Should I buy more than one unit?
For any machine train where this probe is installed on a critical protection channel, holding a minimum of one spare on-site is the standard recommendation. For facilities with multiple monitored machines using the same probe configuration, a small strategic reserve — typically two to four units — provides meaningful protection against extended lead times if current stock is depleted.

Can this probe be used with current-generation Bently Nevada systems?
The 330910-00-12-10-02-05 is designed for the 3300 NSv monitor architecture. Compatibility with current-generation System 1 or 3500 Series hardware requires engineering evaluation and is not assumed. Contact DriveKNMS for application-specific guidance.
