Bently Nevada 990 Series: Comprehensive Module Range and Technical Overview

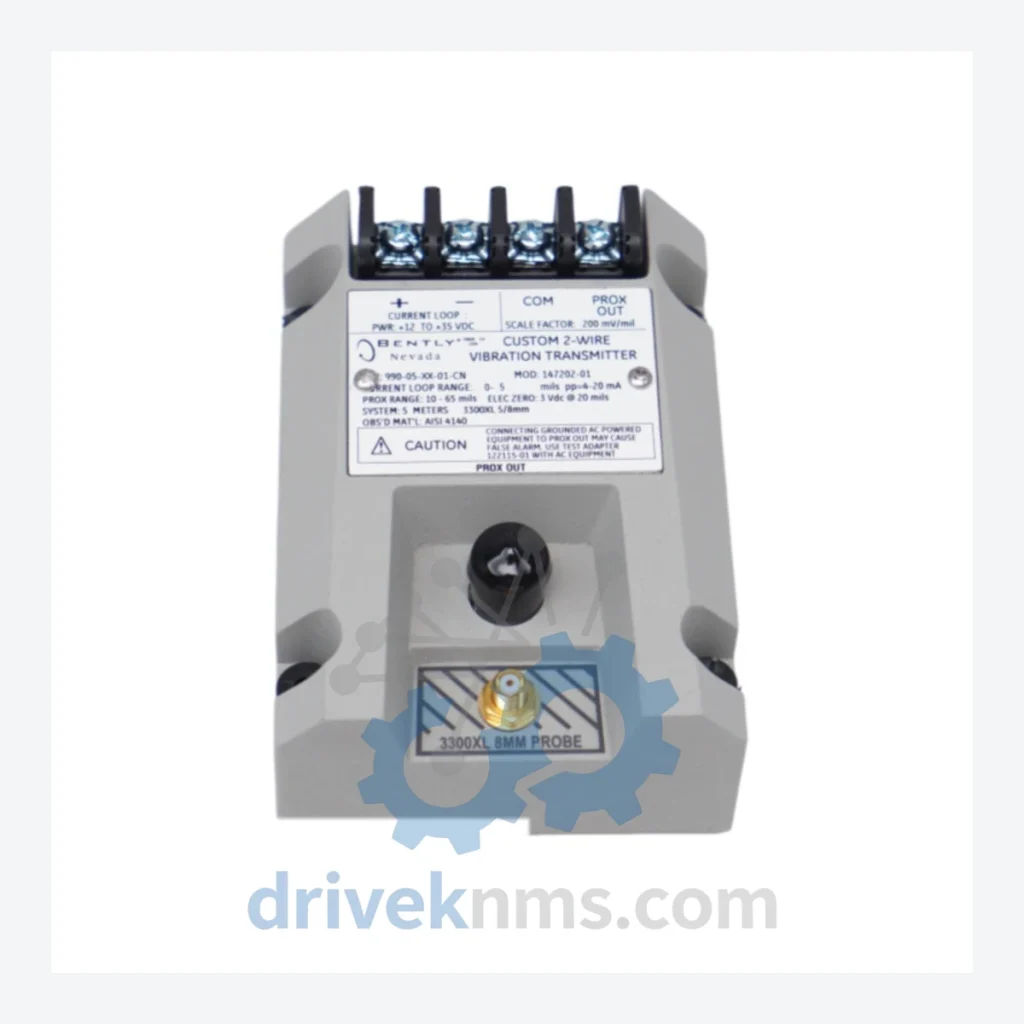

The Bently Nevada 990 Series vibration transmitter is a field-mounted, loop-powered device engineered for continuous machinery protection in the most demanding heavy industrial environments. Deployed extensively across petrochemical refineries, nuclear power stations, offshore platforms, LNG terminals, and rotating equipment monitoring systems worldwide, the 990 Series converts raw proximity probe signals into standardized 4–20 mA outputs compatible with any DCS, PLC, or safety instrumented system (SIS). Its ruggedized housing, wide operating temperature range, and compatibility with the Bently Nevada 3300 and 7200 series proximity probe systems have made it a de facto standard for turbine, compressor, and pump shaft vibration monitoring over three decades of continuous industrial deployment.

The Evolution of 990 Series Architecture

The 990 Series was introduced as a field-transmitter complement to Bently Nevada's rack-mounted 3300 Series monitoring systems, addressing the need for distributed, panel-independent vibration signal conditioning. Early variants (990-05, 990-08) were designed around analog signal processing with fixed gap voltage ranges and single-channel output. The architecture evolved through successive generations to support dual-channel configurations, configurable gap voltage windows, and enhanced EMI shielding for environments with high electrical noise floors common in motor control centers and switchgear rooms.

The 990-08-XX-01-CN (MOD: 163930-02) represents a CN-suffix variant indicating a specific connector or cable termination configuration, optimized for direct field wiring without intermediate junction boxes. As the broader Bently Nevada product portfolio migrated toward the System 1 software ecosystem and the 3701/3711 series rack monitors, the 990 Series transitioned into a mature/sustaining lifecycle phase. Baker Hughes (the current owner of the Bently Nevada brand) continues to support the 990 Series for installed base maintenance, but new greenfield installations increasingly specify the 3701 or Orbit 60 Series. This lifecycle position makes long-term spare parts availability a critical operational concern for asset owners.

990 Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked configurations within the Bently Nevada 990 Series. Each unit is a single-channel or dual-channel vibration transmitter unless otherwise noted.

990-05-XX-01-CN: Single-channel, 5 m cable, standard gap voltage, CN connector termination.
990-05-XX-02-CN: Single-channel, 5 m cable, extended gap voltage range, CN termination.
990-08-XX-01-CN MOD:163930-02: Single-channel, 8 m cable, standard configuration, MOD 163930-02 revision, CN termination.
990-08-XX-01-CN MOD:163930-01: Single-channel, 8 m cable, prior MOD revision, functionally equivalent to -02.
990-08-XX-02-CN: Single-channel, 8 m cable, high-temperature housing variant.
990-08-XX-05-CN: Single-channel, 8 m cable, intrinsically safe (IS) rated for Zone 1 hazardous areas.
990-05-01-01-00: Single-channel, 5 m cable, standard output, DIN rail mount option.
990-05-02-01-00: Single-channel, 5 m cable, dual output (vibration + gap), DIN rail mount.
990-08-01-01-00: Single-channel, 8 m cable, standard 4–20 mA output, panel mount.
990-08-02-01-00: Single-channel, 8 m cable, dual output (vibration + gap), panel mount.
990-08-05-01-00: Single-channel, 8 m cable, ATEX/IECEx certified, intrinsically safe.
990-08-XX-01-00: Single-channel, 8 m cable, universal gap voltage, standard output.
990-05-XX-05-CN: Single-channel, 5 m cable, IS-rated, CN termination, Zone 0/1 approved.
990-08-XX-03-CN: Single-channel, 8 m cable, stainless steel housing, corrosion-resistant variant.
990-08-XX-04-CN: Single-channel, 8 m cable, extended temperature range (–50°C to +85°C).
990-05-XX-03-CN: Single-channel, 5 m cable, stainless steel housing, offshore/marine grade.
990-08-XX-01-CN MOD:163930-03: Latest MOD revision of the 8 m CN variant; incorporates updated PCB layout for improved EMI rejection.

Sourcing Hard-to-Find & Obsolete 990 Series Parts

DriveKNMS maintains a dedicated inventory program for Bently Nevada 990 Series modules, with particular focus on MOD-specific variants that are no longer available through the OEM's standard distribution channels. As Baker Hughes has progressively rationalized the 990 Series catalog in favor of newer platform architectures, end users operating legacy turbine protection systems face increasing lead times and minimum order quantity constraints from authorized distributors.

DriveKNMS sources 990 Series units through a combination of surplus OEM stock, decommissioned plant buybacks, and verified third-party refurbishment channels. All units are cross-referenced against the original Bently Nevada part numbering matrix to confirm MOD revision compatibility before dispatch. For critical applications where MOD revision interchangeability is not confirmed by the OEM, DriveKNMS provides full documentation of the unit's revision history and test results to support the customer's engineering change management process.

Quality Control for the 990 Series Range

Each 990 Series unit processed by DriveKNMS undergoes a structured verification protocol before shipment. The transmitter's 4–20 mA output linearity is verified across the full gap voltage input range using a calibrated proximity probe simulator. Output accuracy is confirmed against the published Bently Nevada specification of ±1% of full scale. Loop resistance compliance is tested at the rated supply voltage (18–30 VDC) to confirm correct operation across the full load range. For CN-termination variants, connector integrity and pin continuity are verified using a dedicated harness test fixture. Units exhibiting any deviation from the published transfer function, or showing evidence of prior field damage to the housing, cable armor, or connector body, are quarantined and not offered for sale. Test records are retained and available upon request for quality-critical procurement processes.
