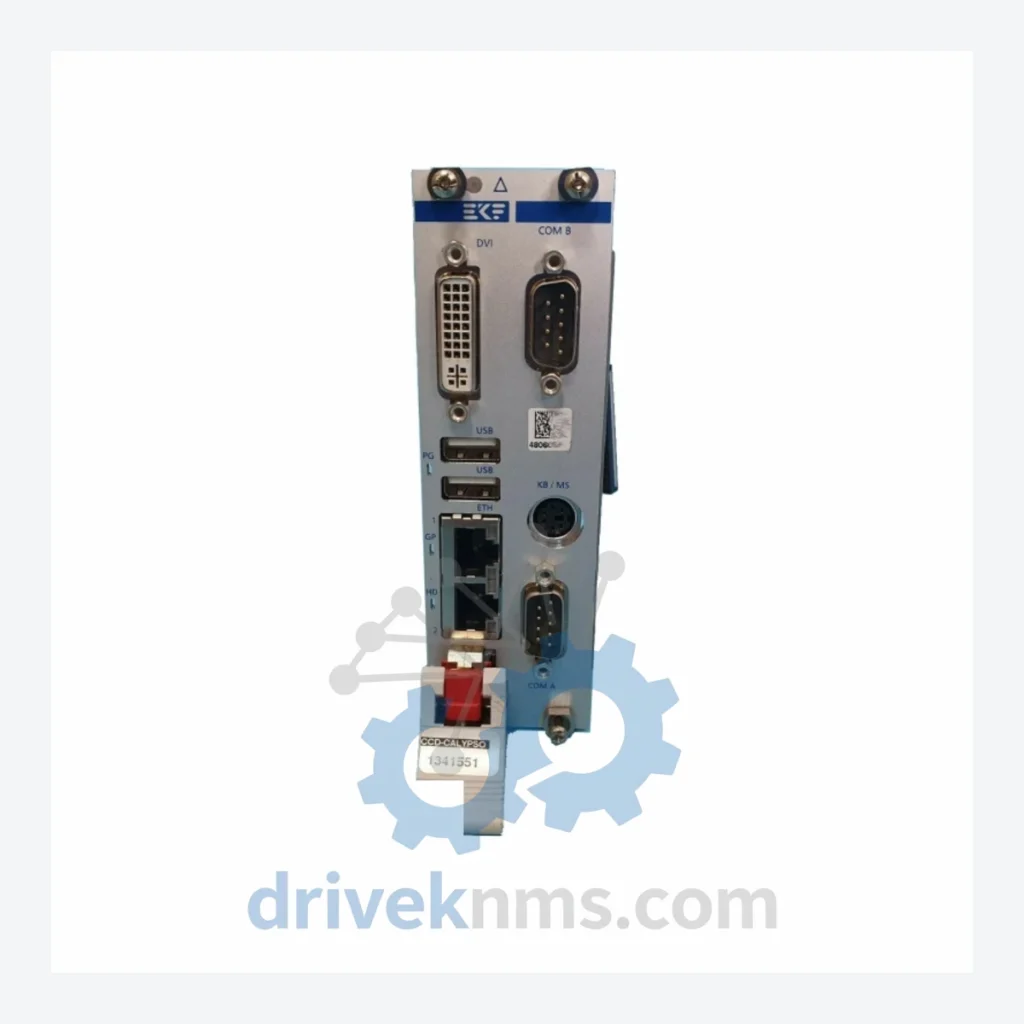

Berger Lahr CCD-98R.CALYPSO Servo Drive – Obsolete CALYPSO Series Spare Part

Technical Dossier

Product Details And Specifications

Berger Lahr CCD-98R.CALYPSO Servo Drive – Obsolete CALYPSO Series Spare Part

When a servo drive fails on a production line built around Berger Lahr's CALYPSO motion control architecture, the clock starts immediately. A full-line upgrade to replace discontinued hardware — including new controllers, rewiring, PLC reprogramming, and recommissioning — routinely costs manufacturers between $500,000 and $2,000,000 USD, and that figure does not include lost production revenue during the transition. The CCD-98R.CALYPSO is no longer manufactured. Finding a verified, functional unit is not a routine procurement task. DriveKNMS maintains physical stock of this unit for facilities that cannot afford to treat a drive failure as a capital project trigger.

Technical Specifications

Note: Specific electrical parameters (voltage range, current rating, encoder interface) vary by sub-variant. Confirmed specifications are provided upon request with unit serial number verification. No parameters are published here that have not been independently verified — accuracy on obsolete drives is a safety matter, not a marketing exercise.

Solving the Discontinued Hardware Crisis

The Berger Lahr CALYPSO servo drive series was widely deployed across European and Asian manufacturing facilities throughout the 1990s and early 2000s, particularly in packaging machinery, textile equipment, and precision assembly lines. These systems were engineered for 20+ year service lives, and many remain mechanically sound. The drive, however, is the component most exposed to thermal cycling, capacitor aging, and power transient stress — and it is the component that Berger Lahr no longer supports.

When plant engineers face a CCD-98R.CALYPSO failure, they confront a binary choice: source a verified replacement unit, or initiate a full motion system retrofit. The retrofit path is not simply expensive — it disrupts validated production processes, requires requalification under ISO or GMP frameworks where applicable, and introduces integration risk into systems that have operated reliably for decades. For facilities in pharmaceutical, food processing, or precision manufacturing, that requalification cost alone can exceed the value of the original equipment.

Sourcing a verified CCD-98R.CALYPSO unit from DriveKNMS eliminates that decision entirely. The existing motor, cabling, and control architecture remain intact. The line returns to production. The capital budget remains unspent.

How to extend your CALYPSO-based automation asset life by 5–10 years:

• Maintain a minimum 2-unit spare inventory. A single-unit production line with zero drive spares is not a maintained asset — it is a scheduled emergency. The cost of holding two CCD-98R.CALYPSO units is a fraction of one hour of unplanned downtime on most production lines.
• Schedule proactive drive replacement at 15-year intervals. Electrolytic capacitors in servo drives have a finite service life. Replacing a drive before failure — rather than after — eliminates unplanned downtime and allows controlled recommissioning.
• Document your current firmware version before any replacement. CALYPSO drives may carry version-specific parameter sets tied to your motor tuning. Capture and archive this data now, while the existing unit is operational.
• Audit your full CALYPSO component chain. If the drive is aging, the associated servo motor encoder and feedback cabling are aging on the same timeline. A comprehensive spare parts audit now prevents a cascade failure scenario later.
• Negotiate a long-term supply agreement. DriveKNMS can discuss reserved inventory arrangements for facilities with multiple CALYPSO-equipped lines. Contact us directly to discuss terms.

Condition & Reliability Assurance

Obsolete servo drives sourced from secondary markets carry real risk. DriveKNMS applies a structured 5-step quality process to every CCD-98R.CALYPSO unit before it leaves our facility:

1. Electrolytic Capacitor Assessment: Capacitor aging is the primary failure mode in drives of this generation. Each unit undergoes ESR (Equivalent Series Resistance) measurement and visual inspection for bulging, leakage, or venting. Units with degraded capacitors are either recapped with specification-matched components or rejected from inventory.
2. Firmware Version Verification: The firmware version is read, recorded, and cross-referenced against known CALYPSO release history. Units with corrupted or unreadable firmware are not sold as functional replacements.
3. Pin and Connector Corrosion Inspection: All I/O connectors, power terminals, and encoder interface pins are inspected under magnification for oxidation, fretting corrosion, and mechanical damage. Affected contacts are treated or the unit is downgraded accordingly.
4. Functional Power-On Test: Where test infrastructure permits, units are powered and tested for basic drive response, fault code behavior, and communication interface integrity.
5. Condition Classification and Documentation: Each unit ships with a written condition report classifying it as New Old Stock, Tested Refurbished, or Refurbished with noted interventions. No unit is shipped without a documented condition classification.

Key Features for System Maintenance

• Drop-in replacement: The CCD-98R.CALYPSO installs directly into existing CALYPSO system wiring and mechanical mounting positions. No hardware modification is required.
• No reprogramming required: Parameter sets from the failed unit can be transferred to the replacement drive using standard CALYPSO commissioning tools, preserving your existing motion profiles without engineering intervention.
• Avoids engineering retrofit costs: Replacing this drive unit eliminates the need for new controller selection, system integration engineering, cable rerouting, and the associated project management overhead of a full retrofit.
• Preserves validated processes: For regulated industries, keeping the original drive architecture means your validated process parameters remain unchanged — no revalidation, no regulatory filing, no production hold.

FAQ

What warranty applies to an obsolete drive like the CCD-98R.CALYPSO?
DriveKNMS provides a 90-day functional warranty on all tested and refurbished units. New Old Stock units are sold with a 30-day inspection warranty. Warranty terms are confirmed in writing at the time of sale.

How do I know the unit is genuine and not a counterfeit?
All units are sourced from decommissioned OEM equipment or verified industrial surplus channels. We do not source from unverified brokers. Each unit's serial number and date code are inspected and documented. We provide full traceability documentation upon request.

Should I buy more than one unit?
For any production line where this drive is a single point of failure, yes. The CCD-98R.CALYPSO is not a part you can order on short notice from a distributor. Current available stock is finite. Facilities with multiple CALYPSO-equipped machines should treat spare drive procurement as a risk management decision, not a reactive purchase.

Can you source additional units if I need more than you have in stock?
DriveKNMS maintains active sourcing channels for obsolete industrial automation components. Contact us with your quantity requirement and we will advise on availability and lead time.
