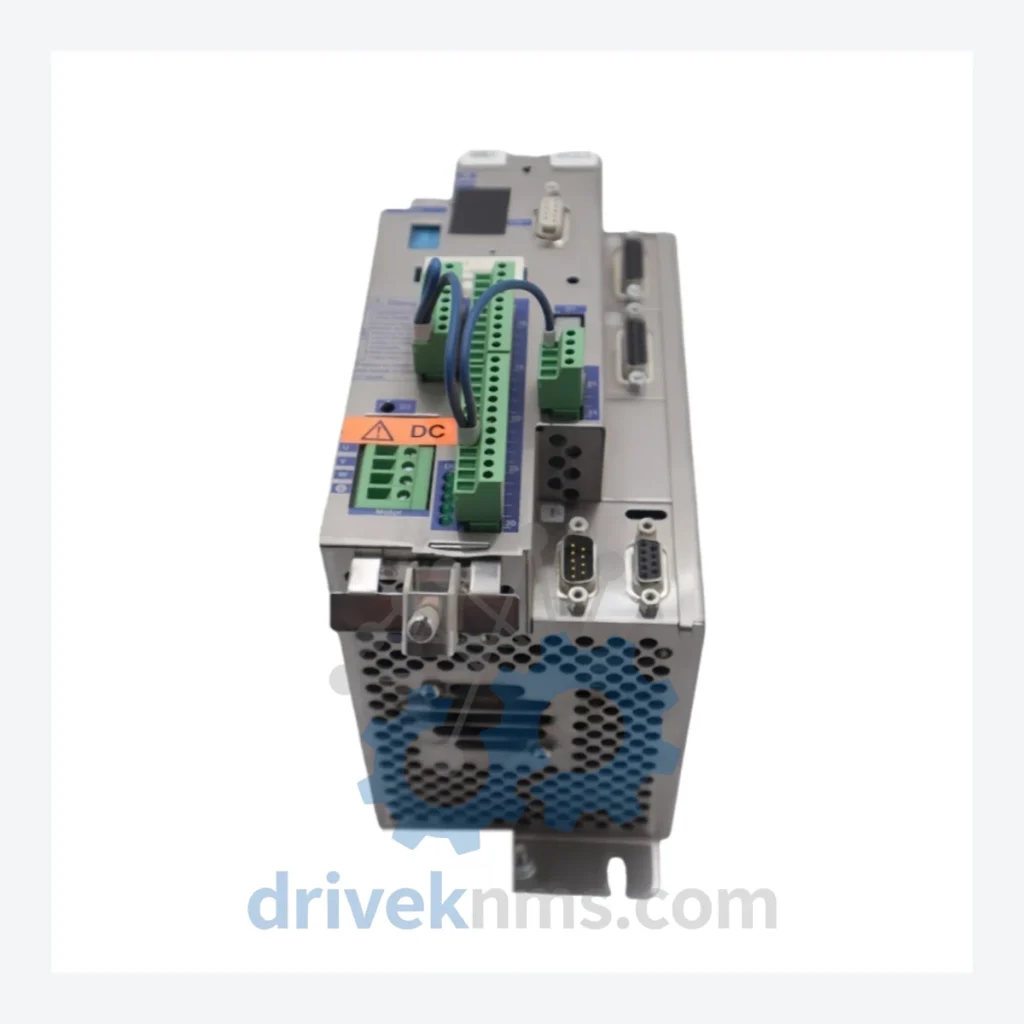

BERGER LAHR TLC511 F Servo Drive – Obsolete IclA Series Spare Part

Technical Dossier

Product Details And Specifications

BERGER LAHR TLC511 F Servo Drive – Obsolete IclA Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Solving the Discontinued Hardware Crisis

BERGER LAHR's IclA product line represented a generation of compact, self-contained servo intelligence that was deeply integrated into packaging, textile, printing, and precision assembly lines throughout Europe and Asia during the 1990s and 2000s. When Schneider Electric absorbed the BERGER LAHR brand, the IclA series entered end-of-life status. Spare parts dried up through official channels years ago.

Condition & Reliability Assurance

Obsolete servo drives sourced from the secondary market carry real risk if not properly evaluated. DriveKNMS applies a structured 5-step inspection protocol to every TLC511 F unit before it is offered for sale:

• Step 1 – Electrolytic Capacitor Assessment: Capacitors in drives of this age are the most common failure point. Each unit is inspected for capacitor bulging, leakage, and ESR degradation. Units with aged capacitors are reconditioned or rejected.
• Step 2 – Firmware Version Verification: The firmware revision is confirmed and documented. Mismatched firmware between a replacement drive and the host system is a known cause of commissioning failure in IclA installations.
• Step 3 – Pin and Connector Inspection: All I/O connectors, fieldbus ports, and power terminals are inspected under magnification for corrosion, bent pins, and oxidation. Affected contacts are cleaned or the unit is rejected.
• Step 4 – Functional Power-On Test: Where test fixtures permit, units are powered and basic drive response is verified prior to shipment.
• Step 5 – Packaging and ESD Protection: Units are shipped in anti-static packaging with physical protection appropriate for sensitive servo electronics.

Key Features for System Maintenance

• Drop-in replacement: The TLC511 F is a direct form-fit-function substitute within compatible IclA system configurations. No mechanical modifications to the machine frame are required.
• No reprogramming of the host PLC: The drive's communication interface and parameter structure remain consistent with the original installation, avoiding the need to rewrite motion control logic in the host controller.
• Avoids engineering reconstruction costs: Substituting a like-for-like drive eliminates the need for new motor cabling, feedback re-wiring, and safety re-validation that a modern drive retrofit would demand.
• Preserves production continuity: Operators and maintenance technicians already familiar with the IclA platform can commission a replacement TLC511 F without retraining.
• Asset life extension of 5–10 years: A single verified spare unit, properly installed, restores full system capability and defers capital expenditure on line replacement by a measurable planning horizon.

How do I know the unit is genuine and not a counterfeit?
All TLC511 F units are sourced from decommissioned OEM equipment or verified industrial surplus channels. Physical markings, serial number formats, and board construction are cross-referenced against known-good reference units. We do not source from unverified brokers.

Can you confirm compatibility with my specific machine before I order?
Yes. Provide your machine model, the existing drive's full nameplate data, and your fieldbus configuration. Our technical team will confirm compatibility before the order is placed.
