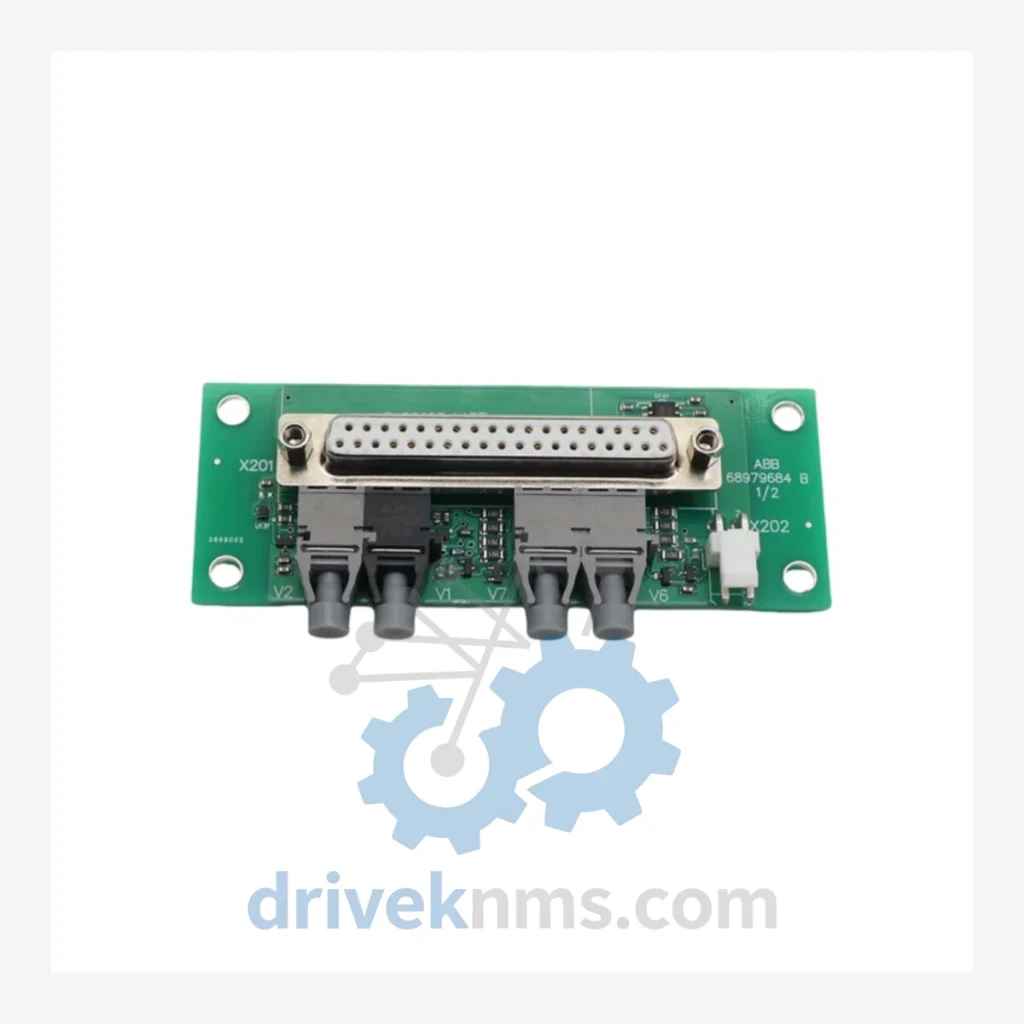

ABB JRIB Series Modules | JRIB-G1C Main Circuit Board

Technical Dossier

Product Details And Specifications

ABB JRIB Series: Comprehensive Module Range and Technical Overview

The ABB JRIB series is a family of main circuit board and interface modules deployed within ABB's Advant/Master and MOD 300 distributed control system (DCS) platforms. These systems have accumulated significant installed base across global heavy industry sectors including petrochemical refineries, nuclear power generation auxiliaries, offshore oil & gas platforms, and large-scale chemical processing facilities. The JRIB series occupies a critical position in the backplane communication and I/O interface layer of these architectures, making reliable spare parts availability a direct operational continuity concern for plant maintenance teams.

The Evolution of JRIB Architecture

The JRIB module family was developed as part of ABB's Advant Controller (AC) and MOD 300 control system lineage, introduced in the late 1980s and refined through the 1990s. Early JRIB variants served as primary backplane interface boards within the Advant OCS (Open Control System) framework, providing the electrical and logical bridge between the controller CPU modules and field I/O termination assemblies.

As ABB transitioned its DCS portfolio toward the Industrial IT and then System 800xA platforms in the 2000s, the JRIB series entered a maintenance-only lifecycle phase. Compatibility constraints are significant: JRIB modules are not interchangeable with 800xA S800 I/O or S900 I/O hardware. Plants running legacy Advant or MOD 300 systems that have not undergone full migration must source original JRIB hardware for corrective maintenance, as no drop-in modern equivalent exists. Firmware dependencies further restrict substitution — specific JRIB board revisions are tied to particular controller firmware versions, requiring exact revision matching during replacement.

The series reached end-of-production (EOP) status, with ABB's official support transitioning to third-party lifecycle extension providers. This makes secondary market sourcing and specialist testing the primary procurement channel for JRIB components globally.

JRIB Full Catalog & Functionalities (SKU List)

The following SKUs represent confirmed models within the ABB JRIB and closely associated Advant/MOD 300 interface board family. Each unit is classified by primary function:

Main Circuit Boards & Controller Interface

• JRIB-G1C: Main circuit board, primary backplane interface for Advant OCS controller rack
• JRIB-G1A: Main circuit board, early revision, Advant AC 110/AC 160 compatible
• JRIB-G1B: Main circuit board, mid-series revision with enhanced bus arbitration logic
• JRIB-G2C: Secondary interface board, dual-bus configuration for redundant controller setups
• JRIB-G3A: Main circuit board variant for MOD 300 rack integration

Digital Input (DI) Modules

• JRIB-D1A: 16-channel 24 VDC digital input module, isolated, Advant rack mount
• JRIB-D2A: 32-channel digital input, high-density configuration for process monitoring
• JRIB-D3B: Digital input module with diagnostics, fault-tolerant field signal acquisition

Digital Output (DO) Modules

• JRIB-O1A: 16-channel 24 VDC digital output, relay-backed, actuator drive
• JRIB-O2B: 32-channel transistor output module, high-speed switching for valve control

Analog Input (AI) Modules

• JRIB-A1A: 8-channel 4–20 mA analog input, 12-bit resolution, HART-passive
• JRIB-A2A: 16-channel analog input, differential configuration, thermocouple/RTD compatible
• JRIB-A3B: High-accuracy analog input, 16-bit resolution, for precision process variables

Communication & Bus Adapter Modules

• JRIB-C1A: PROFIBUS DP communication adapter, gateway between Advant backplane and field bus
• JRIB-C2A: MasterBus 300 interface module, inter-controller communication within MOD 300 architecture
• JRIB-C3B: Ethernet TCP/IP adapter module, legacy network integration for supervisory connectivity

Power Supply Modules

• JRIB-P1A: 24 VDC rack power supply module, 10 A rated, primary power for JRIB I/O rack
• JRIB-P2A: Redundant power supply module, hot-swap capable, for high-availability rack configurations

Sourcing Hard-to-Find & Obsolete JRIB Parts

DriveKNMS maintains a dedicated inventory program for end-of-life ABB Advant and MOD 300 components, including the full JRIB series. As ABB has ceased production of these modules, procurement through the original equipment manufacturer is no longer viable for most part numbers. DriveKNMS sources JRIB modules through verified decommissioning channels, controlled disassembly of retired plant equipment, and long-term storage inventory from authorized industrial surplus networks.

For plant operators requiring lifecycle extension beyond ABB's official support window, DriveKNMS provides: confirmed-revision spare boards to match existing system firmware requirements; batch procurement for scheduled maintenance shutdowns; and emergency same-day dispatch for critical process restoration. All JRIB modules are catalogued by board revision, manufacturing date code, and functional test status prior to dispatch.

Quality Control for the JRIB Range

JRIB series boards present specific test challenges due to their multi-layer backplane bus architecture and mixed analog/digital signal paths. DriveKNMS applies the following test protocol to all JRIB units prior to shipment:

• Visual & Physical Inspection: Component-level examination for capacitor degradation, solder joint fatigue, corrosion on edge connectors, and PCB delamination — failure modes common in boards with 15–30 years of service history.
• Powered Functional Test: Each board is energized in an ABB-compatible rack test fixture replicating the original backplane bus environment. Bus arbitration, address decoding, and I/O channel response are verified against factory specification parameters.
• Communication Bus Verification: For JRIB communication adapter variants, MasterBus 300 and PROFIBUS DP protocol integrity is validated using protocol analyzers to confirm correct frame structure, timing, and error recovery behavior.
• Analog Channel Calibration: AI module variants undergo full-range linearity and offset calibration checks across all channels using traceable reference sources.
• Burn-In Cycle: Boards are subjected to a minimum 24-hour powered burn-in at elevated ambient temperature to screen for latent component failures before shipment.
• Revision Documentation: Board hardware revision, firmware version (where applicable), and test results are recorded and supplied with each unit to support plant maintenance records.
