ABB MVB8 Series Modules

Technical Dossier

Product Details And Specifications

ABB MVB8 Series: Comprehensive Module Range and Technical Overview

The ABB MVB8 series represents a core hardware platform deployed across ABB's machine tool control systems, with documented installations in heavy industrial environments including chemical processing plants, refinery automation lines, and precision manufacturing facilities. The MVB8 3er110a001 is a motherboard-class module that serves as the central backplane interface within the MVB8 control architecture, coordinating communication between CPU, I/O, and power supply modules. ABB MVB8-based systems remain operational in a significant installed base globally, particularly in facilities running legacy ABB machine tool controllers where full system replacement is cost-prohibitive.

The Evolution of MVB8 Architecture

The MVB8 platform was developed as part of ABB's modular machine tool control strategy, designed to interface with ABB's proprietary backplane bus and support distributed I/O expansion. Early MVB8 variants were engineered for compatibility with ABB's MASTERPIECE and AC500 adjacent control families, using parallel bus communication at fixed clock rates. Later revisions introduced improved EMI shielding and extended operating temperature tolerance to meet demands from foundry and heavy press environments. The 3er110a001 board revision reflects a third-generation hardware iteration, incorporating revised power regulation circuitry and updated BIOS-level firmware compatibility for ABB's CNC and motion control software stacks. As the MVB8 series has entered its mature/end-of-life phase, ABB no longer manufactures replacement units through standard distribution channels, making third-party MRO sourcing the primary procurement path for maintenance engineers.

MVB8 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within or directly compatible with the ABB MVB8 series platform. Each module is classified by functional role:

Motherboard / Backplane Modules

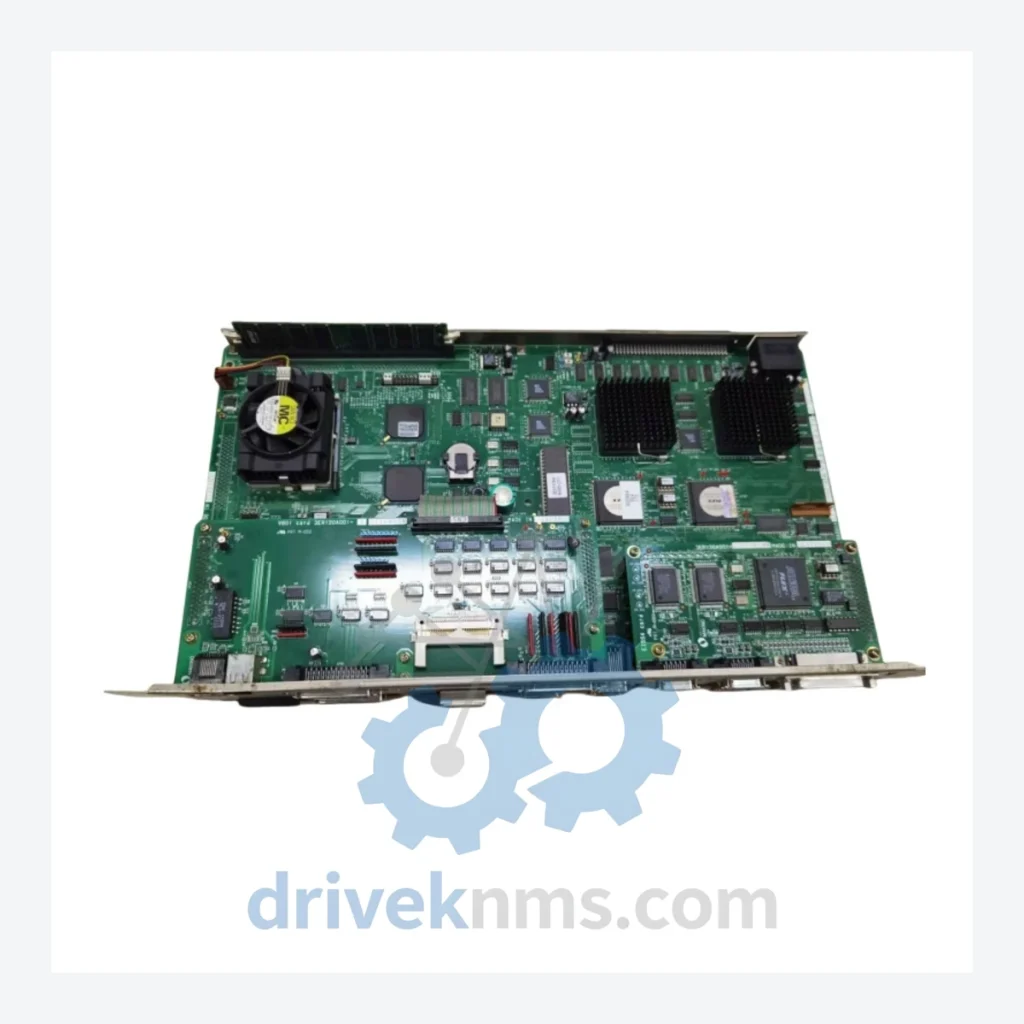

• MVB8 3er110a001: Central machine tool motherboard; primary backplane bus interface for MVB8 rack systems.
• MVB8 3er110a002: Revised motherboard variant with updated power rail layout for high-vibration environments.
• MVB8 3er100a001: First-generation backplane board; compatible with early ABB CNC controller firmware.

CPU / Processor Modules

• MVB8 3er120a001: Main CPU module; executes machine tool control logic and coordinates I/O polling cycles.
• MVB8 3er120a002: Enhanced CPU with expanded RAM buffer for multi-axis motion control applications.
• MVB8 3er121a001: Redundant CPU module for fault-tolerant configurations in critical machining lines.

Digital Input (DI) Modules

• MVB8 3er130a001: 16-channel 24VDC digital input module; standard machine tool sensor interface.
• MVB8 3er130a002: 32-channel DI module with optical isolation for high-noise press environments.
• MVB8 3er131a001: High-speed DI module; supports encoder feedback and position limit switch inputs.

Digital Output (DO) Modules

• MVB8 3er140a001: 16-channel 24VDC digital output module; relay-compatible for actuator and solenoid control.
• MVB8 3er140a002: 32-channel DO module with short-circuit protection and diagnostic LED per channel.

Analog I/O Modules

• MVB8 3er150a001: 8-channel analog input module; 4–20mA / 0–10V configurable per channel.
• MVB8 3er151a001: 4-channel analog output module; used for spindle speed reference and feed rate control.

Communication / Adapter Modules

• MVB8 3er160a001: PROFIBUS-DP communication adapter; enables integration with ABB distributed I/O networks.
• MVB8 3er161a001: Ethernet/IP communication module for supervisory SCADA and MES connectivity.

Power Supply Modules

• MVB8 3er170a001: 24VDC rack power supply module; rated for full MVB8 backplane load with over-voltage protection.
• MVB8 3er171a001: Redundant power supply module; hot-swap capable for zero-downtime maintenance.

Sourcing Hard-to-Find & Obsolete MVB8 Parts

DriveKNMS maintains a dedicated inventory program for end-of-life ABB MVB8 series components. As ABB has discontinued active production of MVB8 platform modules, procurement through standard ABB distribution channels is no longer viable for most SKUs. DriveKNMS sources MVB8 modules through verified industrial surplus channels, decommissioned equipment recovery, and direct factory-refurbishment partnerships. All MVB8 units in stock are cataloged by revision code and firmware compatibility level. For customers requiring long-term maintenance contracts covering MVB8-based machine tool systems, DriveKNMS offers reserved inventory agreements with guaranteed lead times. Customers operating facilities with 5–15 year remaining service life on MVB8-equipped machines are advised to establish buffer stock for high-failure-rate components including the MVB8 3er110a001 motherboard, CPU modules, and power supply units.

Quality Control for the MVB8 Range

MVB8 modules undergo a structured multi-stage inspection protocol at DriveKNMS prior to shipment. Visual inspection covers PCB trace integrity, capacitor condition, connector pin alignment, and backplane edge connector wear. Functional testing is performed using ABB-compatible rack test fixtures that replicate the MVB8 backplane bus environment, verifying correct module initialization, bus arbitration response, and I/O channel continuity. For communication modules such as the MVB8 3er160a001 and 3er161a001, protocol-layer testing confirms correct PROFIBUS and Ethernet/IP frame handling. Motherboard units including the MVB8 3er110a001 are subjected to extended burn-in testing at elevated temperature to screen for latent component failures. All tested units are issued a DriveKNMS inspection report with test date, technician ID, and pass/fail criteria documentation.
