ABB NAM Series Modules

Technical Dossier

Product Details And Specifications

ABB NAM Series: Comprehensive Module Range and Technical Overview

The ABB NAM (Network Adapter Module) series is a core component family within ABB's Freelance DCS and AC500 PLC platforms, deployed extensively across global heavy industry — including petrochemical refineries, nuclear auxiliary systems, offshore platforms, and continuous-process chemical plants. The NAM series provides the critical communication and I/O backbone that connects field instrumentation to the Freelance controller network, enabling deterministic real-time data exchange across redundant PROFIBUS, FOUNDATION Fieldbus, and proprietary ABB AF100 networks. Installations of this series are documented across ABB Freelance 2000, Freelance 800F, and AC500 architectures, with some sites maintaining active NAM-based infrastructure for over 20 years due to the series' proven reliability in SIL-rated environments.

The Evolution of NAM Series Architecture

The NAM series originated in the early Freelance 2000 DCS architecture introduced in the 1990s, where analog master modules served as the primary interface between the AF100 fieldbus and analog I/O subsystems. Early variants such as the NAMM01 and NAMM02 used parallel backplane communication and were constrained to fixed-slot addressing within the Freelance controller rack. The transition to the NAMM03 generation introduced enhanced diagnostic registers, improved EMC shielding, and support for extended channel counts, making it compatible with both legacy Freelance 2000 cabinets and the updated Freelance 800F hardware platform.

As ABB migrated toward the AC500 architecture in the 2000s, the NAM series was progressively integrated with PROFIBUS DP and PROFINET communication stacks, while retaining backward compatibility with AF100 segment wiring. This dual-generation compatibility is the primary reason NAM modules remain in active procurement — plant operators running mixed Freelance/AC500 environments cannot simply substitute a generic PROFIBUS adapter without re-engineering the AF100 segment topology. The series entered its mature/end-of-life phase circa 2015–2018, with ABB formally discontinuing new production of several variants. Long-term maintenance support is now the dominant procurement driver.

NAM Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced models within the ABB NAM and associated Freelance DCS module families. Each entry reflects its primary functional role within the system architecture:

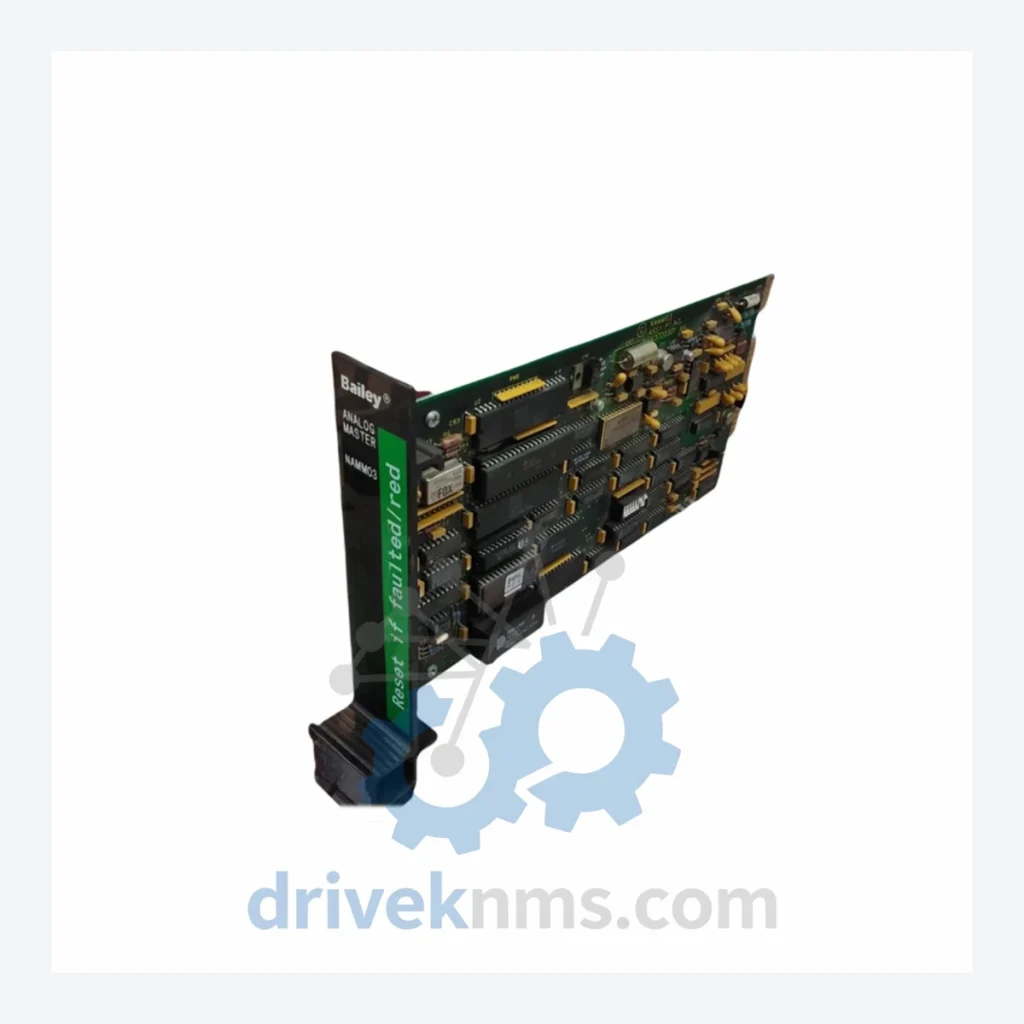

NAMM03: Analog master module for AF100 fieldbus; 16-channel analog I/O master interface with diagnostic support.
NAMM01: First-generation analog master module; fixed-slot backplane addressing, Freelance 2000 compatible.
NAMM02: Intermediate analog master; improved channel isolation over NAMM01, no extended diagnostics.
NAMC01: NAM communication module; AF100 segment controller interface for Freelance 800F racks.
NAMC02: Enhanced communication module; dual-port AF100 with redundancy switchover logic.
NAMT01: NAM termination module; passive backplane terminator for NAM rack segment endpoints.
NAMF01: NAM fieldbus interface; FOUNDATION Fieldbus H1 segment master for Freelance DCS.
NAMP01: NAM PROFIBUS module; PROFIBUS DP master adapter for AC500/Freelance hybrid topologies.
NAMD01: NAM digital interface module; 32-channel DI/DO bridge to AF100 network segment.
NAMR01: NAM redundancy module; hot-standby switchover controller for critical NAM segments.
NAMR02: Enhanced redundancy module; bumpless transfer with sub-100ms failover for SIL-2 loops.
NAMS01: NAM safety module; SIL-2 rated analog master for safety instrumented systems.
NAMX01: NAM expansion module; extends rack capacity for high-density I/O configurations.
NAMX02: Second-generation expansion module; supports up to 64 additional I/O channels per rack.
NAMI01: NAM isolation module; galvanic isolation barrier for hazardous area AF100 segments.
NAMI02: Enhanced isolation module; ATEX-rated, Zone 1 compatible fieldbus isolation interface.
NAMP02: PROFIBUS PA master module; process automation fieldbus for flow/pressure instrumentation.

Sourcing Hard-to-Find & Obsolete NAM Series Parts

The majority of NAM series modules — including the NAMM03, NAMM01, NAMM02, and NAMC01 — are no longer manufactured by ABB. Standard distribution channels do not carry stock. DriveKNMS maintains a dedicated inventory of tested surplus and refurbished NAM series modules sourced from decommissioned Freelance DCS installations globally. Our procurement network covers North America, Western Europe, and Southeast Asia, enabling us to locate specific variants that are not available through conventional industrial distributors.

For end-users operating Freelance 2000 or Freelance 800F systems beyond their original design life, DriveKNMS provides lifecycle extension support: module-level repair assessment, functional equivalency analysis for cross-series substitution, and long-term consignment stocking agreements. We do not substitute unverified compatible modules without explicit customer approval and documented equivalency review.

Quality Control for the NAM Series Range

NAM series modules present specific test challenges due to their integrated AF100 backplane transceivers and multi-channel analog front ends. DriveKNMS applies the following verification protocol to all NAM series units prior to dispatch:

Backplane communication test: Each module is seated in a live Freelance-compatible test rack and polled via AF100 segment to confirm register read/write integrity and correct node addressing response. Analog channel calibration check: All analog input and output channels are verified against a calibrated reference source at 0%, 25%, 50%, 75%, and 100% of rated range. Deviation exceeding ±0.1% of span is flagged for rejection. Diagnostic register audit: Module self-diagnostic registers are read and compared against factory baseline values to identify latent firmware faults or EEPROM corruption. Visual and mechanical inspection: Backplane connector pins, module locking tabs, and PCB surfaces are inspected for corrosion, mechanical damage, and counterfeit indicators. Burn-in cycle: Modules are powered continuously for a minimum of 24 hours under simulated load conditions prior to final acceptance testing.
