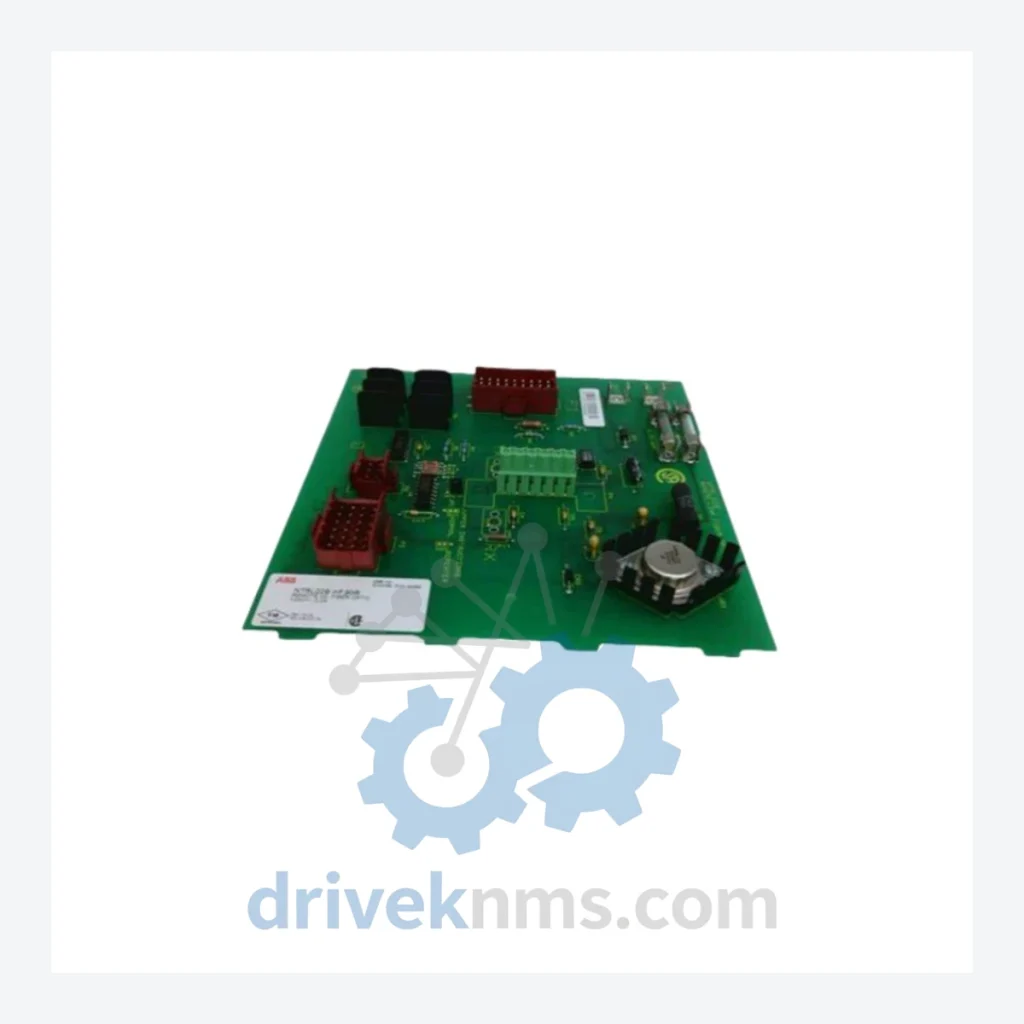

ABB NTRL Series Termination Units: NTRLO2B

Technical Dossier

Product Details And Specifications

ABB NTRL Series: Comprehensive Module Range and Technical Overview

The ABB NTRL series comprises termination units and signal conditioning modules designed for use within ABB's Advant Controller (AC 450), MOD 300, and Master distributed control system (DCS) architectures. These units serve as the physical interface layer between field instrumentation and the controller backplane, providing signal termination, isolation, and marshalling functions. The NTRL series has been deployed extensively across global heavy industry sectors including petrochemical refineries, nuclear power generation facilities, offshore oil and gas platforms, pulp and paper mills, and large-scale chemical processing plants. Its modular rail-mount design and standardized connector footprint made it a preferred termination solution for installations requiring high channel density and deterministic signal integrity over multi-decade operational lifespans.

The Evolution of NTRL Architecture

The NTRL termination unit family was introduced as part of ABB's Advant OCS (Open Control System) platform during the late 1980s and early 1990s, coinciding with the broad industry transition from pneumatic and analog relay-based control to digital DCS architectures. Early NTRL variants were designed to interface directly with DSDP, DSDO, DSAI, and DSAO I/O modules mounted in the S100 and S800 I/O families. The termination units provided screw-terminal field wiring access, eliminating the need for intermediate junction boxes in many panel configurations.

As ABB evolved its control platform through the AC 450 and subsequently the System 800xA architecture, the NTRL series maintained backward compatibility with legacy S100 I/O hardware, allowing brownfield plants to extend the operational life of existing DCS infrastructure without full I/O replacement. The NTRLO2B specifically functions as a termination unit for digital output channels, providing the field-side screw terminal interface for discrete output signals. In the context of the broader NTRL family, the O designator indicates output functionality, 2 denotes the channel group configuration, and B identifies the revision or variant suffix.

Plants operating ABB Advant or MOD 300 systems that have not migrated to System 800xA continue to rely on NTRL termination units as non-substitutable spare parts. No direct functional equivalent exists within the current ABB product catalog for these legacy backplane-connected termination units, making secondary market sourcing the primary procurement channel for maintenance operations.

NTRL Full Catalog & Functionalities (SKU List)

The following SKUs represent verified members of the ABB NTRL termination unit series, organized by signal type and functional category:

Digital Output Termination Units

NTRLO2B: Digital output termination unit, 16-channel DO interface for S100 I/O modules.
NTRLO1B: Digital output termination unit, 8-channel DO field wiring interface, rail-mount.
NTRLO3B: Digital output termination unit, 32-channel high-density DO marshalling interface.
NTRLO4B: Digital output termination unit with integrated surge protection, 16-channel DO.

Digital Input Termination Units

NTRLI1B: Digital input termination unit, 8-channel DI field wiring interface, screw terminal.
NTRLI2B: Digital input termination unit, 16-channel DI interface for Advant S100 I/O.
NTRLI3B: Digital input termination unit, 32-channel high-density DI marshalling rail unit.
NTRLI4B: Digital input termination unit with isolated commons, 16-channel DI configuration.

Analog Output Termination Units

NTRLA1B: Analog output termination unit, 4-20 mA signal interface, 8-channel AO.
NTRLA2B: Analog output termination unit, 16-channel AO, compatible with DSAO I/O modules.
NTRLA3B: Analog output termination unit with loop power distribution, 8-channel AO.

Analog Input Termination Units

NTRLA4B: Analog input termination unit, 4-20 mA / 1-5 V input, 8-channel AI interface.
NTRLA5B: Analog input termination unit, 16-channel AI, DSAI module compatible, screw terminal.
NTRLA6B: Analog input termination unit with cold junction compensation for thermocouple inputs.
NTRLA7B: Analog input termination unit, RTD/resistance input configuration, 8-channel AI.

Special Function & Communication Termination Units

NTRLC1B: Communication termination unit, serial interface adapter for Advant fieldbus modules.
NTRLP1B: Power distribution termination unit, 24 VDC field power marshalling for I/O rails.
NTRLP2B: Redundant power termination unit, dual-feed 24 VDC distribution with diode ORing.

Sourcing Hard-to-Find & Obsolete NTRL Parts

ABB formally discontinued active production of the NTRL termination unit series as the Advant and MOD 300 platforms reached end-of-life status. ABB's official lifecycle support for these platforms has transitioned to migration advisory services rather than spare parts supply. As a result, the global installed base of NTRL-dependent systems — estimated to include thousands of units across refineries, power stations, and chemical complexes — must source replacement termination units through specialist industrial spare parts distributors.

DriveKNMS maintains a dedicated inventory program for ABB NTRL series termination units, including the NTRLO2B and related variants. Our sourcing network spans decommissioned plant equipment, authorized surplus channels, and tested pull inventory from controlled shutdowns. All NTRL units in our inventory are catalogued by part number, revision suffix, and functional test status prior to listing. For plants requiring multiple units to support a scheduled turnaround or emergency repair, DriveKNMS can provide consolidated BOM fulfillment against a complete spare parts list. Contact our procurement team with your full part number list, required quantities, and delivery timeline for a prioritized response.

Quality Control for the NTRL Range

ABB NTRL termination units present specific inspection requirements due to their role as the field-wiring interface in safety-critical DCS installations. DriveKNMS applies the following verification procedures to all NTRL inventory prior to dispatch:

Visual inspection covers the screw terminal block condition, connector pin integrity, PCB surface for corrosion or heat stress indicators, and rail-mount clip functionality. Electrical continuity testing is performed channel-by-channel across all terminal positions to verify signal path integrity from field terminal to backplane connector. For units with integrated isolation barriers or surge protection components, functional verification is conducted using calibrated signal injection equipment to confirm rated isolation voltage and clamping response. Backplane connector alignment and contact force are verified against ABB mechanical specifications to ensure reliable mating with S100 I/O module connectors. Each unit is assigned a test record documenting inspection date, technician ID, and pass/fail status for all test parameters. Units that do not meet full specification are quarantined and not offered for sale.
