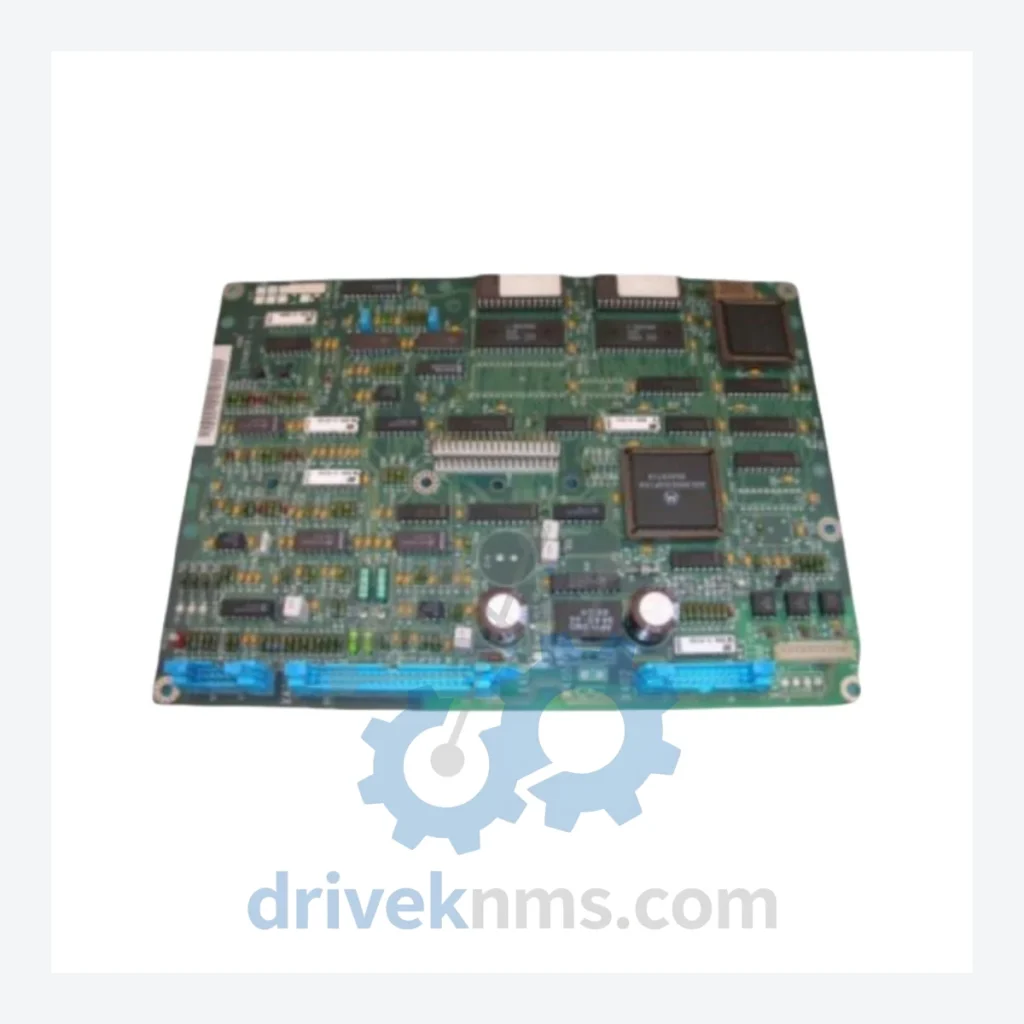

ABB NTRO Series Modules: NTRO02-A

Technical Dossier

Product Details And Specifications

ABB NTRO Series: Comprehensive Module Range and Technical Overview

The ABB NTRO series comprises digital and analog I/O termination units designed for use within ABB's S800 I/O system, which is the primary distributed I/O platform for the AC800M process automation controller family. Deployed across global heavy industry — including petrochemical refineries, nuclear power facilities, offshore platforms, and large-scale chemical processing plants — the S800 I/O system and its NTRO termination units represent one of the most widely installed DCS field interface architectures in continuous process industries. The NTRO termination units serve as the physical wiring interface between field instrumentation and the S800 I/O modules, providing screw-terminal or DSUB connectivity, signal conditioning rails, and module mounting positions on standard DIN rail or S800 I/O clusters. Their passive and semi-passive architecture means they have an exceptionally long service life, but sourcing replacements for aging installations requires specialist knowledge of ABB's part numbering conventions and hardware revisions.

The Evolution of NTRO Series Architecture

The NTRO termination unit family was introduced alongside the S800 I/O system in the mid-1990s as ABB transitioned its process automation portfolio from the older Master series (MOD 300, Advant OCS) to the AC800M / Symphony Plus platform. Early NTRO units were designed for direct rail mounting adjacent to S800 I/O modules such as the AI810, AO810, DI810, and DO810, providing a standardized field wiring interface that decoupled module replacement from field cable re-termination — a critical maintainability feature in live process environments.

Over successive hardware generations, ABB introduced variants with integrated fusing, HART signal pass-through capability, and enhanced EMC shielding to address evolving field requirements. The suffix structure in NTRO part numbers encodes the channel count, signal type, and connector format: for example, the NTRO02-A designates a digital I/O termination unit with a specific channel configuration and screw-terminal field interface. As the AC800M platform matured into the Symphony Plus generation, the NTRO series remained backward-compatible, allowing legacy termination units to interface with updated I/O modules without field rewiring. However, as of the mid-2010s, ABB has progressively moved new installations toward the S800+ I/O platform with updated termination unit designations, placing the original NTRO series in the mature-to-end-of-life phase of its product lifecycle. Long-term maintenance support for installed NTRO bases is now the primary commercial driver for sourcing these units.

NTRO Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly encountered models within the ABB NTRO / S800 I/O termination unit ecosystem. Units are grouped by functional category.

Digital I/O Termination Units

• NTRO02-A: Digital I/O termination unit, screw-terminal field interface, DIN rail mount, S800 compatible
• NTRO01-A: Digital I/O termination unit, single-row screw terminal, standard channel density
• NTRO03-A: Digital I/O termination unit, extended channel configuration, S800 cluster mount
• NTRO04-A: Digital I/O termination unit with integrated fusing per channel, field-side protection
• NTRO05-A: Digital I/O termination unit, DSUB field connector variant, high-density wiring

Analog I/O Termination Units

• NTAI01-A: Analog input termination unit, 4–20 mA field interface, 8-channel, S800 AI810 compatible
• NTAI02-A: Analog input termination unit with HART signal pass-through, 8-channel
• NTAI03-A: Analog input termination unit, thermocouple/RTD signal interface, S800 AI820 compatible
• NTAO01-A: Analog output termination unit, 4–20 mA, 8-channel, S800 AO810 compatible
• NTAO02-A: Analog output termination unit with HART capability, 8-channel

Power & Bus Termination Units

• NTPS01-A: S800 I/O cluster power supply termination unit, 24 VDC field power distribution
• NTPS02-A: Redundant power supply termination unit, dual-feed field power, S800 cluster
• NTBU01-A: S800 I/O bus termination unit, ModuleBus end terminator, cluster configuration
• NTBU02-A: Extended bus termination unit, multi-cluster ModuleBus interface

Communication & Adapter Termination Units

• NTCI01-A: Communication interface termination unit, PROFIBUS DP field adapter, S800 compatible
• NTCI02-A: Communication interface termination unit, FOUNDATION Fieldbus H1 segment interface

Sourcing Hard-to-Find & Obsolete NTRO Series Parts

DriveKNMS maintains a dedicated inventory program for ABB S800 I/O termination units, including NTRO series models that have been discontinued or placed on restricted availability by ABB. For process plants operating AC800M-based DCS systems with installed NTRO termination bases, the inability to source a single termination unit can block a module replacement and extend unplanned downtime. DriveKNMS addresses this through three sourcing channels: new-old-stock (NOS) units sourced from authorized distributor excess inventory, tested-serviceable units recovered from decommissioned plant assets, and cross-reference substitution where a functionally equivalent successor unit can be confirmed compatible with the existing field wiring and I/O module. All units are supplied with full traceability documentation and, where applicable, original ABB packaging and revision labeling. For end-of-life NTRO variants, DriveKNMS provides a minimum 12-month warranty on tested-serviceable stock.

Quality Control for the NTRO Series Range

NTRO termination units, while passive in design, are subject to specific failure modes relevant to their operating environment: screw-terminal oxidation and loosening under thermal cycling, PCB track corrosion in high-humidity installations, fuse element degradation in fused variants, and DSUB connector pin wear in high-cycle maintenance environments. DriveKNMS applies a structured inspection and test protocol to all NTRO units prior to dispatch. Each unit undergoes visual inspection of terminal blocks, PCB substrate, and connector interfaces under magnification. Continuity testing is performed across all signal paths from field terminal to module connector. For fused variants, fuse element integrity and rating verification is conducted. Units with evidence of field modification, re-termination, or non-OEM repair are quarantined and not offered for resale. Test records are retained per unit serial number and are available to customers on request.
