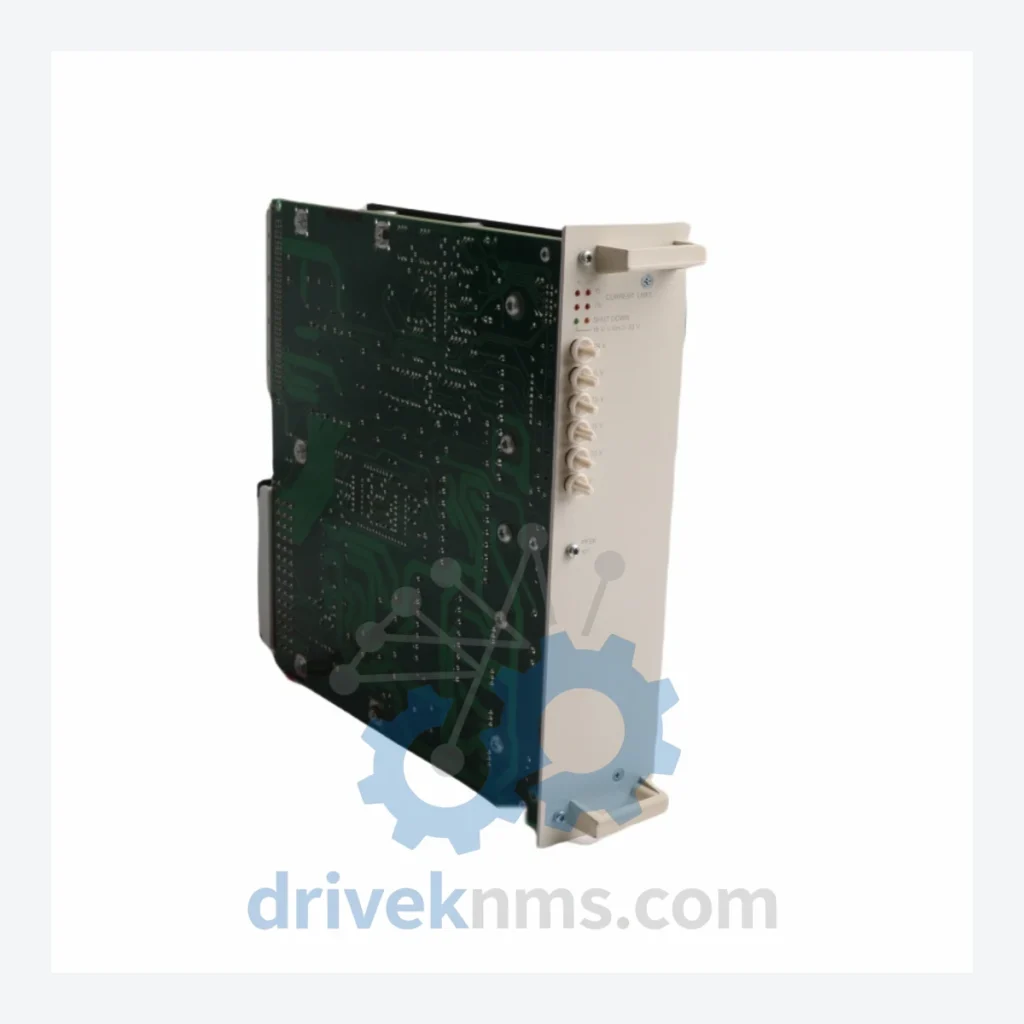

ABB PFSK101 YM322001-ED Power Supply Module: Specs, Compatibility & Availability

Technical Dossier

Product Details And Specifications

ABB PFSK Series: Comprehensive Module Range and Technical Overview

The ABB PFSK series comprises a family of power supply, communication, and interface modules designed for the ABB Advant Controller (AC) platform — specifically the AC 110, AC 160, and Master series distributed control systems. These controllers are deployed extensively across global heavy industry: petrochemical refineries, nuclear power auxiliary systems, pulp and paper mills, offshore platforms, and large-scale water treatment facilities. The PFSK series occupies a critical role in these installations as the backbone of power distribution and inter-module communication within the Advant controller rack architecture. Many of these plants operate on 20–40 year maintenance cycles, making long-term spare parts availability a primary operational concern.

The Evolution of PFSK Series Architecture

The PFSK module family was introduced alongside the ABB Advant Controller platform in the late 1980s and early 1990s, succeeding earlier RELA and DSPC-series boards from the ASEA/ABB transition period. The architecture is built around a passive backplane bus (the Advant S100 I/O bus and the proprietary MB300 fieldbus), with PFSK modules providing regulated DC power rails (+5V, ±15V, +24V) and serial communication bridging between the controller CPU and remote I/O stations.

Early PFSK variants (PFSK101, PFSK102) used linear regulation topologies. Later revisions introduced switched-mode power conversion for improved efficiency and thermal performance. The PFSK107 and PFSK109 variants added redundancy support, enabling hot-standby power configurations critical for continuous-process industries. Compatibility between PFSK generations is constrained by backplane connector pinout and firmware revision of the host CPU module (PCSB, PCSC, or PCSD series). Cross-generation substitution requires engineering verification of voltage rail tolerances and bus timing parameters.

As of 2026, the entire Advant Controller product line has reached end-of-life (EOL) status. ABB no longer manufactures or provides OEM support for PFSK series modules. Industrial facilities running these systems depend entirely on the secondary market and specialist distributors for corrective and preventive maintenance stock.

PFSK Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced modules within the ABB PFSK series. Each entry reflects the module's primary function within the Advant Controller rack:

PFSK101 (YM322001-ED): 24VDC regulated power supply unit for Advant S100 I/O bus rack; primary rail module.
PFSK102: Dual-output power supply module; provides +5V and +24V rails for mixed-load I/O racks.
PFSK107: Redundant power supply module; supports hot-standby configuration with automatic switchover.
PFSK108: Power supply with integrated diagnostics; outputs load current monitoring signal to CPU.
PFSK109: High-capacity power supply for expanded I/O racks; rated for higher aggregate current draw.
PFSK110: Communication interface module; bridges Advant MB300 fieldbus to S100 I/O bus.
PFSK112: Serial communication adapter; RS-232/RS-485 protocol conversion for legacy field devices.
PFSK115: Optical fiber communication module; noise-immune data link for high-EMI environments.
PFSK120: Advant fieldbus modem module; supports long-distance MB300 segment extension.
PFSK130: Termination and bus coupler module; provides physical layer termination for S100 bus segments.
PFSK140: I/O bus extender module; enables rack-to-rack S100 bus bridging up to specified cable lengths.
PFSK150: Power distribution module; distributes regulated rails from main PSU to sub-rack assemblies.
PFSK160: Watchdog and system health monitor module; generates hardware fault signals to supervisory systems.
PFSK170: Battery backup interface module; manages UPS handoff for controller memory retention during power loss.
PFSK180: Analog signal conditioning module; provides isolated 4–20mA loop power for field transmitters within the rack.
PFSK190: Digital I/O interface module; 24VDC discrete signal marshalling for high-density I/O configurations.

Sourcing Hard-to-Find & Obsolete PFSK Series Parts

DriveKNMS maintains a dedicated inventory program for ABB Advant Controller spare parts, with specific focus on PFSK series modules. Because ABB has formally discontinued this product line, procurement through standard distribution channels is no longer viable. DriveKNMS sources PFSK modules through decommissioned plant asset recovery, controlled factory surplus, and verified secondary market channels.

All PFSK modules offered by DriveKNMS are catalogued by part number, hardware revision, and firmware version where applicable. Customers requiring exact hardware revision matches for backplane compatibility can specify revision codes at the time of inquiry. DriveKNMS also maintains cross-reference data for known equivalent substitutions between PFSK sub-variants (e.g., YM322001-ED vs. YM322001-EF revision differences) to assist plant engineers in making informed replacement decisions.

For facilities managing multi-year maintenance contracts on Advant Controller installations, DriveKNMS offers reserved stock agreements, allowing customers to pre-allocate specific PFSK module quantities against future demand without immediate purchase commitment.

Quality Control for the PFSK Series Range

PFSK modules present specific test challenges due to their integrated backplane bus interface circuitry and multi-rail power output architecture. DriveKNMS applies the following test protocol to all PFSK units prior to dispatch:

Visual and mechanical inspection: PCB examined for capacitor bulge, corrosion on edge connectors, cracked solder joints on transformer primaries, and relay contact wear on units with switching outputs. Backplane connector pins are gauged for dimensional compliance.
Power rail verification: All DC output rails (+5V, ±15V, +24V as applicable per model) are loaded to 80% of rated current and measured for voltage accuracy within ±2% of nominal. Ripple and noise are measured with an oscilloscope at rated load.
Bus communication test: For PFSK communication modules (PFSK110, PFSK112, PFSK115, PFSK120), data integrity is verified using loopback test fixtures that simulate MB300 or S100 bus traffic at rated baud rates.
Thermal soak: Units are operated at rated load for a minimum of 2 hours at ambient temperature to screen for latent thermal failures in electrolytic capacitors and power semiconductors.
Functional burn-in: Where test rack infrastructure is available, modules are installed in an Advant Controller test rack and exercised through a defined I/O cycle sequence to confirm end-to-end functional integrity.
