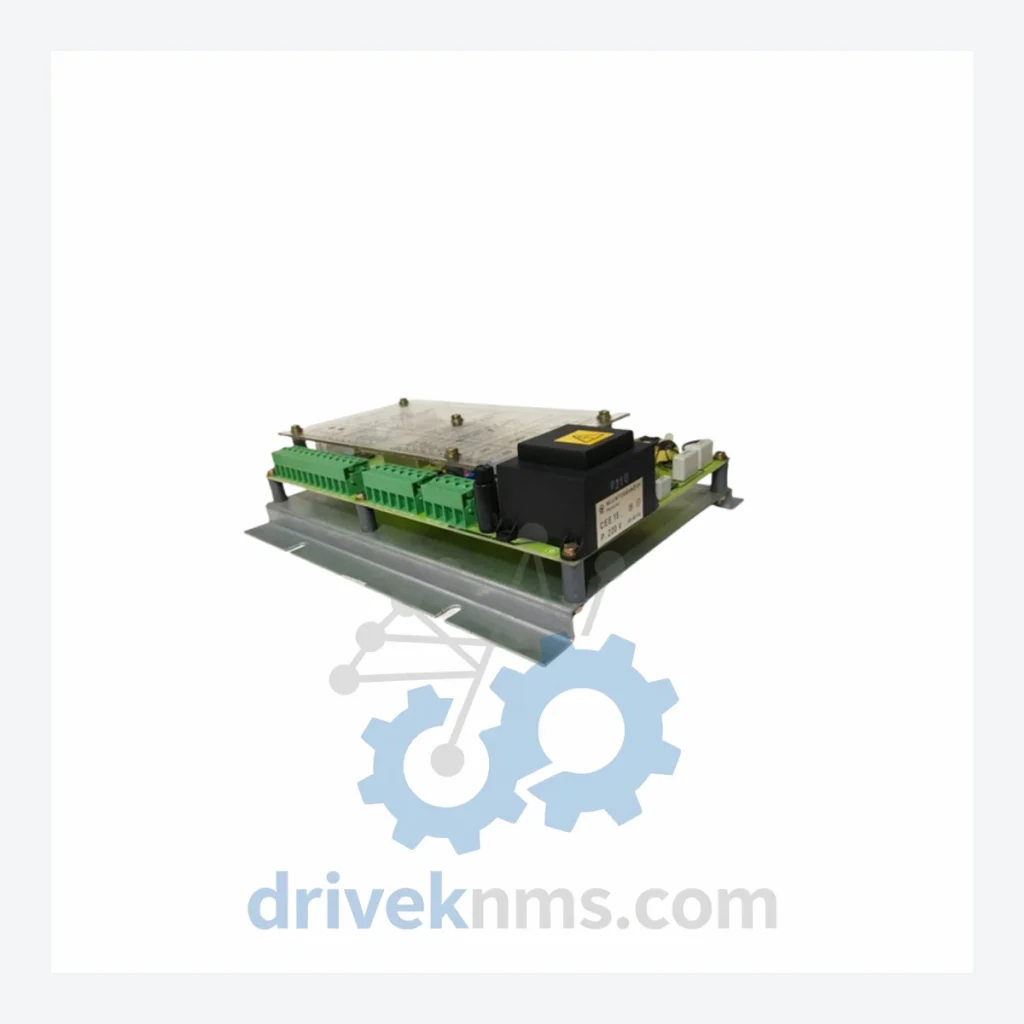

ABB SDCS Series Drive Boards

Technical Dossier

Product Details And Specifications

ABB SDCS Series: Comprehensive Module Range and Technical Overview

The ABB SDCS (Static DC Drive Control System) series represents ABB's core platform for DC drive control in heavy industrial environments. Deployed across chemical processing plants, nuclear power stations, oil refineries, steel mills, and paper manufacturing facilities worldwide, SDCS-based control boards are embedded in ABB DCS400 and DCS800 drive families — platforms that collectively account for tens of thousands of installed units globally. The SDCS architecture handles armature current control, field excitation regulation, speed feedback processing, and serial communication interfacing, making it the functional backbone of ABB's DC drive ecosystem. The SCYC56901 is a drive board within this series, used for gate pulse generation and firing circuit control in DCS800-series DC drives.

The Evolution of SDCS Architecture

ABB's DC drive control architecture evolved through several distinct generations. The earliest generation, based on analog thyristor control boards, was replaced in the 1990s by the SDCS-CON-1 and SDCS-CON-2 digital control boards, which introduced microprocessor-based current and speed regulation. The DCS400 compact drive series utilized a simplified SDCS board set, while the DCS800 modular platform introduced a more segmented architecture separating the control board (SDCS-CON-4), power interface board (SDCS-PIN-205/51), I/O extension boards, and communication adapters into discrete, field-replaceable modules. The SCYC-series boards (including SCYC56901) represent the firing/gate pulse generation layer within this architecture, interfacing between the digital control logic and the thyristor power stack. Compatibility between generations is limited: SDCS-CON-2 boards are not interchangeable with SDCS-CON-4 boards without firmware and parameter reconfiguration. Field engineers must verify the drive firmware version and hardware revision before substituting any SDCS board.

SDCS Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked components within the ABB SDCS / DCS800 / DCS400 drive board ecosystem. Each entry reflects a discrete, field-replaceable module with a defined functional role.

SCYC56901: Gate pulse firing board for DCS800 thyristor bridge control
SDCS-CON-4: Main digital control board for DCS800 series; handles speed/current regulation
SDCS-CON-2: Digital control board for DCS400 and earlier DCS500 drives
SDCS-PIN-205: Power interface board; bridges control logic to thyristor firing circuits
SDCS-PIN-51: Compact power interface board for lower-current DCS800 configurations
SDCS-IOB-3: I/O extension board; adds analog and digital I/O channels to DCS800
SDCS-IOB-2: I/O board for DCS400 series; provides standard analog/digital interface
SDCS-FEX-2: Field excitation board; controls DC motor field winding current
SDCS-FEX-425: High-current field excitation module for large DC motor applications
SDCS-COM-8: PROFIBUS DP communication adapter for DCS800 fieldbus integration
SDCS-COM-5: DeviceNet communication adapter for DCS800 series
SDCS-COM-81: PROFIBUS DP adapter, extended version with enhanced diagnostics
SDCS-MOU-1: Mounting and interface unit for SDCS control board installation
SCYC51750: Pulse transformer board used in thyristor gate drive circuits
SCYC51770: Snubber and gate drive auxiliary board for DCS800 power section
SCYB750001: Measurement board for DC bus voltage and current sensing
SCYB750002: Auxiliary measurement board; supports redundant feedback in large drives
SDCS-CON-4-0006: CON-4 variant with extended memory for large parameter sets
SDCS-PIN-205B: Revised power interface board with improved EMC filtering

Sourcing Hard-to-Find & Obsolete SDCS Parts

The SDCS-CON-2, SDCS-IOB-2, and several SCYC-series firing boards have reached end-of-production status with ABB. Lead times through OEM channels for these components routinely exceed 20–40 weeks, and in many cases ABB no longer accepts new orders. DriveKNMS maintains a dedicated inventory of tested, pull-out, and refurbished SDCS boards sourced from decommissioned DCS400 and DCS800 drive systems. For the SCYC56901 specifically, DriveKNMS holds stock verified against ABB's original gate pulse timing specifications. All obsolete SDCS boards supplied by DriveKNMS are accompanied by a test report and a 12-month warranty covering functional failure under normal operating conditions. Customers operating legacy DCS800 installations in continuous-process industries — where unplanned downtime carries significant financial and safety consequences — are advised to maintain a minimum of one spare SDCS-CON-4 and one SCYC56901 per drive cabinet.

Quality Control for the SDCS Range

SDCS boards present specific test challenges due to their integration of high-frequency gate pulse circuits, isolated power supplies, and serial communication interfaces operating simultaneously. DriveKNMS applies the following test protocol to all SDCS boards prior to dispatch: (1) Visual inspection for PCB delamination, burnt components, and capacitor bulge — common failure modes in boards exposed to thermal cycling in drive cabinets. (2) Isolated power supply output verification: each internal DC-DC converter rail is measured under load to confirm regulation within ±2% of nominal. (3) Gate pulse output test: firing pulses are verified for correct phase angle, pulse width, and amplitude using a calibrated oscilloscope against ABB's published gate drive specifications. (4) Serial communication loopback test: SDCS-COM adapter boards are tested for PROFIBUS or DeviceNet frame integrity at rated baud rates. (5) Functional burn-in: boards are operated at elevated ambient temperature (50°C) for a minimum of 4 hours to screen for latent component failures. Boards that fail any stage of this protocol are quarantined, documented, and either repaired to specification or scrapped — they are not returned to saleable inventory.
