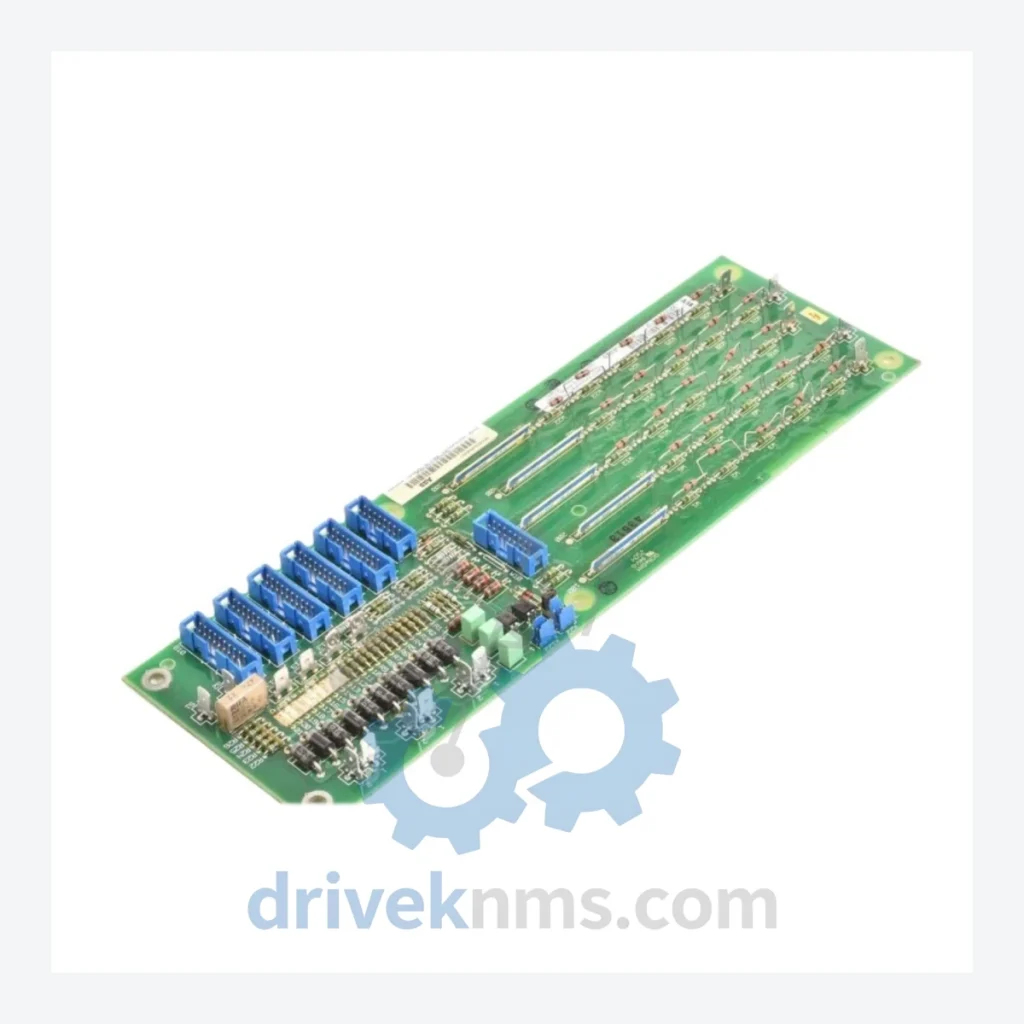

ABB SDCS Series Modules

Technical Dossier

Product Details And Specifications

ABB SDCS Series: Comprehensive Module Range and Technical Overview

The ABB SDCS (Standard DC Drive Control System) series represents ABB's core control electronics platform for the DCS800 family of DC drives, deployed across heavy industrial sectors including petrochemical refineries, nuclear power auxiliary systems, steel rolling mills, paper pulp lines, and offshore platform winch systems. The SDCS architecture provides modular, field-replaceable control, power interface, and I/O boards that allow maintenance engineers to restore drive functionality without full drive replacement. Installed base spans hundreds of thousands of units globally, making SDCS one of the most widely maintained DC drive control platforms in industrial history.

The Evolution of SDCS Architecture

The SDCS platform was introduced alongside the DCS400 and DCS500 drive families in the late 1990s, establishing a standardized backplane and ribbon-cable interconnect topology that persisted through the DCS800 generation. Early SDCS-CON-1 and SDCS-CON-2 controller boards operated on a proprietary serial fieldbus for I/O expansion. The SDCS-COM series introduced open fieldbus adapters (PROFIBUS, DeviceNet, Modbus) as plug-in daughter cards, enabling integration into modern DCS environments without drive replacement. The SDCS-PIN power interface boards evolved from single-phase rectifier support (PIN-H51) to multi-pulse and regenerative configurations (PIN-205, PIN-41). By the DCS800 era, the SDCS-FEX family added field excitation control directly onto the control board stack, eliminating external excitation regulators. As of 2026, the DCS800 and its SDCS control stack are in the mature/end-of-active-production phase; ABB continues to supply spare parts through its service network, but new design wins are directed toward the ACS880 DC-to-AC migration path. For plants committed to DC drive infrastructure, long-term spare parts inventory of SDCS boards is the primary maintenance strategy.

SDCS Full Catalog & Functionalities (SKU List)

Power Interface Boards (PIN)

• SDCS-PIN-H51 / 3ADT320700R1501: Power supply board for DCS800; generates internal logic supply rails from AC mains input.
• SDCS-PIN-205 / 3ADT220090R0001: Power interface board for 2-quadrant 400–500 V DC drives up to 205 A armature current.
• SDCS-PIN-41 / 3ADT220090R0002: Power interface board for 4-quadrant regenerative DC drives; supports dynamic braking and field reversal.
• SDCS-PIN-48 / 3ADT220090R0003: High-current power interface board for DCS800 frames D5–D7; rated for armature currents above 800 A.

Main Controller Boards (CON)

• SDCS-CON-2 / 3ADT309600R0001: Core CPU board; executes speed/torque regulation, ramp functions, and drive sequencing logic.
• SDCS-CON-2B / 3ADT309600R0002: Enhanced CON-2 with extended memory for application programming and additional PID loops.
• SDCS-CON-3 / 3ADT309600R0003: Third-generation controller with onboard Ethernet service port and expanded parameter set for DCS800 B-series.
• SDCS-CON-4 / 3ADT309600R0004: High-performance controller supporting encoder feedback up to 1024 PPR and advanced motor model adaptation.

I/O Expansion Boards (IOB / IOC)

• SDCS-IOB-3 / 3ADT220090R0010: Standard I/O board; provides 8 DI, 4 DO, 4 AI, 2 AO for drive control interfacing.
• SDCS-IOB-21 / 3ADT220090R0011: Extended I/O board with 16 DI and 8 DO; used in multi-drive coordination applications.
• SDCS-IOC-01 / 3ADT220090R0020: Isolated I/O coupler board for high-voltage isolation between control and power sections.

Fieldbus Communication Adapters (COM)

• SDCS-COM-8 / 3ADT220090R0030: PROFIBUS DP adapter; supports cyclic and acyclic data exchange with Siemens and ABB DCS platforms.
• SDCS-COM-81 / 3ADT220090R0031: DeviceNet adapter for Allen-Bradley PLC integration; supports explicit and implicit messaging.
• SDCS-COM-82 / 3ADT220090R0032: Modbus RTU/TCP adapter; enables legacy SCADA integration over RS-485 or Ethernet.

Field Excitation Boards (FEX)

• SDCS-FEX-2 / 3ADT220090R0040: Field excitation controller board; regulates DC motor field current with closed-loop PI control.
• SDCS-FEX-425 / 3ADT220090R0041: High-current field excitation board for large frame motors; rated up to 25 A field current output.

Sourcing Hard-to-Find & Obsolete SDCS Parts

Quality Control for the SDCS Range

SDCS boards present specific test challenges due to their multi-layer PCB construction, high-density SMD components, and backplane bus communication protocols. DriveKNMS applies the following test protocol to all SDCS units: (1) Visual inspection under 10× magnification for solder joint integrity, capacitor bulge, and trace corrosion. (2) In-circuit test of all power supply rails against ABB-specified voltage tolerances (±2%). (3) Functional simulation of the SDCS backplane bus using a proprietary DCS800 drive emulator to verify CON-to-PIN and CON-to-IOB communication handshake. (4) Thermal cycling burn-in at 55°C for 48 hours to screen latent component failures. (5) Final parameter upload and firmware version verification against the target drive's software revision. All boards are shipped with a test report and 12-month warranty against functional failure under normal operating conditions.
