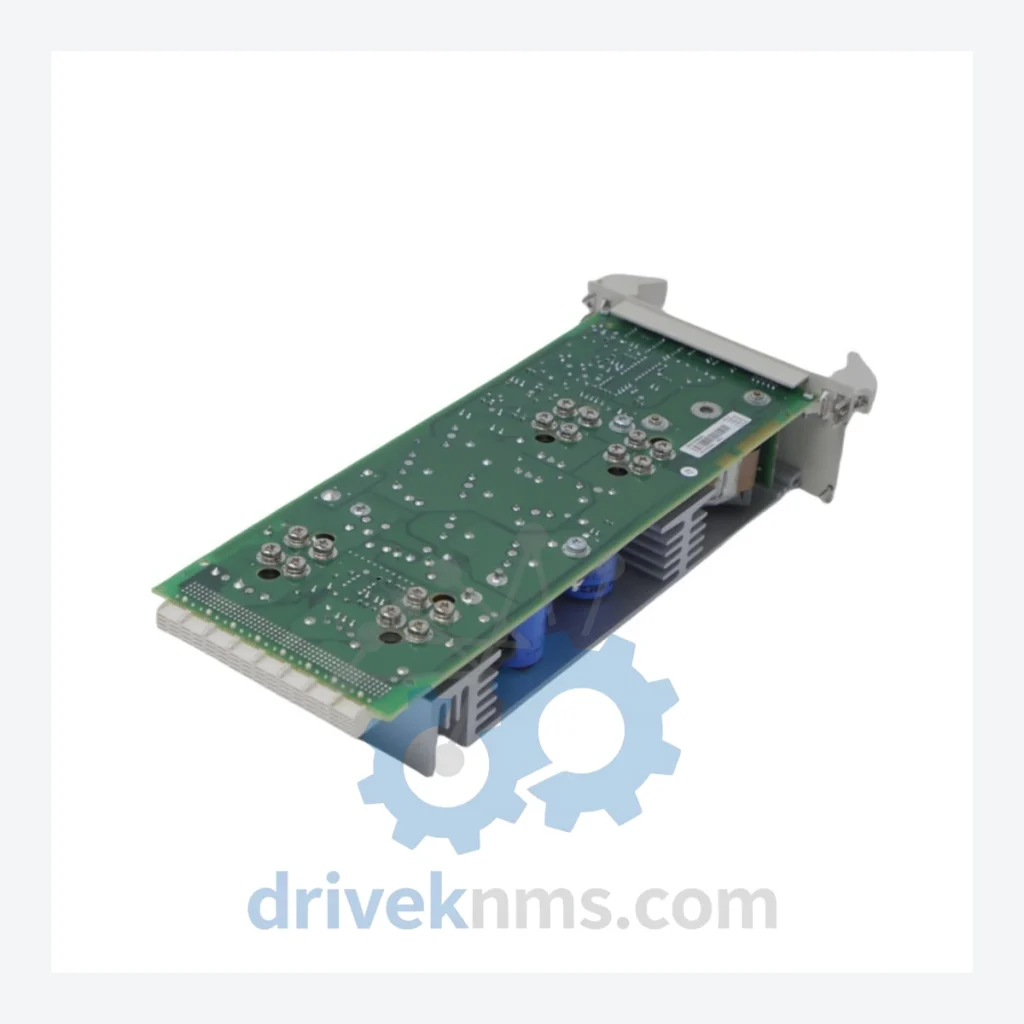

ABB SR511 3BSE000863R0001 Modules

Technical Dossier

Product Details And Specifications

ABB SR511 3BSE000863R0001 Series: Comprehensive Module Range and Technical Overview

The ABB SR511 (3BSE000863R0001) is a Regulator Module belonging to ABB's Advant Controller 450 (AC450) platform — one of the most widely deployed Distributed Control Systems in global heavy industry. The AC450 series has accumulated decades of installed base across petrochemical refineries, nuclear power stations, pulp and paper mills, offshore platforms, and large-scale chemical processing facilities. The SR511 module functions as the core process regulation unit within the AC450 rack architecture, executing PID control loops, cascade strategies, and feedforward algorithms at the field level. Its deterministic scan cycle and high-reliability backplane communication make it a critical component in safety-sensitive continuous process environments where unplanned downtime carries significant operational and financial consequences.

The Evolution of SR511 / AC450 Architecture

ABB's Advant Controller 450 platform was introduced in the late 1980s as a successor to the MASTER series, consolidating process control, sequence control, and batch management into a unified rack-based architecture. The SR511 module represents the mature generation of analog regulation hardware within this platform, designed for compatibility with the S100 I/O bus and the MasterBus 300 communication backbone.

Early AC450 deployments used predecessor modules such as the SR510 and SR512 variants, which offered fewer regulation channels and limited loop configuration flexibility. The SR511 3BSE000863R0001 standardized the regulation function block library and introduced improved noise immunity for field signal inputs. As the platform aged into the 2000s and 2010s, ABB transitioned its installed base toward the System 800xA and AC800M controller families. However, the AC450 platform remains in active service at thousands of sites globally, and the SR511 continues to be a high-demand spare part due to the prohibitive cost and complexity of full DCS migration projects. Compatibility between SR511 and adjacent I/O modules (AI810, AO810, DI810, DO810) is a key engineering constraint that must be verified against the specific rack revision and firmware baseline at each site.

SR511 / AC450 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced modules within the ABB Advant AC450 / S100 I/O ecosystem. Each entry reflects a distinct hardware function within the platform architecture.

Controller & Regulator Modules

• SR511 / 3BSE000863R0001: Analog regulator module; executes PID and cascade control loops within AC450 rack.
• SR512 / 3BSE000863R0002: Enhanced regulator module with extended function block capacity for complex loop strategies.
• PM510V16 / 3BSE008358R1: AC450 processor module, 16 MB RAM; primary CPU for Advant Controller 450 systems.
• PM510V08 / 3BSE008357R1: AC450 processor module, 8 MB RAM; earlier CPU variant for smaller AC450 configurations.
• SC510 / 3BSE003832R1: Sequence controller module; handles discrete logic and batch sequencing within AC450.

Analog I/O Modules (S100 Bus)

• AI810 / 3BSE008516R1: 8-channel analog input module; 4–20 mA / 0–10 V field signal acquisition.
• AO810 / 3BSE008522R1: 8-channel analog output module; 4–20 mA current output to field actuators.
• AI820 / 3BSE008544R1: 16-channel analog input module; high-density field signal acquisition for large loop counts.
• AO820 / 3BSE008548R1: 16-channel analog output module; expanded output capacity for multi-actuator control.
• AI830 / 3BSE008552R1: 8-channel RTD/thermocouple input module; temperature measurement for process loops.

Digital I/O Modules (S100 Bus)

• DI810 / 3BSE008508R1: 24-channel digital input module; 24 VDC discrete field signal acquisition.
• DO810 / 3BSE008514R1: 16-channel digital output module; 24 VDC relay-driven discrete outputs.
• DI820 / 3BSE008532R1: 32-channel digital input module; high-density discrete input for large I/O counts.
• DO820 / 3BSE008536R1: 32-channel digital output module; high-density discrete output expansion.

Communication & Power Modules

• MB510 / 3BSE002540R1: MasterBus 300 communication adapter; connects AC450 controller to plant-wide DCS network.
• SS522 / 3BSE000435R1: Power supply module for S100 I/O rack; 24 VDC regulated output for field module power.
• TB510 / 3BSE002540R1: Termination board for S100 I/O bus; field wiring interface for AI/DI modules.

Sourcing Hard-to-Find & Obsolete SR511 / AC450 Parts

ABB formally discontinued active production of the AC450 platform hardware, including the SR511 3BSE000863R0001, as the company consolidated its DCS portfolio around the System 800xA architecture. This places the entire SR511 module family in the end-of-life / long-term maintenance phase of its product lifecycle.

DriveKNMS maintains a dedicated inventory program for AC450 and S100 I/O series components. Our sourcing network covers decommissioned plant equipment, certified refurbished stock, and new-old-stock (NOS) units recovered from original ABB distribution channels. For the SR511 3BSE000863R0001 specifically, we maintain traceability records including original manufacture date codes, firmware revision markings, and rack compatibility data to ensure cross-site interchangeability. Customers operating AC450 systems with 5–15 year maintenance horizons are advised to establish a strategic spare parts buffer for SR511 and associated PM510 processor modules, as secondary market availability will continue to tighten as global installed base units are decommissioned.

Quality Control for the SR511 / AC450 Range

The SR511 module integrates directly with the AC450 backplane via the S100 I/O bus, making backplane signal integrity a primary quality verification parameter. DriveKNMS applies the following test protocol to all SR511 and AC450 modules prior to shipment:

• Backplane bus continuity test: Verification of all S100 bus signal lines against ABB reference impedance specifications.
• Functional loop simulation: Each SR511 is powered in a live AC450 rack and subjected to simulated PID loop execution using calibrated analog signal sources.
• Firmware revision verification: Module firmware version is read and documented; customers are notified of any revision mismatch relative to their site baseline.
• Visual and component inspection: PCB inspection for capacitor degradation, corrosion on edge connectors, and solder joint integrity — common failure modes in modules with 15+ years of field service.
• Burn-in cycle: 48-hour powered operation under controlled thermal conditions to screen for latent component failures before shipment.

For SR511 3BSE000863R0001 availability, bulk quotes, or technical compatibility inquiries:

• Email: [email protected]
• WhatsApp: +86 18359293191
• Web: driveknms.com
