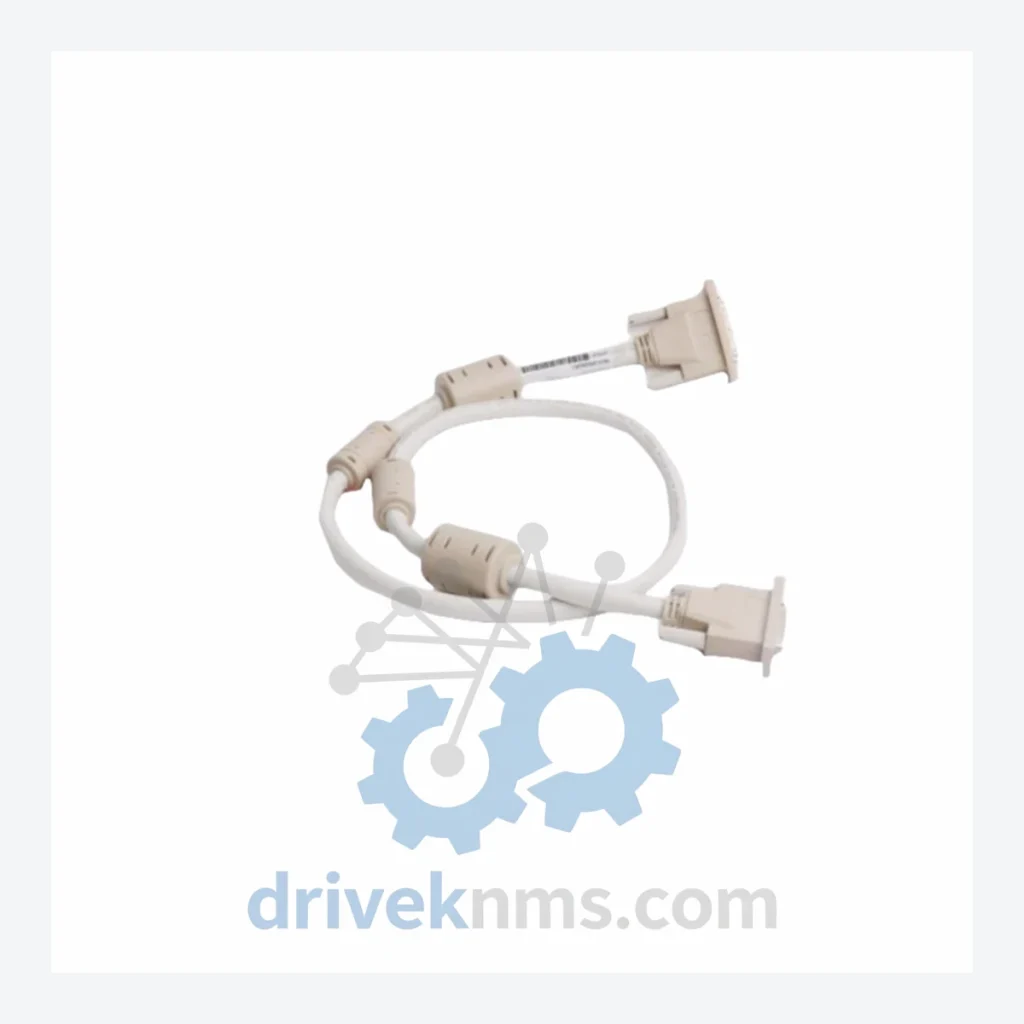

ABB TK851 Modules — TK851V010/3BSC950262R1 Connection Cable

Technical Dossier

Product Details And Specifications

ABB TK851 Series: Comprehensive Module Range and Technical Overview

The ABB TK851 series comprises connection cables and interface accessories designed for integration within ABB's S800 I/O system, which operates as the distributed I/O backbone of the AC800M process automation controller platform. This platform holds a dominant installed base across global heavy industry sectors including petrochemical refineries, nuclear power generation facilities, offshore oil & gas platforms, and large-scale chemical processing plants. The S800 I/O system — and by extension the TK851 cable family — is engineered for continuous-duty environments where signal integrity, mechanical robustness, and long-term availability of spare parts are non-negotiable operational requirements. TK851 cables serve as the physical interconnect layer between S800 I/O modules, field termination units (FTUs), and marshalling panels, making them a critical consumable in any AC800M-based DCS installation.

The Evolution of TK851 Architecture

The TK851 cable series was introduced alongside the S800 I/O platform in the mid-1990s as ABB transitioned from the older Advant OCS / MOD 300 architecture toward the AC800M-centric Freelance and 800xA DCS ecosystems. Early S800 deployments used fixed-length cable assemblies with proprietary connectors to link CI801/CI810 communication interface modules to AI810, AO810, DI810, and DO810 I/O modules mounted on TB820 ModuleBus modem backplanes.

As the platform matured through the 2000s, ABB standardized the TK851 connector geometry across successive I/O generations (S800 I/O V1 through V3), ensuring backward compatibility between cable variants and module revisions. This design decision extended the operational lifespan of existing cable inventories across plant upgrade cycles. By the 2010s, the introduction of the S800+ I/O generation (CI871, AI895, DI885 series) maintained physical connector compatibility with legacy TK851 assemblies, though signal mapping and termination configurations required engineering verification.

As of 2026, the TK851 series is in the mature/end-of-active-production phase. ABB continues to supply select variants through its global spare parts network, but lead times for less common lengths and configurations have extended significantly. Plants operating AC800M systems beyond their original design life (typically 20–25 years) are advised to establish strategic buffer stock of TK851 cables to mitigate unplanned downtime risk.

TK851 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly deployed TK851 series cable assemblies used within ABB S800 I/O and AC800M installations. Each entry includes the corresponding ABB order number where applicable.

TK851V010 / 3BSC950262R1: 1.0 m connection cable, S800 I/O module-to-FTU interface, standard pitch connector.

TK851V020 / 3BSC950262R2: 2.0 m connection cable, extended reach for remote marshalling panel installations.

TK851V030 / 3BSC950262R3: 3.0 m connection cable, used in wide-bay cabinet configurations.

TK851V050 / 3BSC950262R5: 5.0 m connection cable, long-run variant for cross-cabinet field termination routing.

TK851V100 / 3BSC950262R6: 10.0 m connection cable, maximum standard length for inter-panel S800 I/O signal routing.

TK852V010 / 3BSC950263R1: 1.0 m cable, alternate connector configuration for AI/AO module direct termination.

TK852V020 / 3BSC950263R2: 2.0 m cable, AI/AO termination variant, extended length.

TK853V010 / 3BSC950264R1: 1.0 m cable, DI/DO module interface, 24 VDC digital I/O termination.

TK853V020 / 3BSC950264R2: 2.0 m cable, DI/DO termination, extended reach configuration.

TK801V003 / 3BSE008584R1: S800 I/O bus cable, 0.3 m, ModuleBus inter-module connection on TB820 backplane.

TK801V006 / 3BSE008584R2: S800 I/O bus cable, 0.6 m, ModuleBus backplane extension segment.

TK801V012 / 3BSE008584R3: S800 I/O bus cable, 1.2 m, used for distributed ModuleBus cluster expansion.

TK811V015 / 3BSE000566R1: Optical ModuleBus cable, 1.5 m, fiber-optic variant for electrically noisy environments.

TK811V030 / 3BSE000566R2: Optical ModuleBus cable, 3.0 m, extended fiber-optic inter-cluster link.

TK812V015 / 3BSE013236R1: Redundant optical ModuleBus cable set, 1.5 m, for high-availability S800 I/O cluster configurations.

TK850V010 / 3BSC950261R1: 1.0 m flat ribbon cable, legacy S800 I/O V1 field termination interface.

TK850V020 / 3BSC950261R2: 2.0 m flat ribbon cable, legacy S800 I/O V1 extended termination.

Sourcing Hard-to-Find & Obsolete TK851 Parts

DriveKNMS maintains a dedicated inventory program for ABB S800 I/O accessories including the full TK851 cable family. As ABB progressively transitions active production toward the S800+ and System 800xA next-generation platforms, procurement of specific TK851 lengths and connector variants through standard distribution channels has become increasingly unreliable, with lead times ranging from 8 to 26 weeks for non-stocked items.

DriveKNMS sources TK851 cables through a combination of authorized surplus acquisition, decommissioned plant asset recovery, and direct manufacturer channels. All cables are inspected for connector integrity, insulation condition, and continuity prior to dispatch. For plants operating under long-term service agreements (LTSAs) or extended maintenance contracts, DriveKNMS offers consignment stocking arrangements to ensure zero-lead-time availability of critical TK851 variants.

Customers requiring cross-reference verification between legacy ABB order numbers (3BSCxxxxxx / 3BSExxxxxx format) and current catalog equivalents are encouraged to submit their existing part numbers directly for technical confirmation before ordering.

Quality Control for the TK851 Range

TK851 series cables interface directly with S800 I/O module backplane connectors and field termination unit (FTU) headers. Connector damage, pin misalignment, or insulation degradation in these assemblies can result in signal loss, spurious I/O state changes, or complete module communication failure — all of which carry significant process safety implications in refinery and power generation environments.

DriveKNMS applies the following verification procedures to all TK851 cables prior to shipment: full pin-to-pin continuity test across all conductors; connector housing inspection for crack, deformation, or latch mechanism failure; insulation resistance measurement at 500 VDC between conductor pairs and shield; visual inspection of strain relief and cable jacket for abrasion or chemical exposure damage; and functional mating test against reference S800 I/O module connectors to verify insertion force and retention compliance. Cables that fail any single criterion are quarantined and not returned to inventory.
