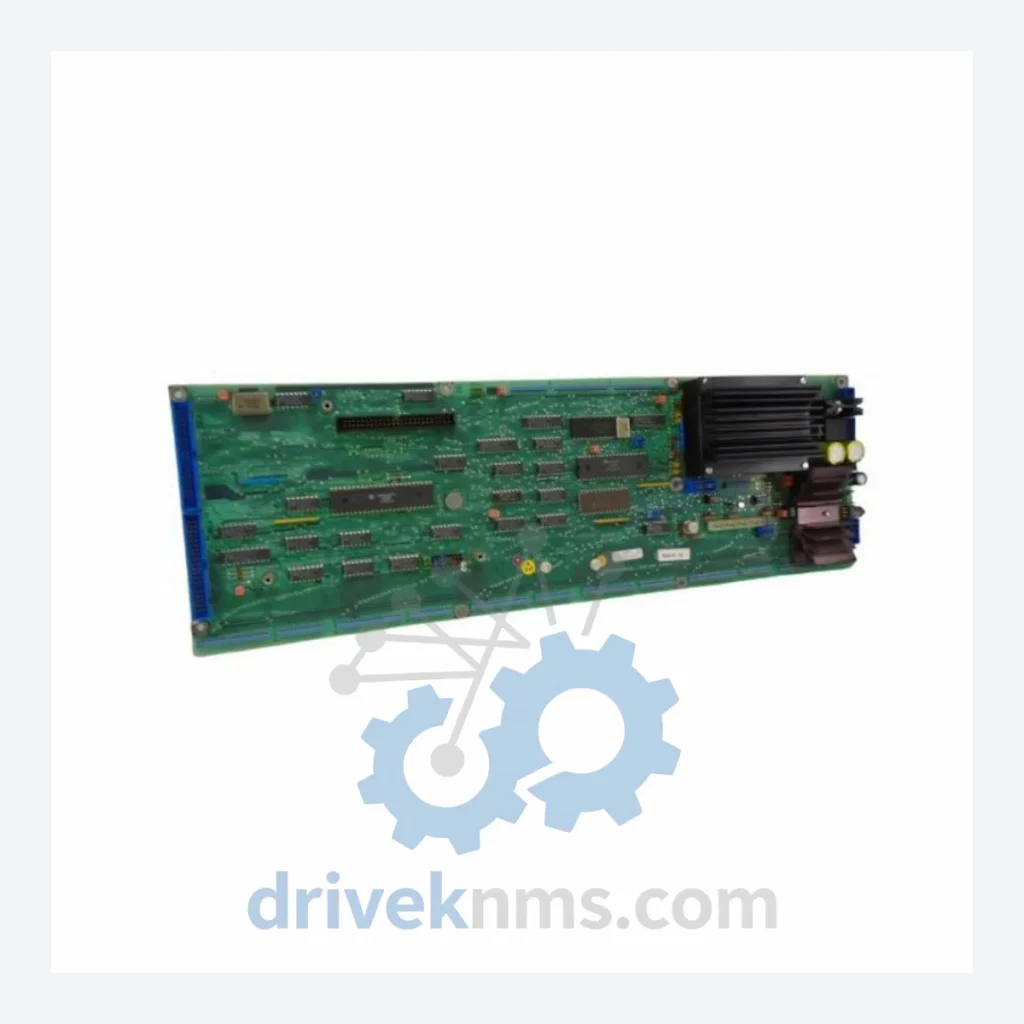

ABB UNITROL YP Series Modules: YPP105E YT204001-FK

Technical Dossier

Product Details And Specifications

ABB UNITROL YP Series Technical Notes

The ABB UNITROL YP series represents a family of excitation control and power regulation circuit boards deployed across heavy industrial infrastructure worldwide — including thermal power stations, hydroelectric plants, petrochemical facilities, and nuclear auxiliary systems. These boards form the backbone of generator excitation control systems, where uninterrupted operation is non-negotiable. A single failed board in an excitation chain can force a full generator shutdown, with restart costs and lost output measured in hundreds of thousands of dollars per hour. The YP series has accumulated decades of field installation across Europe, Asia, and the Americas, making long-term spare parts availability a critical operational concern for plant asset managers.

The Evolution of UNITROL YP Series Architecture

ABB's UNITROL excitation platform evolved through several generations, with the YP-prefix board family serving as the analog and early digital hybrid control layer in UNITROL 1000, UNITROL 5000, and UNITROL 6000 systems. Early YP boards operated on discrete analog signal conditioning, handling voltage regulation feedback, reactive power control, and field current limiting. As ABB transitioned toward fully digital excitation in the UNITROL 6800 and UNITROL 1020 platforms, the YP series boards were retained in legacy installations due to the prohibitive cost of full system replacement — a generator excitation upgrade on a large turbine unit can exceed USD 2–5 million when factoring in engineering, commissioning, and lost generation time.

Compatibility across YP board generations is not guaranteed. Firmware revisions, backplane connector pinouts, and analog reference voltage levels differ between sub-variants. Substitution must be validated against the specific UNITROL system revision and site configuration documentation. DriveKNMS maintains cross-reference records to assist engineers in identifying compatible replacements.

UNITROL YP Series Full Catalog & Functionalities (SKU List)

The following SKUs represent confirmed members of the ABB UNITROL YP / YPCT excitation board family. Each entry reflects a distinct functional role within the excitation control architecture:

YPP105E YT204001-FK: Main power regulation and field excitation control circuit board
YPP110A: Analog voltage regulation board, UNITROL 1000 compatible
YPP112B: Field current limiter and overexcitation protection board
YPP115C: Reactive power control interface board
YPP120D: AVR (Automatic Voltage Regulator) signal processing board
YPC101A: Communication interface board for UNITROL 5000 backplane
YPC103B: Serial data acquisition and diagnostic board
YPC107C: Fieldbus gateway board, Modbus RTU compatible
YPCT21A: Digital excitation controller board, UNITROL 6000 series
YPCT23B: Dual-channel redundant excitation control board
YPCT31A: High-current thyristor gate drive board
YPCT33C: Pulse transformer driver board for SCR firing circuits
YPQ101A: Power supply regulation board, 24VDC excitation auxiliary
YPQ103B: Isolated DC/DC converter board for control electronics
YPR105A: Rotor earth fault detection and protection relay board
YPR107B: Stator ground fault monitoring circuit board
YPM101A: Measurement and transducer signal conditioning board
YPM103C: PT/CT input scaling and isolation board

Note: SKU availability and cross-compatibility must be verified against your specific UNITROL system revision. Contact DriveKNMS for cross-reference assistance.

Sourcing Hard-to-Find & Obsolete UNITROL YP Series Parts

ABB has progressively discontinued support for the analog-generation YP series boards as the UNITROL platform migrated to fully digital architectures. Replacement boards are no longer available through standard ABB distribution channels for many sub-variants. Plant operators face a binary choice: source legacy boards from specialist suppliers, or commit to a full excitation system overhaul.

DriveKNMS maintains a dedicated inventory of UNITROL YP series circuit boards sourced through controlled decommissioning projects, OEM overstock channels, and verified industrial surplus networks. Each unit undergoes condition assessment before listing. For facilities operating on extended maintenance cycles — particularly those with 10–20 year asset life targets — establishing a pre-positioned spare board inventory is the lowest-cost risk mitigation strategy available. A single board held in reserve eliminates the risk of a multi-week procurement delay during an unplanned outage.

For plant managers evaluating lifecycle extension versus system replacement: the total cost of maintaining a YP-series excitation system with adequate spare board coverage is typically 3–8% of the capital cost of a full UNITROL upgrade per year. For assets with 5–10 years of remaining planned service life, the maintenance path is financially rational in the majority of cases.

Quality Control for the UNITROL YP Series Range

Circuit boards from the YP series present specific inspection challenges due to their age profile and the nature of excitation system environments — high ambient temperature, vibration, and electromagnetic interference accelerate component degradation. DriveKNMS applies the following inspection protocol to all YP series boards:

1. Visual and Physical Inspection: Full board examination for PCB delamination, solder joint cracking, burnt traces, and connector pin corrosion. Backplane edge connectors are inspected under magnification for oxidation and mechanical wear.

2. Electrolytic Capacitor Assessment: All electrolytic capacitors are tested for ESR (Equivalent Series Resistance) and capacitance drift. Capacitors showing >20% capacitance loss or elevated ESR are flagged for replacement prior to dispatch.

3. Analog Signal Path Verification: Reference voltage rails and analog signal conditioning circuits are bench-tested against ABB factory test point specifications where documentation is available.

4. Firmware and Configuration Verification: For boards with onboard EEPROM or flash storage, firmware version is read and recorded. Boards with corrupted or mismatched firmware versions are quarantined and not sold as drop-in replacements without disclosure.

All inspection records are retained and available to customers upon request.
