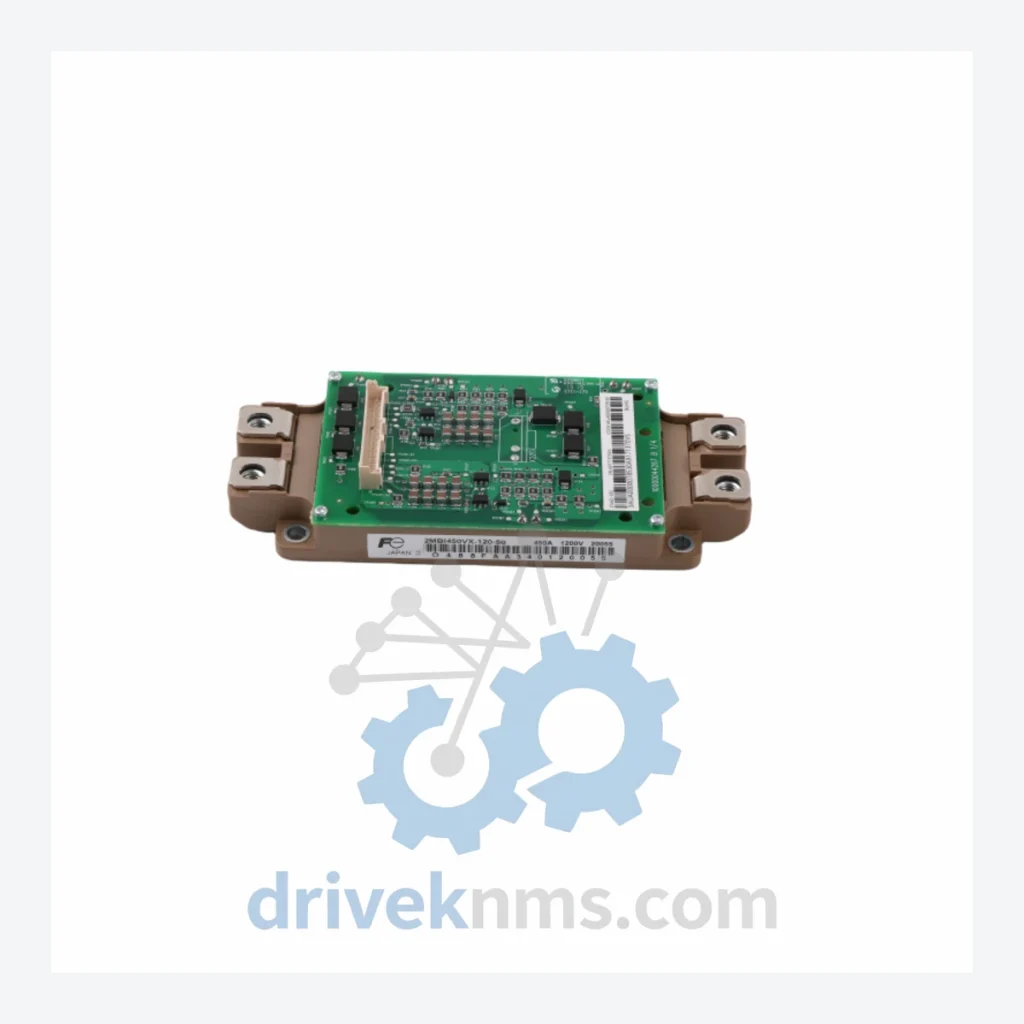

ABB ZGAD Series Drive Boards — ZGAD-582

Technical Dossier

Product Details And Specifications

ABB ZGAD Series: Comprehensive Module Range and Technical Overview

The ABB ZGAD series represents a family of drive control and gate driver boards deployed across heavy industrial sectors including petrochemical refineries, nuclear power auxiliary systems, cement production lines, and offshore platform motor drive systems. These boards serve as the core gate-drive and feedback interface layer within ABB's ACS/DCS drive platforms, providing IGBT firing control, fault signal routing, and DC bus monitoring. Their long service cycles — often exceeding 15 years in continuous operation — make reliable spare parts sourcing a critical operational requirement for plant maintenance teams globally.

The Evolution of ZGAD Architecture

The ZGAD series was developed as part of ABB's modular drive board ecosystem, designed to interface directly with IGBT power modules in medium-voltage and low-voltage variable frequency drives. Early ZGAD variants were engineered for compatibility with ABB's ACS600 and ACS800 drive families, providing isolated gate-drive signals and hardware-level overcurrent protection. As ABB transitioned its drive platform architecture toward the ACS880 and ACS580 generations, the ZGAD series underwent iterative revisions to support higher switching frequencies, improved EMC shielding, and fiber-optic signal isolation. Legacy ZGAD boards remain in active service across installed bases where full drive replacement is not economically viable, creating sustained demand for exact-match spare parts. Compatibility between ZGAD sub-variants is not guaranteed — firmware revision, connector pinout, and fiber-optic interface type must all be verified before substitution.

ZGAD Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the ABB ZGAD drive board series, categorized by primary function:

Gate Driver & IGBT Interface Boards

• ZGAD-582: IGBT gate driver board for ACS800 series; dual-channel isolated firing output
• ZGAD-581: Gate driver board variant with enhanced short-circuit protection logic
• ZGAD-583: High-frequency gate driver board; supports switching frequencies up to 12 kHz
• ZGAD-584: Gate driver board with integrated DC bus voltage feedback circuit
• ZGAD-585: Fiber-optic input gate driver; compatible with AINT/AINT-02 interface boards
• ZGAD-586: Revised ZGAD-582 with updated EMC filtering; direct form-fit-function replacement

Feedback & Measurement Boards

• ZGAD-301: Current measurement board; hall-effect sensor interface for phase current feedback
• ZGAD-302: Voltage measurement board; DC link voltage sensing for ACS600/ACS800
• ZGAD-303: Temperature monitoring board; NTC/PTC thermistor input with fault relay output
• ZGAD-304: Combined current and voltage feedback board; single-board solution for compact drives

Control & Communication Interface Boards

• ZGAD-401: Pulse encoder interface board; HTL/TTL encoder input, 5V/24V selectable
• ZGAD-402: Resolver interface board; 2-pole resolver input with speed/position output
• ZGAD-403: Fieldbus adapter interface board; supports PROFIBUS-DP and Modbus RTU
• ZGAD-404: Digital I/O expansion board; 8DI/8DO with 24VDC logic level

Power Supply Boards

• ZGAD-201: Auxiliary power supply board; generates ±15V and +5V for gate driver circuits
• ZGAD-202: Isolated SMPS board; 24VDC output, 10W, for control card power rail

Sourcing Hard-to-Find & Obsolete ZGAD Parts

Several ZGAD series boards have reached end-of-production status within ABB's official supply chain. DriveKNMS maintains a dedicated inventory of new-surplus, refurbished, and tested-used ZGAD modules sourced through authorized dismantling of decommissioned drive systems. For plant operators running ACS600 or ACS800 drives beyond their standard support window, DriveKNMS provides lifecycle extension support including: exact-match board replacement, cross-reference verification against drive serial number and firmware version, and multi-unit lot sourcing for scheduled maintenance shutdowns. All obsolete ZGAD boards are stored in ESD-safe, climate-controlled conditions and shipped with full test documentation.

Quality Control for the ZGAD Range

ZGAD series boards incorporate complex multilayer PCB designs with high-voltage isolation barriers, fiber-optic transceivers, and precision analog measurement circuits. DriveKNMS applies a dedicated test protocol for each board type prior to dispatch: gate driver boards (ZGAD-58x series) are bench-tested under simulated IGBT load conditions with firing pulse verification at rated frequency; feedback boards (ZGAD-30x) are calibrated against reference measurement instruments; communication interface boards (ZGAD-40x) undergo protocol-level loopback testing on live fieldbus segments. Each board is issued a test report with pass/fail criteria, measured parameters, and technician sign-off. Boards that do not meet OEM specification thresholds are quarantined and not offered for sale.
