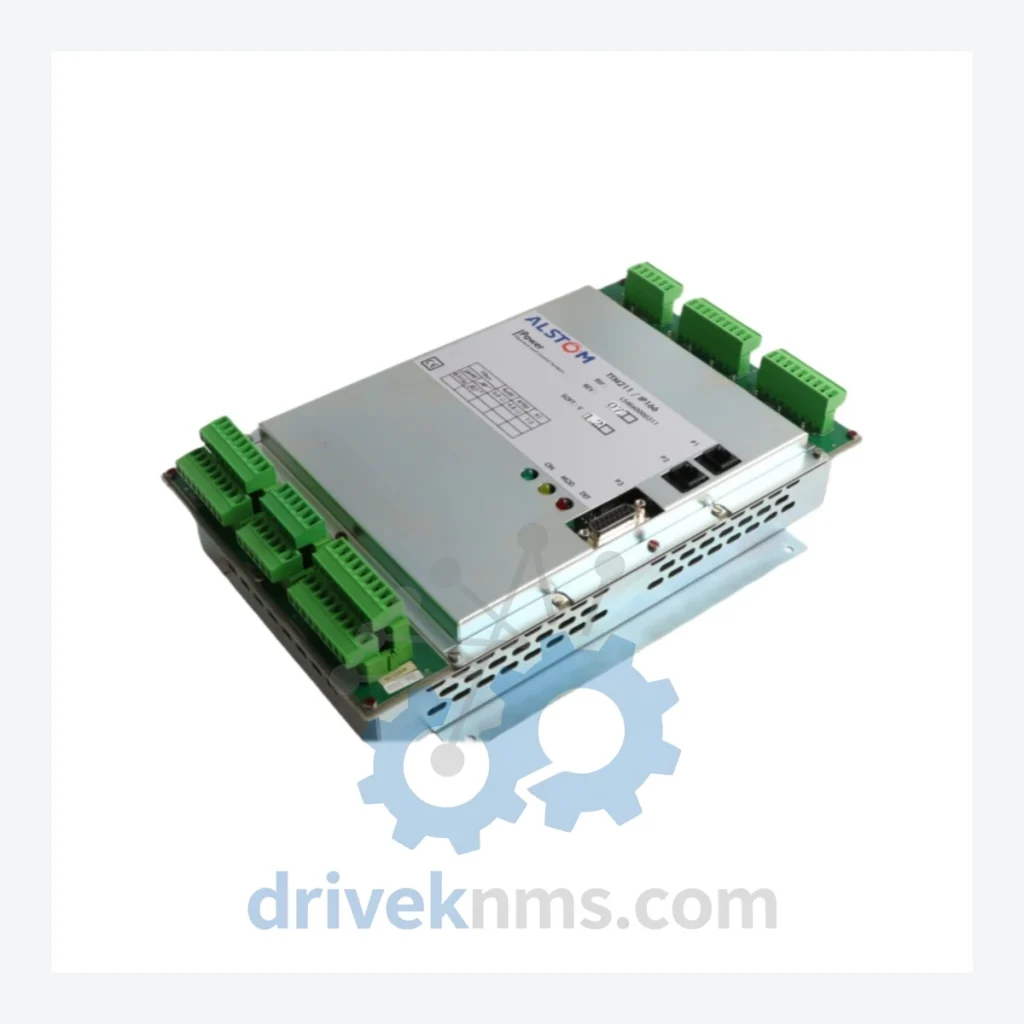

ALSTOM TTM211 Modules: TTM211 IP166 L54E60000311

Technical Dossier

Product Details And Specifications

ALSTOM TTM211 Series: Comprehensive Module Range and Technical Overview

The ALSTOM TTM211 series represents a purpose-engineered family of turbine control and monitoring modules deployed across heavy industrial installations worldwide, including gas turbine power plants, combined-cycle facilities, nuclear auxiliary systems, and petrochemical process units. Developed under ALSTOM's industrial automation division (subsequently integrated into GE Power and later GE Vernova following the 2015 acquisition), the TTM211 platform established a standardized backplane architecture for turbine management systems (TMS) that remains operational in a significant installed base across Europe, the Middle East, and Asia-Pacific. Its modular I/O structure, deterministic scan cycle, and compatibility with ALSTOM's proprietary communication buses made it a preferred solution for OEM turbine skid integrators and EPC contractors specifying long-lifecycle control infrastructure.

The Evolution of TTM211 Architecture

The TTM211 architecture was introduced as part of ALSTOM's second-generation turbine management platform, succeeding earlier relay-logic and first-generation programmable systems. The series adopted a VME-compatible card cage format with a proprietary high-speed backplane bus, enabling deterministic inter-module communication critical for turbine protection and sequencing applications. Early TTM211 variants (circa late 1990s–early 2000s) focused on analog input conditioning and thermocouple signal processing for exhaust gas temperature (EGT) monitoring arrays — a core requirement in gas turbine control. Subsequent revisions introduced digital I/O expansion cards, redundant CPU configurations, and serial communication adapters supporting Modbus RTU and ALSTOM's internal fieldbus protocols. The IP166 sub-family, to which the TTM211 IP166 L54E60000311 belongs, denotes a specific hardware revision level and firmware compatibility class within the TTM211 ecosystem, governing backplane slot assignment, interrupt handling, and inter-module handshaking. As GE Power absorbed the ALSTOM industrial controls portfolio post-2015, the TTM211 series entered a maintenance-only lifecycle phase. No direct form-fit-function replacement exists within the current GE Vernova catalog; end users are required to source original spare modules or pursue full control system migration projects. This lifecycle status elevates the criticality of maintaining an adequate spare parts inventory for sites still operating TTM211-based TMS installations.

TTM211 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the ALSTOM TTM211 series, organized by functional category. Each module is designed for slot-specific installation within the TTM211 card cage and is not interchangeable across functional categories without engineering authorization.

Turbine Control & CPU Modules

• TTM211 IP166 L54E60000311: Turbine control processor module, IP166 hardware revision, primary TMS sequencing and protection logic execution.
• TTM211 IP165 L54E60000310: Prior-revision CPU module, compatible with TTM211 backplane, predecessor to IP166 firmware baseline.
• TTM211 IP167 L54E60000312: Enhanced CPU variant with extended diagnostic register set and improved watchdog timer resolution.
• TTM211 IP160 L54E60000305: Base-class controller module, early-series TMS sequencing, limited analog I/O interface.

Analog Input Modules (AI)

• TTM211 AI8 L54E60000320: 8-channel analog input module, 4–20 mA / 0–10 V configurable, 12-bit resolution, for process variable acquisition.
• TTM211 AI16 L54E60000321: 16-channel analog input expansion, thermocouple and RTD compatible, used in EGT monitoring arrays.
• TTM211 TC8 L54E60000325: 8-channel thermocouple input module, Type K/J/T/E, cold junction compensation integrated, turbine exhaust temperature measurement.
• TTM211 TC16 L54E60000326: 16-channel thermocouple input, high-density EGT array scanning, 100 ms full-scan cycle.
• TTM211 RTD8 L54E60000328: 8-channel RTD input module, Pt100/Pt1000, 3-wire and 4-wire configurations, bearing temperature monitoring.

Digital Input / Output Modules (DI / DO)

• TTM211 DI32 L54E60000340: 32-channel digital input module, 24 VDC, optically isolated, turbine status and limit switch acquisition.
• TTM211 DO16 L54E60000345: 16-channel digital output module, relay contact type, 250 VAC / 30 VDC rated, actuator and solenoid valve control.
• TTM211 DO32 L54E60000346: 32-channel transistor output module, 24 VDC sourcing, high-speed valve sequencing applications.
• TTM211 DIO16 L54E60000350: 16-channel configurable digital I/O, mixed-mode operation, interlocking and permissive logic.

Communication & Network Adapter Modules

• TTM211 COM-MB L54E60000360: Modbus RTU master/slave communication adapter, RS-485 interface, DCS integration gateway.
• TTM211 COM-DP L54E60000362: PROFIBUS DP adapter module, 12 Mbit/s, for integration with third-party SCADA and DCS platforms.
• TTM211 COM-ETH L54E60000365: Ethernet TCP/IP communication module, 10/100 Mbit/s, remote monitoring and historian connectivity.

Power Supply Modules

• TTM211 PSU24 L54E60000380: 24 VDC backplane power supply module, 10 A rated, primary card cage power distribution.
• TTM211 PSU-R L54E60000381: Redundant power supply module, hot-swap capable, N+1 configuration for critical turbine protection systems.

Sourcing Hard-to-Find & Obsolete TTM211 Parts

The TTM211 series has been in a manufacturer end-of-life (EOL) status since the mid-2010s. ALSTOM's industrial controls division no longer produces or provides factory repair services for TTM211 modules under the GE Vernova portfolio. For operators of gas turbines, steam turbines, and combined-cycle plants still running TTM211-based TMS, unplanned module failure presents a significant operational risk — replacement lead times through OEM channels are typically measured in months, if available at all. DriveKNMS maintains a dedicated inventory of TTM211 series modules sourced from decommissioned plant equipment, controlled surplus channels, and verified third-party refurbishers. All units are cataloged by part number, hardware revision, and firmware version to ensure compatibility with the target installation's backplane revision. For critical spares planning, DriveKNMS can assist with multi-unit procurement to establish an on-site buffer stock aligned with the plant's maintenance interval schedule. Customers operating multiple TTM211 installations across different sites are encouraged to submit consolidated parts lists for volume pricing assessment.

Quality Control for the TTM211 Range

TTM211 modules present specific quality verification challenges due to their proprietary backplane bus protocol and the absence of publicly available diagnostic software from the OEM. DriveKNMS applies a structured multi-stage inspection and functional test protocol to all TTM211 units prior to dispatch. Visual inspection covers PCB condition, component integrity, connector pin alignment, and conformal coating status — critical for modules previously installed in high-humidity or chemically aggressive turbine hall environments. Backplane communication verification is performed using a TTM211-compatible card cage test fixture that validates slot addressing, interrupt response, and inter-module data exchange at the hardware level. For analog input modules (AI8, AI16, TC8, TC16, RTD8), signal conditioning accuracy is verified against calibrated reference sources across the full input range. Digital I/O modules are tested for channel isolation integrity and output switching reliability under rated load. CPU modules (IP165, IP166, IP167) undergo firmware version verification and boot sequence validation. All tested units are issued a DriveKNMS inspection report documenting test results, hardware revision, and firmware version, providing traceability for maintenance records and regulatory compliance documentation.
