AMETEK MPC-T2010 Series: Comprehensive Module Range and Technical Overview

The AMETEK MPC-T2010 series is a modular process control platform engineered for continuous and batch industrial processes. Deployed extensively across petrochemical refineries, chemical processing plants, power generation facilities, and pulp & paper mills, the MPC-T2010 architecture established AMETEK's position as a supplier of deterministic, rack-based distributed control hardware. Its backplane-based I/O expansion model, combined with a dedicated sequencer and controller module lineup, made it a standard reference design for legacy DCS installations throughout North America and Europe from the 1980s through the early 2000s. Many facilities operating under long-term asset management strategies — including nuclear auxiliary systems and refinery unit operations — continue to maintain MPC-T2010 hardware as part of their approved spare parts inventory.

The Evolution of MPC-T2010 Architecture

The MPC-T2010 platform was developed under AMETEK's Programmable Controls Division as a successor to earlier relay-logic and discrete sequencer panels. The architecture centers on a passive backplane bus that supports hot-swap-compatible I/O modules, a dedicated CPU/controller card, and a range of analog and digital interface modules. Early revisions used parallel bus addressing with fixed slot assignments; later revisions introduced configurable slot mapping to support larger I/O counts without chassis expansion.

The DNC (Distributed Network Controller) prefix — as seen in the DNC-T2010-BDC designation — identifies modules that operate within a distributed node configuration, communicating upstream to a supervisory controller via a proprietary serial link. The BDC suffix denotes the Backplane Data Controller variant, responsible for coordinating data transfer between the local I/O bus and the network interface layer.

Compatibility considerations are significant for maintenance engineers: MPC-T2010 modules are not electrically or firmware-compatible with AMETEK's later MPC-2000 or Delphi series platforms. Backplane pinouts differ, and firmware is stored on socketed EPROMs that are series-specific. Replacement modules must match both the base model number and the hardware revision suffix to ensure correct operation.

MPC-T2010 Full Catalog & Functionalities (SKU List)

Output & Sequencer Modules

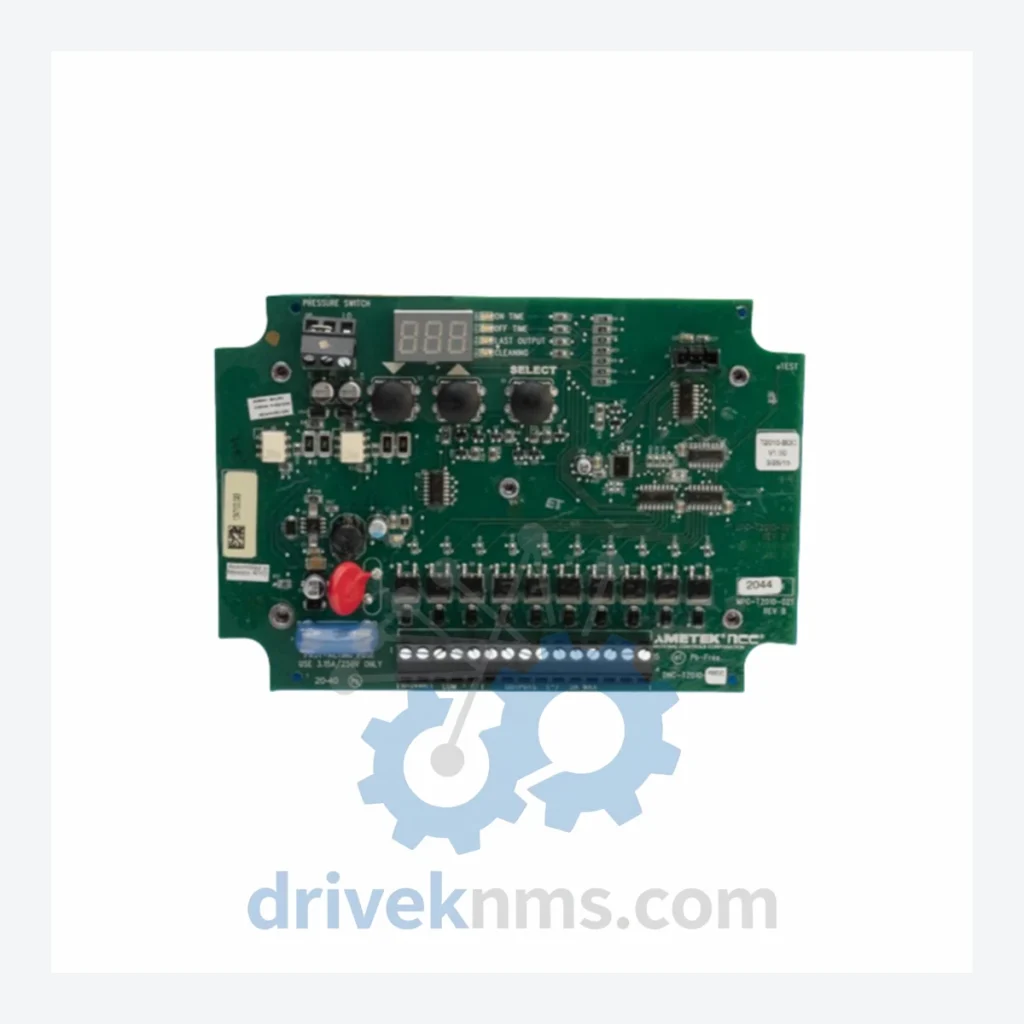

• MPC-T2010-021 (DNC-T2010-BDC): Output sequencer module; controls timed discrete output sequences on the local backplane bus.
• MPC-T2010-020: Digital output module; 16-channel 24 VDC discrete output with status feedback.
• MPC-T2010-022: Relay output module; 8-channel dry-contact relay outputs rated 2A/120VAC per channel.
• MPC-T2010-023: Analog output module; 4-channel 4–20 mA isolated current output, 12-bit resolution.

Digital Input Modules

• MPC-T2010-010: Digital input module; 16-channel 24 VDC discrete input with optical isolation.
• MPC-T2010-011: Digital input module; 16-channel 120 VAC discrete input, field-wired terminal block.
• MPC-T2010-012: High-density digital input; 32-channel 24 VDC, dual-row connector interface.

Analog Input Modules

• MPC-T2010-030: Analog input module; 8-channel 4–20 mA input, 12-bit ADC, single-ended.
• MPC-T2010-031: Thermocouple input module; 8-channel, supports J/K/T/E types with cold-junction compensation.
• MPC-T2010-032: RTD input module; 4-channel, supports PT100/PT1000, 3-wire configuration.
• MPC-T2010-033: High-resolution analog input; 8-channel 4–20 mA, 16-bit ADC, differential input.

CPU & Controller Modules

• MPC-T2010-001: Main CPU module; ladder logic and function block execution, 256 KB program memory.
• MPC-T2010-002: Redundant CPU module; hot-standby configuration, bumpless transfer on fault detection.
• MPC-T2010-003: Co-processor module; floating-point math acceleration for PID and advanced control loops.

Communication & Network Modules

• MPC-T2010-050: Serial communication module; RS-232/RS-485 dual-port, Modbus RTU master/slave.
• MPC-T2010-051: Network interface module; proprietary AMETEK DNC bus interface, node addressing 1–32.
• MPC-T2010-052: Ethernet gateway module; 10BASE-T, Modbus TCP server, for SCADA integration.

Power Supply Modules

• MPC-T2010-060: Primary power supply; 120/240 VAC input, 5 VDC/10A + 24 VDC/3A output, backplane-mounted.
• MPC-T2010-061: Redundant power supply module; parallel operation with automatic load sharing and fault alarm output.

Sourcing Hard-to-Find & Obsolete MPC-T2010 Parts

AMETEK discontinued active production of the MPC-T2010 series. Standard distribution channels no longer carry new stock, and factory repair services for this platform have been formally discontinued. For facilities that cannot execute a full DCS migration within their current maintenance cycle, DriveKNMS provides lifecycle extension support specifically for the MPC-T2010 range.

DriveKNMS maintains a physical inventory of tested MPC-T2010 modules sourced from decommissioned plant equipment, controlled factory surplus, and verified secondary market channels. Each unit is catalogued by model number, hardware revision, and functional test status before being offered for sale. For critical applications — including safety-instrumented system auxiliary loops and continuous process control — DriveKNMS can provide documentation of test results upon request.

Quality Control for the MPC-T2010 Range

The MPC-T2010 platform presents specific quality control challenges due to its backplane bus architecture and the age profile of available stock. DriveKNMS applies a structured test protocol to each module prior to dispatch:

• Backplane bus integrity test: Each module is seated in a reference chassis and subjected to full read/write cycle verification across all backplane address lines. Intermittent bus faults — a common failure mode in aged edge connectors — are identified and rejected at this stage.
• Functional I/O verification: All input and output channels are exercised at rated signal levels. For analog modules, channel-to-channel isolation resistance and linearity are measured against original specification tolerances.
• EPROM and firmware validation: Socketed EPROM contents are read and verified against known-good checksums for the applicable hardware revision. Modules with corrupted or mismatched firmware are reflashed or quarantined.
• Power rail measurement: On-board voltage regulators are measured under load. Modules exhibiting out-of-tolerance supply rails are reconditioned or rejected.
• Visual and mechanical inspection: PCB surfaces are inspected for corrosion, cold solder joints, and capacitor degradation — failure modes common in modules stored in humid industrial environments.

For MPC-T2010 module availability, technical specifications, or bulk spare parts inquiries:

• Email: [email protected]
• WhatsApp: +86 18359293191
• Web: driveknms.com
