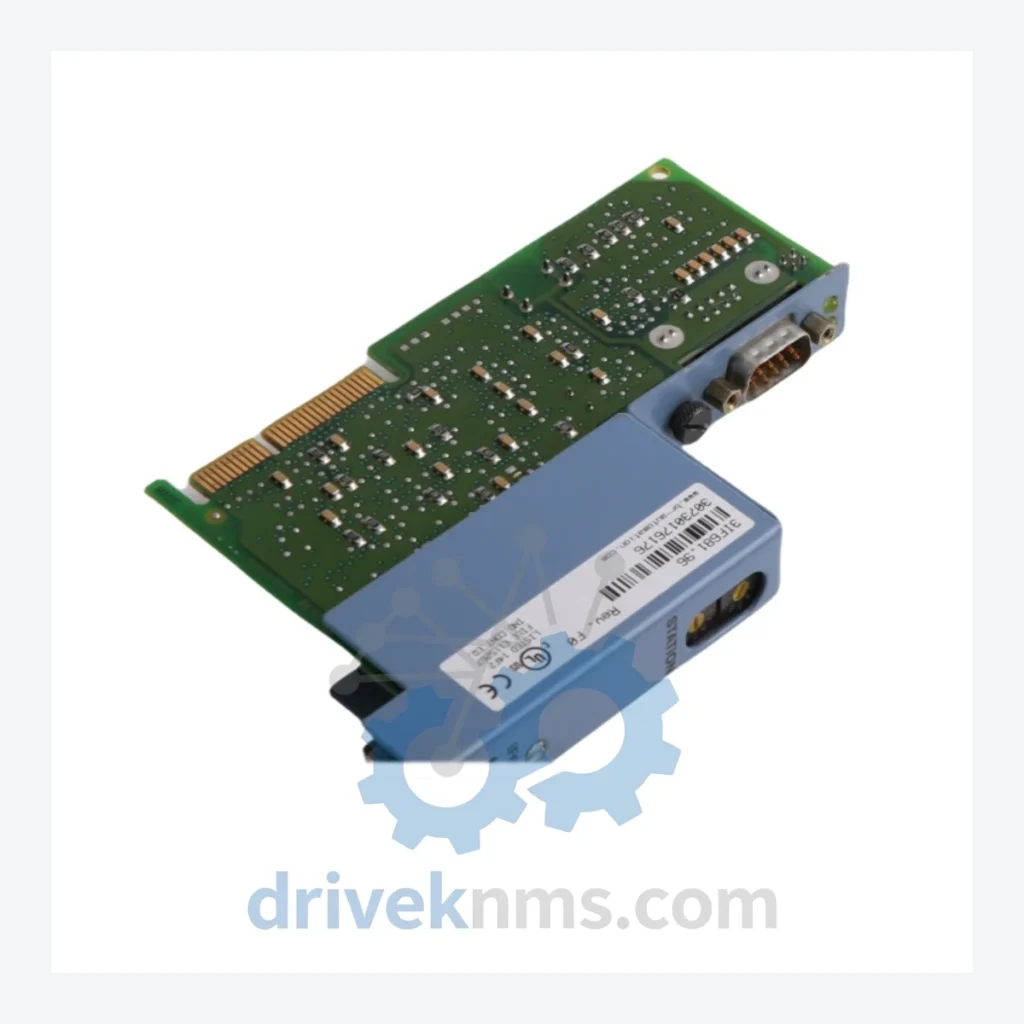

B&R IF681 Modules | 3IF681.86

Model: IF681 3IF681.86

Brand B&R

Series 3IF681.86

Model IF681 3IF681.86

RFQ-ready model route Obsolete and surplus sourcing Export follow-up by model list

Product Overview

Commercial availability is handled through direct RFQ, model verification and export-oriented follow-up rather than public cart checkout.

Submit RFQ Email This Model

Datasheet Preview

Use attached product manuals when available. If the manual is not public yet, request the full file directly through RFQ.

Request Full Manual

Commercial Path

Use This Page To Confirm The Model, Then Move To RFQ

Product pages on DRIVEKNMS are designed to verify model, brand and series first, then move the buyer into one clean quotation path.

Technical Dossier

Product Details And Specifications

B&R IF681 Series: Comprehensive Module Range and Technical Overview

The B&R IF681 series is a line of interface modules developed for the B&R 2003 and Automation PC / Industrial PC control platforms. These modules have been deployed extensively across global heavy industry sectors including petrochemical plants, nuclear power facilities, oil refineries, pulp and paper mills, and continuous process manufacturing lines. The IF681 series serves as the communication and I/O interface backbone in distributed control architectures where deterministic fieldbus communication and high-density I/O expansion are mandatory requirements. The installed base of IF681-series hardware remains substantial in facilities with long equipment lifecycles, making spare parts availability a critical operational concern for maintenance engineers and procurement teams worldwide.

The Evolution of IF681 Architecture

The IF681 designation covers interface modules designed to operate within B&R's modular rack-based control systems, primarily the 2003 family. Early revisions of the IF681 architecture focused on parallel backplane communication, providing a direct hardware interface between the CPU module and peripheral I/O racks. As fieldbus standards matured through the 1990s and 2000s, B&R introduced sub-variants of the IF681 that supported PROFIBUS-DP, CAN, and proprietary B&R I/O-Link protocols, allowing the same physical form factor to serve multiple communication roles depending on firmware and hardware revision.

The 3IF681.86 specifically represents a mature revision within this lineage, engineered for stable backplane integration with defined electrical characteristics for rack-slot communication. Compatibility considerations are critical: IF681-series modules are slot-specific in many rack configurations, and substitution between hardware revisions requires verification of firmware compatibility with the resident CPU module (typically 3CP360.60, 3CP380.60, or equivalent). As the B&R 2003 platform has entered its end-of-life phase, the IF681 series is no longer in active production, placing all procurement into the aftermarket and refurbished-parts channel.

IF681 Full Catalog & Functionalities (SKU List)

The following SKUs represent the documented range of modules within and directly associated with the B&R IF681 interface series. All models listed are verified members of the B&R 2003 / compatible platform ecosystem.

3IF681.86: Backplane interface module, 2003 rack, standard revision 86
3IF681.60: Interface module, earlier hardware revision, 2003 platform
3IF681.70: Interface module, mid-series hardware revision
3IF681.80: Interface module, revision 80, backplane bus communication
3IF681.90: Interface module, revision 90, enhanced signal integrity
3IF611.60: Compact interface module, reduced I/O channel count, 2003 rack
3IF611.70: Compact interface module, revision 70, fieldbus-ready variant
3IF621.60: Extended interface module, dual-port backplane configuration
3IF621.70: Extended interface module, revision 70, increased throughput
3IF631.60: PROFIBUS-DP interface module, master/slave configurable
3IF631.70: PROFIBUS-DP interface module, revision 70, enhanced diagnostics
3IF641.60: CAN interface module, CANopen protocol support
3IF641.70: CAN interface module, revision 70, extended node addressing
3IF651.60: Serial communication interface module, RS-232/RS-485
3IF661.60: Ethernet interface module, 10/100 Mbit, rack-mount form factor
3IF671.60: I/O-Link master interface module, B&R proprietary protocol
3IF681.00: Base revision interface module, original production release

Sourcing Hard-to-Find & Obsolete IF681 Parts

Quality Control for the IF681 Range

Interface modules in the IF681 series present specific test challenges due to their role as the electrical and logical bridge between the CPU backplane bus and peripheral I/O racks. DriveKNMS applies a structured test protocol to all IF681 units prior to dispatch. Each module undergoes visual inspection for backplane connector pin integrity, capacitor condition, and PCB trace continuity. Functional testing is performed in a live B&R 2003 rack environment using a reference CPU module, verifying correct module recognition, backplane communication handshake, and absence of fault codes under cyclic operation. For communication-variant modules (PROFIBUS, CAN, Ethernet), protocol-layer testing is conducted using certified fieldbus analyzers to confirm frame integrity and timing compliance. Burn-in testing at elevated ambient temperature is applied to refurbished units to screen for latent component failures before shipment. All units are shipped with a test report and a defined warranty period.
