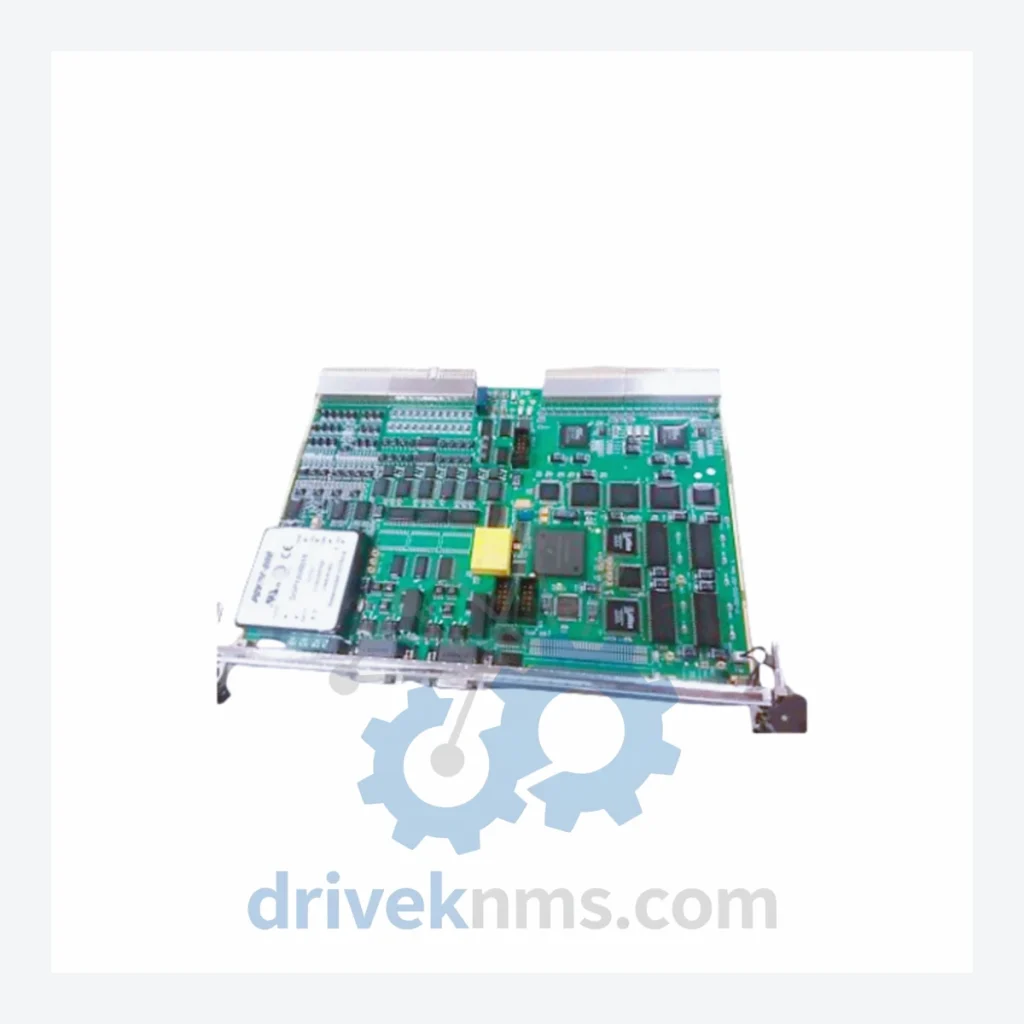

Compressor Controls Corp IOC-555 Modules

Technical Dossier

Product Details And Specifications

Compressor Controls Corp IOC-555 Series: Comprehensive Module Range and Technical Overview

The Compressor Controls Corp (CCC) IOC-555 series represents a core control and I/O platform deployed across heavy industrial installations worldwide, including gas compression stations, petrochemical complexes, offshore platforms, LNG terminals, and power generation facilities. CCC, headquartered in Des Moines, Iowa, USA, has supplied turbomachinery protection and control systems to critical infrastructure operators for over five decades. The IOC-555 series occupies the mid-tier control layer within CCC's Integrated Control System (ICS) architecture, interfacing directly with field instruments, actuators, and supervisory SCADA layers. Its installed base spans facilities operated by major energy companies across North America, the Middle East, Europe, and Asia-Pacific, making long-term spare parts availability a primary operational concern for maintenance engineers and reliability teams.

The Evolution of IOC-555 Architecture

The IOC-555 platform was introduced as part of CCC's second-generation ICS architecture, succeeding earlier relay-logic and discrete analog control panels. The series was designed around a modular backplane bus structure, allowing individual I/O and processing cards to be replaced without full system shutdown — a critical requirement in continuous-process industries where unplanned outages carry significant financial and safety consequences.

Early IOC-555 variants used parallel backplane communication with TTL-level signaling. Subsequent revisions introduced enhanced noise immunity, optically isolated I/O channels, and expanded diagnostic registers accessible via the system's serial communication interface. The -D suffix on the IOC-555-D designates a specific board revision incorporating design changes to the analog signal conditioning circuitry and power regulation section.

As CCC transitioned toward its next-generation Turbotronic and RPC (Rotor Protection Controller) platforms in the 2000s and 2010s, the IOC-555 series entered a maintenance and end-of-life phase. CCC ceased active production of most IOC-555 variants, shifting support to authorized repair centers and third-party MRO suppliers. Sites still operating IOC-555-based systems face the dual challenge of sourcing replacement boards and maintaining configuration compatibility with legacy software tools. Migration to modern CCC platforms requires full system re-engineering, making like-for-like board replacement the preferred strategy for the majority of operating sites.

IOC-555 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the CCC IOC-555 and closely related ICS board-level product range. Each entry reflects a distinct functional role within the system architecture:

IOC-555-D: I/O controller circuit board, analog/digital signal interface, backplane bus revision D.
IOC-555-A: Original production I/O controller board, early backplane bus variant, analog input focus.
IOC-555-B: Revised I/O controller, improved analog conditioning, expanded DI channel count.
IOC-555-C: Third revision board, enhanced EMI shielding, updated power regulation section.
IOC-555-E: Extended-temperature variant, rated for high-ambient enclosure installations.
IOC-555-F: Final production revision, incorporates watchdog timer upgrade and diagnostic LED array.
IOC-500: Predecessor I/O controller board, compatible backplane, reduced channel density.
IOC-560: Successor I/O controller, expanded analog channel count, same backplane form factor.
IOC-570: High-density I/O board, dual-width module, 32-channel analog input configuration.
DIO-555: Discrete I/O module, 24 VDC field wiring, optically isolated inputs and outputs.
DIO-555-H: High-current discrete output variant, relay-driven outputs, 2A per channel rating.
AIO-555: Analog I/O module, 4–20 mA loop-powered inputs, 0–10 V output channels.
AIO-555-X: Extended-range analog I/O, ±10 V input range, 16-bit ADC resolution.
CPU-555: Central processing unit card for IOC-555 backplane, executes control logic and sequencing.
CPU-555-R: Redundant CPU module, hot-standby configuration, bumpless transfer on fault.
COM-555: Serial communications adapter, RS-232/RS-485 interface, Modbus RTU protocol support.
COM-555-E: Ethernet communications module, 10/100 Mbps, Modbus TCP and proprietary CCC protocol.
PSU-555: Backplane power supply module, 24 VDC input, regulated 5 V and ±15 V outputs.
PSU-555-R: Redundant power supply module, parallel operation, automatic load sharing.
BPL-555-8: 8-slot backplane chassis, passive bus, accepts all IOC-555 series modules.

Sourcing Hard-to-Find & Obsolete IOC-555 Parts

DriveKNMS maintains a dedicated inventory program for end-of-life CCC IOC-555 series boards. As CCC has discontinued active manufacturing of the IOC-555 range, the primary supply channels are decommissioned system teardowns, authorized repair and refurbishment, and tested surplus stock recovered from plant upgrades and shutdowns.

DriveKNMS sources IOC-555 boards through a global network of industrial surplus dealers, decommissioning contractors, and direct plant contacts. Each unit entering inventory is logged by part number, revision suffix, and physical condition prior to testing. For operators requiring immediate replacement to restore a tripped or faulted system, DriveKNMS maintains express dispatch capability with same-day shipping on confirmed in-stock items.

For sites requiring multiple boards to establish a local critical-spares holding, DriveKNMS can supply quantity lots with matched revision levels to ensure backplane compatibility. Long-term maintenance agreements covering annual inspection, functional re-testing, and priority allocation of stock are available on request.

Quality Control for the IOC-555 Range

The IOC-555 series presents specific testing challenges due to its mixed analog/digital architecture and backplane bus dependency. DriveKNMS applies the following verification protocol to all IOC-555 boards processed through its facility:

Visual inspection covers solder joint integrity, capacitor condition (ESR measurement on all electrolytic devices), connector pin straightness, and PCB trace continuity. Boards with evidence of thermal damage, corrosion, or prior unauthorized repair are quarantined for engineering review before any further processing.

Functional testing is performed using a dedicated IOC-555 backplane test fixture that replicates the electrical environment of the installed system. Each analog input channel is stimulated across its full rated range and output linearity is verified against factory specification tolerances. Discrete I/O channels are cycled through all logic states with load simulation. The backplane bus interface is exercised using a protocol analyzer to confirm correct register addressing and data integrity under simulated fault conditions.

All boards are powered for a minimum 24-hour burn-in period prior to final acceptance. Units that pass all acceptance criteria are issued a DriveKNMS test certificate recording the date, technician ID, test fixture serial number, and measured parameters. Boards are then anti-static packaged with desiccant and shipped in rigid foam-lined cartons.
