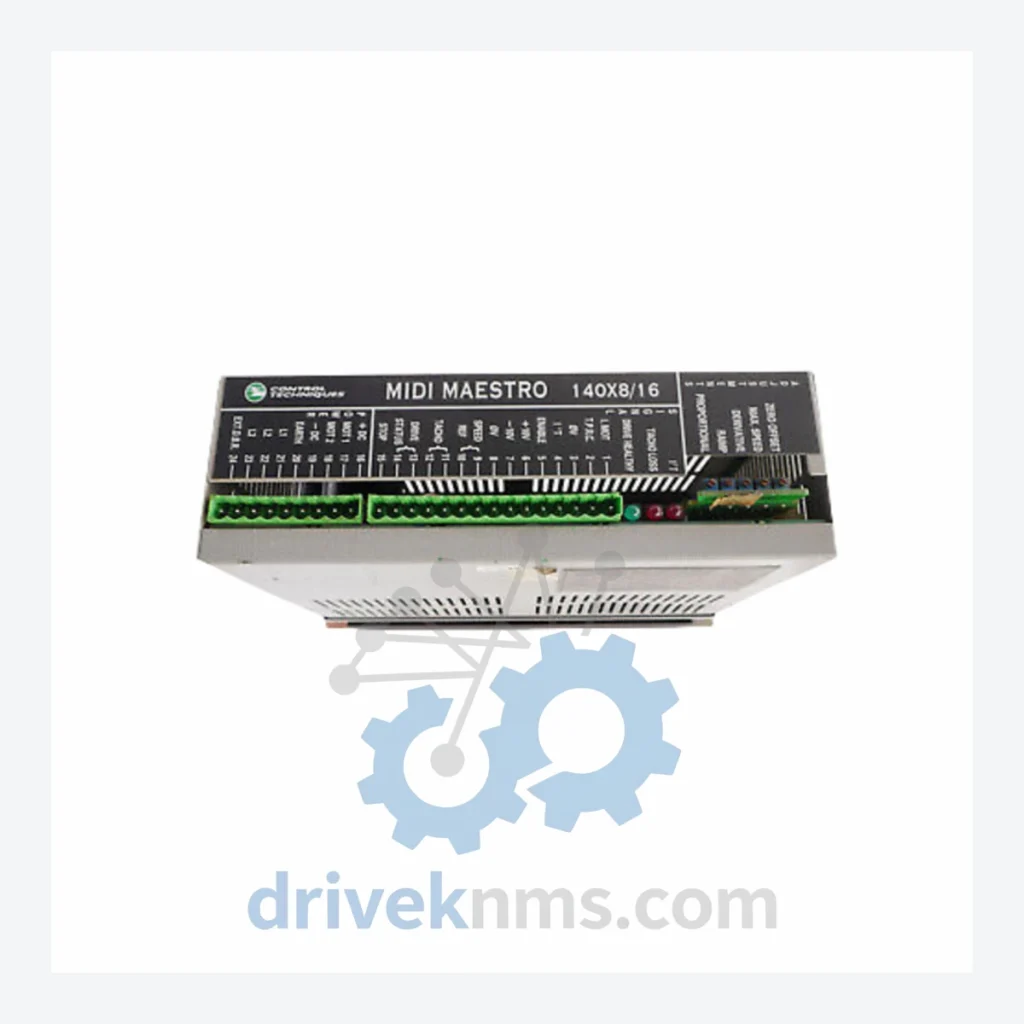

Control Techniques MAESTRO Modules: MAESTRO 140X8/16

Technical Dossier

Product Details And Specifications

Control Techniques MAESTRO Series: Comprehensive Module Range and Technical Overview

The Control Techniques MAESTRO series is a multi-axis motion controller platform engineered for high-precision servo coordination in continuous-process and discrete-manufacturing environments. Deployed extensively across petrochemical refineries, nuclear power auxiliary systems, paper mills, steel rolling lines, and offshore platform drive systems, the MAESTRO architecture provides deterministic real-time control over multiple servo axes from a single rack-mounted controller. Its modular backplane design allows system integrators to configure axis count, I/O density, and fieldbus connectivity without replacing the core CPU, making it a long-lifecycle investment for plant automation infrastructure. The platform's installed base spans Europe, Asia-Pacific, and the Americas, with many installations exceeding 20 years of continuous operation — a factor that drives sustained demand for spare modules and lifecycle support.

The Evolution of MAESTRO Architecture

The MAESTRO platform was introduced by Control Techniques (subsequently acquired by Nidec) as a successor to earlier single-axis positioning controllers, consolidating multi-axis coordination into a shared backplane environment. Early MAESTRO hardware communicated via proprietary CT-Net and RS-485 serial links, with axis modules operating at update rates suited to the servo bandwidths of the era. As fieldbus standards matured, the platform incorporated PROFIBUS-DP and later CANopen adapter modules, allowing MAESTRO controllers to participate in plant-wide DCS and SCADA architectures without gateway hardware.

The transition from 8-axis to 16-axis configurations — reflected in the MAESTRO 140X8/16 designation — addressed the growing demand for higher axis density in coordinated winding, printing, and converting machinery. Firmware revisions across the platform's lifecycle introduced enhanced camming, electronic gearing, and registration mark processing capabilities. Compatibility between early and late-generation axis modules is constrained by backplane revision and firmware version; integrators replacing modules in mixed-generation systems must verify hardware revision codes before installation. The platform is now in the mature/end-of-life phase of its lifecycle, with no new hardware development. Long-term maintainability depends entirely on the availability of tested surplus and refurbished modules from specialist distributors.

MAESTRO Full Catalog & Functionalities (SKU List)

The following SKUs represent the verified MAESTRO series module range. Each entry reflects a distinct hardware function within the platform architecture.

Controllers & CPUs

• MAESTRO 140X8/16: Multi-axis motion controller, 8/16-axis backplane, CT-Net host
• MAESTRO 140X4: 4-axis motion controller, compact backplane configuration
• MAESTRO 140X8: 8-axis motion controller, standard rack, RS-485 comms
• MAESTRO 140X16: 16-axis motion controller, extended rack, high-density servo coordination
• MAESTRO 150: Enhanced CPU module, increased program memory, faster scan cycle

Axis & Drive Interface Modules

• MAESTRO AX8: 8-channel servo axis expansion module, resolver feedback
• MAESTRO AX16: 16-channel servo axis expansion, encoder feedback compatible
• MAESTRO SX: Single-axis interface module, direct Unidrive SP integration
• MAESTRO DX: Dual-axis interface module, compact drive pairing

I/O Modules

• MAESTRO DI16: 16-channel digital input module, 24 VDC, isolated
• MAESTRO DO16: 16-channel digital output module, 24 VDC, 0.5 A per channel
• MAESTRO AI8: 8-channel analogue input, ±10 V / 4–20 mA, 12-bit resolution
• MAESTRO AO4: 4-channel analogue output, ±10 V, 12-bit resolution

Communication & Fieldbus Adapters

• MAESTRO PROFIBUS-DP: PROFIBUS-DP slave adapter, 12 Mbit/s, GSD file supported
• MAESTRO CANopen: CANopen DS301/DS402 adapter, 1 Mbit/s
• MAESTRO DeviceNet: DeviceNet slave module, Group 2 only server

Power Supply Modules

• MAESTRO PSU-24: 24 VDC backplane power supply, 10 A continuous
• MAESTRO PSU-R: Redundant power supply module, hot-swap capable

Sourcing Hard-to-Find & Obsolete MAESTRO Parts

With the MAESTRO platform in end-of-life status, OEM factory supply of replacement modules has ceased. Plant operators running MAESTRO-based systems face a sourcing gap that cannot be resolved through standard distribution channels. DriveKNMS maintains a dedicated inventory of tested MAESTRO modules sourced from decommissioned plant equipment, controlled factory overstock, and verified surplus channels globally.

For obsolete or low-volume SKUs — including early-revision axis modules, legacy communication adapters, and discontinued PSU variants — DriveKNMS operates a cross-reference and substitution service. Where a direct replacement is unavailable, our engineering team identifies functionally equivalent modules with confirmed backplane and firmware compatibility. All sourced units are subject to the same incoming inspection and functional test protocol applied to current-production inventory. Lead times for hard-to-find MAESTRO modules are quoted individually based on current stock position and global sourcing pipeline status.

Quality Control for the MAESTRO Range

MAESTRO modules present specific test challenges due to their backplane-dependent operation: most modules cannot be fully validated without a functioning host controller and backplane assembly. DriveKNMS operates a dedicated MAESTRO test rig comprising a verified host controller, populated backplane, and calibrated servo load simulators. Each incoming module undergoes the following protocol:

• Visual inspection: PCB condition, connector pin integrity, capacitor condition, conformal coating assessment
• Power-on test: Supply rail verification, firmware boot confirmation, fault code readout
• Functional test: Axis command/response cycle, I/O channel-by-channel verification, fieldbus enumeration where applicable
• Communication test: CT-Net node registration, PROFIBUS/CANopen enumeration for adapter modules
• Burn-in: Minimum 24-hour operational cycle under representative load conditions
• Documentation: Test report issued with each unit, including firmware version, hardware revision, and test date

Modules that fail any stage of this protocol are quarantined, documented, and either repaired to specification or scrapped. No untested units are shipped.
