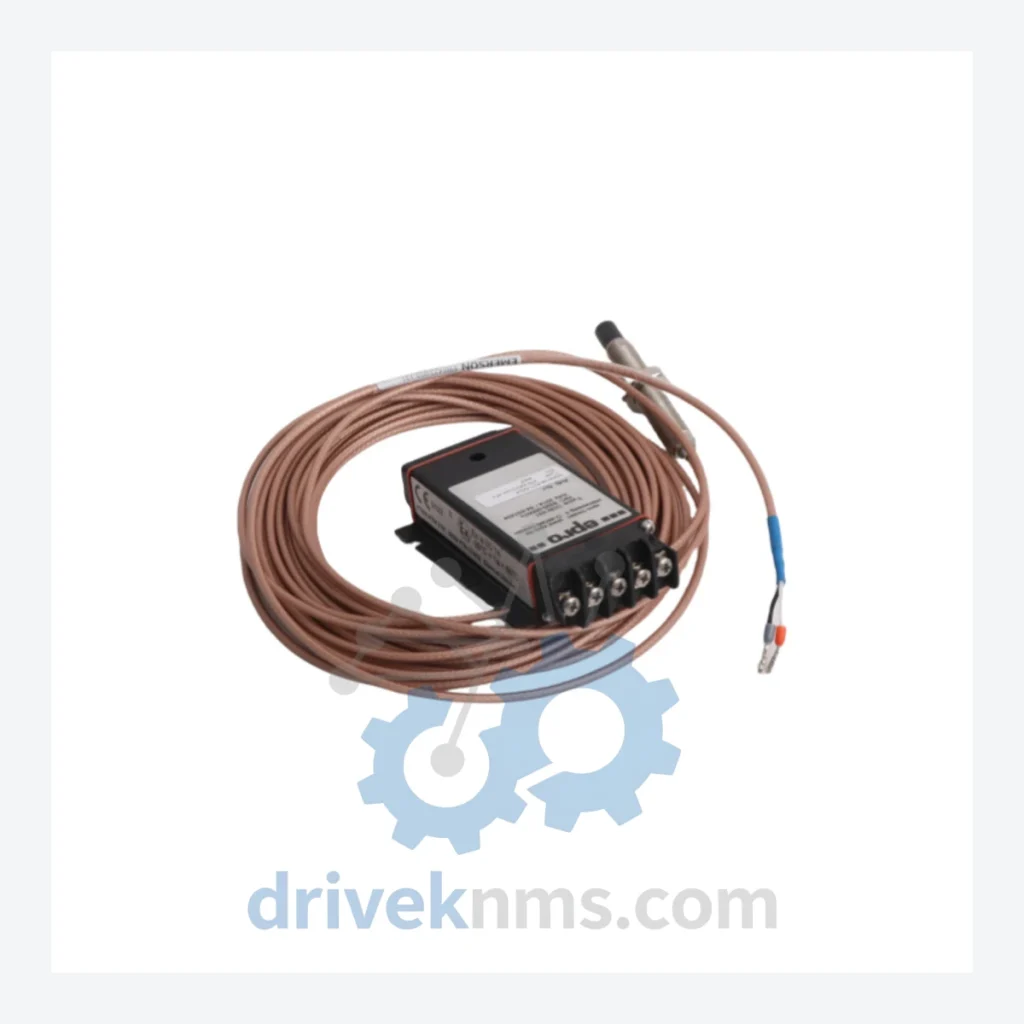

Emerson Bently Nevada PR6423 Eddy Current Sensor Modules: PR6423/014-111 CON031

Technical Dossier

Product Details And Specifications

Emerson Bently Nevada PR6423 Series: Comprehensive Module Range and Technical Overview

The Bently Nevada PR6423 series is a family of eddy current proximity sensors manufactured by Emerson (formerly GE Bently Nevada). These sensors are deployed globally in heavy industrial environments including petrochemical refineries, nuclear power stations, offshore platforms, and rotating machinery monitoring systems. The PR6423 series functions as the primary sensing element within the 3300 and 3500 Series machinery protection systems, providing non-contact measurement of shaft displacement, vibration, and position. Its installation base spans decades of continuous operation in critical rotating equipment: steam turbines, gas compressors, centrifugal pumps, and large electric motors. The series is recognized under API 670 (Machinery Protection Systems) as a compliant proximity transducer system when paired with compatible extension cables and signal conditioning modules.

The Evolution of PR6423 Architecture

The PR6423 series traces its lineage to Bently Nevada's early eddy current transducer programs of the 1970s, which established the 5mm and 8mm probe diameter standards still in use today. The original 3300 Series system defined the signal conditioning architecture: a probe, an extension cable, and a proximitor (driver) forming a complete transducer loop operating at a nominal 200 kHz oscillation frequency. The PR6423 probes were engineered to interface with the 3300 XL 8mm proximitor drivers (e.g., 330180 series) and later with the 3500/42M Proximitor/Seismic Monitor modules.

As the 3500 Series platform matured through the 1990s and 2000s, the PR6423 probe geometry was standardized across multiple cable lengths (from 0.5m to 9m) and connector configurations (CON011, CON021, CON031, CON041), enabling system integrators to configure transducer loops for varying machine geometries without changing the core sensing element. The introduction of the 3500/42E enhanced module added extended gap range capability, requiring recalibration of existing PR6423 loops. Current-generation installations may migrate to the 3500/42M or 3500/40M platforms, but the PR6423 probe hardware remains backward-compatible with legacy 3300 Series racks, making it a long-lifecycle component in brownfield plant maintenance programs.

PR6423 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced models within the Bently Nevada PR6423 eddy current proximity sensor series. Each entry reflects a specific cable length and connector configuration variant.

PR6423/001-010 CON021: 5mm probe, 0.5m armored cable, CON021 connector, standard gap range.
PR6423/001-010 CON031: 5mm probe, 0.5m cable, CON031 right-angle connector, compact installation.
PR6423/002-030 CON021: 5mm probe, 1.0m extension, CON021, general-purpose shaft proximity.
PR6423/003-030 CON021: 5mm probe, 1.5m cable, CON021, mid-range turbine bearing monitoring.
PR6423/005-030 CON021: 5mm probe, 2.5m cable, CON021, extended reach compressor applications.
PR6423/007-030 CON021: 5mm probe, 3.5m cable, CON021, large frame machine installations.
PR6423/010-030 CON021: 5mm probe, 5.0m cable, CON021, remote proximitor mounting configurations.
PR6423/014-111 CON031: 5mm probe, 7.0m armored cable, CON031 connector, API 670 compliant loop.
PR6423/015-030 CON021: 5mm probe, 7.5m cable, CON021, offshore platform shaft monitoring.
PR6423/018-030 CON021: 5mm probe, 9.0m cable, CON021, maximum standard cable length variant.
PR6423/001-010 CON041: 5mm probe, 0.5m cable, CON041 straight connector, panel-mount installations.
PR6423/003-030 CON031: 5mm probe, 1.5m cable, CON031, right-angle exit for tight bearing housings.
PR6423/005-030 CON031: 5mm probe, 2.5m cable, CON031, vibration monitoring on gas turbines.
PR6423/007-030 CON031: 5mm probe, 3.5m cable, CON031, steam turbine radial vibration sensing.
PR6423/010-030 CON031: 5mm probe, 5.0m cable, CON031, nuclear-grade proximity measurement loop.
PR6423/014-030 CON021: 5mm probe, 7.0m cable, CON021, standard armored cable, refinery service.
PR6423/018-030 CON031: 5mm probe, 9.0m cable, CON031, maximum reach right-angle connector variant.

Sourcing Hard-to-Find & Obsolete PR6423 Parts

The PR6423 series has entered the mature-to-declining phase of its product lifecycle. Emerson Bently Nevada has progressively shifted new project specifications toward the 3500 Series integrated transducer systems, and direct factory availability of specific PR6423 cable-length and connector combinations is increasingly constrained. Plants operating legacy 3300 Series racks or early 3500 Series installations face a sourcing gap: OEM lead times for non-standard configurations can exceed 16 weeks, and some CON031 and CON041 variants are no longer listed in current Emerson price books.

DriveKNMS maintains a dedicated inventory program for PR6423 series components, including obsolete cable-length variants and discontinued connector configurations. All units are sourced from verified industrial surplus channels, decommissioned plant equipment, and authorized distributor overstock. Inventory is cross-referenced against Bently Nevada part number databases to ensure configuration accuracy before dispatch. For plants requiring long-term maintenance agreements on PR6423 transducer loops, DriveKNMS provides multi-year supply commitments with documented traceability records.

Quality Control for the PR6423 Range

PR6423 eddy current sensors require functional verification beyond visual inspection due to the sensitivity of the oscillator circuit within the proximitor driver and the impedance characteristics of the probe-cable assembly. DriveKNMS applies the following test protocol to all PR6423 units prior to shipment:

Probe Impedance Verification: Each probe coil is measured for DC resistance and inductance at 200 kHz using a precision LCR meter. Values are compared against Bently Nevada factory specifications for the 5mm probe geometry.
Cable Continuity and Insulation Resistance: Full cable assembly is tested for conductor continuity, shield integrity, and insulation resistance (>100 MΩ at 500 VDC) to detect moisture ingress or mechanical damage in armored cable variants.
Gap Voltage Calibration Check: Where test equipment permits, the probe is paired with a reference 3300 XL proximitor and the output voltage-versus-gap curve is verified against the standard 200 mV/mil (7.87 V/mm) sensitivity specification.
Connector Inspection: CON021, CON031, and CON041 connector bodies are inspected for pin alignment, thread integrity, and O-ring condition. Damaged connectors are replaced before units are released.
Documentation: Each unit ships with a test record including measured impedance values, insulation resistance result, and inspector identification. Traceability documentation is available on request for nuclear and safety-critical applications.
