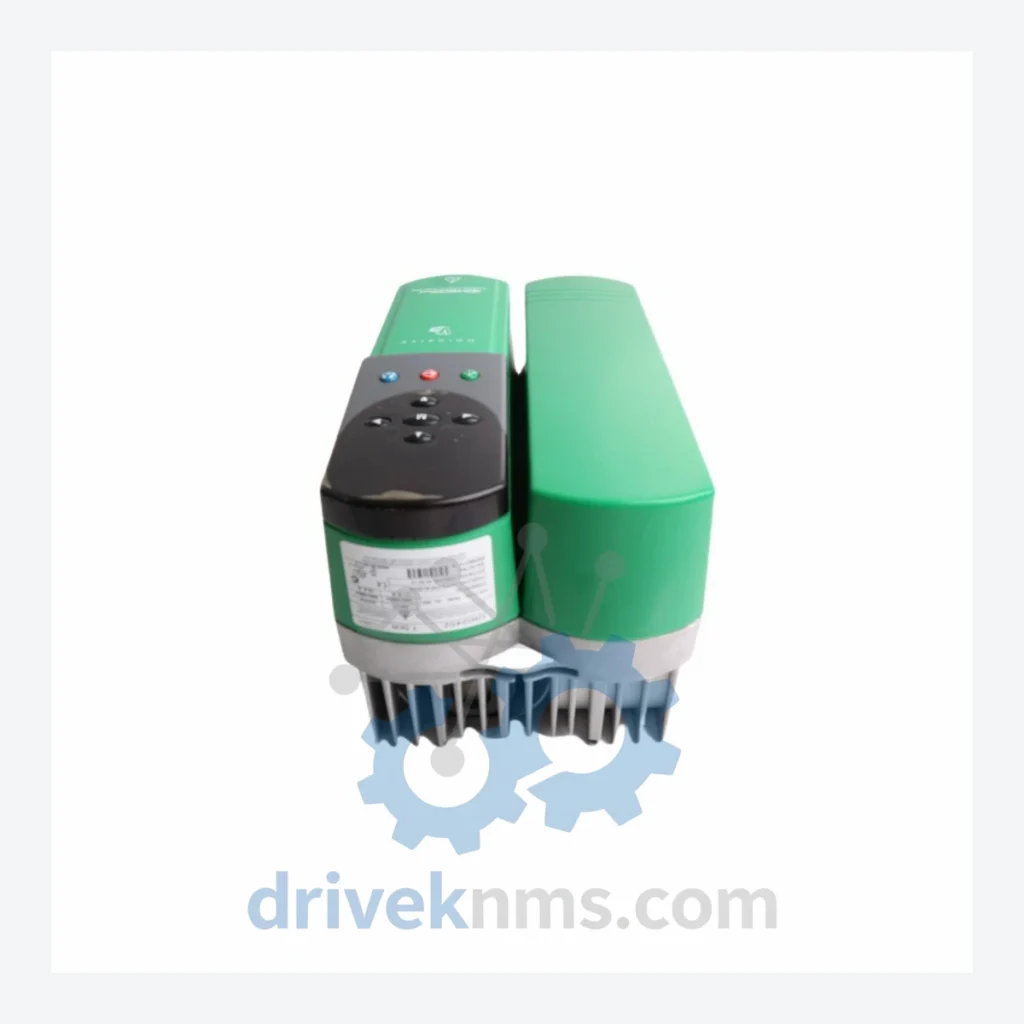

Emerson Control Techniques Unidrive Series Modules: UNI4403

Technical Dossier

Product Details And Specifications

Emerson Control Techniques Unidrive Series: Comprehensive Module Range and Technical Overview

The Control Techniques Unidrive series, developed by Emerson Industrial Automation (now Nidec Control Techniques), is one of the most widely deployed AC variable speed drive platforms in global heavy industry. Installed across petrochemical refineries, offshore platforms, nuclear auxiliary systems, cement plants, and steel mills, the Unidrive platform covers power ranges from fractional kW to multi-megawatt configurations. The UNI4403 — a 45 kW (400V, 3-phase) open-loop and closed-loop vector drive — represents the mid-range industrial tier of this series, designed for demanding pump, fan, compressor, and conveyor applications where precise torque control and network integration are mandatory.

The Unidrive series achieved widespread adoption due to its modular option card architecture, allowing a single drive frame to be configured for PROFIBUS-DP, DeviceNet, CANopen, Modbus RTU, or Ethernet/IP communication without hardware redesign. This flexibility made it the preferred drive platform for DCS-integrated process lines throughout the 1990s and 2000s.

The Evolution of Unidrive Architecture

The Unidrive platform was introduced in the mid-1990s as a successor to the Commander series, establishing a unified hardware architecture across frame sizes 1 through 6. The original Unidrive (Classic) used an analog-dominant control board with limited digital I/O and no native fieldbus support — communication was achieved exclusively through option modules inserted into the drive's option slot.

The transition to Unidrive SP (circa 2002–2004) marked a significant architectural shift: the control board was redesigned around a 32-bit DSP, enabling full closed-loop vector and servo control modes. The SP introduced a second option slot, expanded the parameter set to over 700 parameters, and added native RS485 Modbus RTU as a standard port. Frame sizes were extended to cover 0.37 kW (Frame 1) through 1.9 MW (Frame 6 parallel configurations).

The Unidrive M series (introduced circa 2012) replaced the SP with an Ethernet-first architecture, onboard PLC functionality (via Codesys), and a graphical keypad. Unidrive M drives are not backward-compatible with Unidrive SP option cards, representing a hard architectural break. For facilities running legacy Unidrive Classic or SP hardware, sourcing original spare drives and option cards remains the only path to maintaining system homogeneity without a full control system upgrade. The UNI4403 belongs to the Unidrive Classic generation and is now fully discontinued, placing it in the long-term maintenance and lifecycle extension category.

Unidrive Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked models across the Unidrive Classic and SP generations. Models are classified by function and frame size.

Variable Speed Drives – Unidrive Classic (Open/Closed Loop Vector)

• UNI1401: 0.75 kW, 400V Frame 1 open-loop vector drive, single option slot
• UNI2401: 2.2 kW, 400V Frame 2 open-loop and closed-loop vector, encoder feedback input
• UNI3401: 7.5 kW, 400V Frame 3 open-loop vector, integrated EMC filter option
• UNI3402: 11 kW, 400V Frame 3 closed-loop vector, resolver feedback compatible
• UNI4401: 22 kW, 400V Frame 4 open-loop vector, DIN rail mountable control terminals
• UNI4402: 30 kW, 400V Frame 4 closed-loop vector, dual encoder input support
• UNI4403: 45 kW, 400V Frame 4 open/closed-loop vector, PROFIBUS-DP option compatible
• UNI5401: 55 kW, 400V Frame 5 open-loop vector, suitable for pump and fan duty
• UNI5402: 75 kW, 400V Frame 5 closed-loop vector, high-inertia load applications
• UNI5403: 90 kW, 400V Frame 5 open/closed-loop vector, regenerative braking option
• UNI6401: 110 kW, 400V Frame 6 open-loop vector, parallel operation capable
• UNI6402: 132 kW, 400V Frame 6 closed-loop vector, active front end compatible
• UNI6403: 160 kW, 400V Frame 6 open/closed-loop vector, multi-drive synchronization

Communication Option Modules (Unidrive Classic / SP Compatible)

• UD70: PROFIBUS-DP option module, supports DPV0 and DPV1, fits Unidrive Classic option slot
• UD73: DeviceNet option module, Group 2 slave, explicit and I/O messaging
• UD74: CANopen option module, DS402 drive profile, 1 Mbit/s maximum baud rate
• UD75: Interbus-S option module, ring topology, 500 kbit/s
• SM-PROFIBUS: Unidrive SP PROFIBUS-DP module, DPV1 acyclic parameter access
• SM-DeviceNet: Unidrive SP DeviceNet module, explicit messaging and polled I/O
• SM-CANopen: Unidrive SP CANopen module, PDO and SDO support
• SM-Ethernet: Unidrive SP Ethernet/IP and Modbus TCP module, dual-port switch

Encoder Feedback and I/O Expansion Modules

• UD51: Incremental encoder feedback module, 5V/12V TTL, max 250 kHz input frequency
• SM-Universal Encoder Plus: Unidrive SP universal encoder module, supports incremental, SSI, EnDat, and resolver
• SM-I/O Plus: Unidrive SP I/O expansion, 4 additional analog inputs, 3 relay outputs

Sourcing Hard-to-Find & Obsolete Unidrive Parts

The Unidrive Classic series reached end-of-life (EOL) status with Control Techniques in the early 2010s. Spare drives, control boards, power boards, gate driver cards, and option modules are no longer manufactured. For facilities that cannot justify a full drive replacement program — due to integration costs, process downtime constraints, or DCS compatibility requirements — DriveKNMS maintains a dedicated inventory of tested Unidrive Classic and SP components.

DriveKNMS sources UNI4403 units and associated option cards through certified industrial surplus channels, OEM decommissioning programs, and controlled factory stock. All units undergo incoming inspection before entering the serviceable inventory pool. For end-users requiring long-term supply agreements covering multiple Unidrive frame sizes, DriveKNMS offers blanket order arrangements with reserved stock allocation.

Quality Control for the Unidrive Range

Unidrive Classic and SP drives present specific test challenges due to their multi-board architecture: the control board, power board, gate driver board, and SMPS are discrete assemblies that must be validated independently and as an integrated system. DriveKNMS applies the following test protocol to all Unidrive units processed through its facility:

• Power-on and parameter restore: Unit is powered at rated voltage; factory defaults are loaded and drive firmware version is recorded.
• IGBT gate drive verification: All six gate drive channels are tested under no-load conditions using a calibrated oscilloscope to confirm switching waveform integrity and dead-time compliance.
• Control terminal I/O verification: All analog inputs (0–10V, 4–20mA), digital inputs, relay outputs, and encoder feedback terminals are exercised against known reference signals.
• Option slot communication test: Where an option module is present (e.g., UD70 PROFIBUS), the module is connected to a test master and cyclic data exchange is confirmed.
• Thermal and load test: Unit is run at 50% rated current for a minimum of 30 minutes to verify thermal management and IGBT junction temperature stability.
• Final parameter audit: All modified parameters are documented; unit is returned to factory defaults unless customer-specific configuration is requested.
