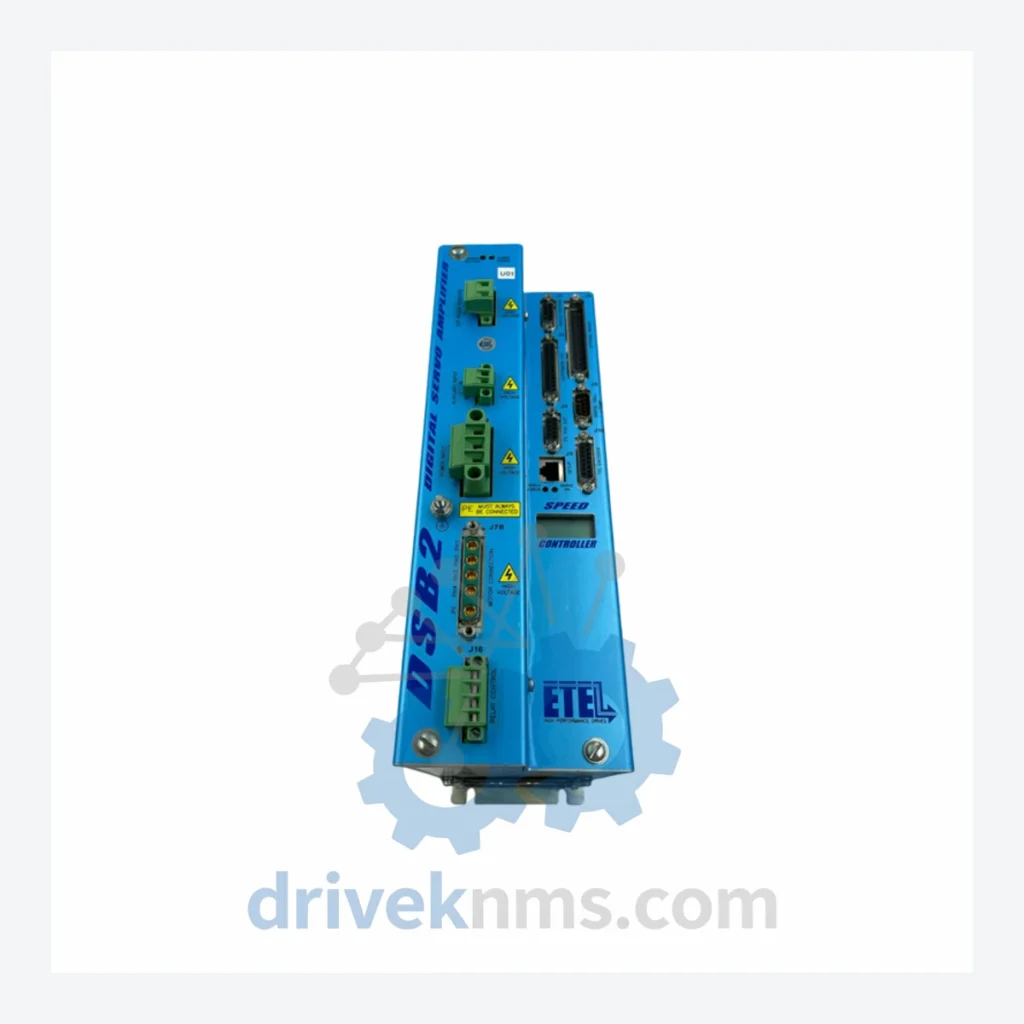

ETEL DSB2S Series Modules

Technical Dossier

Product Details And Specifications

ETEL DSB2S Series: Comprehensive Module Range and Technical Overview

The ETEL DSB2S series represents a high-precision digital servo driver platform engineered for demanding motion control applications in global heavy industry. Deployed extensively in chemical processing plants, nuclear facilities, semiconductor fabrication lines, and petroleum refining infrastructure, the DSB2S architecture provides deterministic torque, velocity, and position control for direct-drive and rotary motor configurations. ETEL, headquartered in Switzerland, developed the DSB2S platform to serve OEM machine builders and end-users requiring sub-micron positioning accuracy with high dynamic stiffness. The series is embedded in long-lifecycle capital equipment where replacement cycles span 15–25 years, making spare parts availability a critical operational concern.

The Evolution of DSB2S Architecture

The DSB2S series succeeded ETEL's earlier DSB1 single-axis analog servo platform, introducing fully digital current loop control and fieldbus integration. Early DSB2S variants (circa late 1990s–early 2000s) relied on proprietary ETEL serial communication protocols and supported resolver-based feedback exclusively. Mid-generation revisions introduced SinCos encoder compatibility and expanded the continuous current rating envelope. Later DSB2S variants incorporated enhanced EMC filtering and extended the DC bus voltage range to accommodate 400 V three-phase input configurations. The DSB2S154 sub-family specifically targets mid-range continuous current (15 A peak) applications with a compact form factor. Compatibility across DSB2S generations is constrained by firmware revision and backplane connector pinout; cross-generation substitution requires validation against the host motion controller's communication protocol version. The DSB2S series has entered the mature/end-of-life phase; ETEL's current portfolio positions the DUET and DSMAX platforms as functional successors. Long-term maintenance support for installed DSB2S bases is therefore dependent on aftermarket spare parts channels.

DSB2S Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the ETEL DSB2S digital servo driver series, organized by functional category:

Single-Axis Digital Servo Drivers – Standard Voltage

• DSB2S154-211E-000H: Single-axis, 15 A cont., 400 V DC bus, SinCos/resolver feedback, standard I/O
• DSB2S154-211E-000A: Single-axis, 15 A cont., 400 V DC bus, resolver feedback, analog command input
• DSB2S154-211E-001H: Single-axis, 15 A cont., 400 V DC bus, enhanced EMC filter variant
• DSB2S154-211E-002H: Single-axis, 15 A cont., 400 V DC bus, extended temperature range option
• DSB2S308-211E-000H: Single-axis, 30 A cont., 400 V DC bus, SinCos encoder, standard I/O
• DSB2S308-211E-000A: Single-axis, 30 A cont., 400 V DC bus, analog velocity command interface
• DSB2S308-211E-001H: Single-axis, 30 A cont., 400 V DC bus, high-resolution feedback option
• DSB2S616-211E-000H: Single-axis, 60 A cont., 400 V DC bus, SinCos/resolver, standard I/O
• DSB2S616-211E-000A: Single-axis, 60 A cont., 400 V DC bus, analog command, resolver feedback

Single-Axis Digital Servo Drivers – Low Voltage

• DSB2S154-111E-000H: Single-axis, 15 A cont., 200 V DC bus, SinCos feedback, standard I/O
• DSB2S154-111E-000A: Single-axis, 15 A cont., 200 V DC bus, analog command input variant
• DSB2S308-111E-000H: Single-axis, 30 A cont., 200 V DC bus, SinCos encoder, standard I/O
• DSB2S308-111E-000A: Single-axis, 30 A cont., 200 V DC bus, analog velocity command

Accessories & Communication Modules

• DSB2S-COMM-ETH: Ethernet fieldbus communication adapter for DSB2S series integration
• DSB2S-PSU-48V: Dedicated 48 V logic power supply module for DSB2S rack configurations
• DSB2S-BRAKE-RES: External braking resistor assembly, rated for DSB2S high-inertia load profiles

Sourcing Hard-to-Find & Obsolete DSB2S Parts

DriveKNMS maintains a dedicated inventory program for end-of-life ETEL DSB2S components. As the DSB2S series has transitioned out of active ETEL production, OEM support channels no longer guarantee stock availability for specific sub-variants. DriveKNMS sources DSB2S units through verified industrial surplus networks, decommissioned equipment recovery, and direct OEM overstock channels. Each unit is catalogued by full part number including suffix codes (voltage class, feedback type, I/O configuration) to prevent cross-variant substitution errors. For customers operating DSB2S-based systems beyond the original equipment lifecycle, DriveKNMS provides: confirmed stock verification prior to order confirmation, full part number cross-referencing against ETEL revision documentation, and export-compliant shipping to industrial facilities globally. Customers requiring multiple units for critical spares programs are encouraged to submit consolidated lists for batch availability checks.
