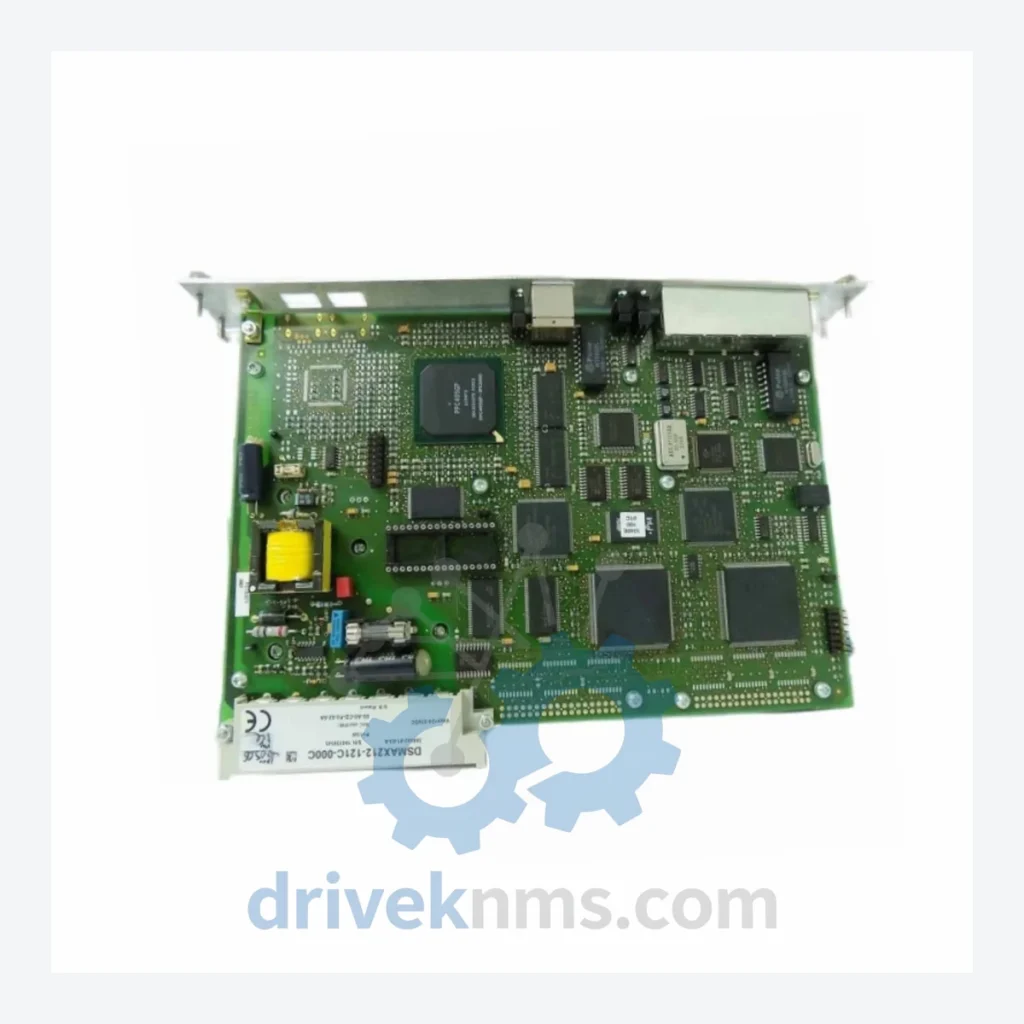

ETEL DSMAX Series Modules: DSMAX212-121C-000C

Technical Dossier

Product Details And Specifications

ETEL DSMAX Series: Comprehensive Module Range and Technical Overview

The ETEL DSMAX series represents a high-performance family of digital servo drive and motion control modules engineered for precision industrial applications. Deployed extensively across semiconductor manufacturing equipment, precision machine tools, medical imaging systems, and heavy industrial automation lines, DSMAX modules are recognized for their torque-loop bandwidth, multi-axis synchronization capability, and deterministic real-time control. In global heavy industry — including chemical processing plants, nuclear facility instrumentation systems, and petroleum refinery automation — DSMAX-based motion platforms provide the sub-microsecond latency and fault-tolerance demanded by safety-critical processes. ETEL, headquartered in Switzerland, has maintained the DSMAX architecture as a cornerstone of its direct-drive and linear motor control ecosystem for over two decades.

The Evolution of DSMAX Architecture

The DSMAX architecture was introduced by ETEL as a successor to earlier analog servo amplifier platforms, transitioning the control loop entirely into the digital domain. Early DSMAX generations relied on proprietary ETEL communication buses for axis synchronization, with firmware-configurable current and velocity loops. Subsequent revisions introduced EtherCAT and SERCOS III compatibility, enabling integration into open-standard multi-vendor automation architectures. The DSMAX2xx sub-family — to which the DSMAX212-121C-000C belongs — represents a mid-generation refinement with enhanced thermal management, expanded feedback interface support (EnDat 2.2, BiSS-C, Hiperface DSL), and tighter integration with ETEL's IUC (Intelligent Universal Controller) platform. Compatibility considerations arise when mixing early DSMAX1xx modules with DSMAX2xx controllers, as firmware handshake protocols differ. Engineers maintaining legacy installations must verify firmware revision alignment before substituting modules across sub-generations. As the broader DSMAX line has entered a mature/end-of-active-production phase for several variants, long-term maintenance sourcing has become the primary procurement driver for this series.

DSMAX Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly referenced models within the ETEL DSMAX series, classified by functional role:

Servo Drive / Amplifier Modules

• DSMAX212-121C-000C: 2-axis digital servo drive module, 12A peak, EtherCAT interface, EnDat 2.2 feedback
• DSMAX212-121C-000A: 2-axis digital servo drive, 12A peak, SERCOS interface variant, legacy firmware
• DSMAX212-241C-000C: 2-axis servo drive, 24A peak continuous, EtherCAT, high-current direct-drive configuration
• DSMAX212-061C-000C: 2-axis servo drive, 6A peak, compact form factor, EtherCAT, low-power axis applications
• DSMAX112-121C-000C: Single-axis servo drive, 12A peak, EtherCAT, standalone axis controller
• DSMAX112-241C-000C: Single-axis servo drive, 24A peak, EtherCAT, high-force linear motor drive
• DSMAX112-061C-000C: Single-axis servo drive, 6A peak, EtherCAT, precision positioning stage

Controller / CPU Modules

• DSMAX-IUC-001: Intelligent Universal Controller, master axis coordinator, real-time EtherCAT master
• DSMAX-IUC-002: IUC variant with expanded I/O mapping and dual-port Ethernet
• DSMAX-CPU-100: Standalone motion CPU, multi-axis trajectory generation, 64-axis capacity

Power Supply / Bus Modules

• DSMAX-PSU-480: 480VAC input power supply module, regenerative braking, DC bus regulation
• DSMAX-PSU-240: 240VAC input power supply, single-phase, auxiliary 24VDC logic rail
• DSMAX-BUS-EXT: DC bus extension module, parallel bus bar interconnect for multi-drive cabinets

I/O and Communication Modules

• DSMAX-DIO-32: 32-channel digital I/O expansion module, 24VDC logic, DIN rail mount
• DSMAX-AIO-16: 16-channel analog I/O module, ±10V, 16-bit resolution, differential inputs
• DSMAX-EC-GW: EtherCAT gateway module, protocol bridge to legacy ETEL proprietary bus
• DSMAX-SER-IF: SERCOS III interface adapter, backward compatibility module for DSMAX1xx installations

Sourcing Hard-to-Find & Obsolete DSMAX Parts

Multiple DSMAX sub-variants — particularly DSMAX1xx series modules and early DSMAX2xx revisions with SERCOS interfaces — have been discontinued by ETEL with no direct OEM replacement. DriveKNMS maintains a dedicated inventory of tested surplus and refurbished DSMAX modules to support lifecycle extension for installed bases that cannot be economically migrated to current-generation platforms. Our sourcing network spans authorized surplus channels across Europe, North America, and Asia-Pacific, enabling procurement of low-volume, high-criticality parts such as the DSMAX212-121C-000C with lead times significantly shorter than OEM new-build alternatives. For facilities operating under long-term service agreements or regulated maintenance schedules (nuclear, pharmaceutical, aerospace), DriveKNMS provides documentation packages including test reports and traceability records upon request.

Quality Control for the DSMAX Range

DSMAX modules incorporate multi-layer PCB assemblies with high-density FPGA logic, proprietary ETEL ASICs, and precision analog front-ends for feedback signal conditioning. DriveKNMS applies a structured test protocol to all DSMAX units prior to shipment: incoming inspection verifies physical integrity of the backplane connector array and bus interface pins; functional bench testing applies rated DC bus voltage and exercises all axis channels through a defined torque-loop sweep; firmware version is read and logged against the unit's hardware revision; EtherCAT communication is validated using a reference IUC controller with cycle-time verification at 250µs and 1ms network periods; thermal cycling confirms stable operation across the module's rated temperature envelope. Units exhibiting marginal analog feedback signal quality or degraded FPGA configuration retention are quarantined and not released for sale.
