Fisher CL6000 Series Modules: CL6721X1-A3 41B5215X122 Discrete I/O Card –

Technical Dossier

Product Details And Specifications

Fisher CL6000 Series: Comprehensive Module Range and Technical Overview

The Fisher CL6000 Series is a distributed control system (DCS) platform developed by Fisher Controls (a Emerson Process Management brand), deployed extensively across global heavy industry including petrochemical refineries, nuclear power facilities, offshore platforms, and continuous-process chemical plants. The CL6000 architecture operates as a rack-based modular system, where individual I/O, controller, communication, and power supply cards are field-replaceable within a common backplane chassis. Its installed base spans several decades of continuous operation, making long-term spare parts availability a critical procurement concern for plant maintenance engineers and reliability teams.

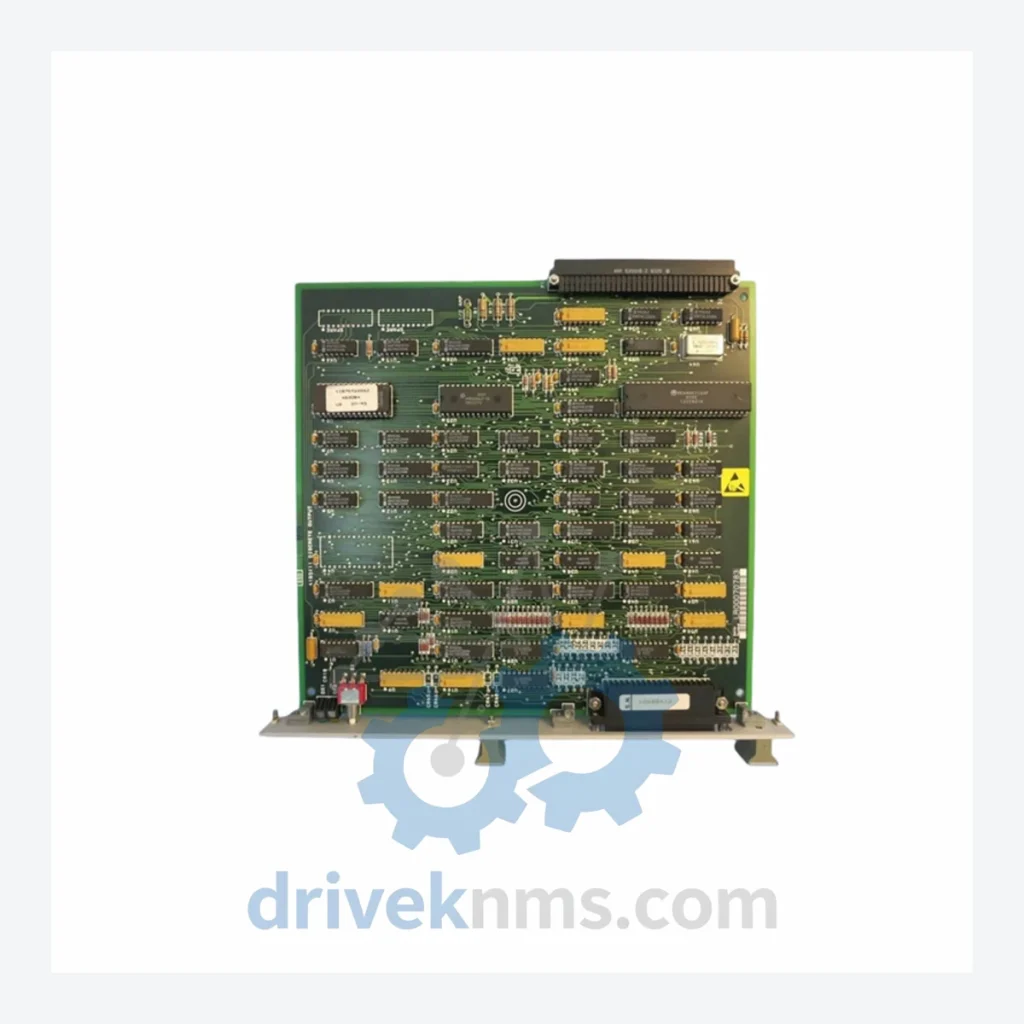

The specific module referenced on this page — CL6721X1-A3 41B5215X122 — is a Discrete I/O Card within the CL6000 family, designed for binary signal acquisition and output control in process automation loops.

The Evolution of CL6000 Series Architecture

The CL6000 Series was introduced as Fisher Controls' response to the demand for modular, rack-mounted DCS hardware capable of operating in Class I Division 2 hazardous environments. Early revisions of the platform used parallel backplane communication with proprietary bus protocols, limiting inter-module bandwidth. Subsequent hardware revisions introduced improved noise immunity, extended operating temperature ranges, and revised firmware to support HART pass-through on analog I/O cards.

The CL6000 platform predates modern fieldbus standards (FOUNDATION Fieldbus, PROFIBUS PA) and relies on 4–20 mA analog and discrete 24 VDC/120 VAC signal wiring. This architecture remains fully functional in legacy plant environments but creates integration challenges when interfacing with modern DeltaV or PLC-based systems. Compatibility between CL6000 hardware revisions (denoted by the suffix codes such as -A1, -A2, -A3) is not always guaranteed; engineers must verify backplane slot assignments and firmware revision levels before substituting modules.

As the CL6000 platform has entered its end-of-life phase, Emerson has directed new installations toward the DeltaV S-series and PROVOX successor platforms. However, the CL6000 installed base remains active at numerous facilities where full DCS migration is not economically viable, sustaining demand for original spare modules.

CL6000 Series Full Catalog & Functionalities (SKU List)

Discrete I/O Cards

• CL6721X1-A3 41B5215X122: Discrete I/O Card, 16-channel binary input/output, 24 VDC logic level, rack-mount.
• CL6711X1-A2 41B5214X012: Discrete Input Card, 16-channel DI, 120 VAC field wiring, isolated inputs.
• CL6731X1-A1 41B5216X012: Discrete Output Card, 8-channel DO, relay contact outputs, 2A per channel.
• CL6741X1-A2 41B5217X022: Discrete Output Card, 16-channel DO, solid-state 24 VDC outputs.

Analog I/O Cards

• CL6811X1-A3 41B5220X132: Analog Input Card, 8-channel AI, 4–20 mA, 12-bit resolution.
• CL6821X1-A2 41B5221X022: Analog Input Card, 16-channel AI, 4–20 mA with HART pass-through.
• CL6831X1-A1 41B5222X012: Analog Output Card, 8-channel AO, 4–20 mA, loop-powered.
• CL6841X1-A2 41B5223X022: Analog Output Card, 4-channel AO, 4–20 mA, isolated outputs.
• CL6851X1-A3 41B5224X132: Analog Input Card, thermocouple/RTD inputs, 8-channel, cold junction compensated.

Controller / CPU Modules

• CL6401X1-A3 41B5200X132: Primary Controller Module, redundant CPU support, 64 MB RAM.
• CL6411X1-A2 41B5201X022: Redundant Controller Module, hot-standby failover, peer-to-peer sync.
• CL6421X1-A1 41B5202X012: Coprocessor Module, extended ladder logic execution, math-intensive loops.

Communication & Network Adapters

• CL6501X1-A2 41B5205X022: Ethernet Communication Module, 10/100 Mbps, Modbus TCP gateway.
• CL6511X1-A1 41B5206X012: Serial Communication Module, RS-232/RS-485, Modbus RTU.
• CL6521X1-A3 41B5207X132: Fieldbus Interface Module, FOUNDATION Fieldbus H1 segment coupler.

Power Supply Modules

• CL6101X1-A2 41B5210X022: 24 VDC Power Supply Module, 10A output, redundant-capable.
• CL6111X1-A1 41B5211X012: 120/240 VAC Input Power Supply, 5A regulated DC output, rack-mount.

Sourcing Hard-to-Find & Obsolete CL6000 Series Parts

DriveKNMS maintains a dedicated inventory program for Fisher CL6000 Series modules that have been discontinued by Emerson. As the CL6000 platform has reached end-of-life status, OEM channel availability for specific part numbers — including revision-specific variants such as the -A1, -A2, and -A3 suffix designations — has become unreliable. DriveKNMS sources CL6000 modules through certified secondary market channels, decommissioned plant asset liquidations, and long-term warehouse stock.

For plant operators requiring lifecycle extension support beyond OEM end-of-support dates, DriveKNMS provides: verified surplus stock with full traceability documentation, cross-reference matching between obsolete part numbers and functional equivalents, and emergency same-day quotation for critical unplanned outage scenarios. All modules are shipped with inspection reports and, where applicable, functional test certificates.

Quality Control for the CL6000 Series Range

CL6000 Series modules present specific quality verification challenges due to their backplane-dependent communication architecture. DriveKNMS applies the following test protocol to all CL6000 modules prior to shipment:

• Visual inspection of backplane connector pins for oxidation, mechanical deformation, and solder joint integrity.
• Power-on functional test using a CL6000-compatible rack and controller, verifying module self-diagnostics and LED status codes.
• For Discrete I/O cards (including CL6721X1-A3): channel-by-channel signal injection test, verifying input threshold detection and output switching at rated voltage and current.
• For Analog I/O cards: calibration verification against NIST-traceable reference standards, confirming 4–20 mA linearity within ±0.1% of full scale.
• For Communication modules: loopback and protocol handshake tests confirming correct Modbus register mapping and Ethernet link negotiation.
• Final ESD-safe packaging and humidity-controlled storage prior to dispatch.
