Fisher Controls CL6821 Series Modules: CL6821X1-A6 12P0663X032 Analog I/O Card —

Technical Dossier

Product Details And Specifications

Fisher Controls CL6821 Series: Comprehensive Module Range and Technical Overview

The Fisher Controls (Emerson) CL6821 series represents a core family of analog I/O modules deployed within the Provox Distributed Control System (DCS) platform. Provox installations are deeply embedded across global heavy industry — including petrochemical refineries, nuclear power generation facilities, offshore platforms, and large-scale chemical processing plants. The CL6821 series specifically handles analog signal conditioning and I/O interfacing between field instrumentation and the Provox controller backbone. Due to the long operational lifecycles typical of DCS infrastructure (15–30+ years), CL6821 modules remain in active service at facilities that commissioned Provox systems in the 1980s and 1990s. Replacement demand is driven by component aging, board-level failures, and the absence of OEM production support.

The Evolution of CL6821 Architecture

The CL6821 series was developed as part of the Provox DCS platform introduced by Fisher Controls International in the early 1980s, later absorbed into Emerson Electric's process automation portfolio. The architecture is based on a passive backplane bus design where I/O modules slot into card cages and communicate via a proprietary serial data highway. Early revisions (X1, X2 suffixes) addressed signal isolation and noise immunity issues encountered in high-EMI refinery environments. The 12P0663X032 board assembly designation identifies a specific PCB revision with defined component tolerances for 4–20 mA analog loop circuits. As Emerson transitioned customers toward the DeltaV platform through the 2000s and 2010s, Provox entered a managed end-of-life phase. No new CL6821 modules have been manufactured since the mid-2000s, making third-party refurbished and tested stock the only viable supply channel for ongoing maintenance. Compatibility between X1 and X2 board revisions requires verification against the specific cage firmware version and backplane slot addressing.

CL6821 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified members of the Fisher Controls CL6821 and closely related Provox analog I/O module family. Each entry reflects a distinct board assembly or revision used in Provox DCS card cage configurations:

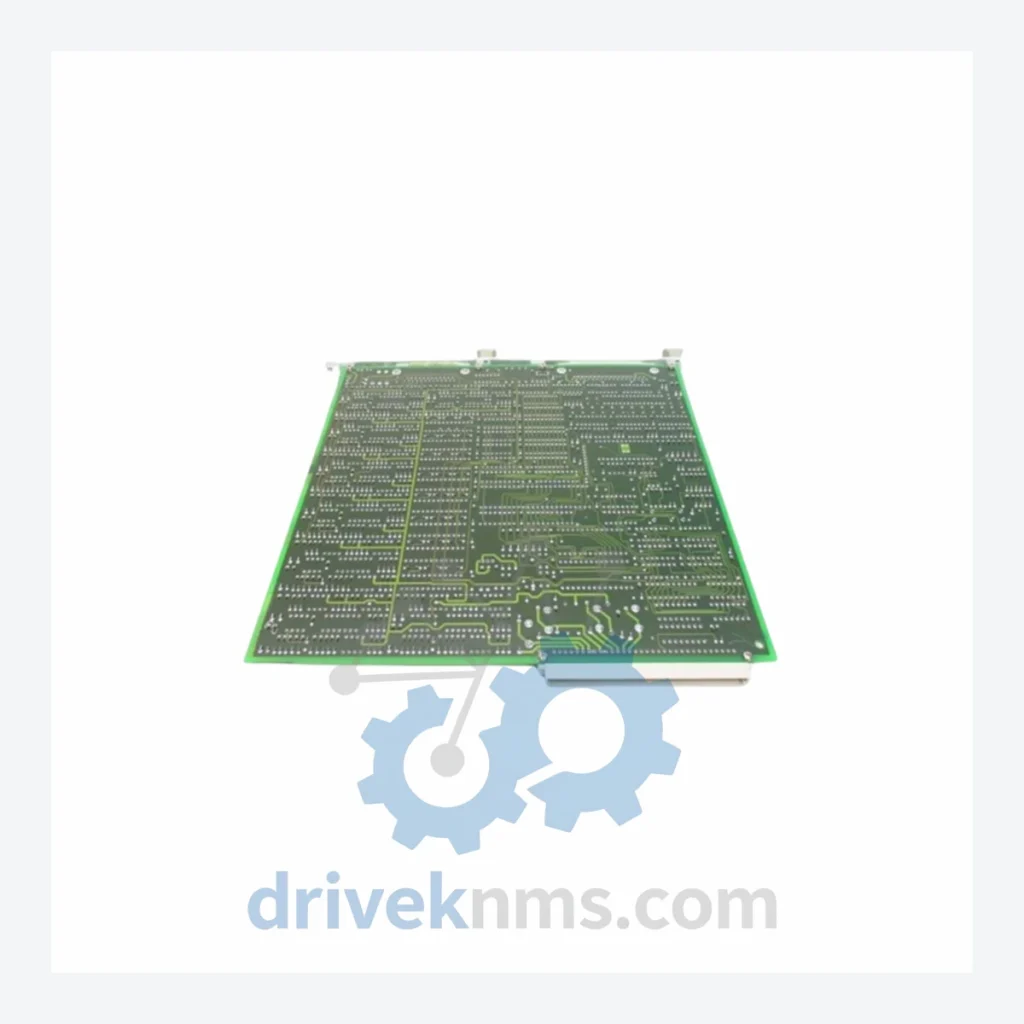

CL6821X1-A6 12P0663X032: Analog I/O card, 12P0663X032 PCB rev, 4–20 mA multi-channel input/output interface module.
CL6821X1-A2: Analog input module, early revision, standard 4–20 mA signal range, single-ended configuration.
CL6821X1-A4: Analog I/O module, mid-series revision, enhanced noise filtering for refinery environments.
CL6821X1-A8: Analog output card, 8-channel configuration, loop-powered 4–20 mA transmitter interface.
CL6821X2-A2: Second-generation analog input module, improved isolation, compatible with Provox cage rev 3+.
CL6821X2-A4: Analog I/O, X2 board revision, dual-rail power supply compatibility, updated signal conditioning.
CL6821X2-A6: Analog I/O card, X2 PCB generation, 12-channel capable, enhanced EMI shielding.
CL6821X2-A8: Analog output module, X2 revision, 8-channel 4–20 mA output, DCS highway interface.
CL6823X1-A2: Related Provox analog input module, thermocouple/RTD signal conditioning variant.
CL6823X1-A4: Analog input, temperature measurement variant, multi-sensor input with cold junction compensation.
CL6824X1-A2: Analog output module, voltage output variant (1–5 V), used in valve positioner applications.
CL6824X1-A4: Analog output, 4–20 mA, high-drive current capability for long cable runs in field installations.
CL6825X1-A2: Pulse input module, frequency-to-analog conversion, flow meter interface for Provox DCS.
CL6826X1-A2: Analog I/O combination module, mixed input/output channel configuration, cage slot-efficient design.
CL6827X1-A2: High-density analog input module, 16-channel multiplexed input, used in large-loop count applications.
CL6828X1-A2: Analog output expander module, used in conjunction with CL6821 controllers for extended output capacity.

Sourcing Hard-to-Find & Obsolete CL6821 Series Parts

DriveKNMS maintains a dedicated inventory program for end-of-life Provox DCS components, including the full CL6821 module family. Because Fisher Controls / Emerson ceased production of these boards, the global supply is finite and sourced exclusively from decommissioned plant equipment, controlled surplus, and tested pull stock. DriveKNMS applies a structured acquisition and inspection protocol to ensure that every CL6821 unit entering inventory is functionally verified before listing. For facilities operating Provox systems under long-term maintenance agreements or planning a phased migration to DeltaV, DriveKNMS can provide multi-unit lot pricing, advance reservation of specific board revisions, and documentation support for maintenance records. Inquiries for specific PCB revision codes (e.g., 12P0663X032) or cage-matched sets are handled directly by the technical sales team.

Quality Control for the CL6821 Range

CL6821 modules present specific testing challenges due to their proprietary Provox backplane bus interface and analog signal path architecture. DriveKNMS employs a multi-stage inspection process tailored to this series: visual inspection for PCB trace integrity, capacitor condition, and connector pin alignment is performed first. Functional testing is conducted using a Provox-compatible cage simulator that replicates the DCS highway communication protocol, allowing full channel-by-channel verification of analog input accuracy (±0.1% of span) and output drive capability. Isolation resistance between signal commons and chassis ground is measured to confirm compliance with original Fisher Controls specifications. Boards exhibiting marginal performance are either reconditioned at component level or quarantined from serviceable stock. Each shipped unit is accompanied by a test record documenting channel-level results and the technician sign-off date.
