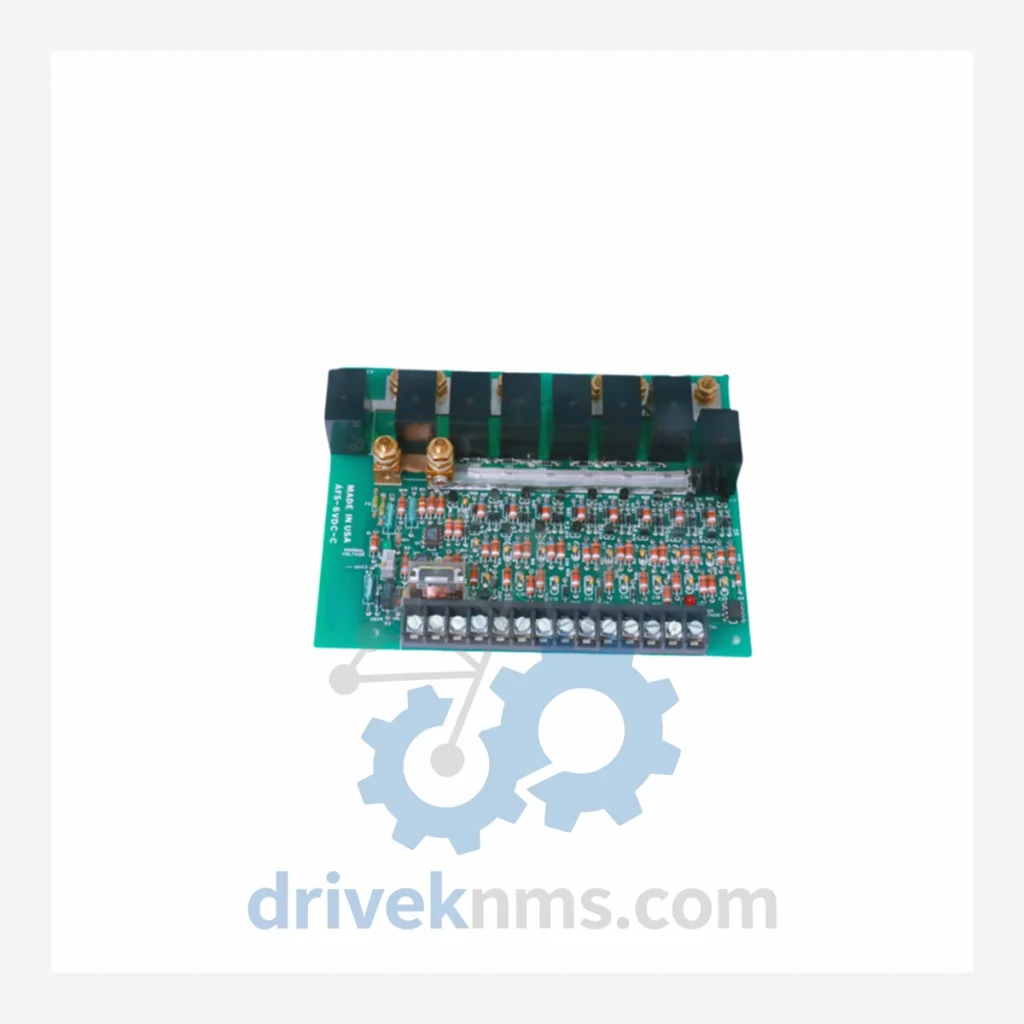

FORNEY AFS Series Modules: AFS-6VDC-C D464889

Technical Dossier

Product Details And Specifications

FORNEY AFS Series: Comprehensive Module Range and Technical Overview

The FORNEY AFS (Automated Frequency Switching) relay module series occupies a well-established position in heavy industrial control infrastructure across chemical processing plants, petroleum refineries, nuclear power generation facilities, and continuous-process manufacturing environments. Designed to interface with low-voltage DC control circuits, AFS series modules provide reliable switching, isolation, and signal conditioning functions within legacy distributed control system (DCS) and programmable logic controller (PLC) architectures. The AFS-6VDC-C D464889 is a representative unit of this series, rated for 6VDC coil operation with a Form C contact configuration, widely deployed in panel-mounted relay logic assemblies requiring compact footprint and deterministic switching behavior.

Due to the long operational lifecycles typical of heavy industry — often 20 to 30 years per installation — FORNEY AFS modules remain in active service at facilities where full system replacement is not economically or operationally feasible. DriveKNMS maintains a dedicated inventory of AFS series components to support these long-term maintenance requirements.

The Evolution of AFS Series Architecture

The FORNEY AFS relay module series was developed during the expansion of solid-state and electromechanical hybrid control systems in the 1980s and 1990s. Early AFS variants were designed for direct integration into FORNEY combustion management and boiler control systems, where precise relay switching at low DC voltages was critical for burner management logic. The series adopted DIN rail and panel-mount form factors compatible with standard 35mm rail systems, enabling modular replacement without rewiring the surrounding control cabinet.

As industrial control architectures evolved from discrete relay logic toward PLC-based systems, AFS modules were retained as interface relays between PLC digital output cards and field devices — a role they continue to fulfill in retrofit and hybrid installations. The D464889 designation identifies a specific revision of the AFS-6VDC-C, indicating a production batch or engineering change order (ECO) that may affect contact material specification or coil impedance tolerance. Compatibility with earlier AFS-6VDC-C units should be verified against the original wiring diagram before substitution.

The series has entered the mature/end-of-life phase of its product lifecycle. FORNEY no longer manufactures new AFS series modules under the original part numbers. Procurement is exclusively through authorized surplus distributors and specialist spare parts suppliers such as DriveKNMS.

FORNEY AFS Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly encountered part numbers within the FORNEY AFS relay module series. Each entry includes a concise functional description. SKUs are organized by coil voltage and contact configuration.

6VDC Coil Variants

• AFS-6VDC-C D464889: 6VDC coil, Form C (SPDT) contact, panel-mount relay module
• AFS-6VDC-A: 6VDC coil, Form A (SPST-NO) contact, single-pole normally open switching
• AFS-6VDC-B: 6VDC coil, Form B (SPST-NC) contact, single-pole normally closed switching
• AFS-6VDC-2C: 6VDC coil, dual Form C (DPDT) contact configuration, two-circuit switching

12VDC Coil Variants

• AFS-12VDC-C: 12VDC coil, Form C contact, standard panel-mount relay interface module
• AFS-12VDC-A: 12VDC coil, Form A contact, normally open output for PLC digital I/O interfacing
• AFS-12VDC-2C: 12VDC coil, DPDT contact, dual-circuit isolation relay
• AFS-12VDC-C-LED: 12VDC coil, Form C contact with integrated coil status LED indicator

24VDC Coil Variants

• AFS-24VDC-C: 24VDC coil, Form C contact, most common AFS variant for modern PLC I/O interfacing
• AFS-24VDC-A: 24VDC coil, Form A contact, high-volume industrial automation relay
• AFS-24VDC-B: 24VDC coil, Form B contact, normally closed safety interlock relay
• AFS-24VDC-2C: 24VDC coil, DPDT contact, dual-output switching for redundant control circuits
• AFS-24VDC-C-LED: 24VDC coil, Form C with LED, visual coil energization indicator for panel diagnostics

48VDC & AC Coil Variants

• AFS-48VDC-C: 48VDC coil, Form C contact, used in telecom-adjacent and high-voltage DC bus panels
• AFS-120VAC-C: 120VAC coil, Form C contact, AC-powered relay for legacy AC control panel integration
• AFS-240VAC-C: 240VAC coil, Form C contact, high-voltage AC coil for European and industrial AC systems

Sourcing Hard-to-Find & Obsolete AFS Series Parts

The FORNEY AFS series is classified as discontinued by the original manufacturer. Standard distribution channels no longer carry new stock. For facilities operating FORNEY combustion management systems, boiler control panels, or legacy DCS installations that depend on AFS relay modules, unplanned downtime caused by relay failure represents a significant operational and financial risk.

DriveKNMS maintains a dedicated inventory of surplus, tested, and refurbished AFS series modules sourced from decommissioned control panels, authorized liquidation channels, and long-term storage facilities. Our procurement team actively tracks global surplus markets to ensure availability of low-volume, high-criticality part numbers including the AFS-6VDC-C D464889 and related variants.

For facilities requiring long-term maintenance agreements or blanket purchase orders covering AFS series components across multiple site locations, DriveKNMS offers structured lifecycle support contracts. These contracts include reserved inventory allocation, priority fulfillment, and technical documentation support for end-of-life FORNEY control system components.

Quality Control for the AFS Series Range

All FORNEY AFS relay modules processed by DriveKNMS undergo a standardized inspection and functional test protocol prior to shipment. The test procedure addresses the specific failure modes associated with electromechanical relay modules of this age and design class.

Coil resistance is measured against the manufacturer's nominal specification (±10% tolerance) to identify open-coil or shorted-coil conditions. Contact resistance is measured in both energized and de-energized states using a four-wire milliohm measurement method to detect contact oxidation, pitting, or welding. Dielectric withstand testing is performed between coil and contact circuits to verify isolation integrity. For D-suffix revision units such as the D464889, contact material composition is cross-referenced against revision documentation where available to confirm compatibility with the target application's current rating and switching frequency.

Units that fail any test parameter are quarantined and not offered for sale. Each shipped unit is accompanied by a test record and, where available, original manufacturer documentation.
