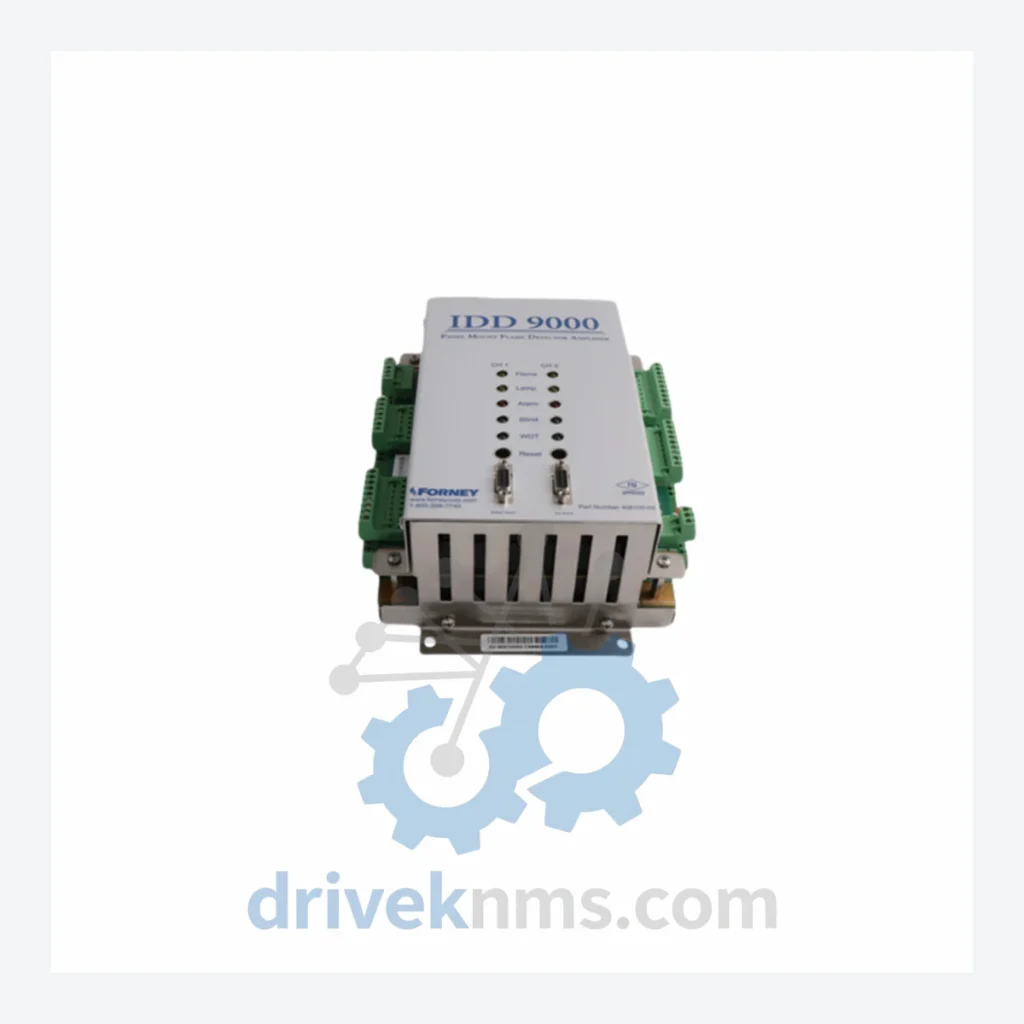

A single failed flame detector amplifier does not merely interrupt a burner loop — it can trigger a full combustion system shutdown, forcing plant management to confront a binary choice: source the discontinued module immediately, or commit to a capital-intensive control system overhaul. For facilities running legacy Forney IDD 9000 Series burner management infrastructure, that overhaul cost routinely exceeds seven figures when engineering, re-commissioning, and production downtime are factored in. The Forney IDD 9000 408100-00 is a discontinued amplifier module that processes UV/IR flame signal inputs from field-mounted detectors and delivers conditioned relay outputs to the burner management controller. DriveKNMS maintains sourced inventory of this module specifically to eliminate the forced-upgrade scenario for operating plants.

Technical Specifications

Note: Electrical parameters (supply voltage, relay contact ratings, signal input range) are not published here to prevent misapplication. Contact DriveKNMS for the original datasheet and application verification before ordering.

Solving the Discontinued Hardware Crisis

The Forney IDD 9000 Series was deployed extensively across refinery fired heaters, utility boilers, and chemical plant process burners from the 1980s through the early 2000s. Its amplifier modules — including the 408100-00 — occupy a critical position in the flame supervision loop: without a functioning amplifier, the burner management system cannot confirm flame presence, and the safety interlock will not permit burner operation.

Because the IDD 9000 platform predates modern fieldbus architectures, there is no direct plug-compatible successor from the original manufacturer. Migrating to a current-generation BMS (such as Honeywell's FSC platform or Siemens SIMATIC BMS) requires full loop re-engineering, new detector wiring, updated cause-and-effect logic, and regulatory re-approval under NFPA 85 or IEC 61511 — a process that typically spans 12 to 24 months and carries substantial engineering cost.

For plants where the IDD 9000 system is otherwise functional and the remaining asset life of the fired equipment justifies continued operation, sourcing a replacement 408100-00 amplifier is the operationally rational decision. A single module replacement restores full system function with zero re-engineering, zero re-commissioning, and no regulatory re-approval burden. DriveKNMS sources these modules from decommissioned plant inventories and verified surplus channels to support exactly this maintenance strategy.

Condition & Reliability Assurance

Obsolete amplifier modules sourced from the secondary market carry specific failure risks that standard incoming inspection does not address. DriveKNMS applies a 5-step reconditioning and verification protocol to all IDD 9000 408100-00 units before dispatch:

1. Electrolytic Capacitor Assessment: Visual and ESR-based inspection of all electrolytic capacitors for bulging, leakage, and capacitance drift. Aged capacitors are replaced with specification-matched components before the unit is offered for sale.
2. Firmware / Configuration Version Verification: Where applicable, the module's internal configuration state is checked against known IDD 9000 revision documentation to confirm compatibility with the target system revision.
3. Pin and Connector Corrosion Inspection: All edge connectors and terminal pins are inspected under magnification for oxidation, pitting, and mechanical deformation. Affected contacts are cleaned or the unit is rejected.
4. Functional Signal Path Test: The amplifier's input signal conditioning and relay output circuits are exercised under bench conditions to verify correct response to simulated flame-present and flame-absent states.
5. Final Documentation: Each unit ships with a test record, condition grade (New Surplus / Refurbished), and traceability reference. No unit is dispatched without a completed inspection record.

Key Features for System Maintenance

• Drop-in Replacement: The 408100-00 installs directly into the existing IDD 9000 chassis slot with no mechanical modification required.
• No Reprogramming Required: The module operates on hardware-configured signal conditioning logic. Replacement does not require PLC reprogramming, DCS configuration changes, or software licensing.
• No Engineering Rework: Wiring terminations, detector loop connections, and relay output wiring remain unchanged. Replacement is a maintenance-level task, not an engineering project.
• Immediate Operational Restoration: Facilities can return the burner to service within the same maintenance window, avoiding extended production outages.
• Asset Life Extension: Maintaining a strategic spare of the 408100-00 extends the operational life of the entire IDD 9000 BMS installation by 5 to 10 years, deferring capital expenditure until a planned, budgeted system transition is feasible.

FAQ

Q: What warranty applies to a discontinued module like the 408100-00?
A: DriveKNMS provides a 90-day functional warranty on all refurbished units and a 12-month warranty on verified new-surplus units. Warranty terms are confirmed in writing at the time of quotation.

Q: How do I confirm the unit is genuine and not a counterfeit?
A: All units are sourced from traceable industrial surplus channels. Physical markings, PCB revision codes, and component date codes are verified against known-good reference units. Inspection records are available upon request.

Q: Should I purchase more than one unit?
A: For any IDD 9000 installation with more than two burner loops, holding a minimum of two 408100-00 spares is recommended. Global inventory of this module is finite and diminishing. Procurement delays of 6 to 18 months are common once current surplus stocks are exhausted.

Q: Can DriveKNMS source other IDD 9000 Series components?
A: Yes. Contact us with your full bill of materials for the IDD 9000 system. We maintain sourcing networks for the broader IDD 9000 module range and can advise on availability and lead times.
