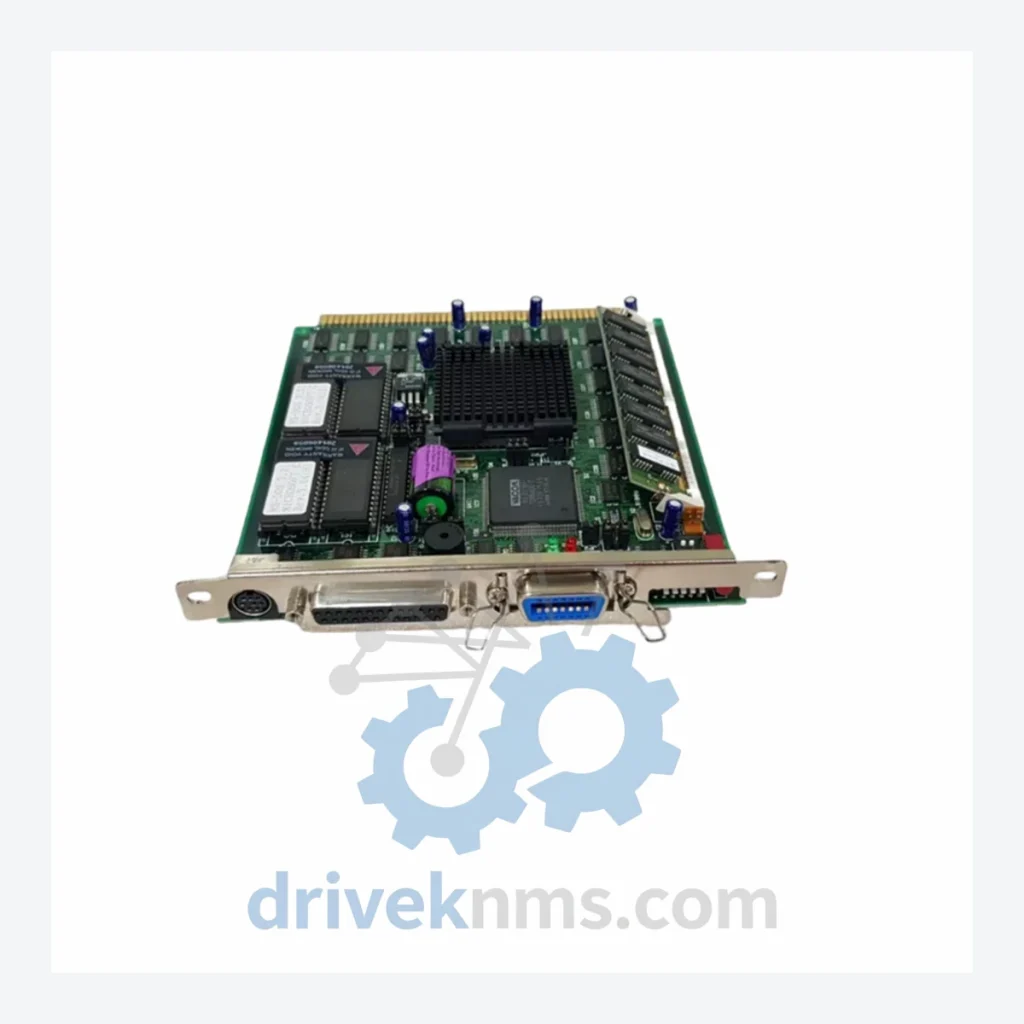

Fuji Electric PRTM-040 Modules

Technical Dossier

Product Details And Specifications

Fuji Electric PRTM-040 Series: Comprehensive Module Range and Technical Overview

The Fuji Electric PRTM-040 series control boards are deployed across heavy industrial sectors including petrochemical refineries, nuclear power auxiliary systems, steel rolling mills, and large-scale water treatment facilities. The PRTM-040 platform serves as a core gate drive and control interface board within Fuji Electric's FRENIC and FRN inverter drive families, managing IGBT firing sequences, fault detection logic, and analog/digital signal conditioning. Its installed base spans Asia-Pacific, the Middle East, and Eastern Europe, where Fuji Electric variable frequency drives (VFDs) have maintained dominant market share in motor control center (MCC) applications since the 1990s. The MIG15Q901H variant specifically integrates a 15A IGBT gate drive module with onboard protection circuitry, making it a critical spare part for continuous-process industries where unplanned downtime carries significant operational cost.

The Evolution of PRTM-040 Architecture

The PRTM-040 control board lineage traces to Fuji Electric's early 1990s FRENIC5000 G7/P7 inverter platform, where discrete gate drive circuits were first consolidated onto a single replaceable PCB assembly. The original PRTM series used through-hole component construction with optocoupler-based gate isolation rated at 2500 Vrms. By the mid-1990s, Fuji transitioned to surface-mount technology (SMT) on the PRTM-040 revision, reducing board footprint by approximately 30% while increasing switching frequency support from 5 kHz to 15 kHz. The MIG15Q901H sub-assembly introduced an integrated IGBT module co-located on the control board, eliminating a separate power module interconnect and reducing failure points in high-vibration environments. Subsequent generations — including the PRTM-050 and PRTM-060 families — adopted CAN bus communication and digital parameter storage, but the PRTM-040 platform remains in active service due to the long replacement cycles typical of heavy industrial capital equipment. Compatibility constraints exist between PRTM-040 boards and later FRENIC-Mega and FRENIC-HVAC drive frames, which require firmware-matched control cards and are not backward-compatible without hardware modification.

PRTM-040 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the Fuji Electric PRTM-040 and closely associated control board families used across FRENIC-series inverter drives. Each entry reflects a distinct functional role within the drive control architecture.

PRTM-040 MIG15Q901H: Gate drive control board with integrated 15A IGBT module, FRENIC5000 G7/P7 series.
PRTM-040 MIG20J901H: Gate drive board variant with 20A IGBT rating for higher-current drive frames.
PRTM-040 MIG25J901H: 25A IGBT gate drive board, used in 11–15 kW FRENIC drive configurations.
PRTM-040 MIG30J901H: 30A IGBT control board for 18.5–22 kW inverter frames.
PRTM-040 MIG50Q901H: High-current 50A IGBT gate drive board for large-frame FRENIC drives.
EP-3638A: Analog signal conditioning and reference board, paired with PRTM-040 in G7 series.
EP-3955A: Digital I/O interface board, provides 16 DI / 8 DO for FRENIC5000 control rack.
EP-4116A: CPU main control board, FRENIC5000 G7 series, coordinates PRTM-040 gate signals.
EP-4117A: Enhanced CPU board with expanded parameter memory, FRENIC5000 P7 series.
EP-4118A: Communication interface board supporting RS-485 and Modbus RTU protocol.
EP-4119A: Encoder feedback board for closed-loop vector control in FRENIC5000 drives.
EP-4120A: Power supply board, 24 VDC control rail, FRENIC5000 G7/P7 chassis.
EP-4121A: Fault logging and display interface board, FRENIC5000 series.
EP-4122A: Analog input expansion board, 4-channel 12-bit ADC, FRENIC5000 platform.
EP-4123A: Relay output expansion board, 8-channel, for FRENIC5000 control applications.
EP-4124A: PG (pulse generator) speed feedback interface board, FRENIC5000 series.
EP-4125A: Fieldbus option board, PROFIBUS-DP interface for FRENIC5000 drives.
EP-4126A: DeviceNet communication option board, FRENIC5000 series.

Sourcing Hard-to-Find & Obsolete PRTM-040 Parts

Quality Control for the PRTM-040 Range

PRTM-040 control boards present specific testing challenges due to their integrated IGBT gate drive architecture and the age-related degradation patterns common in boards removed from long-running industrial drives. DriveKNMS applies a structured inspection and functional test protocol to all PRTM-040 units prior to dispatch. Visual inspection covers solder joint integrity, electrolytic capacitor condition (ESR measurement), optocoupler alignment, and PCB trace continuity across the gate drive signal path. Functional testing is performed using a dedicated FRENIC5000-compatible drive test bench that replicates actual operating conditions, including gate pulse timing verification at 5 kHz and 10 kHz switching frequencies, IGBT saturation voltage measurement, and fault output signal validation. Boards exhibiting gate drive propagation delay outside the ±50 ns specification are rejected. The MIG15Q901H IGBT sub-module is tested independently for Vce(sat) and leakage current before board-level integration testing. All tested units are issued a test report with measured parameters and are shipped with ESD-protective packaging rated to ANSI/ESD S20.20 standards.
