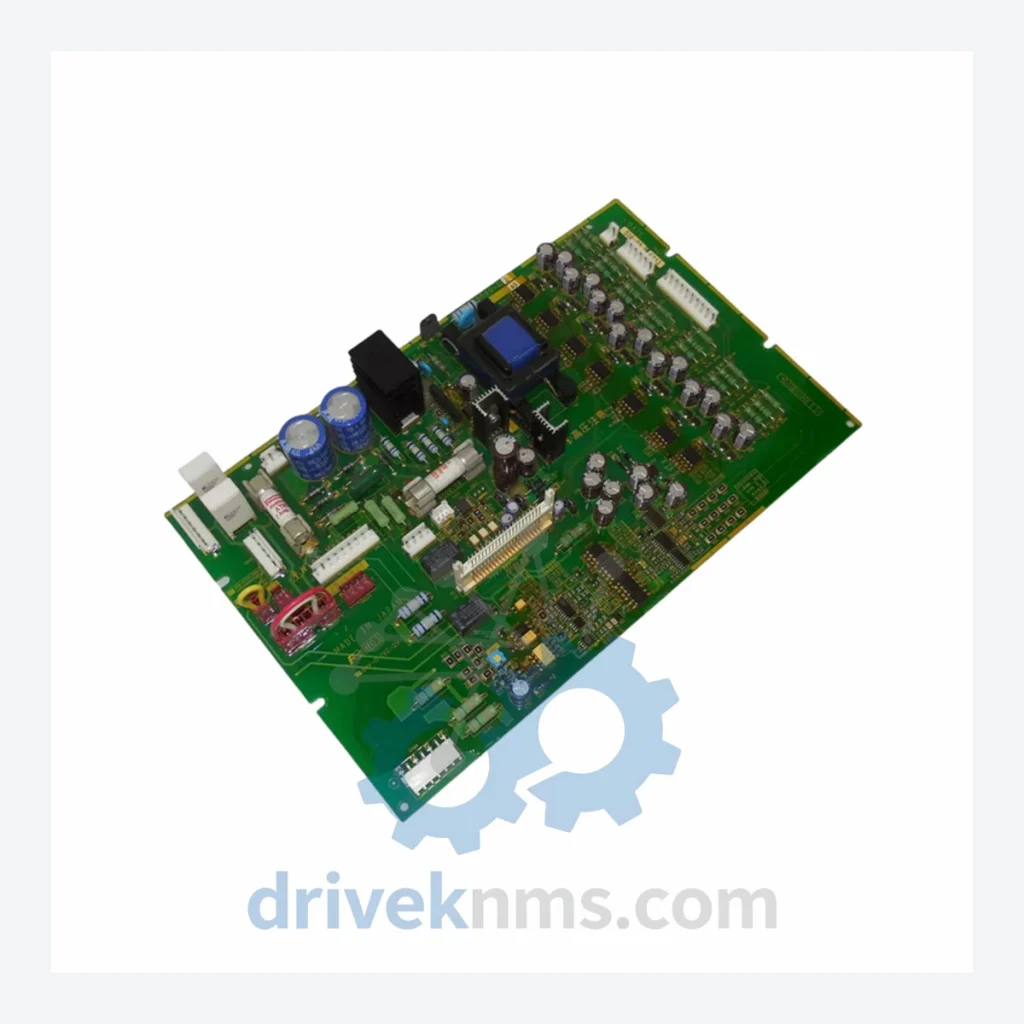

FUJI EP Series Drive Boards — EP-3965A-C2

Technical Dossier

Product Details And Specifications

FUJI EP Series: Comprehensive Module Range and Technical Overview

The FUJI EP Series represents a core family of power drive boards and control sub-assemblies deployed across heavy industrial sectors globally, including petrochemical refineries, nuclear power auxiliary systems, steel rolling mills, and large-scale chemical processing plants. Manufactured by Fuji Electric Co., Ltd. (Japan), EP Series boards serve as functional sub-components within FUJI FRENIC and G-series variable frequency drive (VFD) platforms. Their role spans gate drive signal conditioning, DC bus voltage regulation, power transistor protection, and feedback interface between the control card and the IGBT/IPM power stack. The EP-3965A-C2 specifically functions as a power drive board within mid-range FUJI inverter assemblies, providing isolated gate drive outputs and fault detection logic for the main switching devices.

Installed base data indicates EP Series boards remain active in facilities commissioned between the late 1990s and mid-2010s. Given the 15–25 year operational lifespan typical of heavy industrial drive systems, demand for EP Series spare parts remains structurally sustained even as the series approaches end-of-production status.

The Evolution of EP Series Architecture

The FUJI EP Series evolved in parallel with the FRENIC5000 G7/P7 and FRENIC-Multi drive platforms. Early-generation EP boards (circa 1998–2004) used through-hole component construction with discrete optocoupler arrays for gate isolation. Mid-generation variants (2004–2010) transitioned to surface-mount technology (SMT), integrating hybrid gate driver ICs and onboard current sensing resistors. Late-generation EP boards introduced enhanced EMC filtering and compatibility with IGBT modules rated at higher switching frequencies (up to 15 kHz carrier).

Compatibility across sub-generations is not guaranteed. Boards are keyed to specific drive frame sizes and IGBT module types. Substitution requires verification of: connector pinout revision, gate resistor values, DC bus voltage rating (typically 400 V or 690 V class), and firmware-dependent fault threshold calibration. Cross-referencing the drive's nameplate data against the EP board part number suffix (e.g., -C2, -C3) is mandatory before replacement.

EP Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified EP Series power drive and control board part numbers associated with FUJI Electric inverter platforms. Each entry reflects a distinct functional role within the drive assembly.

EP-3965A-C2: Power drive board for mid-frame FUJI inverter; isolated gate drive outputs, IGBT fault detection.
EP-3964A: Gate drive interface board; compatible with 400 V class FRENIC5000 G7 series.
EP-3966A: High-voltage drive board variant; rated for 690 V class applications in heavy industrial frames.
EP-3967A: Dual-channel gate drive board; used in parallel IGBT configurations for high-current output stages.
EP-3968A: Power supply sub-board; generates isolated auxiliary voltages for gate drive and control logic.
EP-3970A: Current feedback board; interfaces Hall-effect sensors with the main control card.
EP-3971A: Snubber and protection board; integrates RC snubber networks and overvoltage clamp circuits.
EP-3972A: Fan control and thermal management board; monitors heatsink NTC thermistors and controls cooling fans.
EP-3973A: Communication interface sub-board; supports RS-485 and early PROFIBUS-DP physical layer connections.
EP-3974A: Analog I/O expansion board; provides additional 0–10 V and 4–20 mA signal conditioning channels.
EP-3975A: Digital I/O interface board; 16-point optocoupler-isolated DI/DO for external interlock wiring.
EP-3976A: Brake chopper drive board; controls dynamic braking IGBT and monitors braking resistor temperature.
EP-3977A: Rectifier gate drive board; used in active front-end (AFE) regenerative drive configurations.
EP-3978A: Encoder feedback interface board; supports incremental encoders up to 1024 PPR for closed-loop vector control.
EP-3979A: Keypad and display interface board; connects operator panel to main control logic via flat-flex cable.
EP-3980A: EMC filter interface board; integrates common-mode choke connections and Y-capacitor switching for compliance modes.

Sourcing Hard-to-Find & Obsolete EP Series Parts

DriveKNMS maintains a dedicated inventory program for FUJI EP Series boards that have reached end-of-production (EOP) or limited-availability status. For facilities operating FUJI FRENIC5000 or legacy G-series drives, unplanned downtime caused by a failed EP board can result in production losses measured in hours or days. DriveKNMS addresses this through three sourcing channels: new-old-stock (NOS) units sourced from authorized distributor closeouts, tested-used units recovered from decommissioned drive assemblies, and remanufactured boards where component-level repair restores full functional specification.

All EP Series boards sourced through DriveKNMS are cross-referenced against the original FUJI part number database to confirm revision compatibility. Customers are advised to provide the full drive nameplate data (model, serial number, manufacturing date) alongside the EP board part number to ensure correct revision matching. Lead times for NOS units are typically 3–10 business days; remanufactured units require 5–15 business days depending on component availability.

Quality Control for the EP Series Range

EP Series power drive boards undergo a structured test protocol at DriveKNMS prior to dispatch. The procedure addresses the specific failure modes common to this board family: optocoupler degradation (measured by CTR verification at rated forward current), gate resistor drift (checked against OEM tolerance bands of ±1%), electrolytic capacitor ESR measurement (compared against new-unit reference values), and isolation voltage testing (1500 V AC for 60 seconds between gate drive outputs and logic ground). Boards with SMT construction are additionally inspected under 10× magnification for solder joint integrity and PCB delamination. Functional testing is performed using a drive simulator that replicates the control card's PWM output signals and verifies correct gate pulse timing and fault response latency. Each board is issued a test report documenting pass/fail results for all parameters before shipment.
