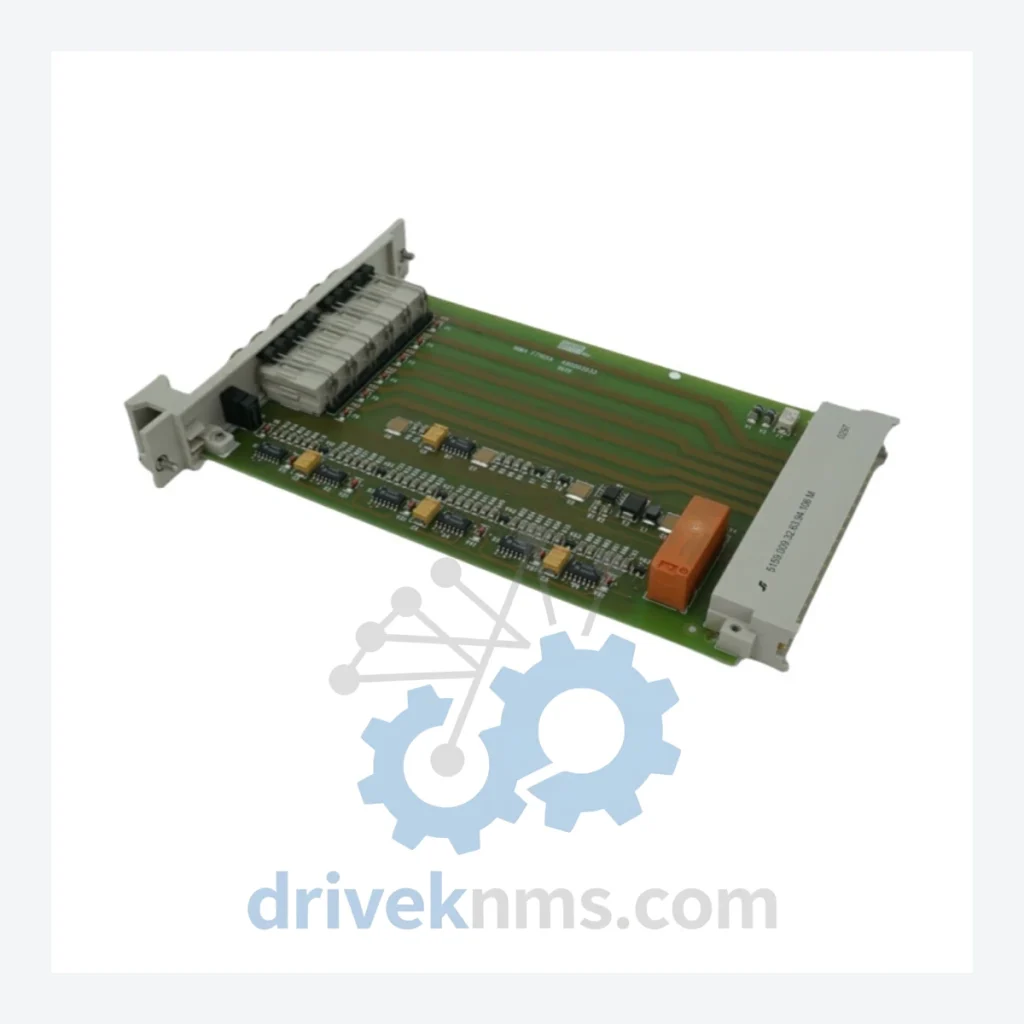

HIMA F71xx Series Modules: F7105A

Technical Dossier

Product Details And Specifications

HIMA F71xx Series: Comprehensive Module Range and Technical Overview

The HIMA F71xx series represents one of the most widely deployed safety-rated PLC backplane and I/O module families in global heavy industry. Installed across petrochemical complexes, nuclear power stations, offshore platforms, and refinery control systems, the F71xx architecture forms the hardware backbone of HIMA's HIMax and legacy HIMatrix safety systems. Its modular backplane design supports SIL 2 and SIL 3 certified configurations under IEC 61508, making it a reference standard for functional safety engineers specifying emergency shutdown (ESD), fire and gas (F&G), and burner management systems (BMS). The series remains active in thousands of installed base sites globally, with long-term spare parts demand driven by 20–30 year plant lifecycles.

The Evolution of F71xx Architecture

The F71xx series was introduced as part of HIMA's transition from relay-based safety logic to fully programmable safety PLCs in the late 1990s. Early variants such as the F7101 and F7102 established the modular backplane concept, allowing field engineers to configure I/O density without redesigning the cabinet layout. The architecture adopted a passive backplane bus with active module insertion, enabling hot-swap capability on select variants — a critical requirement for continuous-process industries where planned shutdowns are measured in years, not weeks.

By the mid-2000s, HIMA expanded the F71xx range to include dedicated communication adapters (PROFIBUS, Modbus, Ethernet) and high-density digital I/O modules, addressing the growing demand for integration with DCS platforms from Honeywell, Emerson, and ABB. The series reached its architectural maturity with the introduction of the F7126 and F7130 CPU modules, which supported dual-redundant processor configurations and deterministic scan times below 10 ms for large I/O counts.

As HIMA's HIMax platform emerged in the 2010s as the next-generation architecture, the F71xx series entered a managed lifecycle phase. HIMA continued to manufacture and support the series for existing installed bases, but new greenfield projects migrated to HIMax. This lifecycle status makes F71xx modules — including the F7105A — increasingly dependent on specialist spare parts suppliers for long-term plant maintenance.

F71xx Full Catalog & Functionalities (SKU List)

Controller / CPU Modules

• F7126: Dual-redundant CPU module, 32-bit processor, deterministic safety scan
• F7130: High-capacity CPU with extended memory, supports large I/O configurations
• F7131: CPU module with integrated Ethernet port for engineering station connectivity
• F7133: Redundant CPU module, SIL 3 rated, hot-standby switchover <10 ms

Backplane / Plate Modules

• F7105A: PLC plate module, passive backplane carrier, supports up to 8 I/O module slots
• F7101: Base backplane plate, single-row configuration, standard rack mounting
• F7102: Extended backplane, dual-row, supports expanded I/O density
• F7103: Backplane plate with integrated bus termination resistors

Digital Input (DI) Modules

• F7110: 16-channel 24 VDC digital input module, SIL 2 certified
• F7111: 32-channel digital input, high-density configuration, DIN rail compatible
• F7112: 16-channel DI with NAMUR sensor interface for intrinsically safe field devices

Digital Output (DO) Modules

• F7120: 16-channel 24 VDC digital output, solid-state relay, SIL 2
• F7121: 8-channel high-current DO module, 2A per channel, relay output
• F7122: 16-channel DO with diagnostics feedback loop for valve position verification

Analog Input (AI) Modules

• F7140: 8-channel 4–20 mA analog input, 12-bit resolution, HART pass-through
• F7141: 16-channel AI module, configurable 0–10 V / 4–20 mA per channel

Communication Adapters

• F7150: PROFIBUS DP master/slave communication adapter, up to 12 Mbit/s
• F7155: Modbus RTU/TCP gateway module, dual-port RS-485 and Ethernet

Power Supply Modules

• F7160: 24 VDC redundant power supply module, 10A output, active current sharing
• F7161: 48 VDC input power supply, suitable for telecom-standard cabinet power rails

Sourcing Hard-to-Find & Obsolete F71xx Parts

As the F71xx series has entered its extended lifecycle phase, OEM lead times for modules such as the F7105A, F7110, and F7126 have extended significantly or been discontinued entirely. DriveKNMS maintains a dedicated inventory of tested F71xx spare parts sourced from decommissioned plant equipment, authorized surplus channels, and long-term storage stock.

For plant operators running HIMA F71xx-based ESD or F&G systems, DriveKNMS provides: same-day availability checks on critical modules, cross-reference verification against HIMA part numbers and revision levels, and export-compliant shipping to over 80 countries. Procurement teams managing multi-year maintenance contracts are encouraged to submit consolidated bill-of-materials (BOM) lists for bulk quotation.

Quality Control for the F71xx Range

F71xx modules present specific test challenges due to their passive backplane bus architecture and safety-rated I/O circuits. DriveKNMS applies a structured verification protocol to all F71xx units prior to dispatch:

• Backplane bus continuity test: All backplane connector pins verified for continuity and isolation resistance (>10 MΩ between signal rails).
• Module slot interface check: Each slot connector inspected for bent pins, oxidation, and mechanical seating depth using calibrated gauge tools.
• Functional power-on test: Modules installed in a reference F71xx rack and powered to verify LED status indicators, watchdog timer behavior, and communication bus acknowledgment.
• I/O channel verification: For DI/DO/AI modules, each channel is stimulated and measured against HIMA factory specification tolerances.
• Firmware revision logging: Firmware version recorded and cross-referenced against HIMA compatibility matrices for the target CPU revision.
• ESD packaging: All units shipped in anti-static bags with desiccant packs and rigid foam inserts rated for international air freight.
