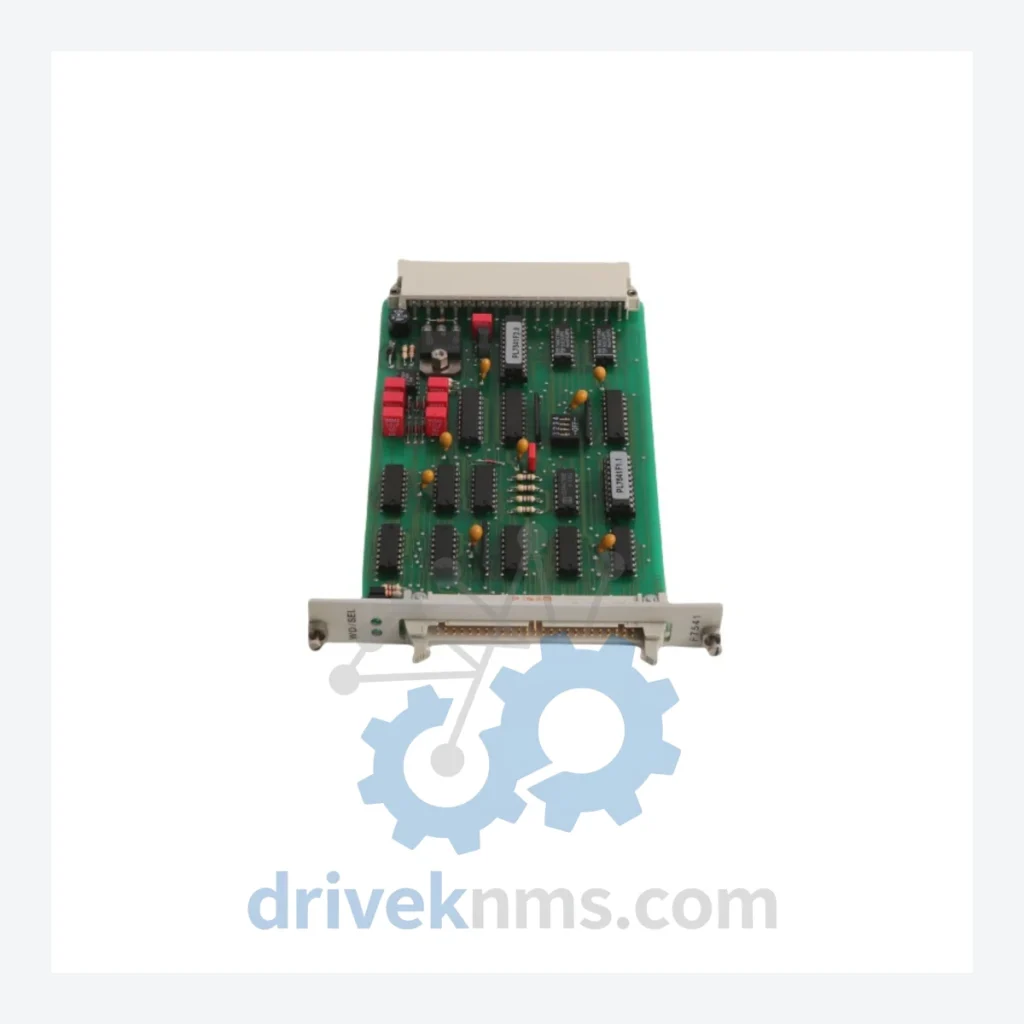

HIMA F7546 I/O Bus Coupling Module: F7000 Series Specs, Models & Availability

Technical Dossier

Product Details And Specifications

HIMA F7000 Series: Comprehensive Module Range and Technical Overview

The HIMA F7000 series represents one of the most widely deployed safety instrumented system (SIS) platforms in global heavy industry. Installed across petrochemical complexes, nuclear power stations, offshore platforms, and refinery process units, the F7000 architecture is certified to IEC 61508 SIL 3 and has accumulated decades of field-proven operational history. The F7546 I/O Bus Coupling Module is a core backplane communication component within this architecture, responsible for coupling field I/O modules to the central safety bus. Its role is critical in distributed safety loop configurations where signal integrity and deterministic bus timing are non-negotiable.

The Evolution of F7000 Series Architecture

HIMA introduced the F7000 platform as a successor to earlier relay-based and first-generation programmable safety controllers. The architecture evolved through several distinct phases. Early F7000 deployments used parallel backplane wiring with discrete I/O addressing; subsequent revisions introduced serial bus coupling — the function served by modules such as the F7546 — enabling higher channel density and reduced wiring overhead. The F7000 series operates on HIMA's proprietary HIMax and HIQuad communication protocols in legacy configurations, with later variants offering gateway compatibility to PROFIBUS-DP and Modbus RTU. Compatibility between sub-generations requires careful verification: F7546 and related bus coupling modules are generation-specific and are not hot-swappable across all backplane revisions. As the F7000 series has entered its mature-to-end-of-life phase, HIMA has transitioned new projects to the HIMax and HIQuad platforms; however, the installed base of F7000 systems in long-lifecycle industries (nuclear, refining) remains substantial, making spare part availability a primary operational concern.

F7000 Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly referenced components within the HIMA F7000 safety system platform. Each entry reflects a distinct functional role within the system architecture.

I/O Bus Coupling & Backplane Communication

• F7546: I/O bus coupling module; bridges field I/O modules to the central safety bus in F7000 rack configurations.
• F7544: Bus coupler module for F7000 series; supports multi-rack expansion via serial backplane interface.
• F7548: Extended bus coupling module; used in high-density I/O configurations requiring additional bus segment capacity.

Digital Input (DI) Modules

• F7126: 16-channel 24 VDC digital input module; SIL 3 rated; used for discrete field device monitoring.
• F7128: 32-channel 24 VDC digital input module; high-density DI for large process units.
• F7130: 16-channel 120 VAC digital input module; suitable for legacy field wiring at higher voltage levels.
• F7132: 16-channel 230 VAC digital input module; used in European-standard field installations.

Digital Output (DO) Modules

• F7226: 16-channel 24 VDC digital output module; SIL 3 rated; drives solenoid valves and relay coils.
• F7228: 8-channel high-current 24 VDC digital output module; for actuators with elevated current draw.
• F7230: 16-channel relay output module; provides galvanic isolation for mixed-voltage field circuits.

Analog Input (AI) Modules

• F7036: 8-channel 4–20 mA analog input module; SIL 2/3 rated; standard process variable acquisition.
• F7038: 8-channel ±10 V / 4–20 mA configurable analog input; supports transmitter and voltage source inputs.
• F7040: 4-channel RTD/thermocouple input module; for temperature measurement in safety loops.

Analog Output (AO) Modules

• F7136: 4-channel 4–20 mA analog output module; used for positioner and control valve feedback signals.

CPU & Controller Modules

• F8650E: Central processing unit for F7000/F8000 hybrid configurations; executes safety application logic.
• F8651E: Redundant CPU module; paired with F8650E for 1oo2D voting architecture in SIL 3 applications.

Power Supply Modules

• F7553: 24 VDC rack power supply module; provides regulated bus power to F7000 I/O backplanes.
• F7554: Redundant power supply module; supports hot-standby power configuration for continuous availability.

Sourcing Hard-to-Find & Obsolete F7000 Series Parts

The HIMA F7000 series is no longer in active production for new system builds. HIMA's official support lifecycle for this platform has transitioned to best-effort spare part availability, with no guarantee of continued manufacturing. For operators of F7000-based safety systems — particularly in nuclear, refining, and long-cycle chemical plant environments — this creates a procurement risk that must be managed proactively.

DriveKNMS maintains a dedicated inventory of F7000 series modules, including the F7546 and related bus coupling, I/O, and power supply components. Stock is sourced from decommissioned systems, certified refurbishment programs, and verified surplus channels. All units are catalogued by part number, hardware revision, and firmware version where applicable. DriveKNMS provides lifecycle extension support including cross-reference analysis (identifying functional equivalents within the HIMax/HIQuad platform for migration planning), multi-year supply agreements for maintenance contractors, and emergency same-day dispatch for critical plant shutdowns.

Quality Control for the F7000 Series Range

F7000 series modules present specific test challenges due to their proprietary backplane bus protocol and safety-rated internal diagnostics. DriveKNMS applies a structured verification process to all F7000 inventory prior to dispatch. Each module undergoes visual inspection for backplane connector wear, capacitor condition, and conformal coating integrity. Functional testing is performed using HIMA-compatible rack test fixtures that simulate live bus communication, verifying that the module correctly responds to bus polling cycles and reports no internal fault codes. For bus coupling modules such as the F7546, bus timing and signal propagation delay are measured against HIMA's published specification tolerances. Analog I/O modules are calibrated against traceable reference standards. All tested units are issued a test record documenting pass criteria, test date, and technician identification. Units that fail any test parameter are quarantined and not returned to saleable stock.
