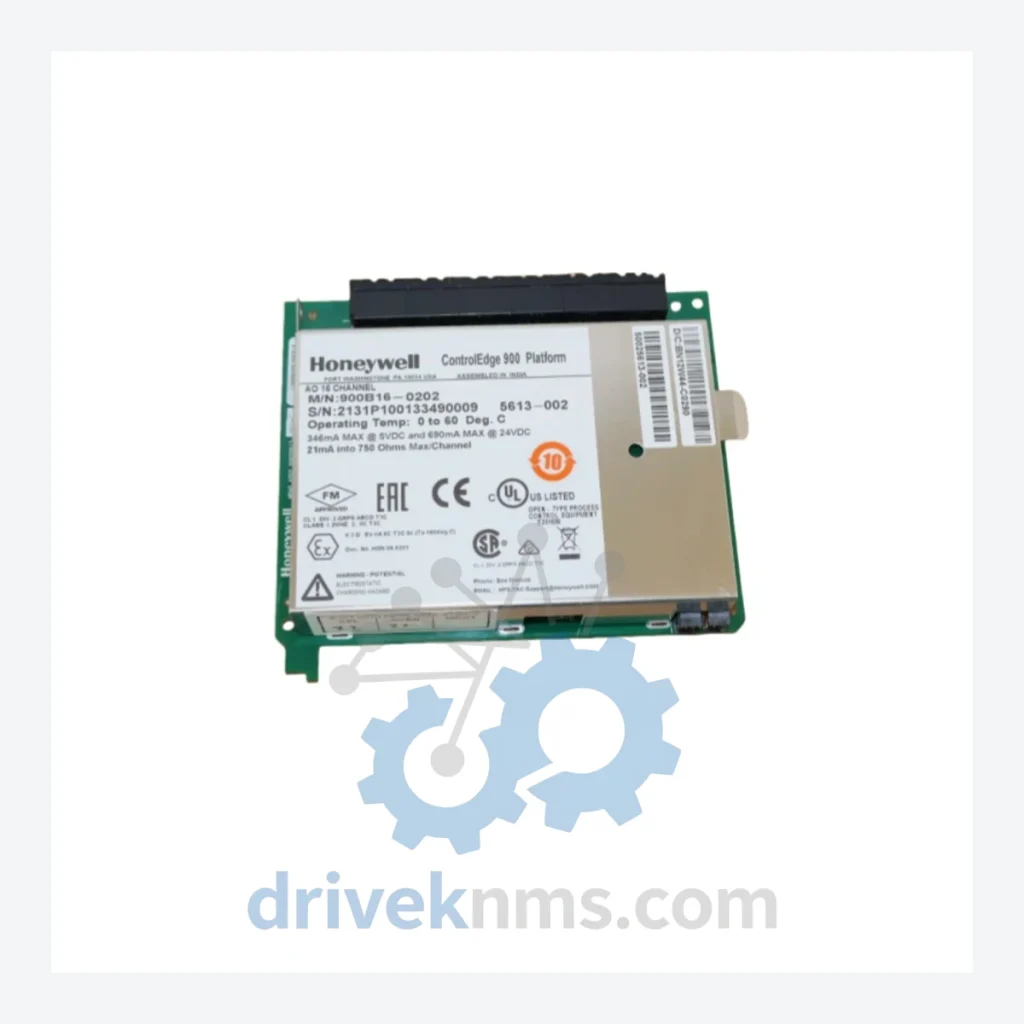

Honeywell HC900 Series Modules – 900B16-0202

Technical Dossier

Product Details And Specifications

Honeywell HC900 Series Technical Notes

The Evolution of HC900 Architecture

The HC900 platform was introduced by Honeywell in the early 2000s as a successor to the HC900 Hybrid Controller line, consolidating analog loop control and discrete logic into a single rack environment. Early revisions used 10/100 Ethernet backplane communication with firmware versions below 3.0, which imposed limits on peer-to-peer node counts and function block execution rates. Firmware 4.x introduced enhanced PID algorithm libraries and expanded the maximum I/O count per rack. The C30, C50, and C70 CPU variants were released progressively to address processing load requirements: the C30 handles up to 256 I/O points, the C50 up to 512, and the C70 up to 2,048 in a fully expanded configuration.

HC900 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly deployed modules within the Honeywell HC900 platform. Each entry reflects a distinct hardware function within the system architecture.

CPU / Controller Modules

• 900C30-0243-00: C30 CPU, 256 I/O capacity, single Ethernet port, standard scan rate controller.
• 900C50-0243-00: C50 CPU, 512 I/O capacity, dual Ethernet, supports peer-to-peer networking up to 32 nodes.
• 900C70-0243-00: C70 CPU, 2048 I/O capacity, redundancy-ready, high-speed function block execution.
• 900C70R-0243-00: C70R redundant CPU module, hot-standby failover, bumpless transfer on fault detection.

Analog Input Modules

• 900G16-0101: 16-channel analog input, 4–20 mA / 0–10 V, 16-bit resolution, HART pass-through capable.
• 900G16-0102: 16-channel analog input with enhanced noise filtering, suited for high-EMI field environments.
• 900B16-0101: 16-channel thermocouple/mV input module, supports J, K, T, E, R, S, B type thermocouples.
• 900B16-0201: 16-channel RTD input module, supports PT100/PT1000, 3-wire and 4-wire configurations.
• 900B16-0202: 16-channel temperature/resistance input module, extended range RTD and thermocouple, dual-type mixed channel support, field-selectable input type per channel.

Analog Output Modules

• 900G08-0101: 8-channel analog output, 4–20 mA, 12-bit DAC, loop-powered field devices.
• 900G08-0102: 8-channel analog output with HART communication, supports field device diagnostics via output channel.

Digital Input Modules

• 900H16-0101: 16-channel digital input, 24 VDC, dry contact and wet contact selectable, 1 ms debounce filter.
• 900H32-0101: 32-channel digital input, 24 VDC, high-density rack configuration, group isolation per 8 channels.

Digital Output Modules

• 900H16-0301: 16-channel digital output, 24 VDC sourcing, 0.5 A per channel, short-circuit protected.
• 900H08-0301: 8-channel relay output, Form C contacts, 2 A at 250 VAC, suitable for motor starter interlock circuits.

Communication & Network Modules

• 900RIO-0001: Remote I/O adapter, extends HC900 I/O rack over Ethernet to remote field locations up to 100 m.
• 900MIO-0001: Modbus RTU/ASCII serial communication module, RS-485, supports up to 247 slave devices.

Power Supply Modules

• 900P01-0001: 24 VDC rack power supply, 40 W, single-feed, standard rack configurations.
• 900P02-0001: Redundant power supply module, dual-feed hot-swap, automatic failover, for critical process racks.

Sourcing Hard-to-Find & Obsolete HC900 Parts

Lifecycle extension services include firmware compatibility verification, hardware revision matching for mixed-rack environments, and documentation packages (datasheet, wiring diagram, firmware compatibility matrix) supplied with each unit.

Quality Control for the HC900 Range

HC900 modules present specific test challenges due to their backplane bus communication protocol and multi-channel analog signal conditioning circuits. DriveKNMS applies a structured test protocol for each module category:

• CPU Modules (C30/C50/C70/C70R): Powered in a live HC900 rack with Designer software connection verification, peer-to-peer link test, and redundancy switchover test for R-series units. Firmware version is read and documented.
• Analog Input Modules (900B16-0202 and related): Each channel is stimulated with calibrated signal sources (thermocouple simulator, precision RTD decade box). Channel-to-channel isolation is verified. Accuracy is checked against Honeywell published specifications (±0.1% of span typical).
• Digital I/O Modules: All channels are cycled through ON/OFF states under load. Relay output modules are tested for contact resistance (<100 mΩ) and rated current switching.
• Communication Modules: Modbus RTU and Ethernet link establishment is verified with live polling from a test master. Frame error rates are logged over a 30-minute soak period.
• Power Supplies: Output voltage regulation is measured under 25%, 50%, and 100% rated load. Ripple and noise are measured with an oscilloscope. Redundant units are tested for failover transition time (<20 ms).
