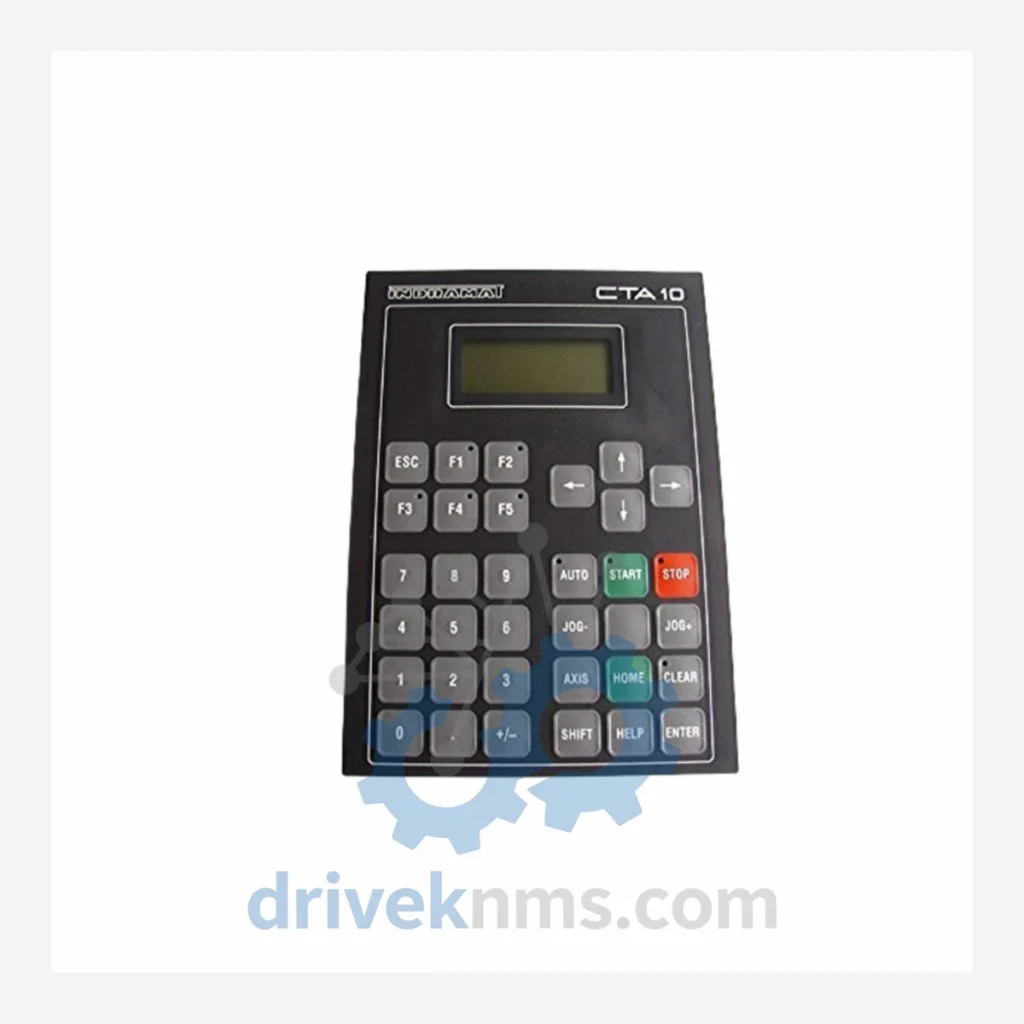

INDRAMAT CTA Series Modules: CTA10.1B-000-FW

Technical Dossier

Product Details And Specifications

INDRAMAT CTA Series: Comprehensive Module Range and Technical Overview

The INDRAMAT CTA series represents a family of operator panel and visualization interface units developed by INDRAMAT (later integrated into Bosch Rexroth) for use within the DIAX, ECODRIVE, and TRANSDYN drive control architectures. These units have accumulated significant installed base across global heavy industry sectors including petrochemical refineries, nuclear power auxiliary systems, steel rolling mills, and large-scale chemical processing plants. The CTA series serves as the human-machine interface (HMI) layer between the operator and the underlying servo drive or CNC controller, providing parameter display, fault diagnostics, and commissioning access. Due to the long operational lifecycles typical of these industries—often exceeding 20–30 years—CTA modules remain in active demand as maintenance and replacement components long after their original production discontinuation.

The Evolution of CTA Series Architecture

The CTA series was introduced as part of INDRAMAT's modular drive system philosophy in the late 1980s and early 1990s. Early variants were designed for direct panel mounting on INDRAMAT rack systems and communicated via proprietary serial backplane protocols. The architecture evolved through several generations:

Generation 1 (CTA01–CTA05): Basic alphanumeric display units with limited parameter access, designed for DIAX01 and DIAX02 drive families. Communication relied on RS-232 and proprietary INDRAMAT bus protocols. These units are now fully obsolete with no OEM production.

Generation 2 (CTA06–CTA09): Expanded display capability with graphical LCD panels, introduced compatibility with ECODRIVE Cs and DIAX04 platforms. Firmware became field-upgradeable via serial download. Compatibility issues arise when mixing CTA06/07 units with later DIAX04 firmware revisions above V06.

Generation 3 (CTA10–CTA12): The CTA10 sub-family, including the CTA10.1B-000-FW, represents the most widely deployed generation. These units introduced enhanced diagnostics, multi-language support, and compatibility with both ECODRIVE03 and DIAX04 drive systems. The CTA10.1B-000-FW specifically functions as a visualization unit (Visualisierungs-Einheit) with firmware pre-loaded (FW suffix). Successor platforms migrated to Bosch Rexroth IndraDrive HMI panels (HMI01, HMI02), which are not backward-compatible with CTA wiring harnesses without adapter kits.

Compatibility note: CTA10 units require matching firmware revision alignment with the host drive controller. Mismatched firmware between the CTA panel and the drive's parameter set can result in display errors or parameter write failures.

CTA Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the INDRAMAT CTA series, organized by functional category. All models listed are confirmed INDRAMAT part numbers.

Visualization & Operator Panel Units

CTA10.1B-000-FW: Visualization unit for DIAX/ECODRIVE, firmware pre-installed, panel-mount.
CTA10.1A-000-FW: Earlier hardware revision of CTA10.1B, identical function, different PCB revision.
CTA10.2A-000-FW: Extended display variant with additional status LEDs for fault channel monitoring.
CTA10.3A-000-FW: High-contrast LCD version for high-ambient-light industrial environments.
CTA11.1A-000-FW: Compact visualization unit for space-constrained panel installations.
CTA11.2A-000-FW: Dual-channel display unit supporting simultaneous monitoring of two drive axes.
CTA12.1A-000-FW: Enhanced CTA12 sub-family unit with extended parameter memory buffer.

Communication & Interface Adapters

CTA01.1A-000-FW: First-generation serial interface panel, RS-232 output, DIAX01 compatible.
CTA02.1A-000-FW: RS-232/RS-485 dual-mode interface unit for multi-drop drive networks.
CTA03.1A-000-FW: PROFIBUS-DP interface adapter variant for CTA panel integration.
CTA04.1A-000-FW: Interbus-S communication interface panel for INDRAMAT drive systems.
CTA05.1A-000-FW: DeviceNet gateway variant, CTA form factor, DIAX02/ECODRIVE compatible.

Diagnostic & Parameter Access Units

CTA06.1A-000-FW: Graphical LCD diagnostic panel, ECODRIVE Cs compatible, Generation 2.
CTA07.1A-000-FW: Extended diagnostic unit with fault history log storage, 50-event buffer.
CTA08.1A-000-FW: Parameter cloning unit enabling drive-to-drive parameter transfer via CTA interface.
CTA09.1A-000-FW: Multi-axis diagnostic panel supporting up to 4 DIAX04 axes simultaneously.

Sourcing Hard-to-Find & Obsolete CTA Series Parts

The entire INDRAMAT CTA series has been discontinued by Bosch Rexroth. OEM new-old-stock (NOS) inventory is exhausted at most authorized distribution channels. DriveKNMS maintains a dedicated inventory program for CTA series lifecycle extension, covering the following supply scenarios:

New Old Stock (NOS): Where original sealed units remain available from legacy distributor stock, DriveKNMS sources and verifies these against original INDRAMAT packaging and date codes.

Professionally Refurbished Units: CTA panels returned from decommissioned plant equipment undergo full disassembly, component-level inspection, capacitor replacement (electrolytic capacitors in display backlight circuits are a known failure point in aged CTA units), and firmware verification before restock.

Exchange Program: Customers with failed CTA units can submit their defective module for core credit against a tested replacement, reducing total replacement cost.

Emergency Dispatch: For unplanned production stoppages caused by CTA panel failure, DriveKNMS maintains priority dispatch capability with same-day shipping on in-stock units to minimize downtime in critical process industries.

Given the 20+ year installed base of CTA-equipped INDRAMAT systems in refineries and chemical plants, DriveKNMS treats CTA series support as a long-term maintenance commitment, not a clearance category.

Quality Control for the CTA Series Range

CTA series modules present specific quality verification challenges due to their combined display, firmware, and serial communication functions. DriveKNMS applies the following test protocol to all CTA units prior to dispatch:

Visual Inspection: PCB examination for corrosion, cracked solder joints (common on CTA10 backplane connectors after thermal cycling), and LCD panel delamination.

Power-On Functional Test: Each unit is powered via a calibrated bench supply matching INDRAMAT's specified input voltage range. Display initialization sequence, backlight operation, and keypad response are verified.

Firmware Version Verification: Firmware revision is read and documented. Units with corrupted or mismatched firmware are reflashed using verified INDRAMAT firmware images before dispatch.

Serial Communication Test: CTA units are connected to a reference INDRAMAT drive system (ECODRIVE03 or DIAX04 test bench) to verify full bidirectional parameter read/write communication, fault display accuracy, and drive response to panel commands.

Burn-In Cycle: Units are operated continuously for a minimum of 8 hours under load conditions to screen for latent component failures before packaging.

All test results are documented and a test certificate is available upon request for units destined for regulated industries (nuclear auxiliary, pharmaceutical, petrochemical).
